Product Description
2xLC DVI Fiber Extender,1310nm Laser, 4k*2k/30Hz, 2km
P/N: DVI-202S-T (TX)
DVI-202S-R (RX)
Features:
1. Support DVI resolution up to 1920*1200/60HZ(YUV 4:4:4);
2. Support HDMI resolution up to 3840*2160/30HZ(YUV 4:4:4), and 3840*2160/60Hz (YUV 4:2:0) with HDMI to DVI cable;
3. No DDC and HDCP;
4. Offers self-EDID programming feature, detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection
5. Distance is up to 500 meters over OM3 MMF, or 2km over SMF;
6. Detachable feature with 2x LC multi-mode fibers;
7. The modules are compact enough to directly plug to graphic sources and displays by adopting DVI plugs;
8. Includes two (2) +5V DC power adapters for the transmitter and receiver ;
9. Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present ;
Applications:
1. Digital FPDs, PDPs and projectors for medical appliances, aero, traffic control, factory, and bank
2. Digital FPDs and projectors in conference room and auditorium
3. Kiosk with digital FPDs showing full motion graphic displays from remote systems
4. PDP displays for information in public sites
5. LED signboards in streets and in stadiums
Technical:
| |
Parameter |
Specifications |
| Resolution |
Single Link DVI |
1920*1200/60Hz |
| |
HDMI (with HDMI to DVI cable) |
3840x2160/30Hz(YUV 4:4:0)
3840x2160/60Hz(YUV 4:2:0)
|
| Components |
Laser Diodes in Tx Module |
1310nm laser |
| |
Photo Diodes in Rx Module |
GaAs PIN-PD |
| Electrical |
Input and Output Signals |
TMDS Level (complying with DVI1.0) |
| |
Data Transfer Rate (Graphic Data) |
Max. 340 Gbps |
| |
Maximum Pixel Clock Frequency |
340Mb/s |
| |
Maximum Video Bit Rate |
10.3Gb/s |
| |
Total Jitter at the end of Rx output |
Max. 309 ps |
| |
Skew inter-channels |
Max. 6ns |
| Optical |
Link Power Budget |
Min 5.5dB |
| Mechanical |
Module dimension (mm) |
69.5WX39LX12.4H |
| Connect |
Optical Connector |
2X LC connector |
| |
Electric Connector Type from Systems and to Displays |
1+18 pins DVI-D plug |
| |
Recommended Fiber |
OM3 MM Fiber or Single-mode Fiber |
Drawing
Dimension [mm]

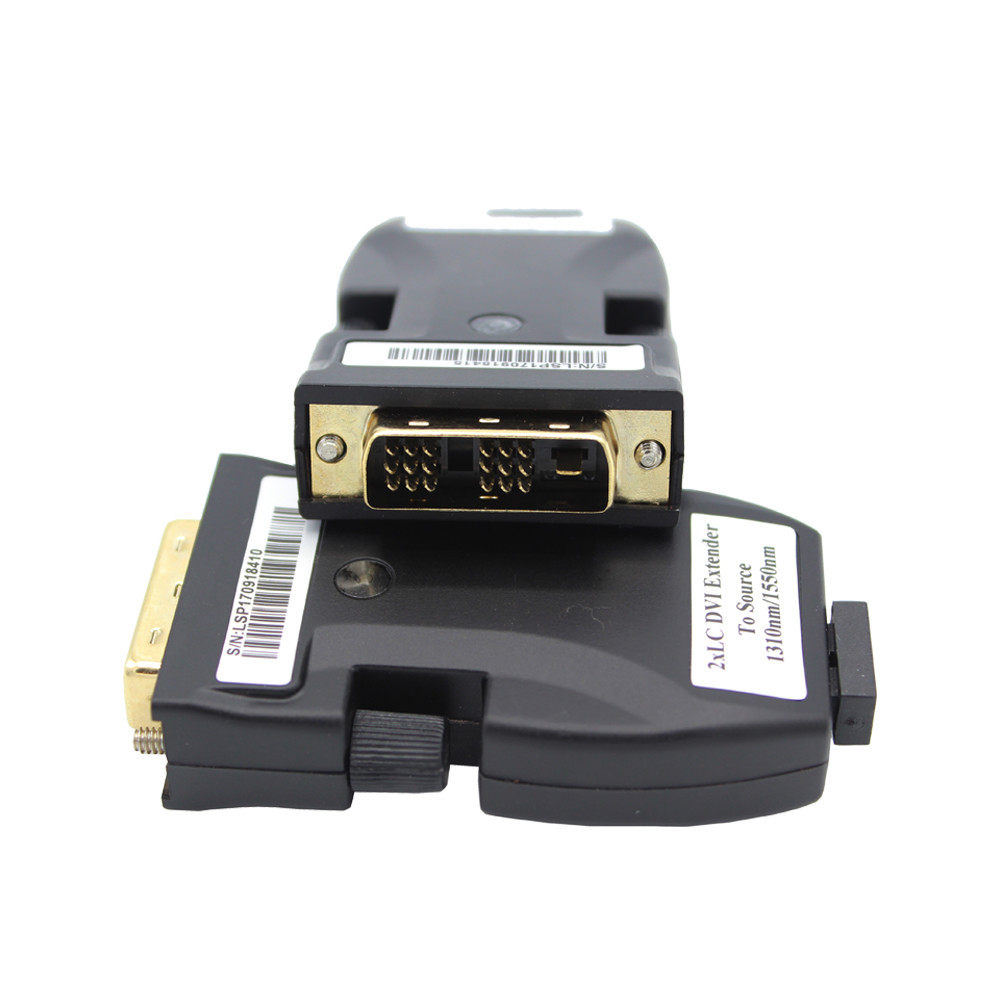

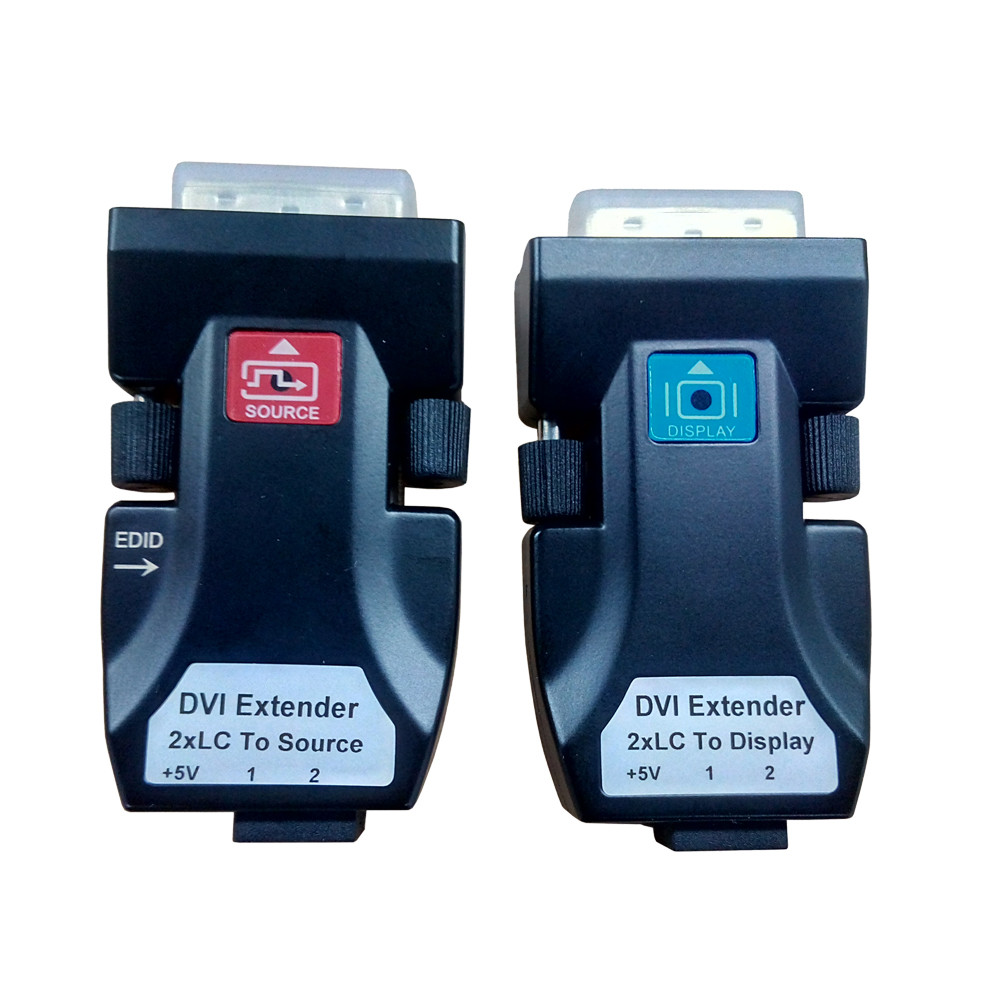

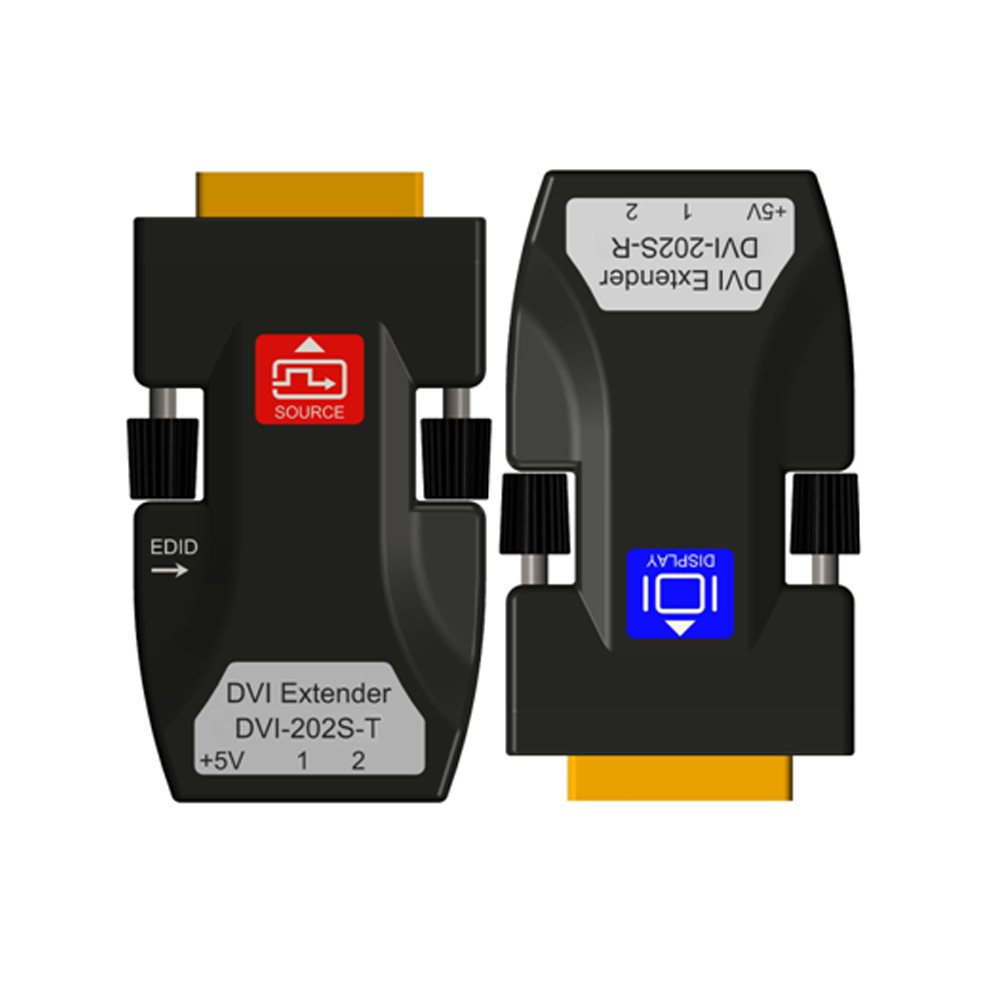

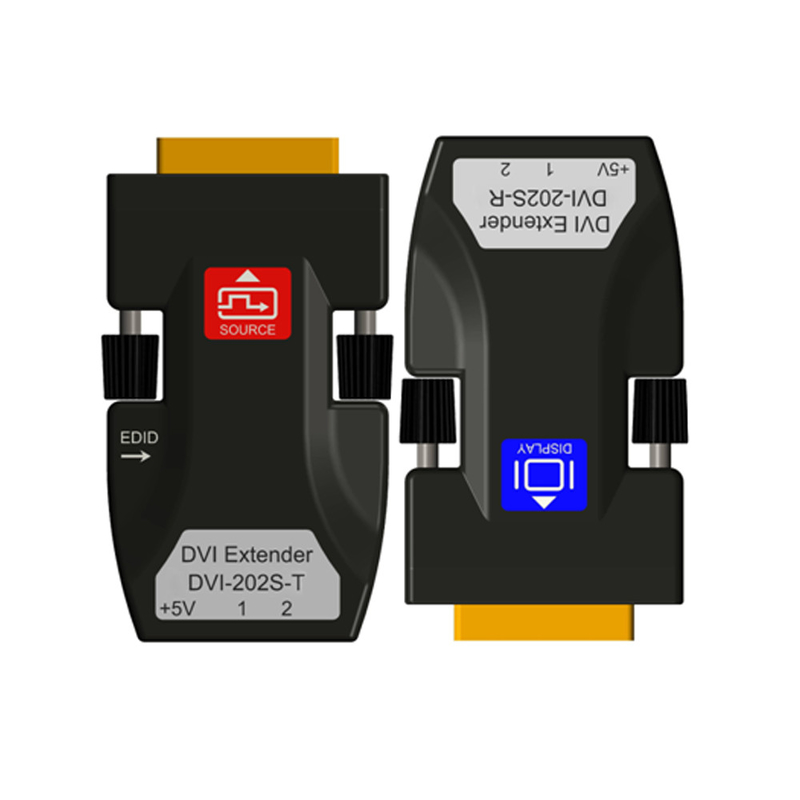

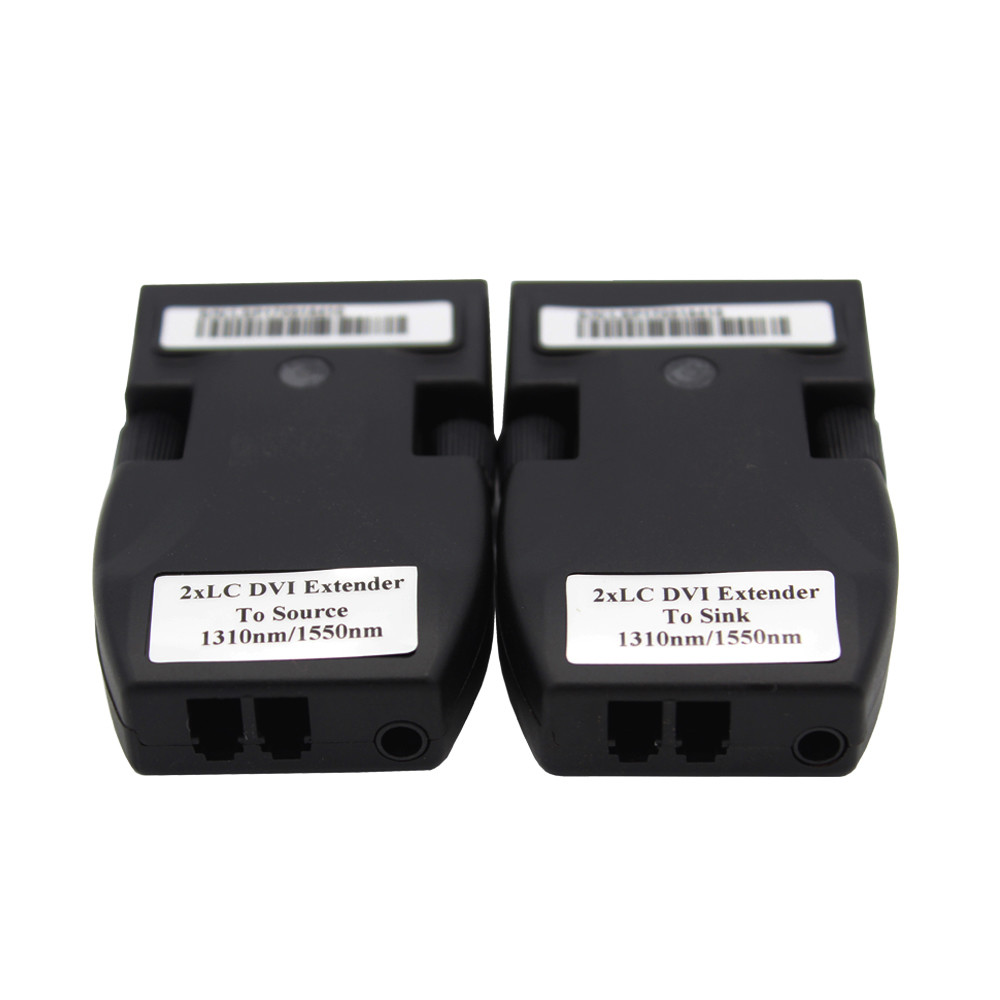

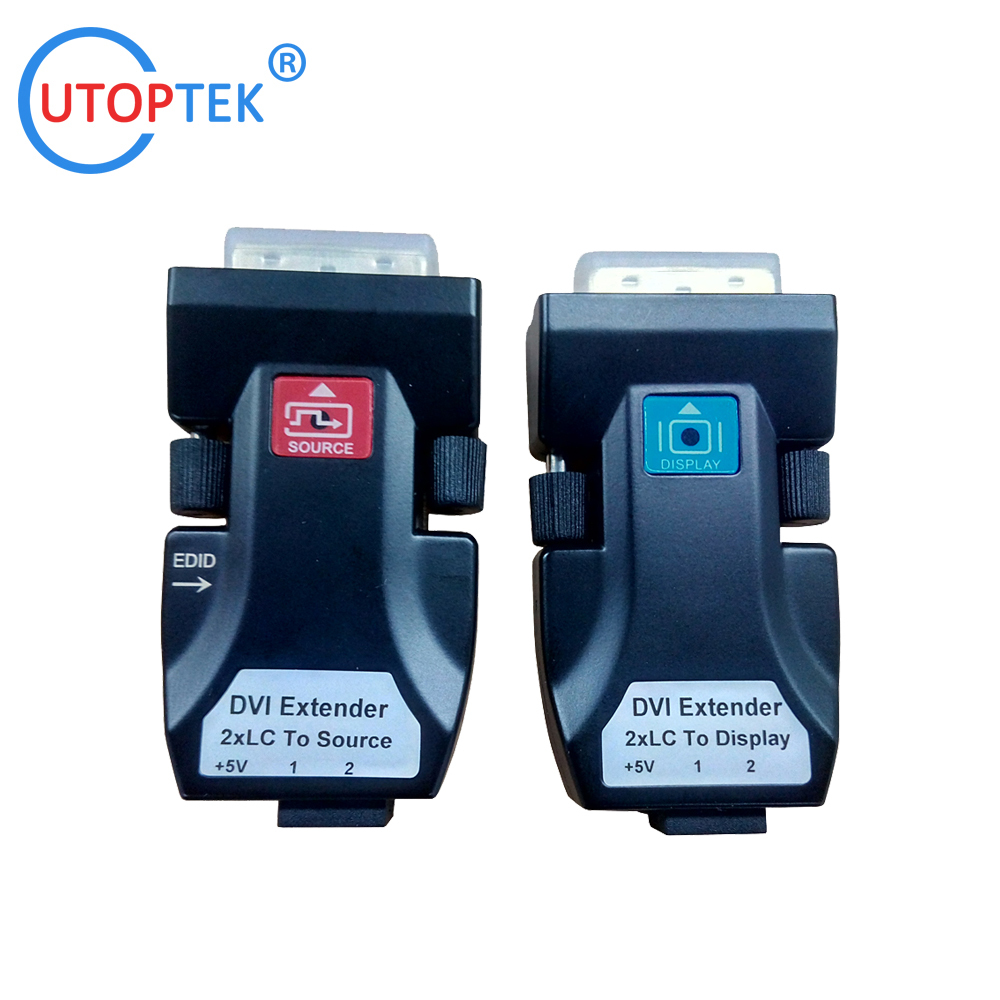

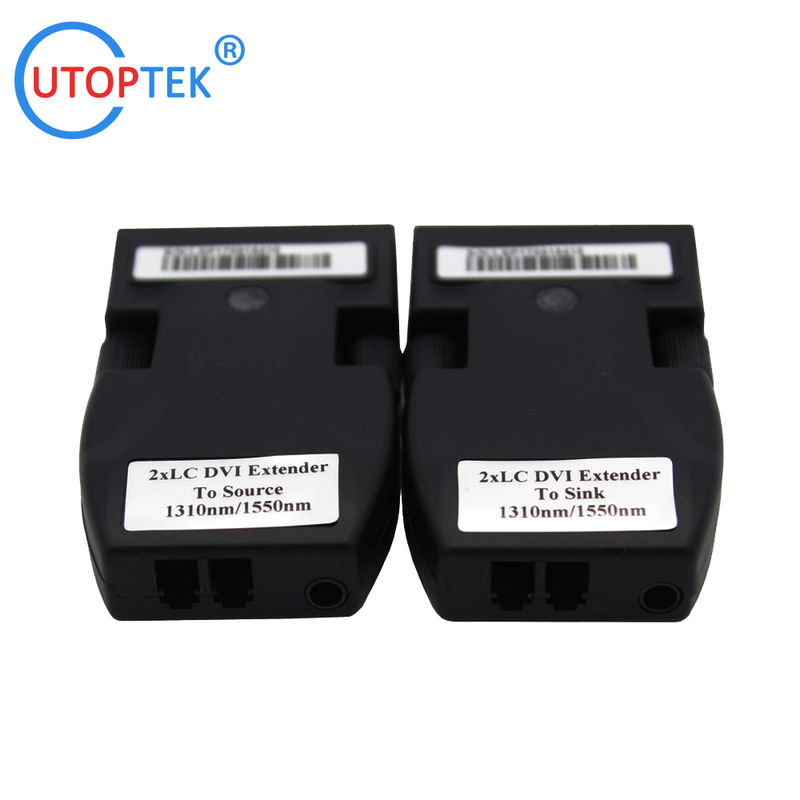

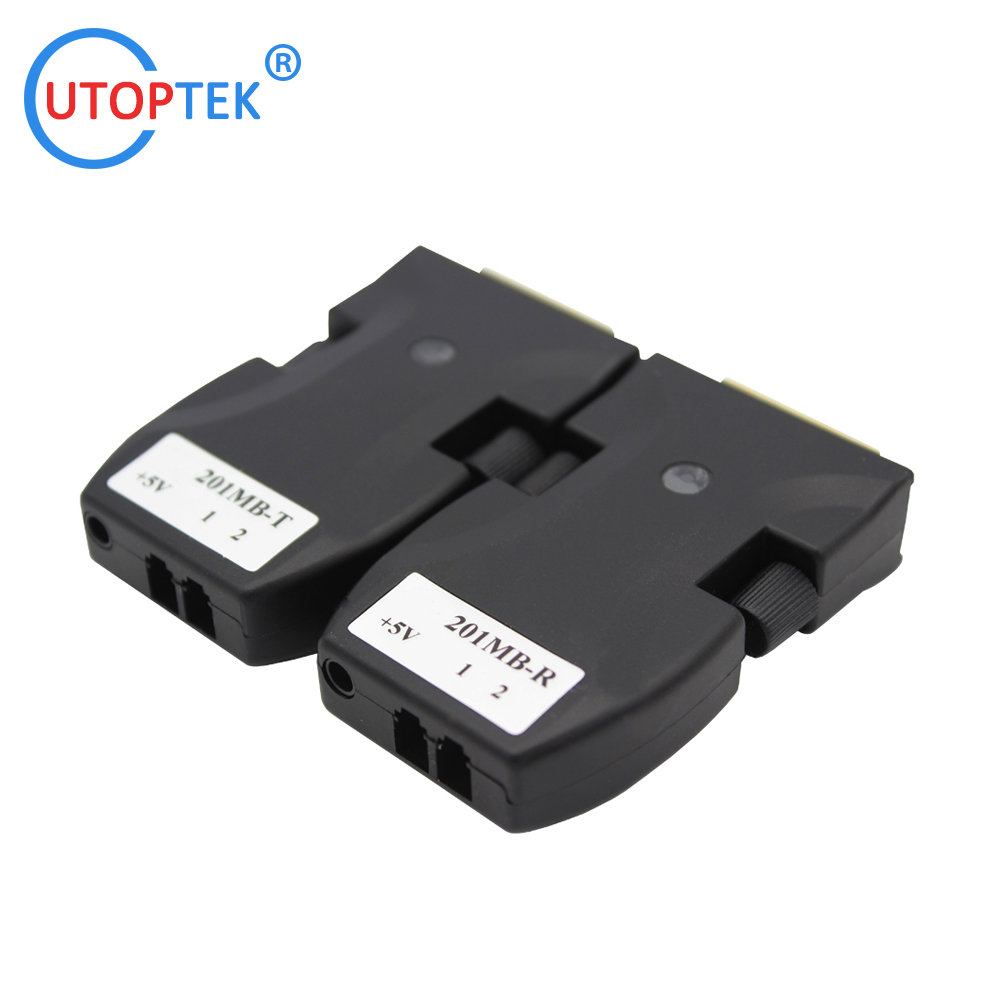

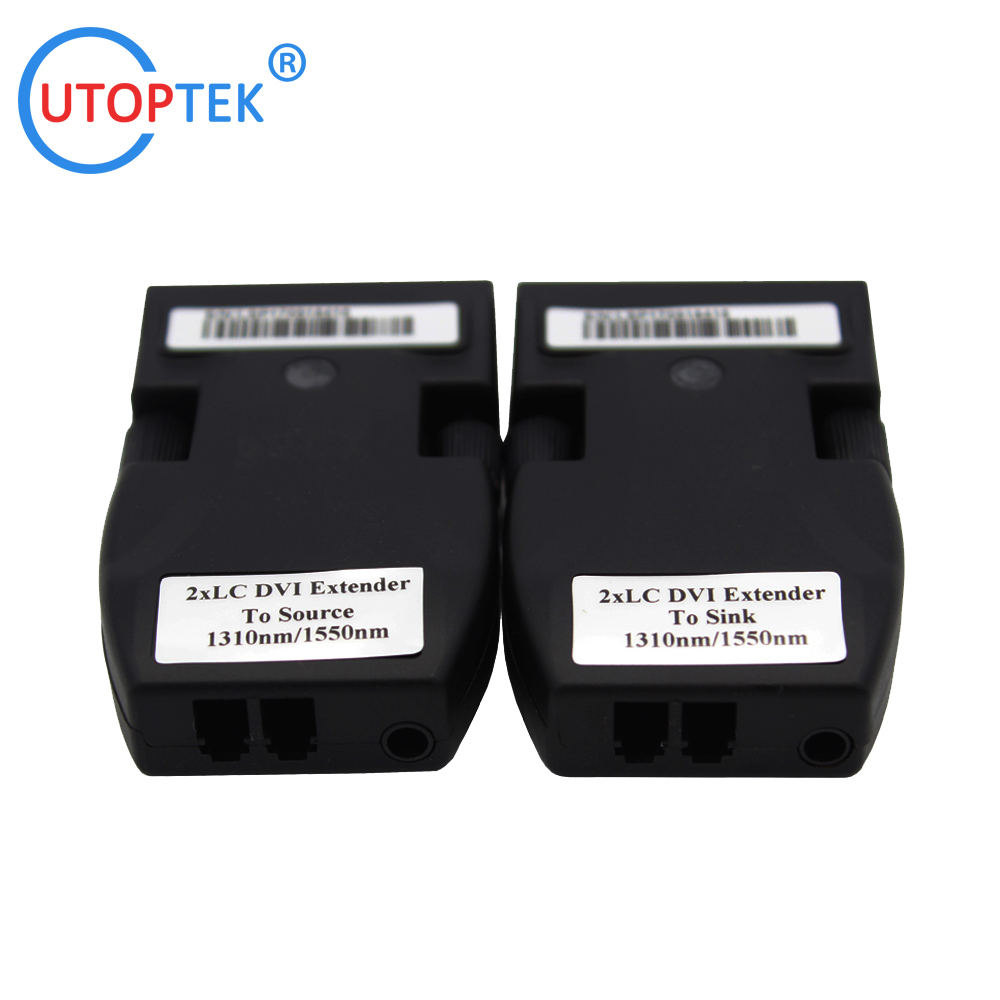

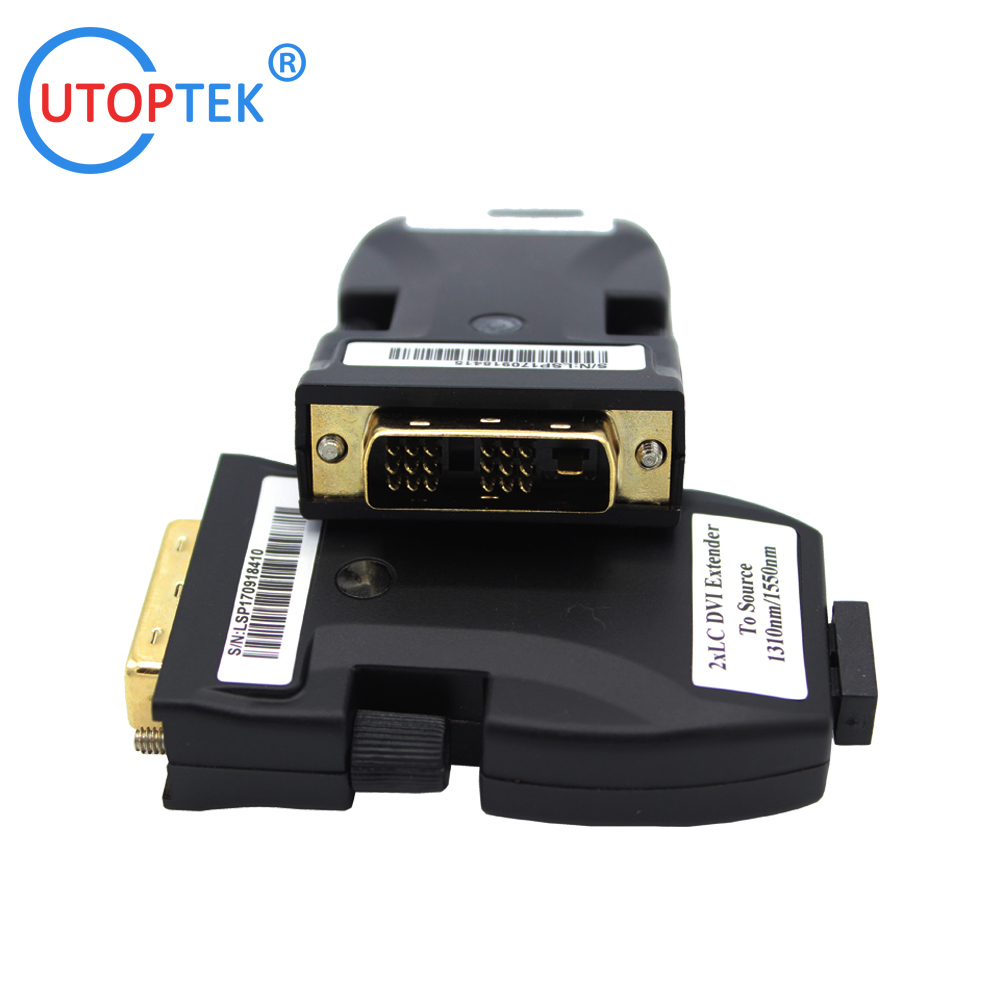

Product picture:
Diagram:
Installing:
Note: Please install the optic DVI extender according to the following step, if not, the extender should be not working.
1. Power on the Display.
2. Connect the Transmitter unit to the display’s DVI input port.
3. Connect the External Power Supply to the Transmitter unit.
4．Use a stick through the hole on the DVI housing, and press it one time. Wait 3-6 seconds, you can see the blue LED flash on time. Then EDID read ok, if not, EDID read fail.
5. Remove the Power Supply from the Transmitter unit.
6. Disconnect the Transmitter unit from the display and connect it to the video signal source.
7. Connect the Receiver unit to the display and connect the Power Supply to the Receiver unit.
8. Reapply power to the system.
Packing:
