Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver

Minimum Order Quantity :	1piece	Packaging Details :	5pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	5000pcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	QSFP-40G-SR4

Detail Information
Transmission Speed:	40Gb/s	Connector:	MPO/MTP
Distance:	150meters	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	TRx: 850nm	Warranty:	3 Years
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..	Fiber Optical Cable:	OM3 MMF Or OM4 MMF

Product Description

40Gb/s 100m QSFP+ Transceiver
Hot Pluggable, MTP/MPO Connector, 850nm, VCSEL, Multimode

1.Features:

4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
CML compatible electrical I/O
Single +3.3V power supply operating
TX input and RX output CDR retiming
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part

2.Specifications:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	QSFP+
Fiber Type	Multi mode
Wavelength:	TRx850nm
Distance	100m on OM3 Multimode Fiber (MMF) 150m on OM4 MMF
Data Rate (max)	40Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3V
Power consuption	<2.5W
Connector	MPO/MTP
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	4pcs/bag

3.Applications:

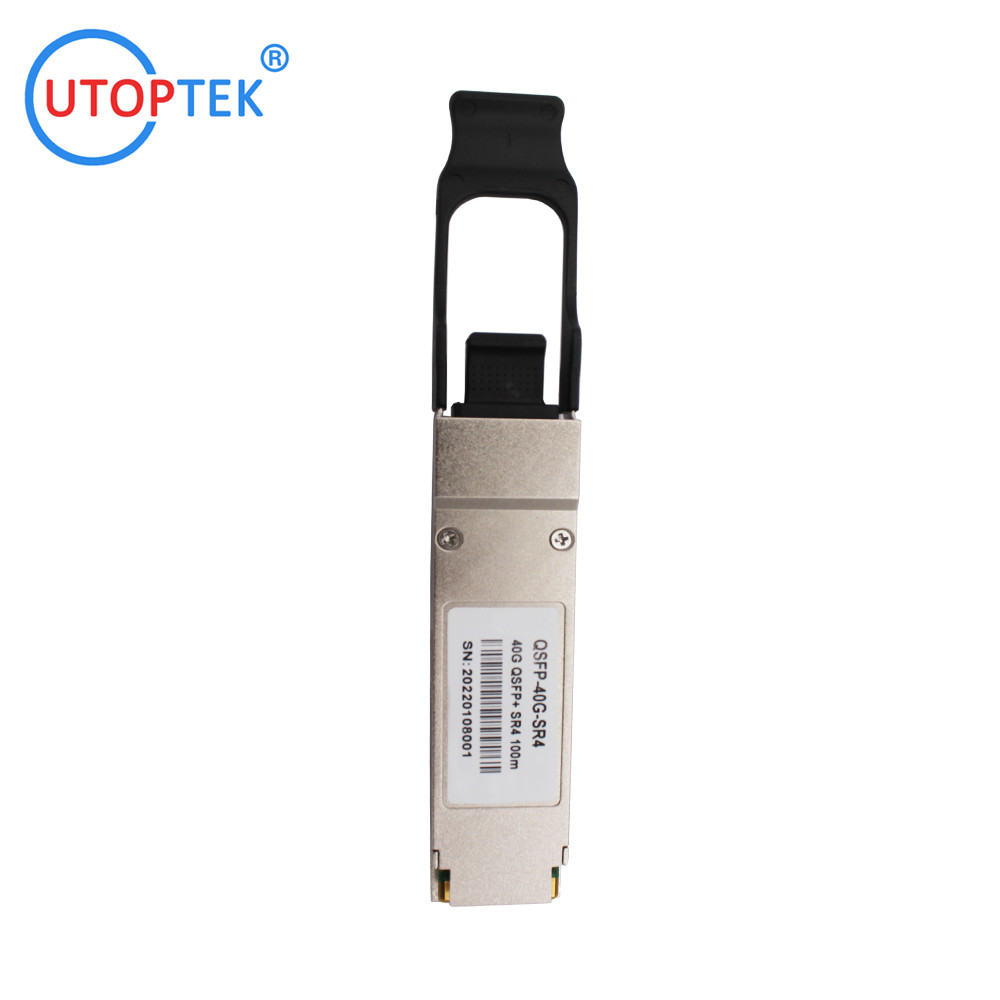

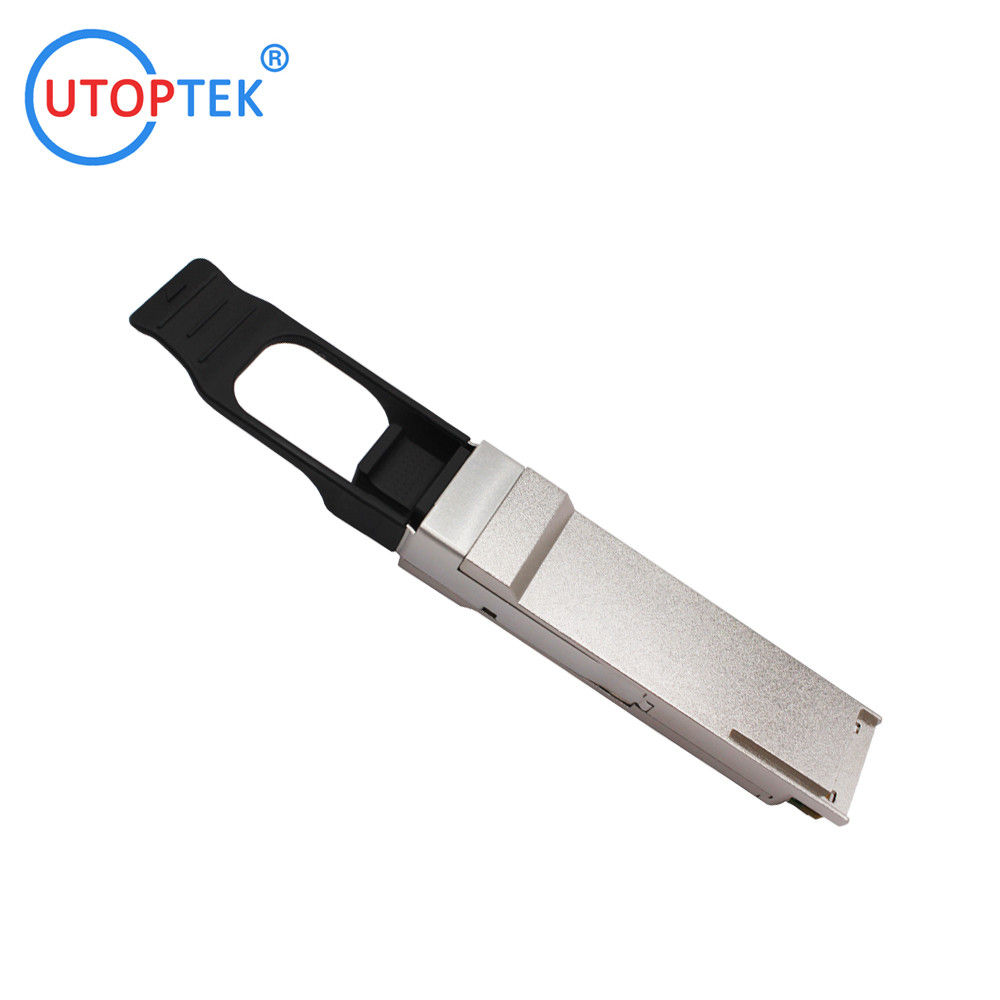

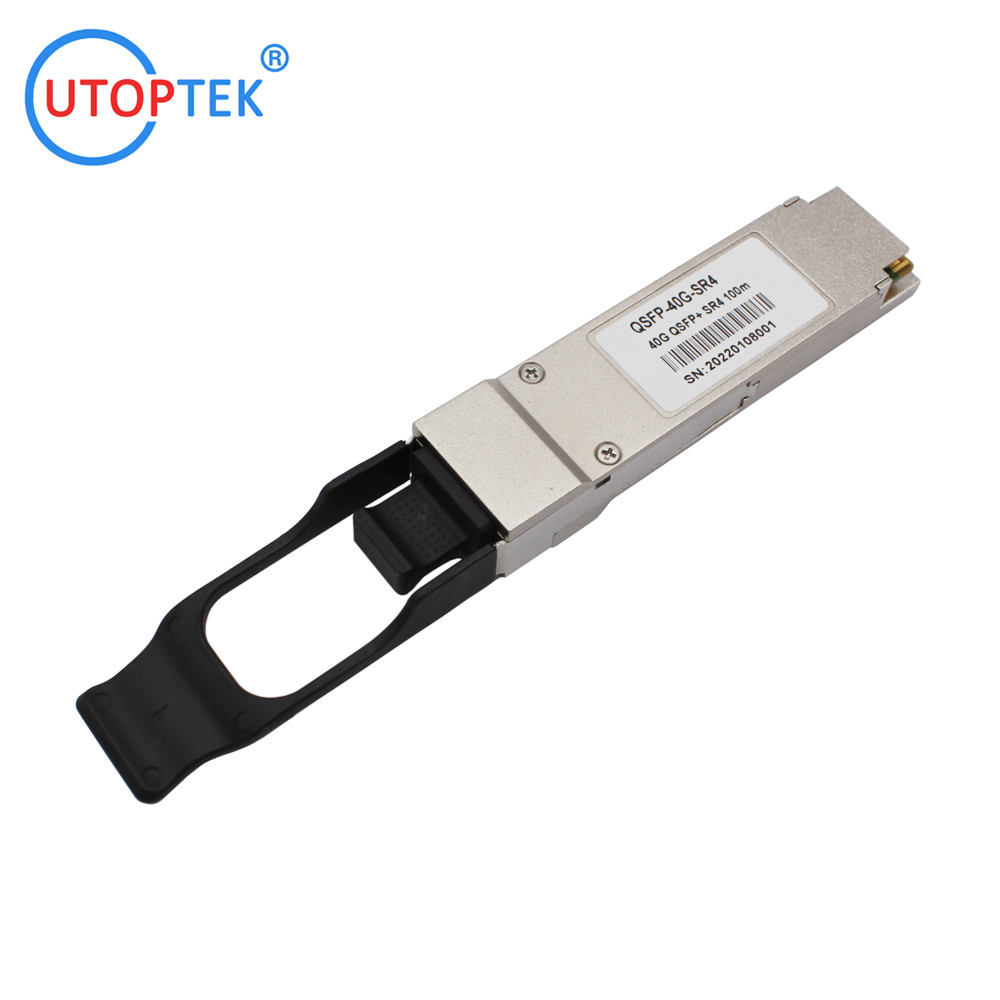

4.Products Picture:

Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver 0

5.Compatible Testing:

Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver 2

Cisco Compatible QSFP 40G SR4 MTP/MPO Connector 150m fiber Optical Transceiver 3
