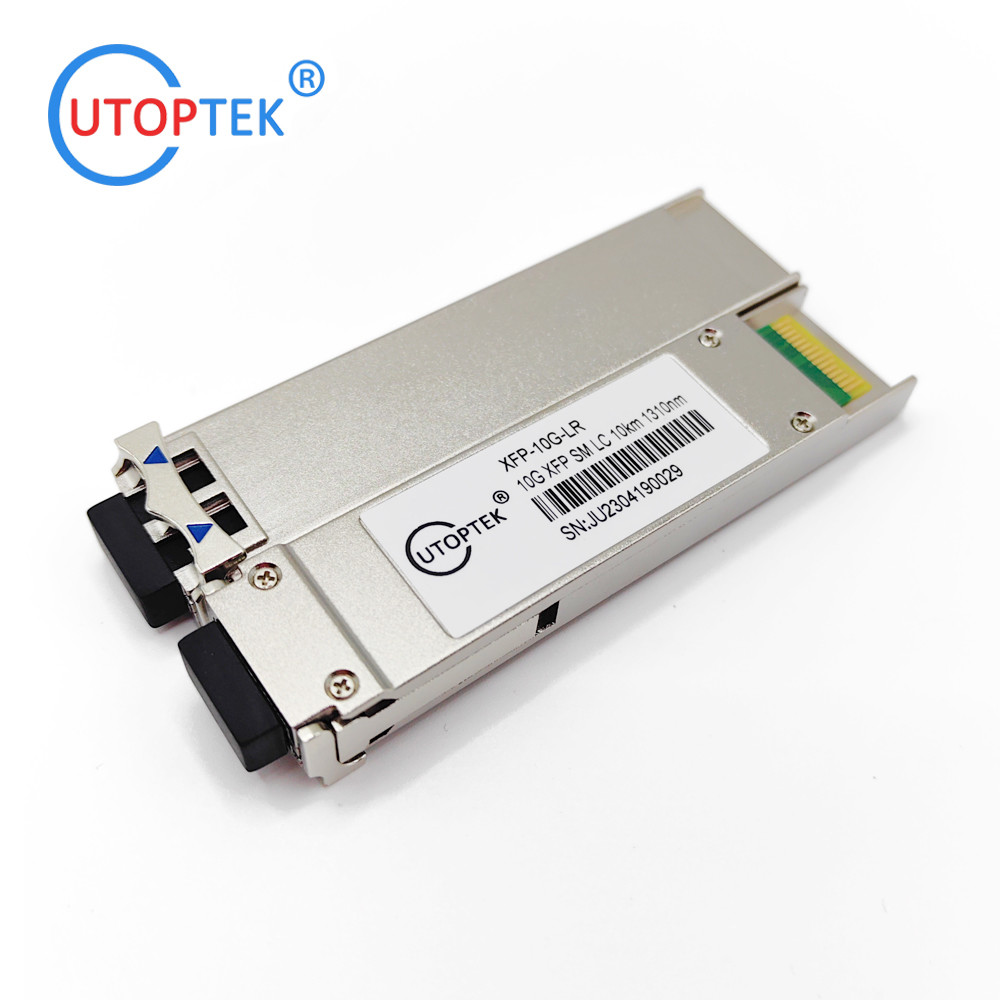

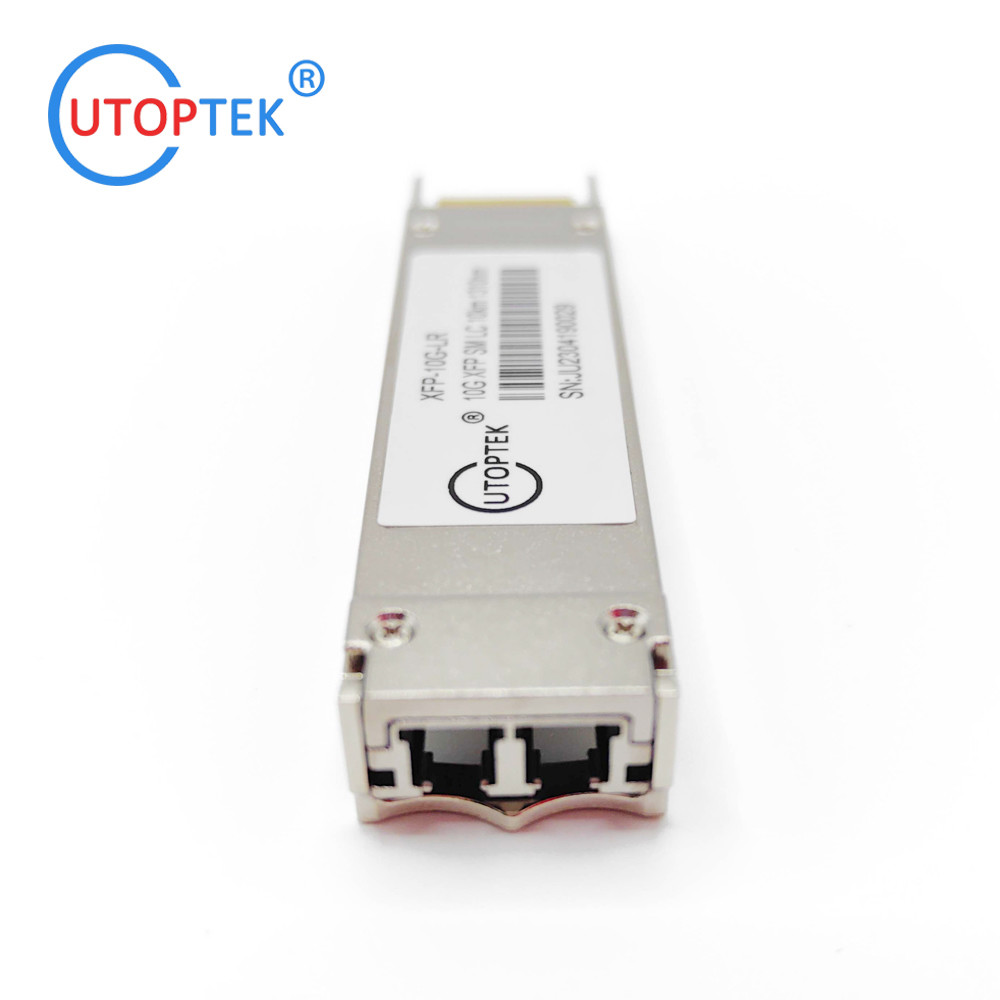

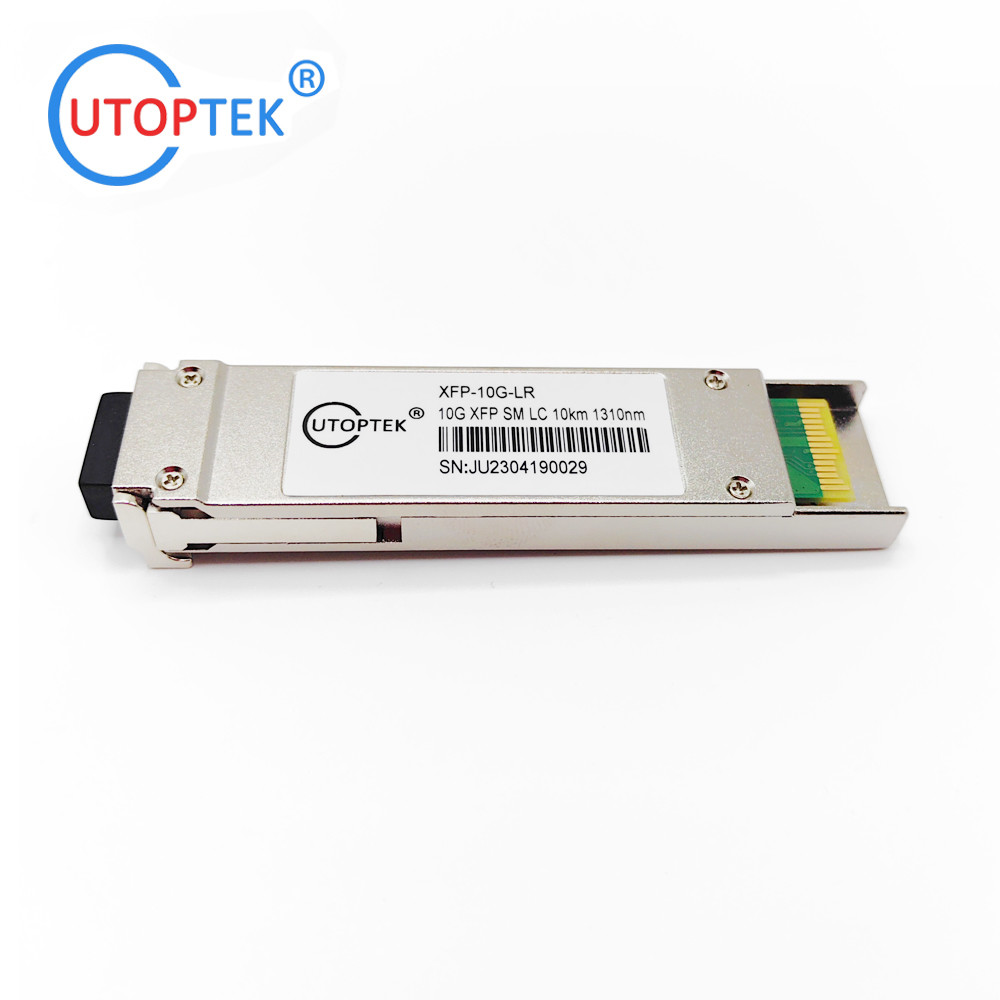

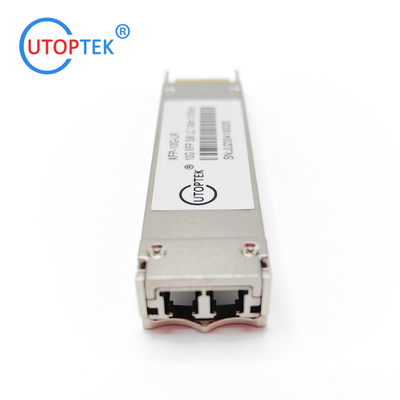

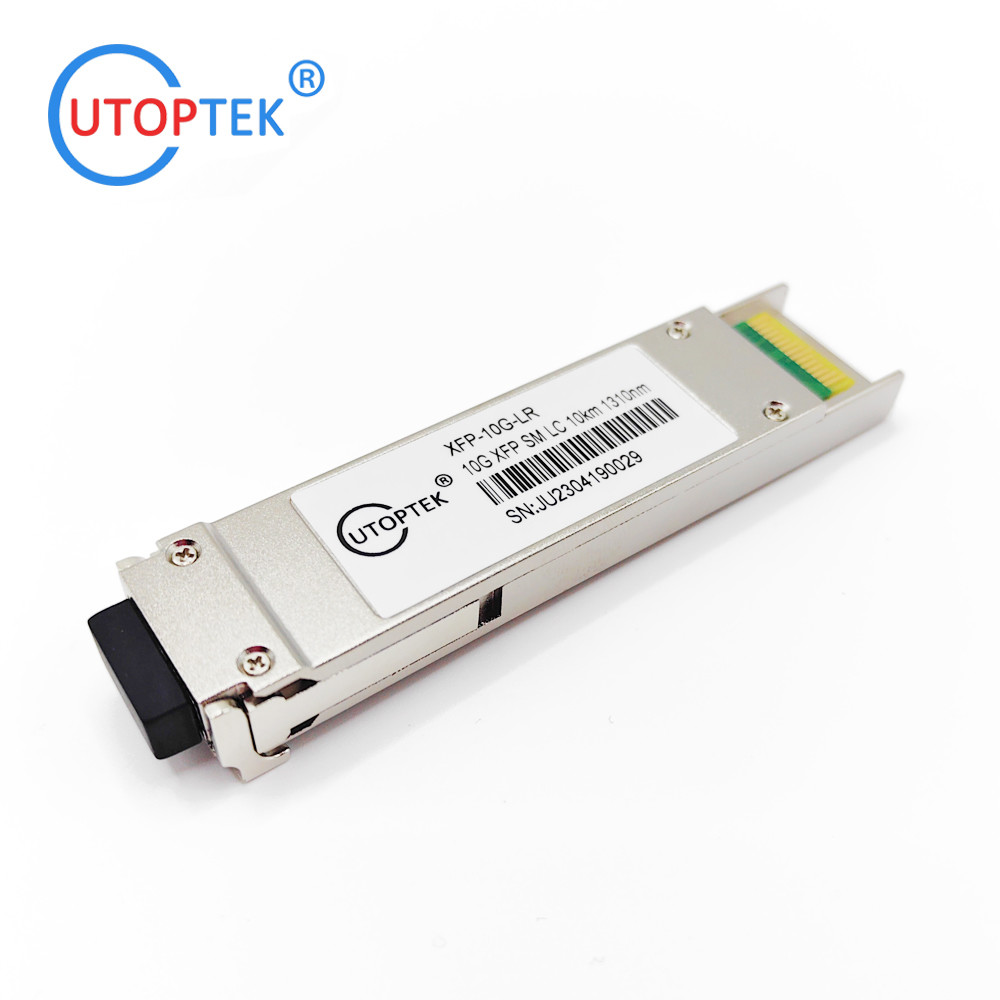

10G XFP modules LR SM Duplex LC 1310nm 10Km with DDM for Cisco/Huawei/HPE hub switch

Minimum Order Quantity :	2pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	XFP-10G-LR

Detail Information
Transmission Speed:	10Gb/s	Fiber Type:	Single-mode,Duplex LC
Distance:	10Km	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	TRX1310nm	Warranty:	1 Years
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

10Gb/s 10Km XFP Transceiver

Hot Pluggable,Duplex LC,+3.3V,1310nm, Single Mode

Features:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	XFP
Wavelength:	TRx1310nm
Distance	10KM
Data Rate (max)	10Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Power consuption	<1.5W
Connector	Duplex LC
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	10 pcs/box

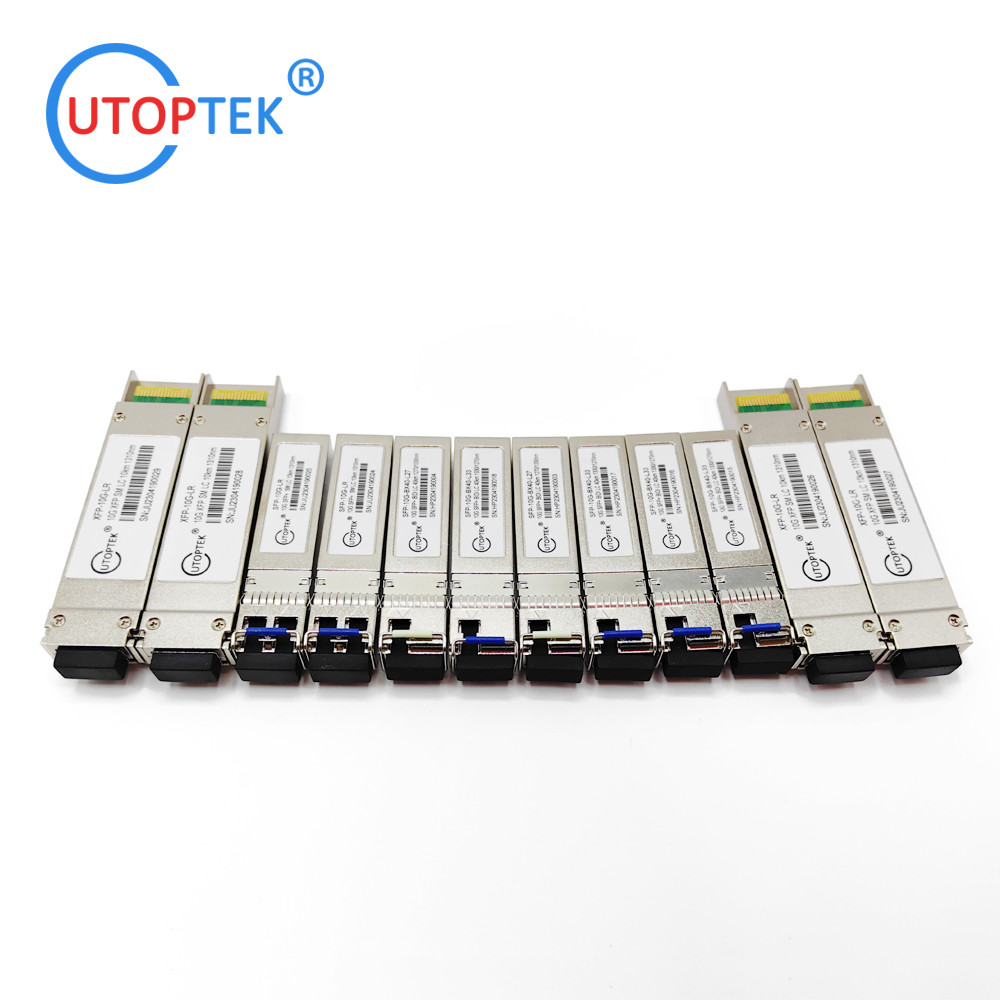

Factory Show:

10G XFP modules LR SM Duplex LC 1310nm 10Km with DDM for Cisco/Huawei/HPE hub switch 1

Ordering Information:

Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
XFP-10G-SR	10Gb/s	XFP	300m	850nm	VCSEL	PIN	LC	0-70℃
XFP-10G-LR 10km	10Gb/s	XFP	10km	1310nm	DFB	PIN	LC	0-70℃
XFP-10G-LR	10Gb/s	XFP	20km	1310nm	DFB	PIN	LC	0-70℃
XFP-10G-ER	10Gb/s	XFP	40km	1550nm	EML	PIN	LC	0-70℃
XFP-10G-ZR	10Gb/s	XFP	80km	1550nm	EML	APD	LC	0-70℃
XFP-10G-ZR 100km	10Gb/s	XFP	100km	1550nm	EML	APD	LC	0-70℃

XFP-10G-BX20-L27	10Gb/s	BiDi XFP	20km	Tx1270/Rx1330nm	DFB	PIN	LC	0-70℃
XFP-10G-BX20-L33	10Gb/s	BiDi XFP	20km	Tx1330/Rx1270nm	DFB	PIN	LC	0-70℃
XFP-10G-BX40-L27	10Gb/s	BiDi XFP	40km	Tx1270/Rx1330nm	DFB	PIN	LC	0-70℃
XFP-10G-BX40-L33	10Gb/s	BiDi XFP	40km	Tx1330/Rx1270nm	DFB	PIN	LC	0-70℃
XFP-10G-BX60-L27	10Gb/s	BiDi XFP	60km	Tx1270/Rx1330nm	DFB	APD	LC	0-70℃
XFP-10G-BX60-L33	10Gb/s	BiDi XFP	60km	Tx1330/Rx1270nm	DFB	APD	LC	0-70℃

XFP-10G-CW10-xx	10Gb/s	CWDM XFP	10km	1270~1330nm	DFB	PIN	LC	0-70℃
XFP-10G-CW10-xx	10Gb/s	CWDM XFP	10km	1350~1450nm	DFB	PIN	LC	0-70℃
XFP-10G-CW20-xx	10Gb/s	CWDM XFP	20km	1270~1330nm	DFB	PIN	LC	0-70℃
XFP-10G-CW40-xx	10Gb/s	CWDM XFP	40km	1470~1610nm	EML	PIN	LC	0-70℃
XFP-10G-CW80-xx	10Gb/s	CWDM XFP	80km	1470~1550nm	EML	APD	LC	0-70℃

XFP-10G-DW40-CHxx	10Gb/s	DWDM SFP+	40km	1528.77~1563.86nm	EML	PIN	LC	0-70℃
XFP-10G-DW80-CHxx	10Gb/s	DWDM SFP+	80km	1528.77~1563.86nm	EML	APD	LC	0-70℃
XFP-10G-DW100-CHxx	10Gb/s	DWDM SFP+	100km	1528.77~1563.86nm	EML	APD	LC	0-70℃
