CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM

Minimum Order Quantity :	1pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	XFP-10G-CW10-xx

Detail Information
Transmission Speed:	10Gb/s	Fiber Type:	Single-mode,Duplex LC
Distance:	10Km	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	1270nm~1330nm	Warranty:	3 Years
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

10Gb/s 10km CWDM XFP Transceiver

Hot Pluggable, Duplex LC, 1270～1330nm, CWDM DFB, Single mode

Order Information:

In the Part No. of XFP-10G-CW20-xx, xx stands for central wavelength, such as:

27: for 1270nm, 29: for 1290nm, 31: for 1310nm……33: for 1330nm.

Description:

UTOPTEK’s XFP-10G-CW10-xx small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance uncooled CWDM DFB transmitter and high sensitivity PIN receiver provide superior performance for SONET/SDH, 10G FC and Ethernet applications up to 10km optical links.

Technical Specifications:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	XFP CWDM
Wavelength:	1270nm~1330nm
Distance	10Km
Data Rate (max)	10Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Power consuption	<1W
Connector	Duplex LC
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	10 pcs/box

Features:

Support multi protocol from 9.95Gb/s to 11.3Gb/s
Hot pluggable 30 pin connector
Compliant with XFP MSA
Transmission distance of 10km over single mode fiber
CWDM DFB laser transmitter.
Duplex LC connector
2-wire interface for management and diagnostic monitor
XFI electrical interface with AC coupling
Power supply voltages : +3.3V, +5V
Temperature range 0°C to 70°C
Power dissipation: <3.5W
RoHS Compliant Part

Applications:

10GBASE-LR/LW Ethernet
SONET OC-192 /SDH
10km 10G FC
CWDM Networks

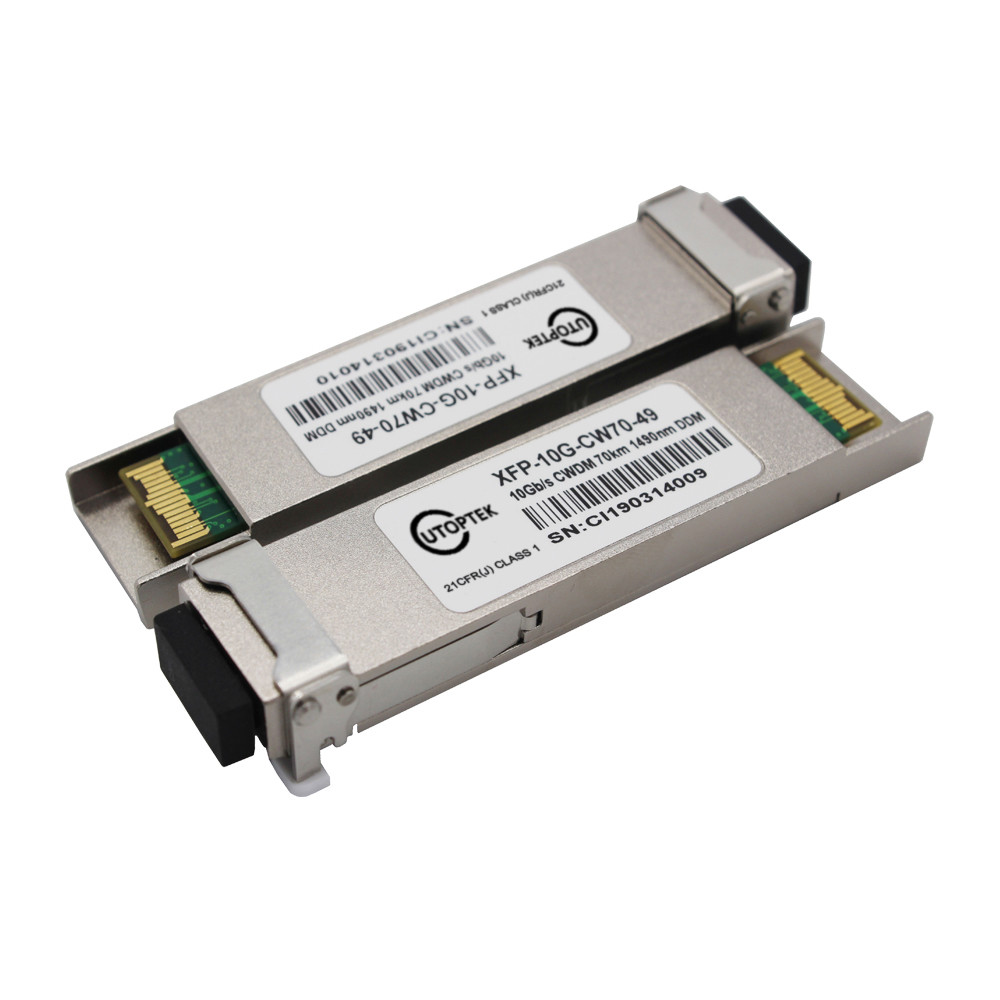

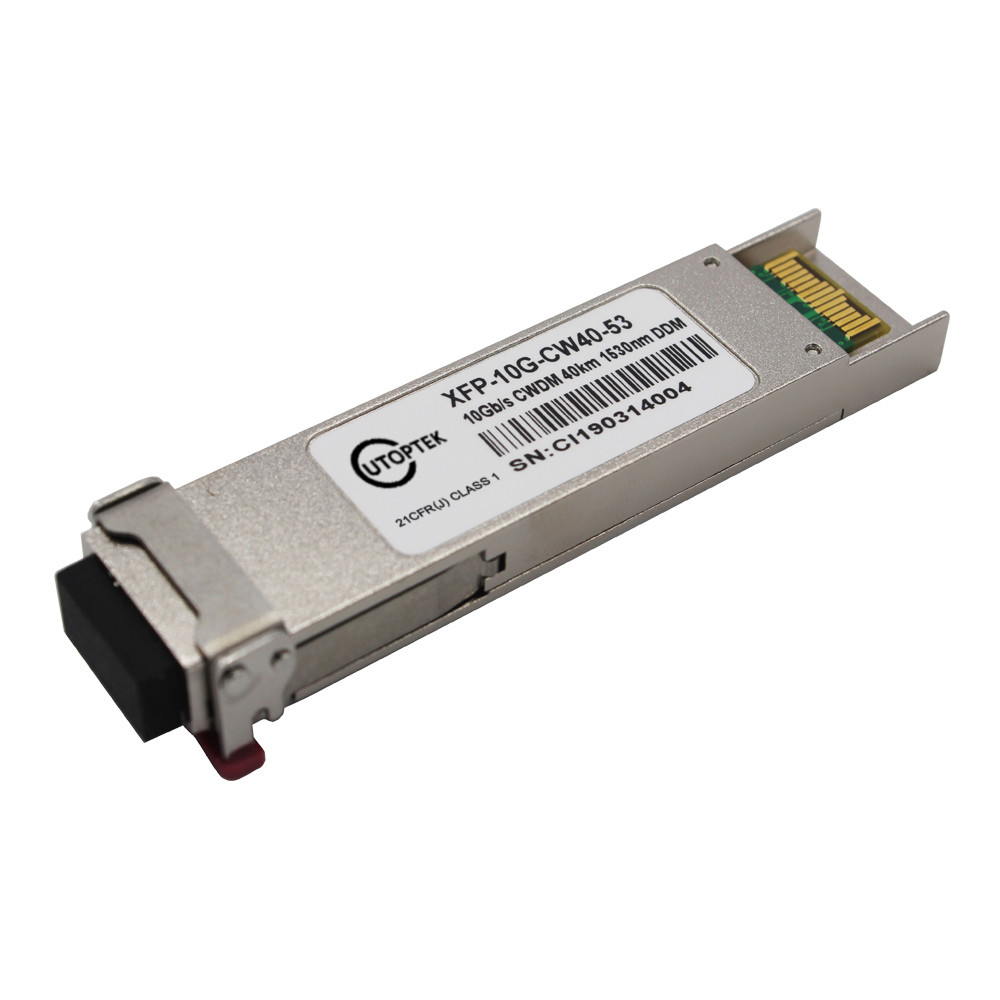

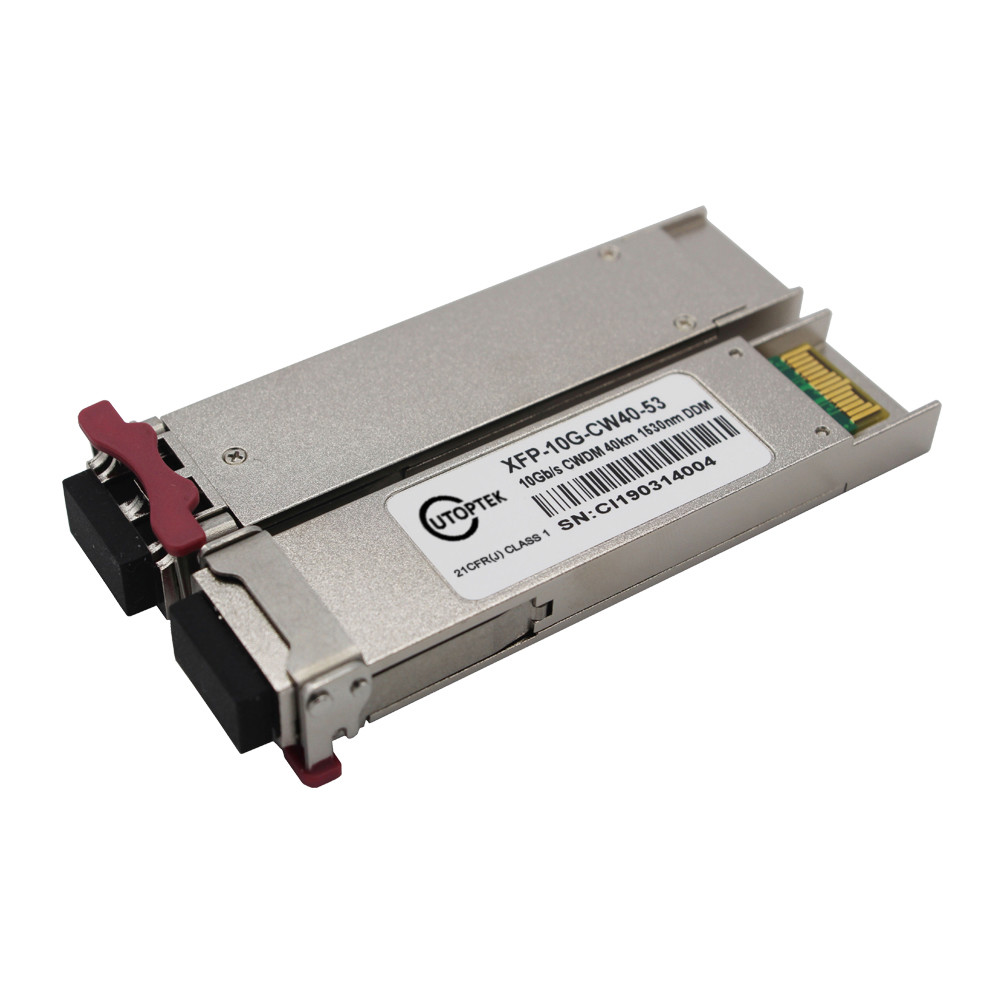

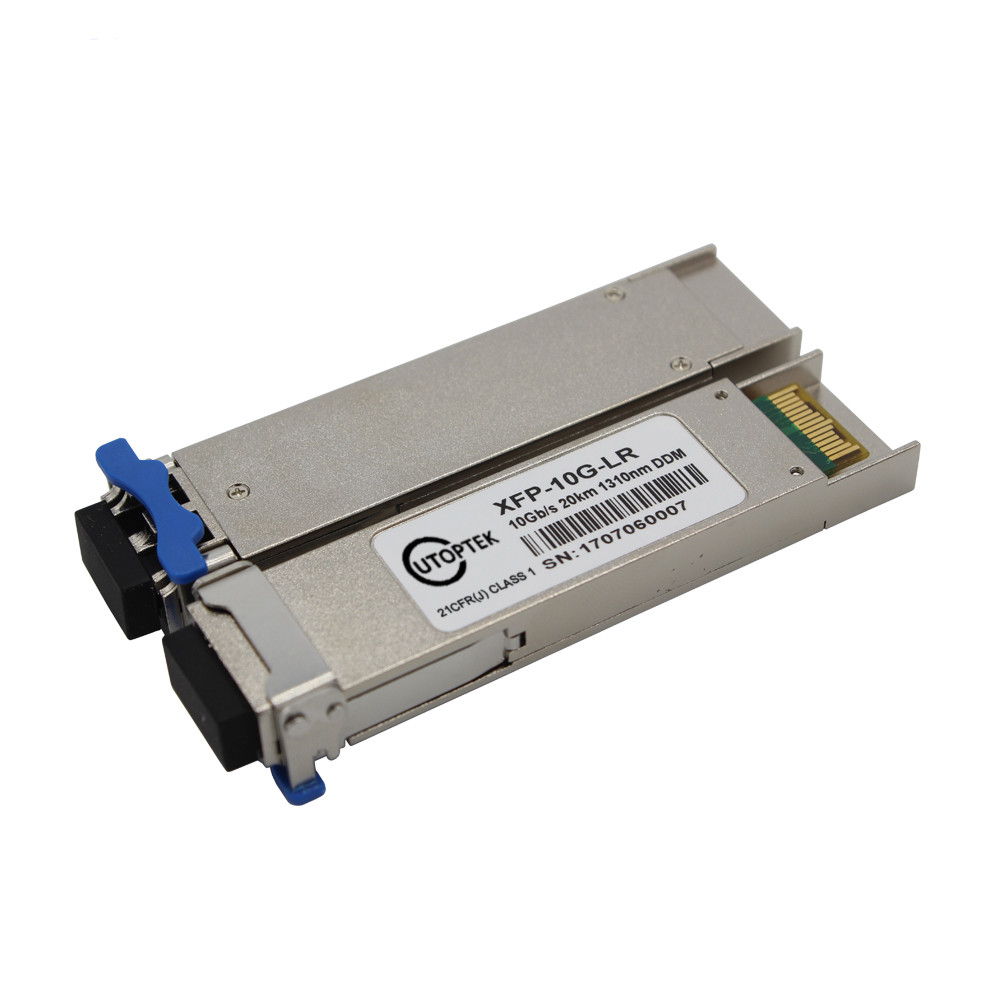

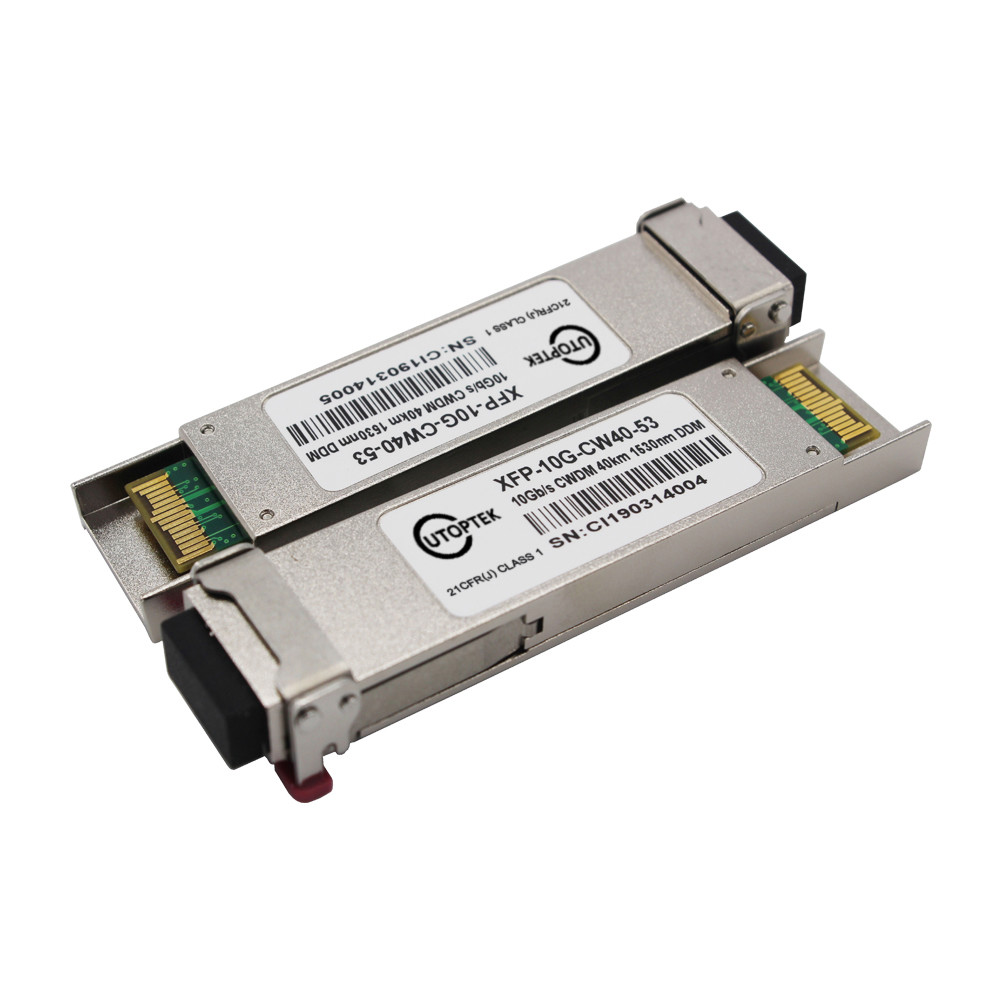

Products Picture:

CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM 0

Mechanical Dimensions:

CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM 4

CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM 5

Compatible Testing:

CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM 7

Components:

CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM 8

CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM 9

CWDM XFP 10G 10Km 1270nm~1330nm xfp optical transceiver module with DDM 10

Ordering Information:

CWDM XFP
XFP-10G-CW10-xx	1270 ~1330nm CWDM XFP 10km
XFP-10G-CW10-xx	1350~1450nm CWDM XFP 10km
XFP-10G-CW20-xx	1270 ~1310nm CWDM XFP 20km
XFP-10G-CW40-xx	1470 ~1610nm CWDM XFP 40km
XFP-10G-CW70-xx	1470 ~1610nm CWDM XFP 70km
XFP-10G-CW80-xx	1470~1610nm CWDM XFP 80km
