10G DWDM XFP 40Km 15xx.xx nm xfp transceiver fiber optic module for DWDM networks

Product Description

10Gb/s 40km DWDM XFP Transceiver

Hot Pluggable, Duplex LC, 100GHz, DWDM EML, Single mode

Description:

UTOPTEK’s XFP-10G-DW40-CHxx Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled DWDM EML transmitter and high sensitivity PIN receiver provide superior performance for SONET/SDH, 10G FC and Ethernet applications up to 40km optical links.

Technical Specifications:

Features:

• Support multi protocol from 9.95Gb/s to 11.3Gb/s
• Hot pluggable 30 pin connector
• Compliant with XFP MSA
• Transmission distance of 40km over single mode fiber
• DWDM EML laser transmitter
• 100GHz ITU Grid, C Band
• Duplex LC connector
• 2-wire interface for management and diagnostic monitor
• XFI electrical interface with AC coupling
• Power supply voltages : +3.3V, +5V
• Temperature range 0°C to 70°C
• Power dissipation: <3.5W
• RoHS Compliant Part

Applications:

• 10GBASE-ER/EW Ethernet
• SONET OC-192 /SDH
• 40km 10G FC
• DWDM Networks

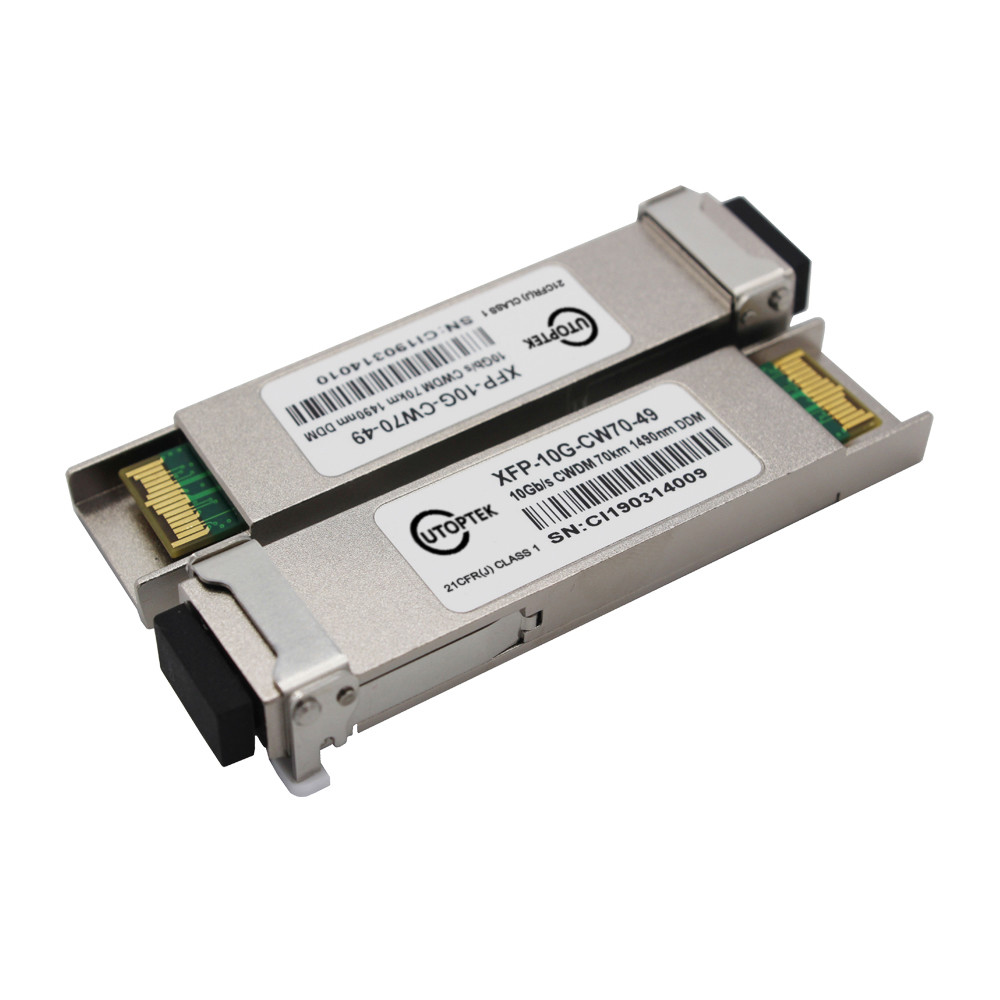

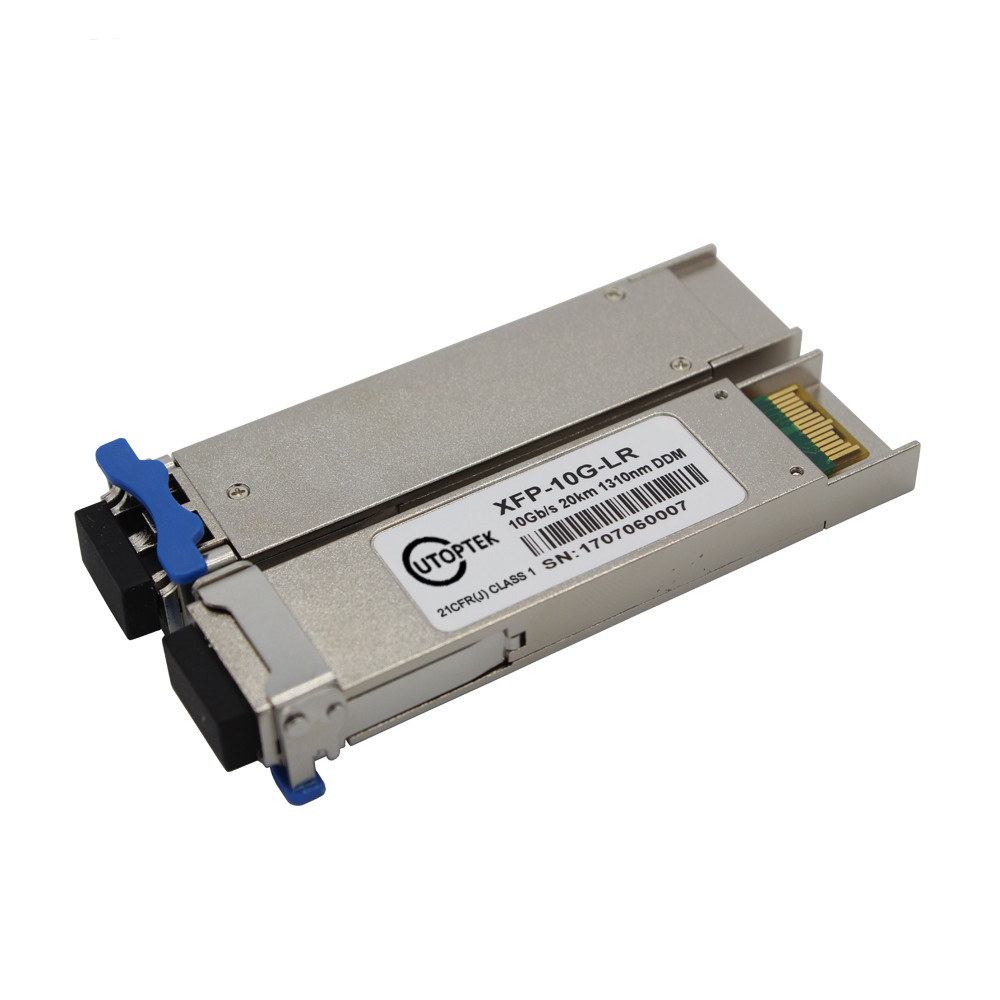

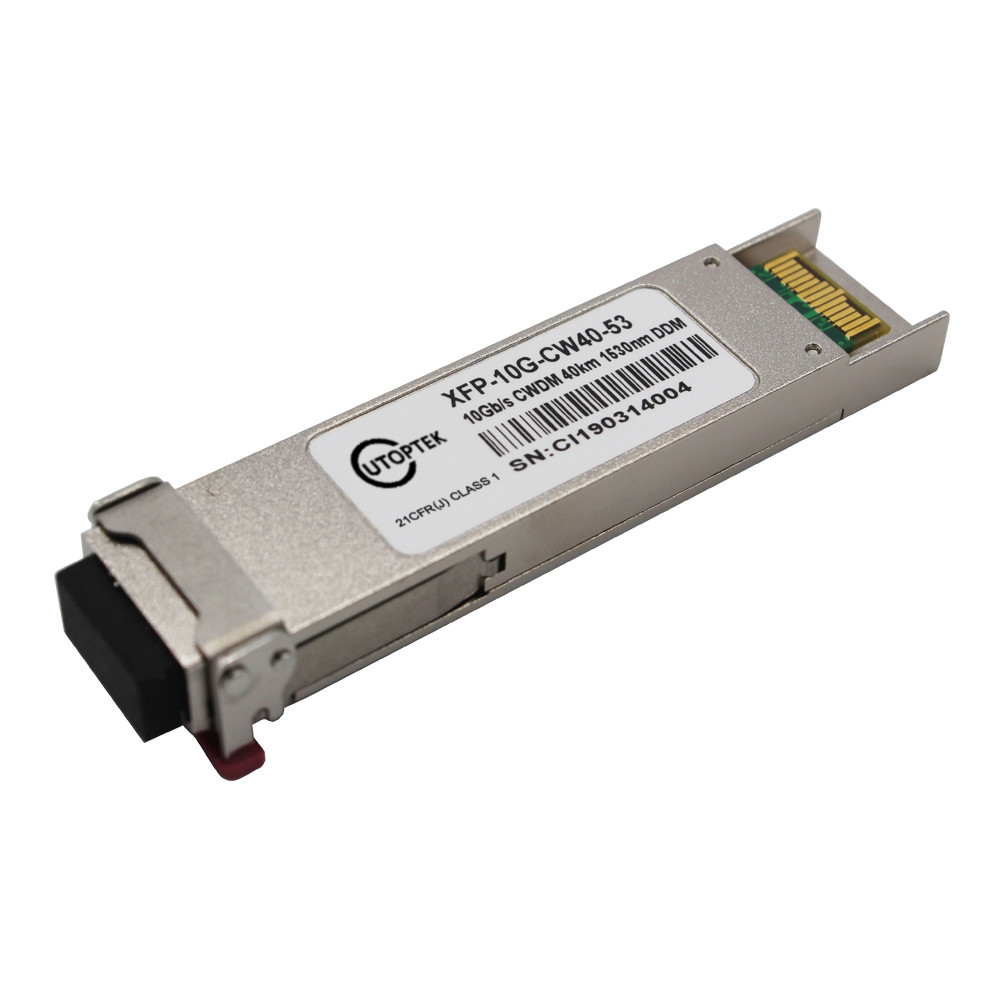

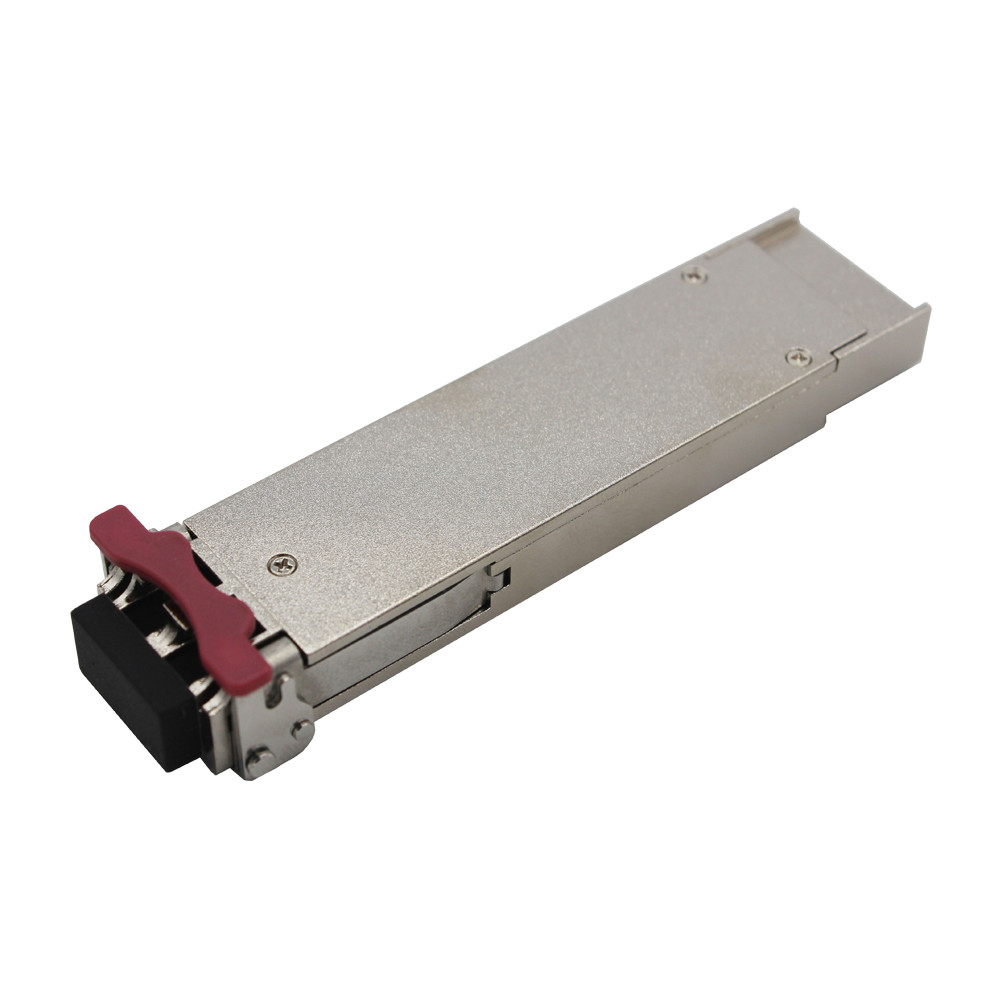

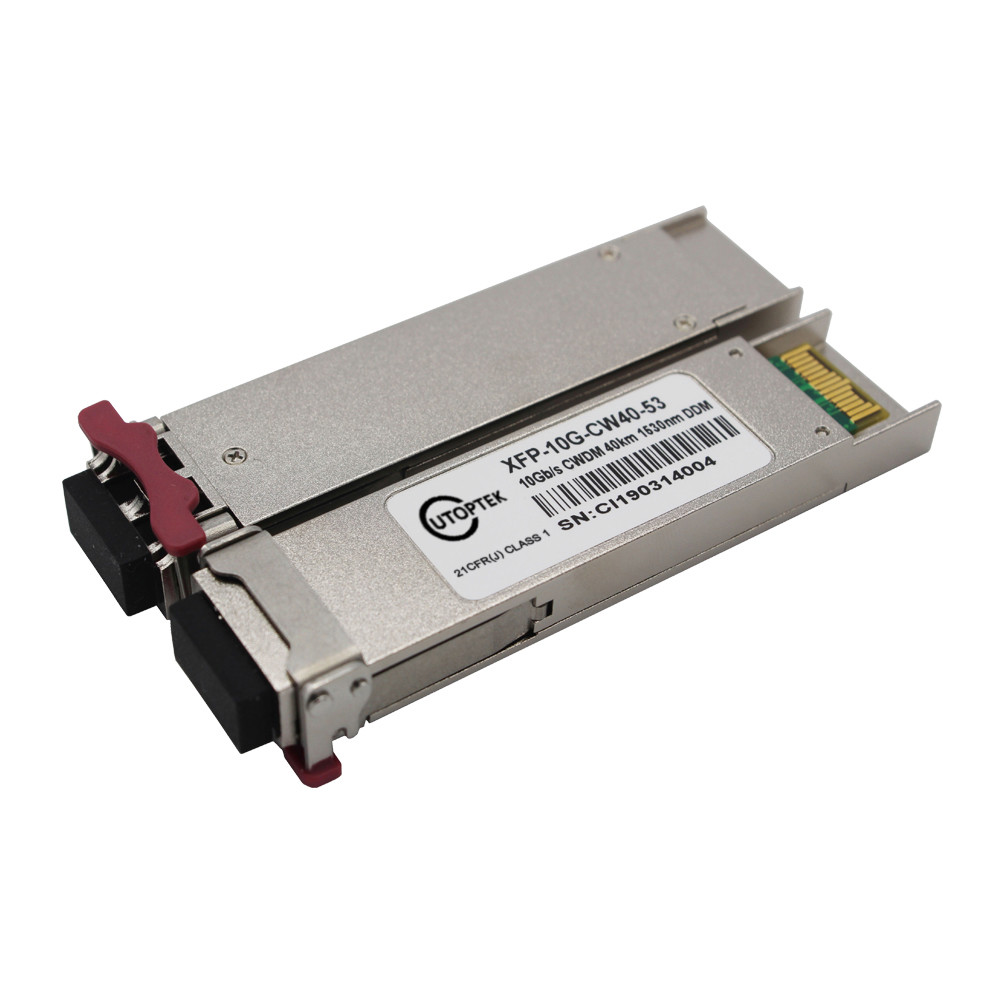

Products Picture:

​

Mechanical Dimensions:

Compatible Testing:

Components:

Ordering Information:

Order Information:

XFP-10G-DW40-CHXX                             XX: 100GHZ ITU Grid Wavelength
