155M SFP SMF Duplex LC 40km 1310nm DDM SFP optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik

Minimum Order Quantity :	2pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-FE-EX40

Detail Information
Transmission Speed:	155Mbps	Fiber Type:	Single-mode, Duplex LC
Distance:	40KM	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	TRX1310nm	Warranty:	3 Years
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

155Mbps 40km SFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1310nm, FP-LD, Single-mode, DDM

Description:

UTOPTEK’s UT-FE-EX40 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 40km application.

Features:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	SFP
Wavelength:	TRx1310nm
Distance	40KM
Data Rate (max)	155Mbps
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Connector	LC
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	10 pcs/box

Applications:

100Base-EX Ethernet
Metro/Access Networks
2×Fiber Channel
Other Optical Links

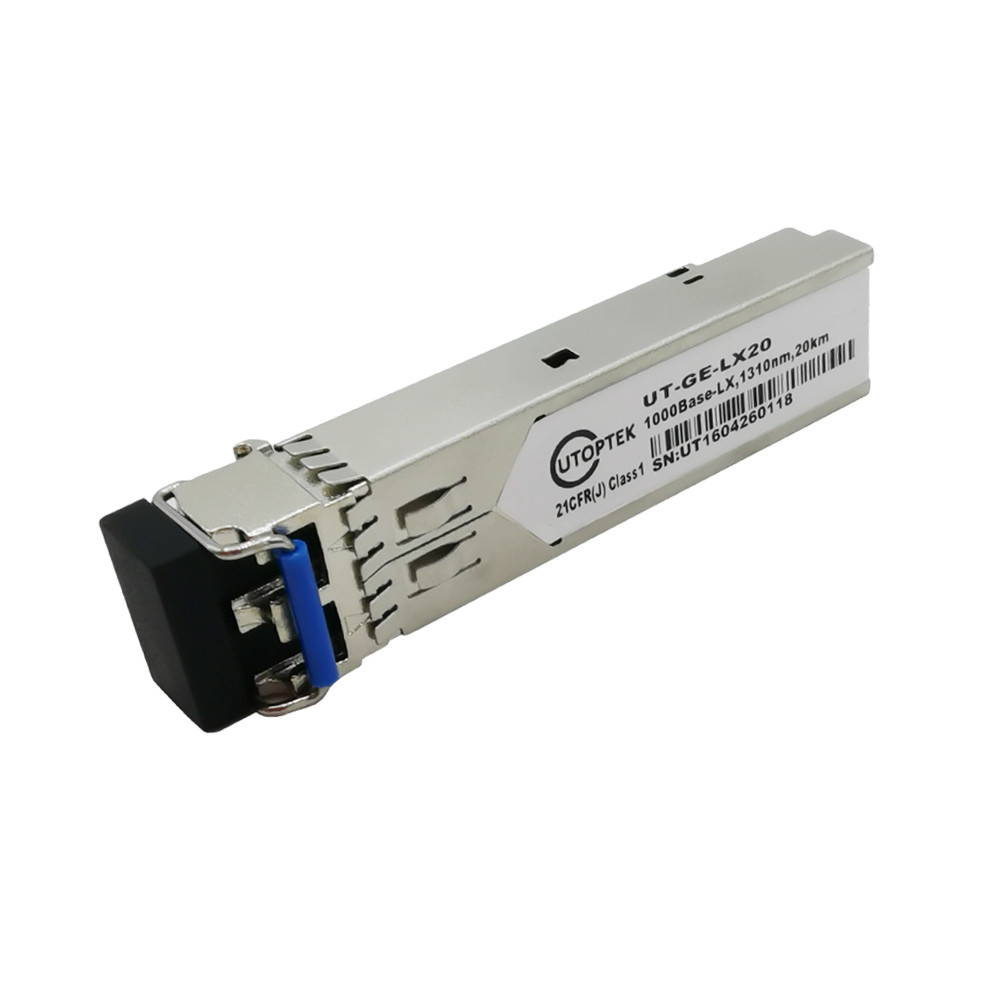

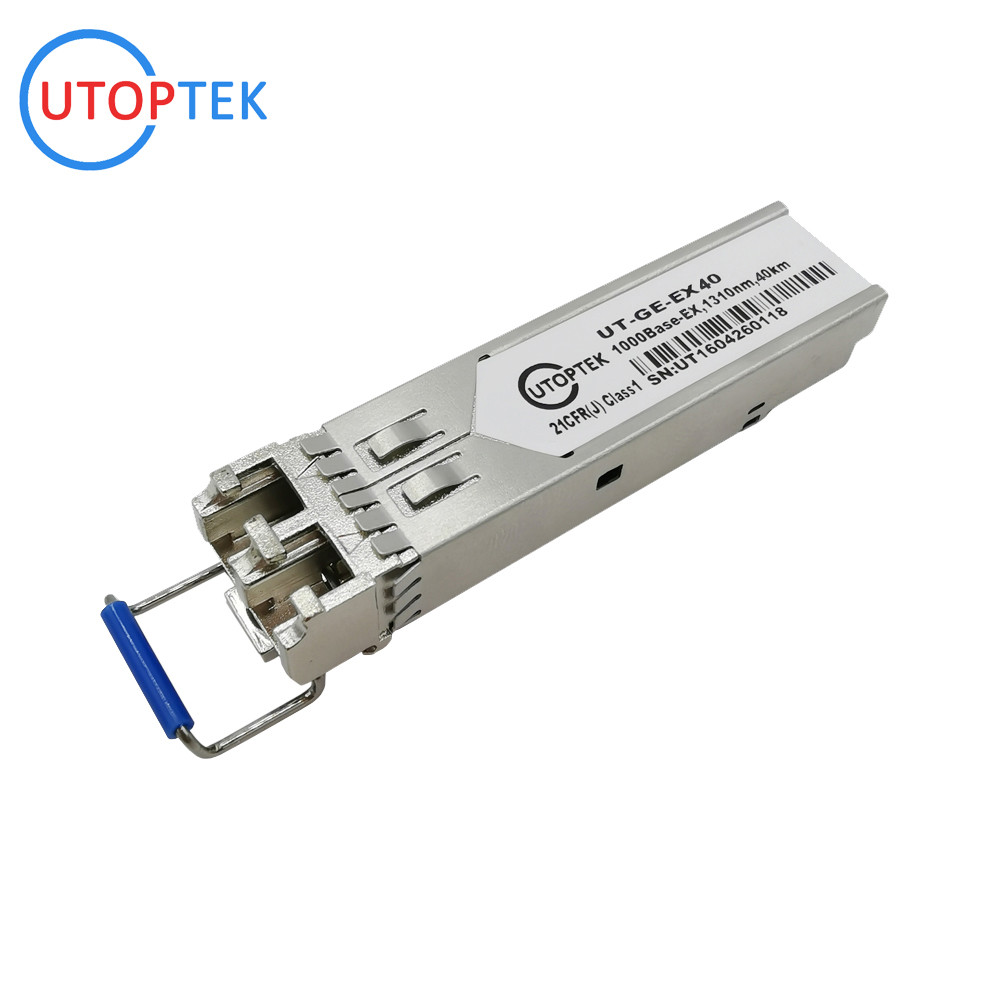

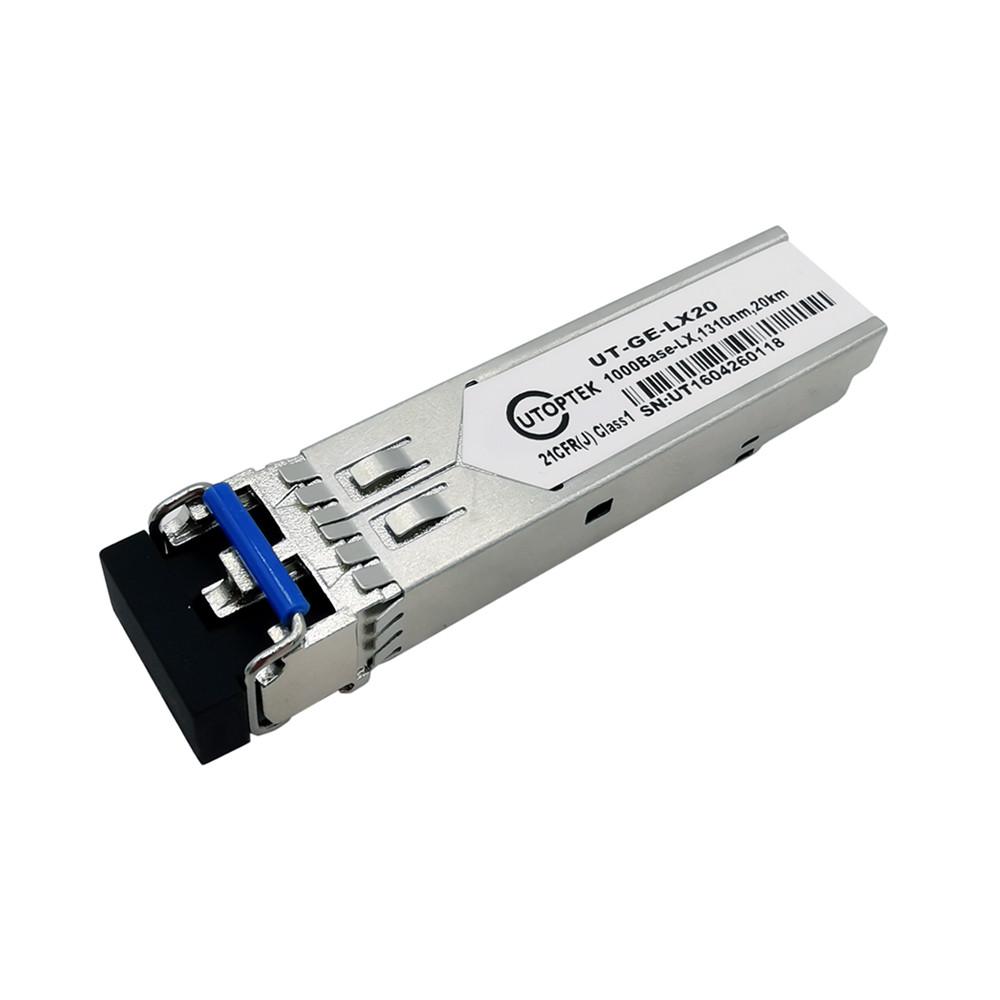

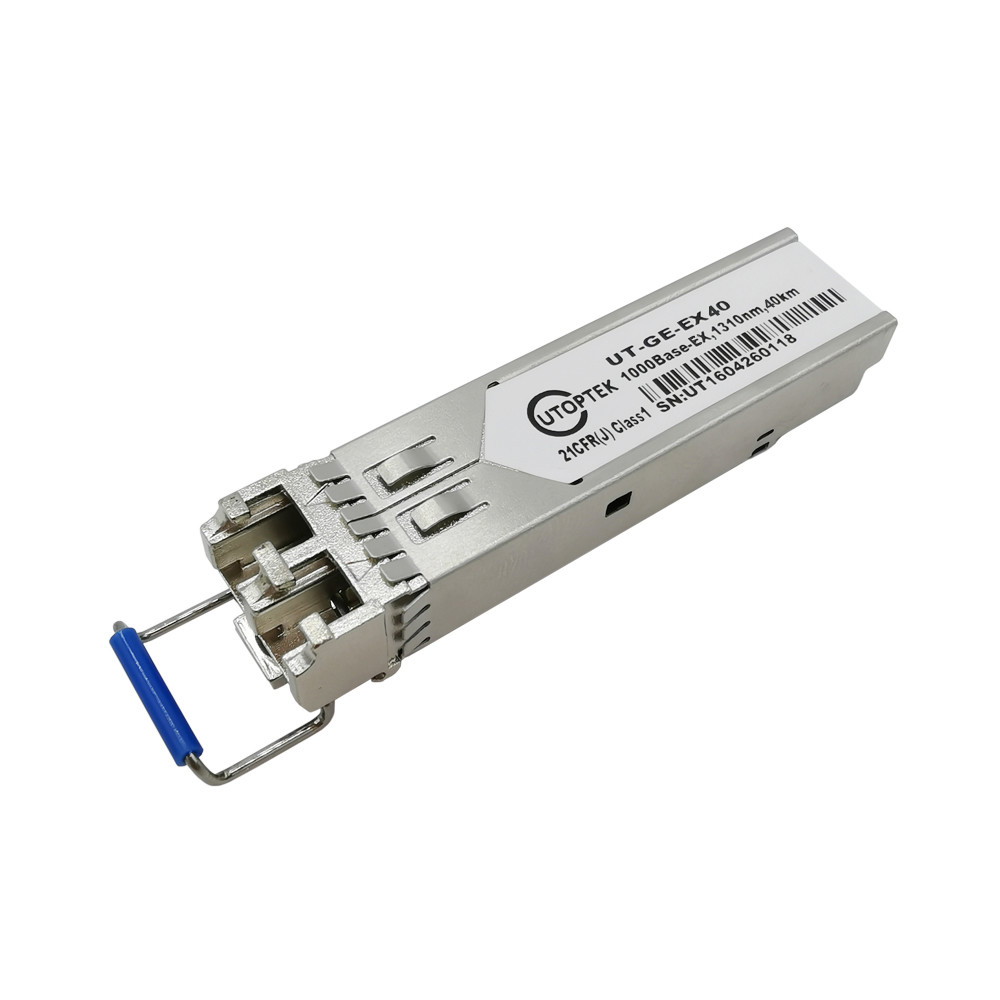

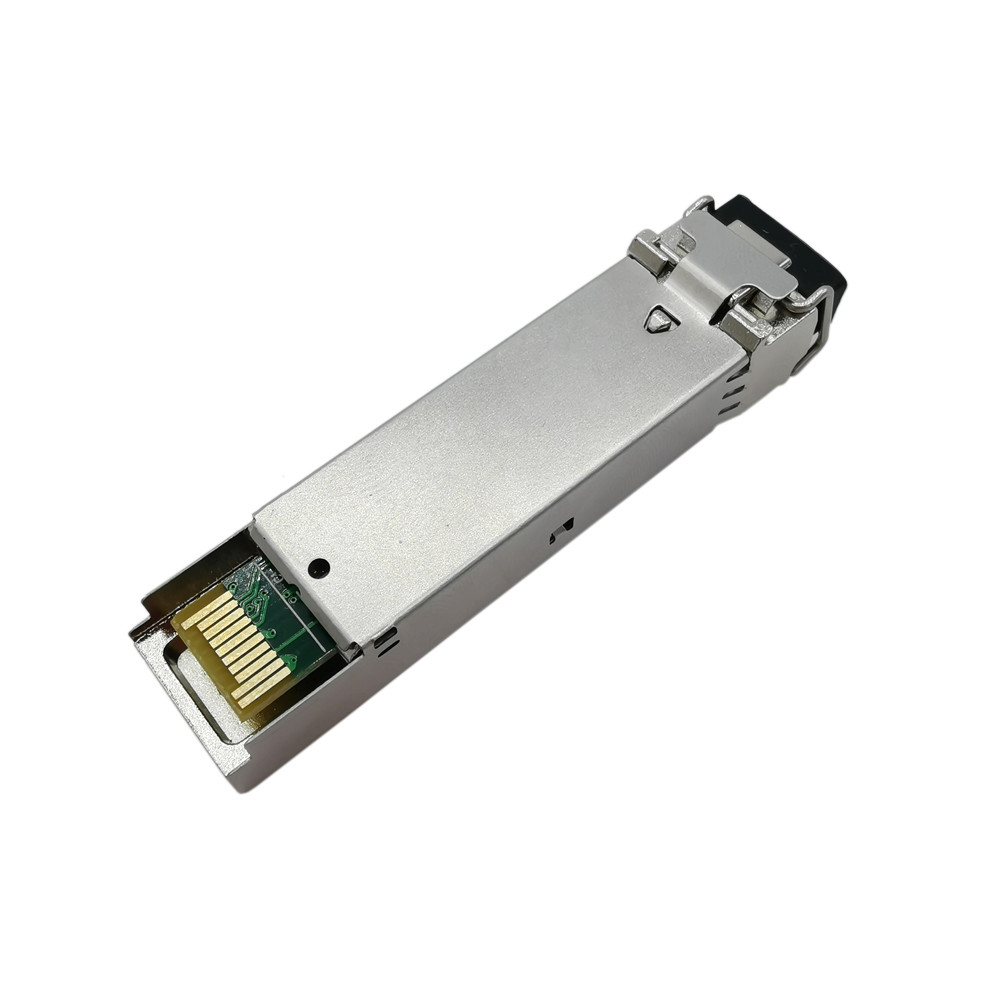

Prpducts Picture:

155M SFP SMF Duplex LC 40km 1310nm DDM SFP optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik 0

155M SFP SMF Duplex LC 40km 1310nm DDM SFP optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik 2

Factory Show:

155M SFP SMF Duplex LC 40km 1310nm DDM SFP optical Transceiver for ZTE/Cisco/Huawei/HPE/Aruba/Mikrotik 3

Ordering Information:

Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
UT-FE-SX850	155Mbps	SFP	2km	850nm	VCSEL	PIN	LC	0-70℃
UT-FE-SX1310	155Mbps	SFP	2km	1310nm	FP	PIN	LC	0-70℃
UT-FE-LX20	155Mbps	SFP	20km	1310nm	FP	PIN	LC	0-70℃
UT-FE-EX40	155Mbps	SFP	40km	1310nm	DFB	PIN	LC	0-70℃
UT-FE-ZX60	155Mbps	SFP	60km	1550nm	DFB	PIN	LC	0-70℃
UT-FE-ZX80	155Mbps	SFP	80km	1550nm	DFB	PIN	LC	0-70℃
UT-FE-ZX100	155Mbps	SFP	100km	1550nm	DFB	PIN	LC	0-70℃
UT-FE-ZX120	155Mbps	SFP	120km	1550nm	DFB	PIN	LC	0-70℃
UT-FE-ZX160	155Mbps	SFP	160km	1550nm	DFB	PIN	LC	0-70℃
UT-FE-BX20-L35	155Mbps	BiDi SFP	20km	Tx1310nm/Rx1550nm	FP	PIN	LC	0-70℃
UT-FE-BX20-L53	155Mbps	BiDi SFP	20km	Tx1550nm/Rx1310nm	FP	PIN	LC	0-70℃
UT-FE-BX40-L35	155Mbps	BiDi SFP	40km	Tx1310nm/Rx1550nm	FP	PIN	LC	0-70℃
UT-FE-BX40-L53	155Mbps	BiDi SFP	40km	Tx1550nm/Rx1310nm	FP	PIN	LC	0-70℃
UT-FE-BX60-L35	155Mbps	BiDi SFP	60km	Tx1310nm/Rx1550nm	DFB	PIN	LC	0-70℃
UT-FE-BX60-L53	155Mbps	BiDi SFP	60km	Tx1550nm/Rx1310nm	DFB	PIN	LC	0-70℃
UT-FE-BX80-L35	155Mbps	BiDi SFP	80km	Tx1310nm/Rx1550nm	DFB	PIN	LC	0-70℃
UT-FE-BX80-L53	155Mbps	BiDi SFP	80km	Tx1550nm/Rx1310nm	DFB	PIN	LC	0-70℃
UT-FE-BX100-L35	155Mbps	BiDi SFP	100km	Tx1310nm/Rx1550nm	DFB	PIN	LC	0-70℃
UT-FE-BX100-L53	155Mbps	BiDi SFP	100km	Tx1550nm/Rx1310nm	DFB	PIN	LC	0-70℃
UT-FE-BX120-L35	155Mbps	BiDi SFP	120km	Tx1310nm/Rx1550nm	DFB	PIN	LC	0-70℃
UT-FE-BX120-L53	155Mbps	BiDi SFP	120km	Tx1550nm/Rx1310nm	DFB	PIN	LC	0-70℃
