UT11F-SFP unmanaged industrial 1x10/100Base-Tx + 1x100M-Fx SFP ethernet switch DIN Rail

Minimum Order Quantity :	2pcs	Packaging Details :	26pcs/carton with power adapter ; 60pcs/carton without power adapter.
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union, Paypal, Wechat, Alipay etc.
Supply Ability :	5000 per week

Place of Origin:	China	Brand Name:	UTOPTEK
Model Number:	UT11F-SFP

Detail Information
Product Name:	Industrial Media Converter	Ethernet Port:	1x RJ45 Port
Fiber Port:	1x SFP Port	Transmission Speed:	10/100Mbps
Material:	Aluminum Alloy	Working Temp.:	-40°C To 85°C
Power Input:	DC10-48V	Transmission Distance:	Plug In SFP Module (0-120km)
Product Size:	11885.733.5mm	Weight:	0.35kg
Warranty:	3years

Product Description

Industrial Grade Fiber media converter
1-port 10/100Mbps RJ45 + 1-port 100Mbps SFP port
Model: UT11F-SFP

Features:

1 Port 10/100Mbps RJ45 with Auto Uplink, 1 port 100Mbps SFP port
Automatic MAC address learning and aging
Automatically support IGMP (Multicasting)
10/100Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports 10/100Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation for lightning protection
Supports Daisy-Chain connection
Supports Broadcast Storm Control
Supports Relay output for power failure
Super lightening protection, IP40 protection.
Excellent heat elimination without cooling fan.
Redundant dual DC power inputs.
Redundant Power Inputs
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh industrial environment or higher requirement
-45℃-85℃ operating temperature range.

Technical Paremeters:

Technical Specification
Product Name	1 Port 10/100M Industrial Media Converter
Product Model	UT11F-SFP
Interface	1 x 10/100Base-T RJ45 port + 1x 100Mbps SFP Fiber port
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM Single-mode: 20/40/60/80KM
Performance Specification	Bandwidth: 1Gbps Packet Buffer Memory: 512K Packet Forwarding Rate:0.744Mpps/port MAC Address Table: 1K
Forwarding Mode	Store-and-Forward
Protection	6KV Lightening protection, IP40 protection
LED Indicators	Power: PWR; OPT/Link; Link/Act
Power Supply	Input Voltage: Non-POE: DC24V(10-48V) POE: DC52V (48～57V) /Terminal block
Other Specifications
Working Environment	Working temperature: -40～+85℃ ; Storage temperature: -40～+85℃ Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail or Wall mounts
Packing List	1×Industrial Media Converter (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit
Certification	CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B
MTBF	300,000 hours
Weight & Size	Product Weight: 0.36 KG Packing weight: 0.46KG Product size (L×W×H): 118m× 86mm× 40mm Packing size(L×W×H): 220mm× 220mm× 67mm
Warranty	5-years

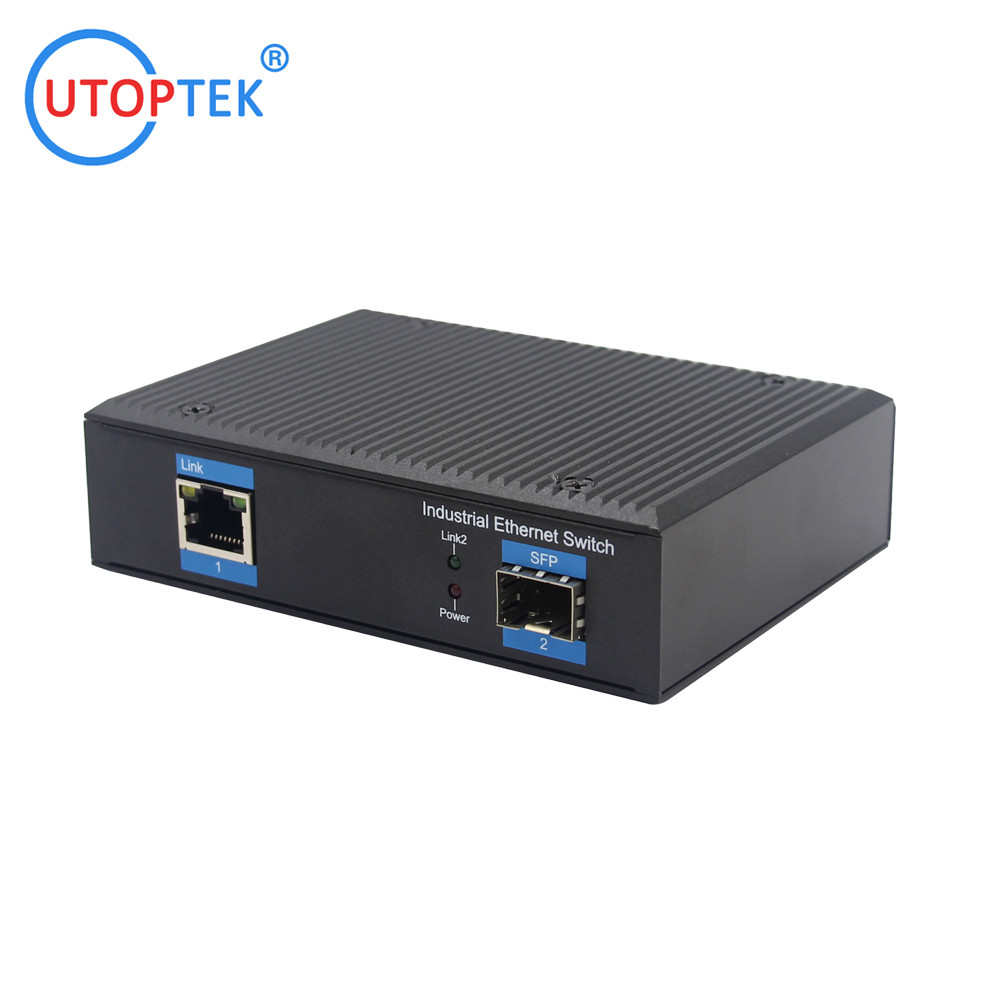

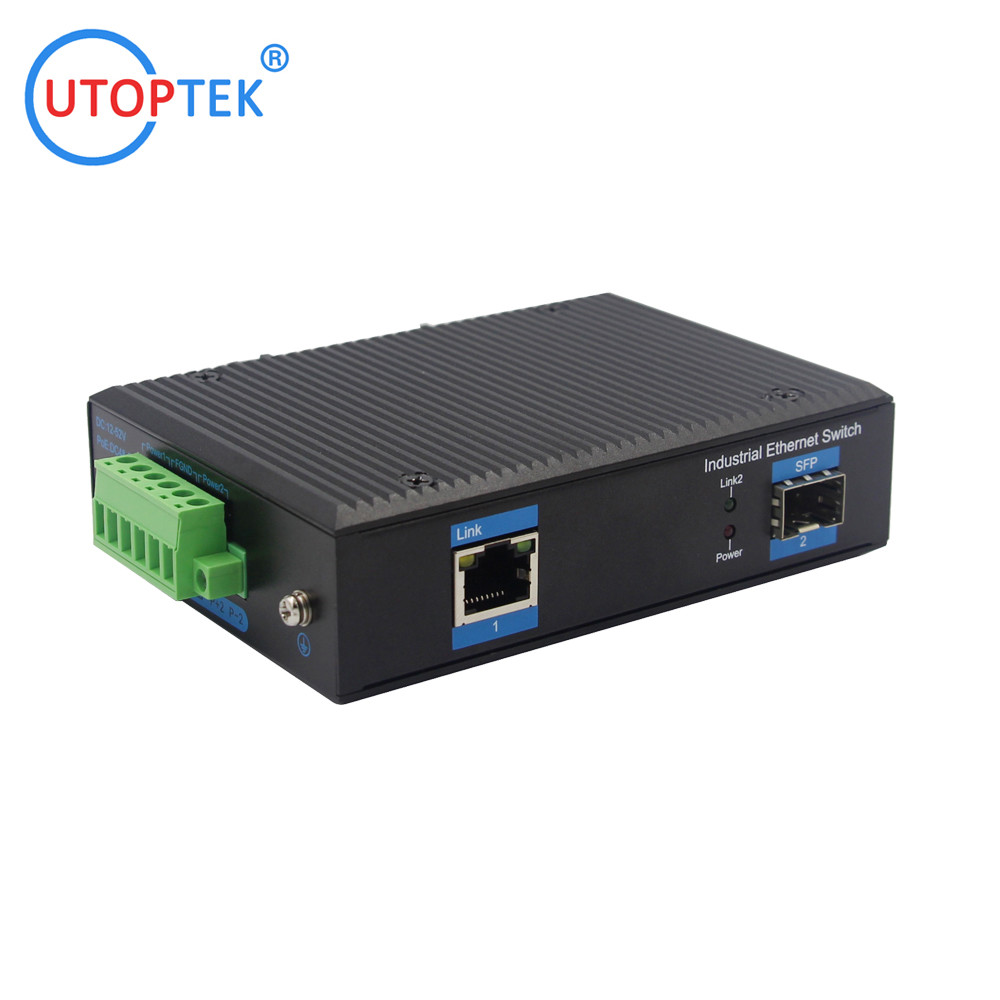

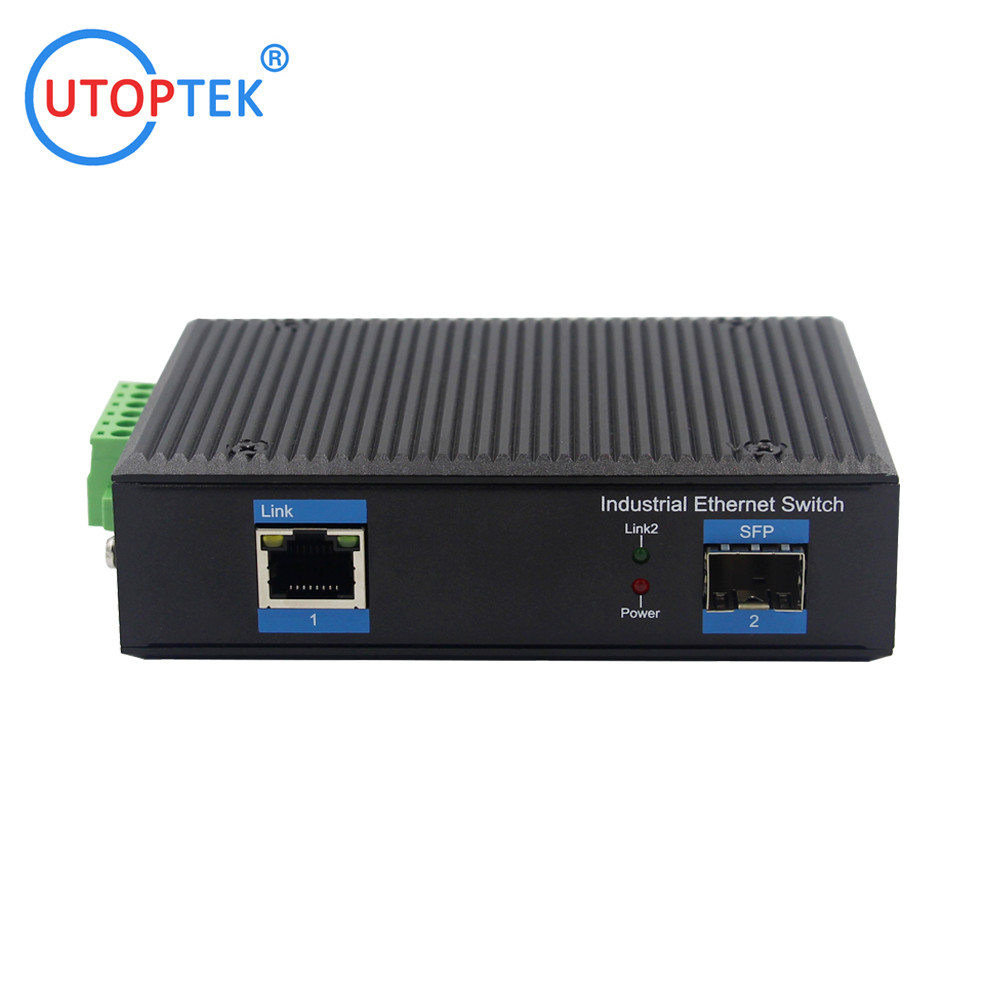

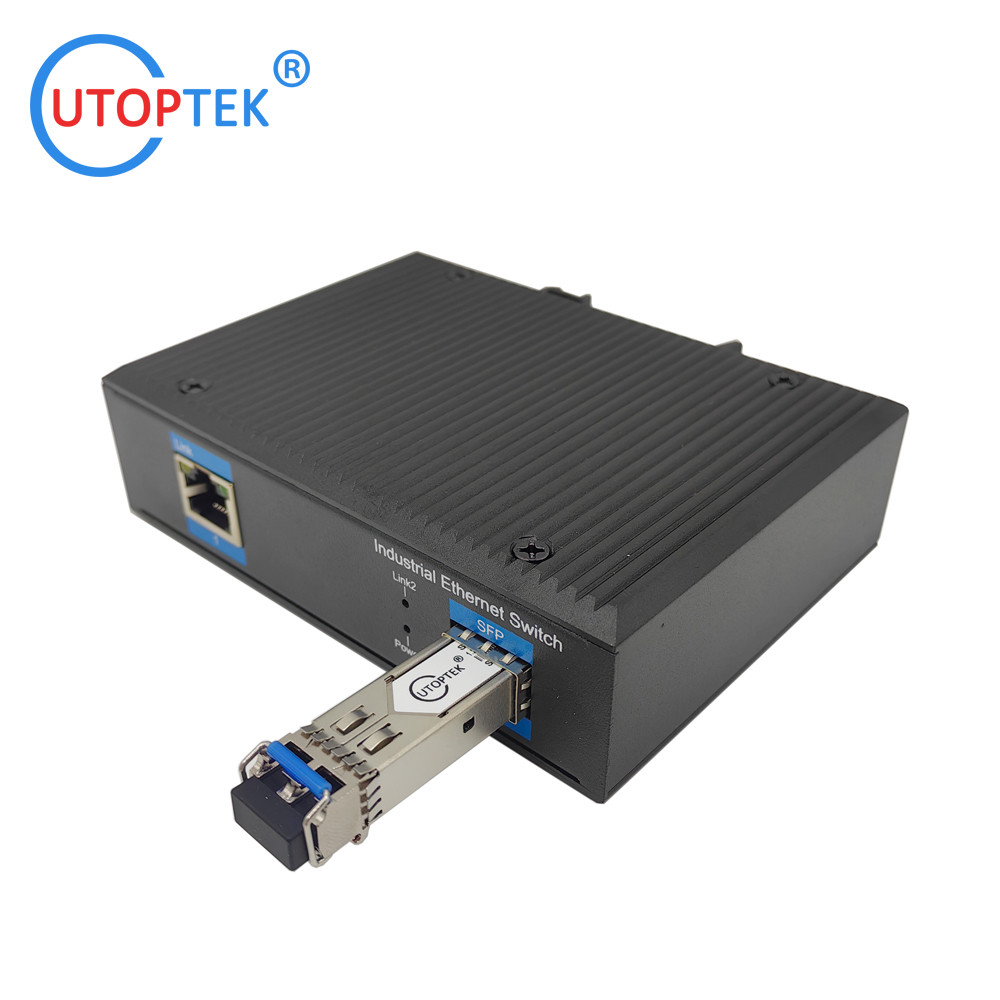

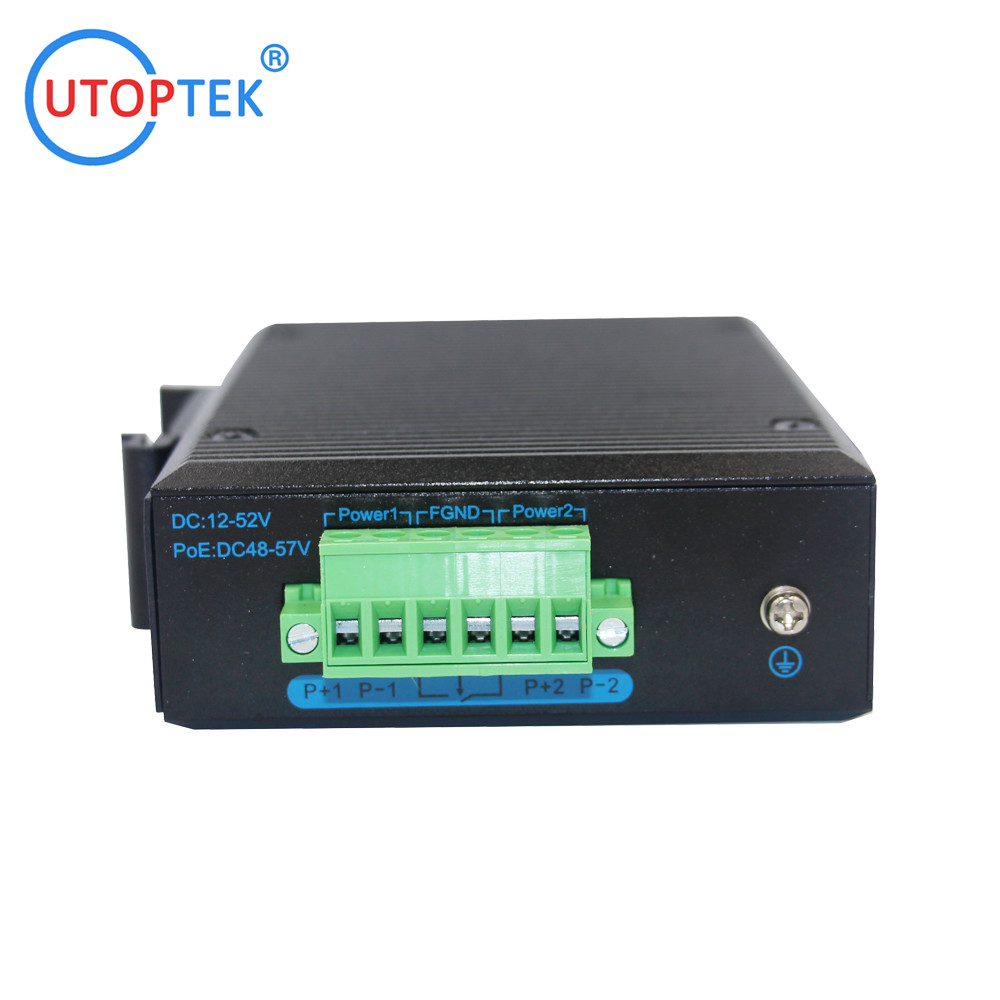

Product pictures:

UT11F-SFP unmanaged industrial 1x10/100Base-Tx + 1x100M-Fx SFP ethernet switch DIN Rail 0
Ordering informations:

10/100M Industrial Fiber Switch (Aluminum Case, -40 ~+85 ℃)
UT11F-SC20	Industrial 10/100M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter
UT11FP-SC20	Industrial 10/100M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function, exclude power adapter.
UT12F-SC20	Industrial 10/100M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter
UT12FP-SC20	Industrial 10/100M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, with POE function,exclude power adapter
UT14F-SC20	Industrial 10/100M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC10~47V, exclude power adapter
UT14FP-SC20	Industrial 10/100M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function exclude power adapter
UT24F-SC20	Industrial 10/100M 2 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC10~47V,exclude power adapter
UT24FP-SC20	Industrial 10/100M 2 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function, exclude power adapter
UT26F-SC20	Industrial 10/100M 2 fiber port + 6 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC10~47V, exclude power adapter
UT26FP-SC20	Industrial 10/100M 2 fiber port + 6 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC48~57V,with POE function, exclude power adapter
UT05F	Industrial 5x10/100Mbps RJ45 ports network switch, DIN Rail type, DC10~47V,exclude power adapter
UT05FP	Industrial 5x10/100Mbps RJ45 ports network switch, DIN Rail type,DC48~57V, with POE function,exclude power adapter
UT08F	Industrial 8x10/100Mbps RJ45 ports network switch, DIN Rail type,DC10~47V,exclude power adapter
UT08FP	Industrial 8x10/100Mbps RJ45 ports network switch, DIN Rail type,DC48~57V, with POE function,exclude power adapter
UT09F	Industrial 9x10/100Mbps RJ45 ports network switch, DIN Rail type,DC10~47V,exclude power adapter
UT09FP	Industrial 8x10/100Mbps RJ45 +1 Uplink ports network switch, DIN Rail type,DC48~57V, with POE function,exclude power adapter
UT11F-SFP	Industrial 10/100M 1 SFP fiber port + 1 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT12F-SFP	Industrial 10/100M 1 SFP fiber port + 2 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT14F-SFP	Industrial 10/100M 1 SFP fiber port + 4 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
