UT08GP unmanaged Gigabit 8port POE industrial ethernet switch used for IP Cameras

Minimum Order Quantity :	2pcs	Packaging Details :	26pcs/carton with power adapter ; 60pcs/carton without power adapter.
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union, Paypal, Wechat, Alipay etc.
Supply Ability :	5000 per month

Place of Origin:	China	Brand Name:	UTOPTEK
Model Number:	UT08GP

Detail Information
Product Name:	Industrial Ethernet Switch	Ethernet Port:	8x RJ45 Support POE+
Transmission Speed:	10/100/1000Mbps	Material:	Aluminum Alloy
Working Temp.:	-40°C To 85°C	Power Input:	DC10-48V(no Poe); DC48-57V(POE)
Transmission Distance:	100m	Warranty:	5years

Product Description

Industrial Grade Ethernet POE switch
8-port 10/100/1000Mbps RJ45 port support POE
Model: UT08GP

Features:

8 Port 10/100/1000Mbps RJ45 POE with Auto Uplink
Automatic MAC address learning and aging
Automatically support IGMP (Multicasting)
comply with IEEE802.3af/at standard
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports 10/100/1000Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation for lightning protection
Supports Daisy-Chain connection
Supports Broadcast Storm Control
Supports Relay output for power failure
Super lightening protection, IP40 protection.
Excellent heat elimination without cooling fan.
Redundant dual DC power inputs.
Redundant Power Inputs
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh industrial environment or higher requirement
-45℃-85℃ operating temperature range.

Technical Paremeters:

Technical Specification
Product Name	8 Port 10/100/1000M Industrial Ethernet POE switch
Product Model	UT08GP
Interface	8 x 10/100/1000Base-T RJ45 POE port
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Performance Specification	Bandwidth: 20Gbps Packet Buffer Memory: 2M Packet Forwarding Rate:0.744Mpps/port MAC Address Table: 16K
Forwarding Mode	Store-and-Forward
Protection	6KV Lightening protection, IP40 protection
LED Indicators	Power: PWR; OPT/Link; Link/Act
Power Supply	Input Voltage: Non-POE: DC24V(10-48V) POE: DC52V (48～57V) /Terminal block
Other Specifications
Working Environment	Working temperature: -40～+85℃ ; Storage temperature: -40～+85℃ Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail or Wall mounts
Packing List	1×Industrial Media Converter (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit
Certification	CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B
MTBF	300,000 hours
Weight & Size	Product Weight: 0.65KG Packing Weight: 1.19 KG Product size (L×W×H): 143.5mm× 130mm× 47mm Packing size(L×W×H): 286mm× 230mm× 60mm
Warranty	5-years

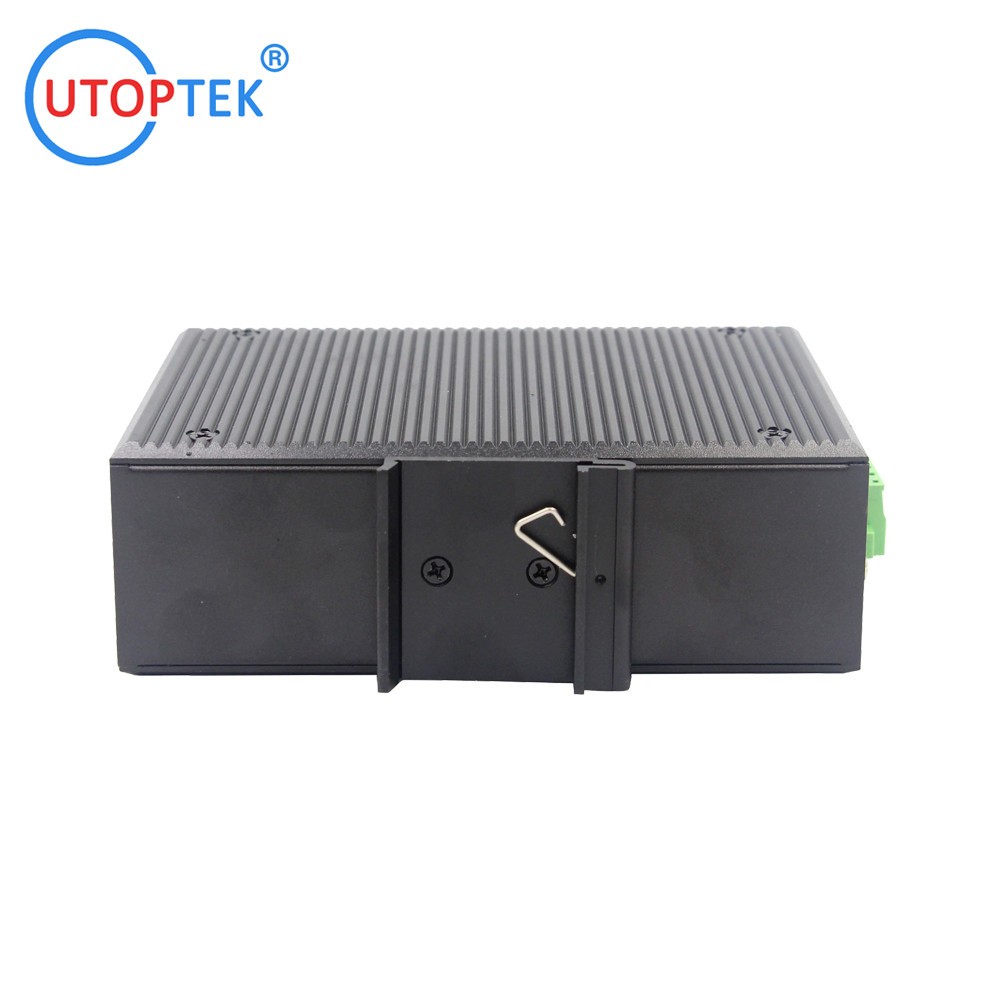

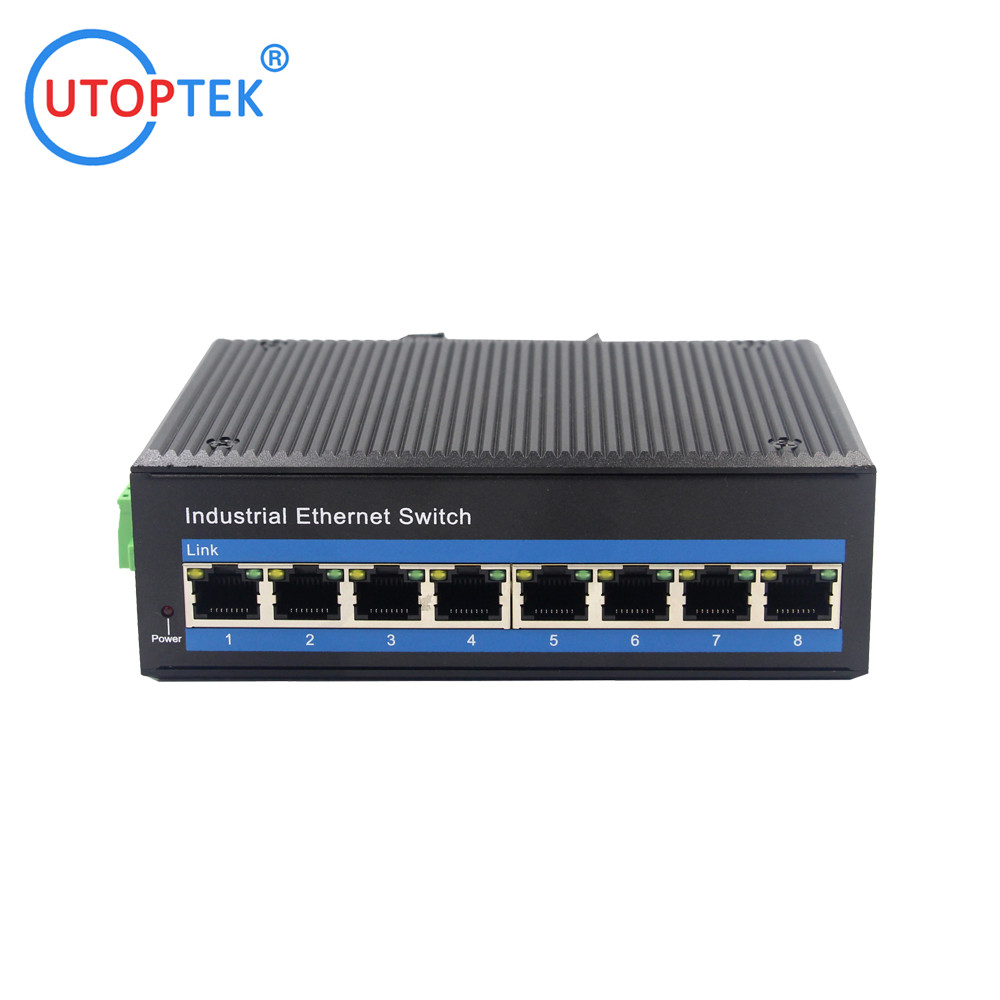

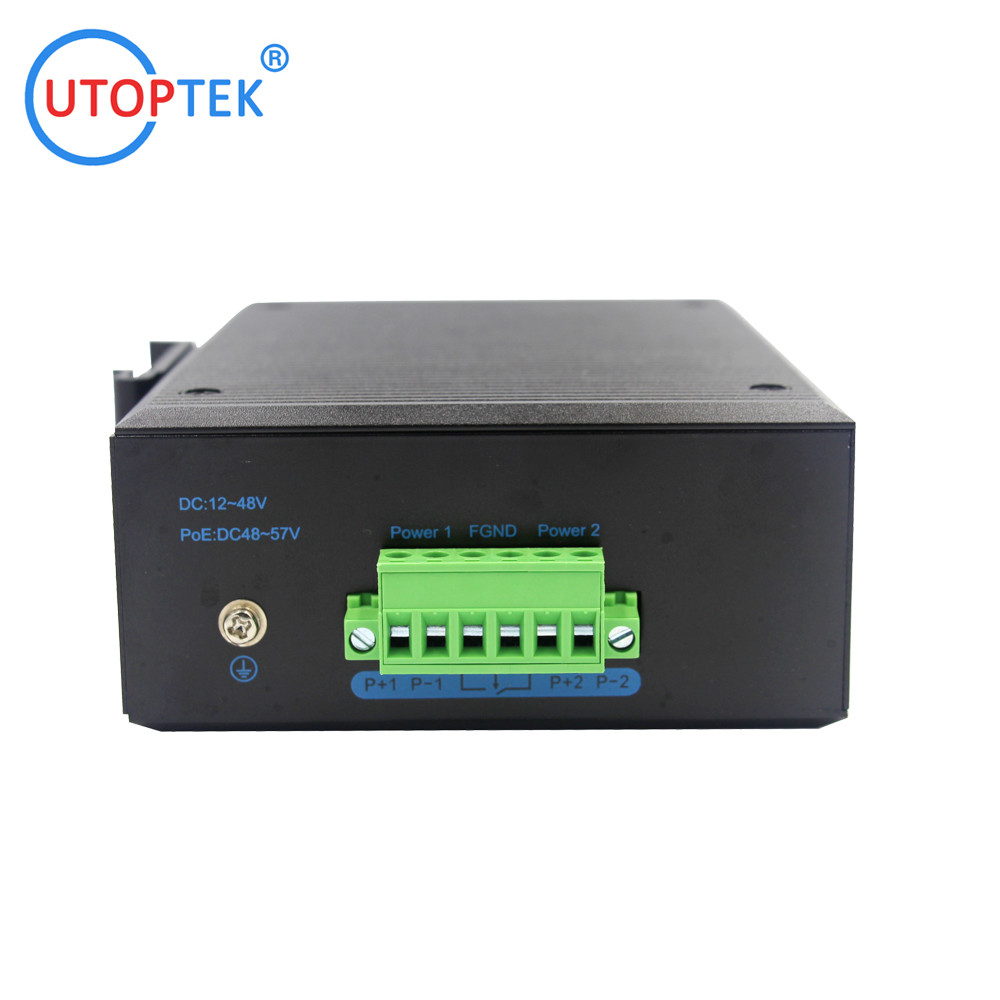

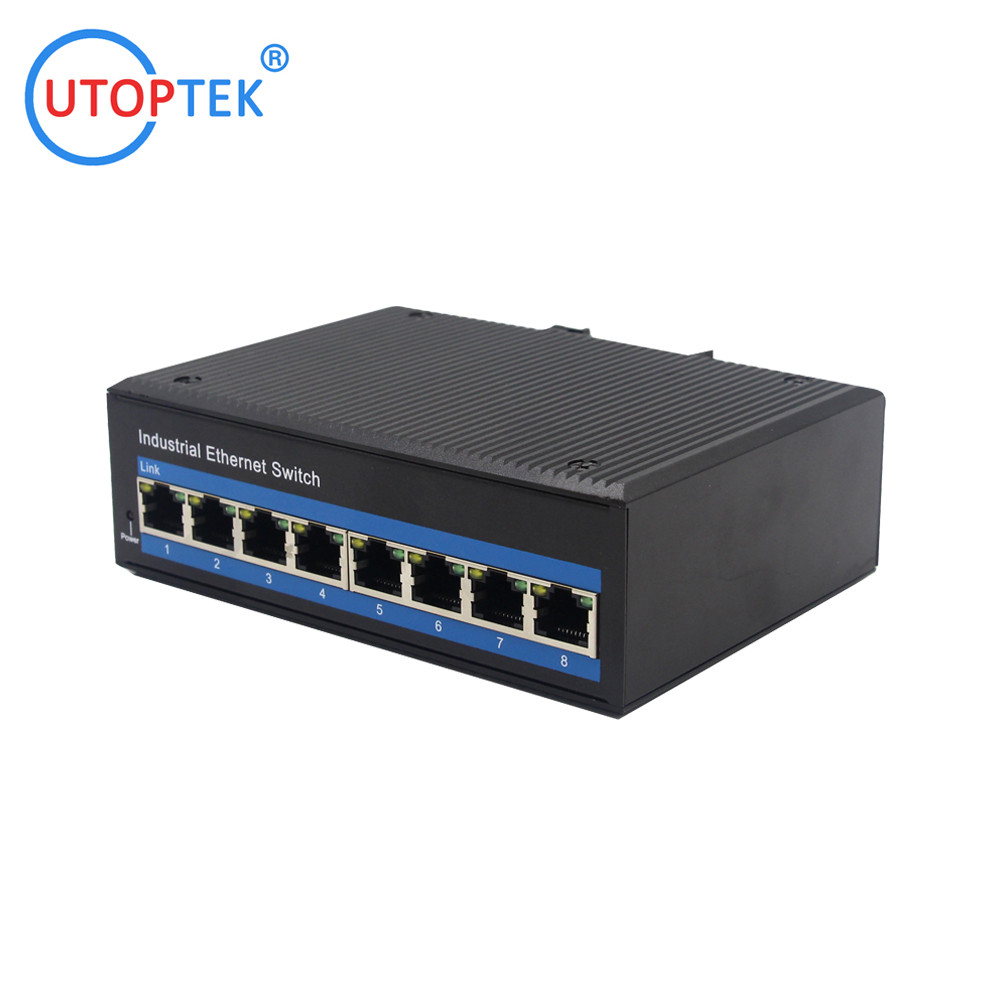

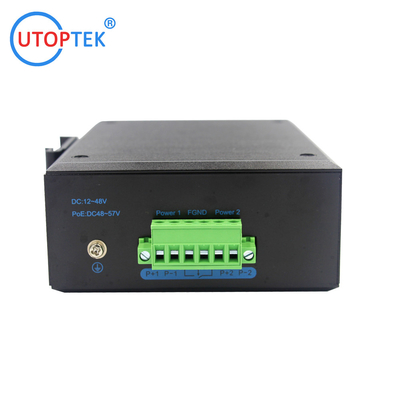

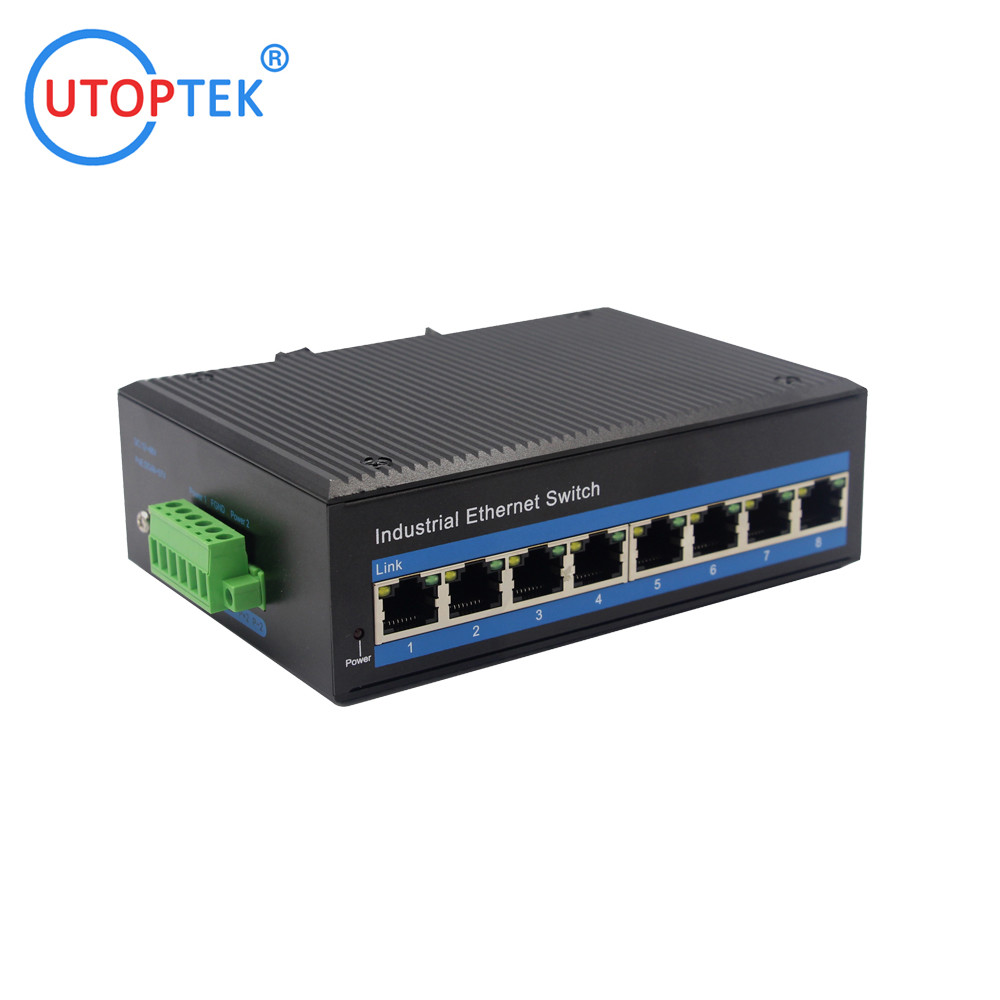

Product pictures:

UT08GP unmanaged Gigabit 8port POE industrial ethernet switch used for IP Cameras 0

Application:

UT08GP unmanaged Gigabit 8port POE industrial ethernet switch used for IP Cameras 6

Ordering informations:

10/100/1000M Industrial Fiber Switch (Aluminum Case, -40 ~+85 ℃)
UT11G-SC20	Industrial 10/100/1000M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter
UT11GP-SC20	Industrial 10/100/1000M 1 fiber port + 1 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~52V, exclude power adapter
UT12G-SC20	Industrial 10/100/1000M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC10~47V, exclude power adapter
UT12GP-SC20	Industrial 10/100/1000M 1 fiber port + 2 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~52V, exclude power adapter
UT14G-SC20	Industrial 10/100/1000M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC10~47V, exclude power adapter
UT14GP-SC20	Industrial 10/100/1000M 1 fiber port + 4 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~52V, exclude power adapter
UT05G	Industrial 5x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, DC10~47V,exclude power adapter
UT05GP	Industrial 5x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC48~52V,exclude power adapter
UT08G	Industrial 8x10/100/1000Mbps RJ45 ports network switch, DIN Rail type,DC10~47V,exclude power adapter
UT08GP	Industrial 8x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC48~52V,exclude power adapter
UT11G-SFP	Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT11GP-SFP	Industrial 10/100/1000M 1 SFP port + 1 RJ45 POE port, DIN Rail type,DC48~52V, exclude power adapter
UT12G-SFP	Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT12GP-SFP	Industrial 10/100/1000M 1 SFP port + 2 RJ45 POE port, DIN Rail type,DC48~52V, exclude power adapter
UT14G-SFP	Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT14GP-SFP	Industrial 10/100/1000M 1 SFP port + 4 RJ45 POE port, DIN Rail type,DC48~52V, exclude power adapter
UT18G-SFP	Industrial 10/100/1000M 1 SFP port + 8 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT18GP-SFP	Industrial 10/100/1000M 1 SFP port + 8 RJ45 POE port, DIN Rail type,DC48~52V, exclude power adapter
UT24G-SFP	Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT24GP-SFP	Industrial 10/100/1000M 2 SFP port +4 RJ45 POE port, DIN Rail type,DC48~52V, exclude power adapter
UT28G-SFP	Industrial 10/100/1000M 2 SFP port + 8 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
UT28GP-SFP	Industrial 10/100/1000M 2 SFP port + 8 RJ45 POE port, DIN Rail type,DC48~52V, exclude power adapter
UT82G-SFP	Industrial 10/100/1000M 8 SFP port + 2 RJ45 port, DIN Rail type,DC10~47V, exclude power adapter
