GLC-LX-SMD= Cisco Compatible 1000BASE-LX SFP 1310nm 10Km Transceiver Module

Minimum Order Quantity :	2pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-GE-LX10

Detail Information
Transmission Speed:	1.25Gb/s	Fiber Type:	Single-mode,Duplex LC
Distance:	10KM	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	TRX1310nm	Warranty:	1 Year
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

1.25 GB/s 10km SFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1310nm, FP-LD, Single-mode, DDM

Description:

UTOPTEK’s UT-GE-LX10 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 10km application.

Features:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	SFP
Wavelength:	TRx1310nm
Distance	10KM
Data Rate (max)	1.25Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Connector	LC
Warranty	1 year
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	10 pcs/box

Applications:

1000Base-LX Ethernet
Metro/Access Networks
2×Fiber Channel
Other Optical Links

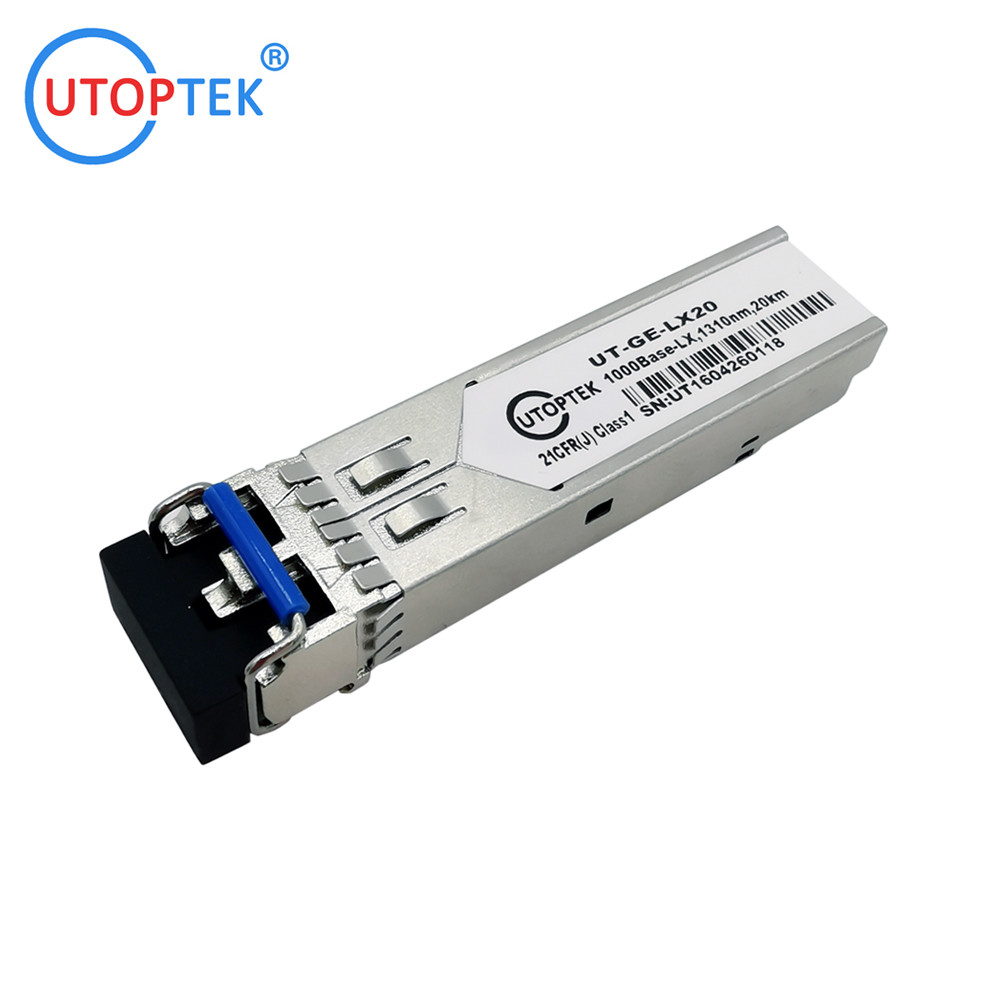

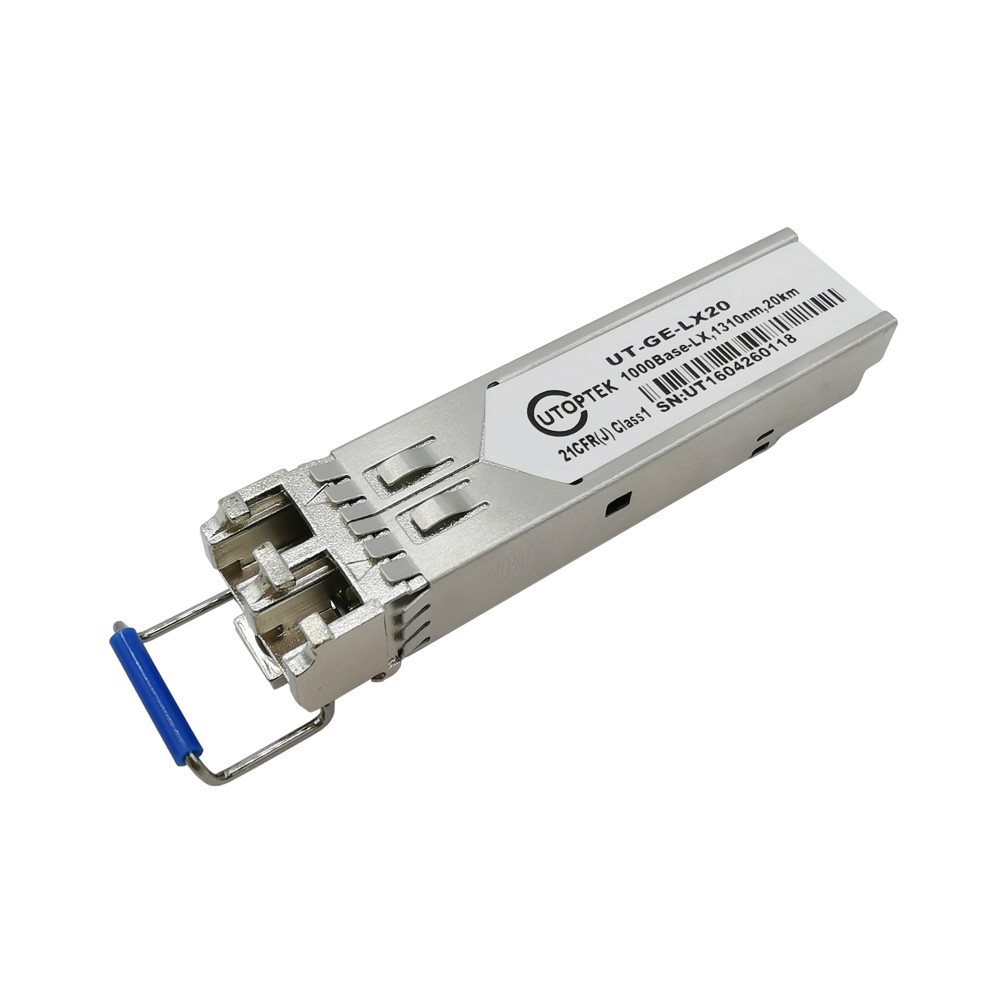

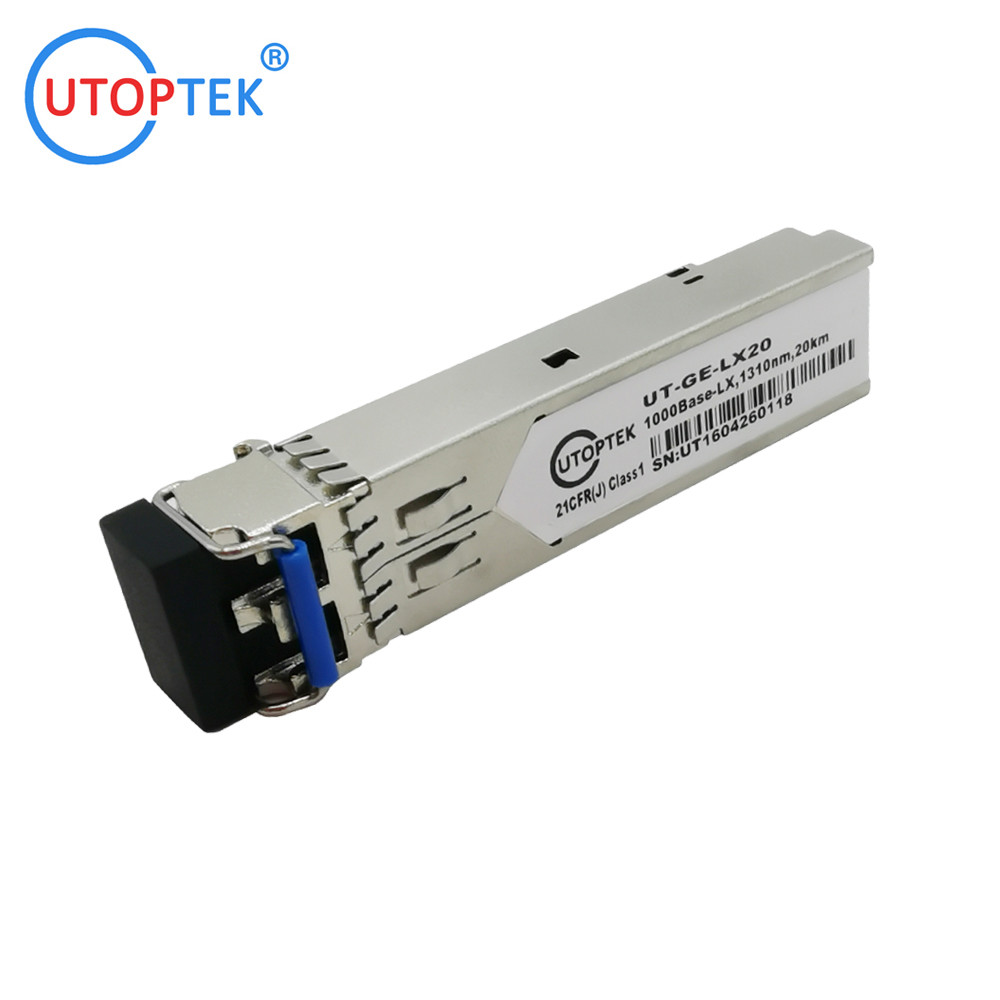

Prpducts Picture:

GLC-LX-SMD= Cisco Compatible 1000BASE-LX SFP 1310nm 10Km Transceiver Module 0

GLC-LX-SMD= Cisco Compatible 1000BASE-LX SFP 1310nm 10Km Transceiver Module 3

Ordering Information:

1.25G Duplex LC
UT-GE-SX850	1.25G MM Dual fiber 850nm SX DDM LC 500meters
UT-GE-SX1310	1.25G SM Dual fiber 1310nm LX DDM LC 2km
UT-GE-LX10	1.25G SM Dual fiber 1310nm LX DDM LC 10km
UT-GE-LX20	1.25G SM Dual fiber 1310nm LX DDM LC 20km
UT-GE-EX40	1.25G SM Dual fiber 1310 DFB DDM LC 40km
UT-GE-ZX60	1.25G SM Dual fiber 1550 DFB DDM LC 60km
UT-GE-ZX80	1.25G SM Dual fiber 1550 DFB DDM LC 80km
UT-GE-ZX100	1.25G SM Dual fiber 1550 DFB DDM LC 100km
UT-GE-ZX120	1.25G SM Dual fiber 1550 DFB DDM LC 120km
