10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE

Minimum Order Quantity :	2pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-SFP-10G-T

Detail Information
Transmission Speed:	10Gbps	Interface:	RJ-45
Distance:	30M	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Ethernet Cable:	Cat6a UTP	Warranty:	3 Years
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

10GBASE-T SFP+ Copper Transceiver

Hot Pluggable, 10Gb/s,Cat-6a UTP Cable, 30m

Description:

UTOPTEK’s UT-SFP-10G-T 10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3. UT-SFP-10G-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.

Technical Specifications:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	SFP+
UTP cable	Cat6,Cat6a
Distance	30M
Data Rate (max)	10Gbps
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Connector	RJ-45
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	10 pcs/box

Features:

Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
Hot-pluggable SFP footprint
Compact RJ-45 connector assembly
RoHS compliant and lead-free
Single +3.3V power supply
10 Gigabit Ethernet over Cat 6a cable
Ambient Operating temperature: 0°C to +65°C

Applications:

10 Gigabit Ethernet over Cat 6 cable
Switch/Router to Switch/Router Link
High speed I/O for file severs

Cable Length:

Standard	Cable	Reach	Host Port
10Gbase-T	CAT6A	30m	XFI
5Gbase-T/2.5Gbase-t	CAT5E	50m	5GBase-R/2.5GBase-X
1000base-T	CAT5E	100m	1000base-FX

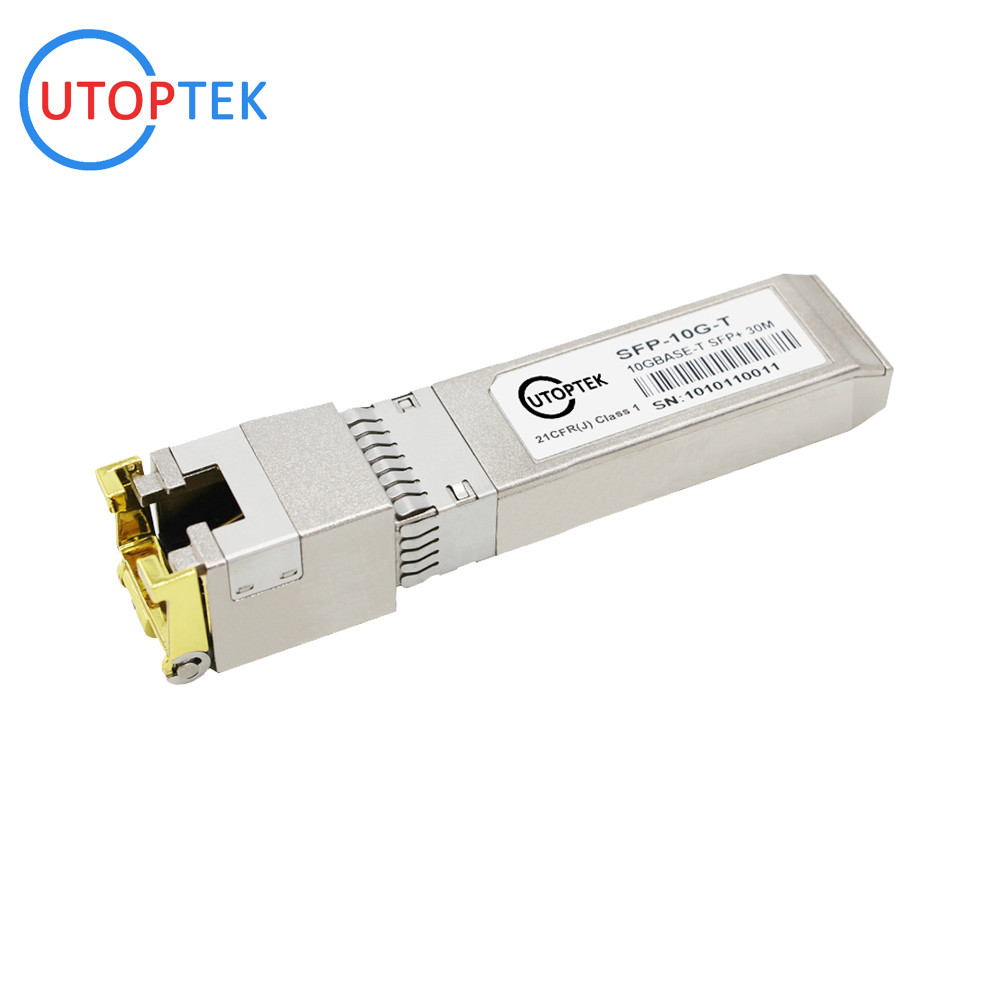

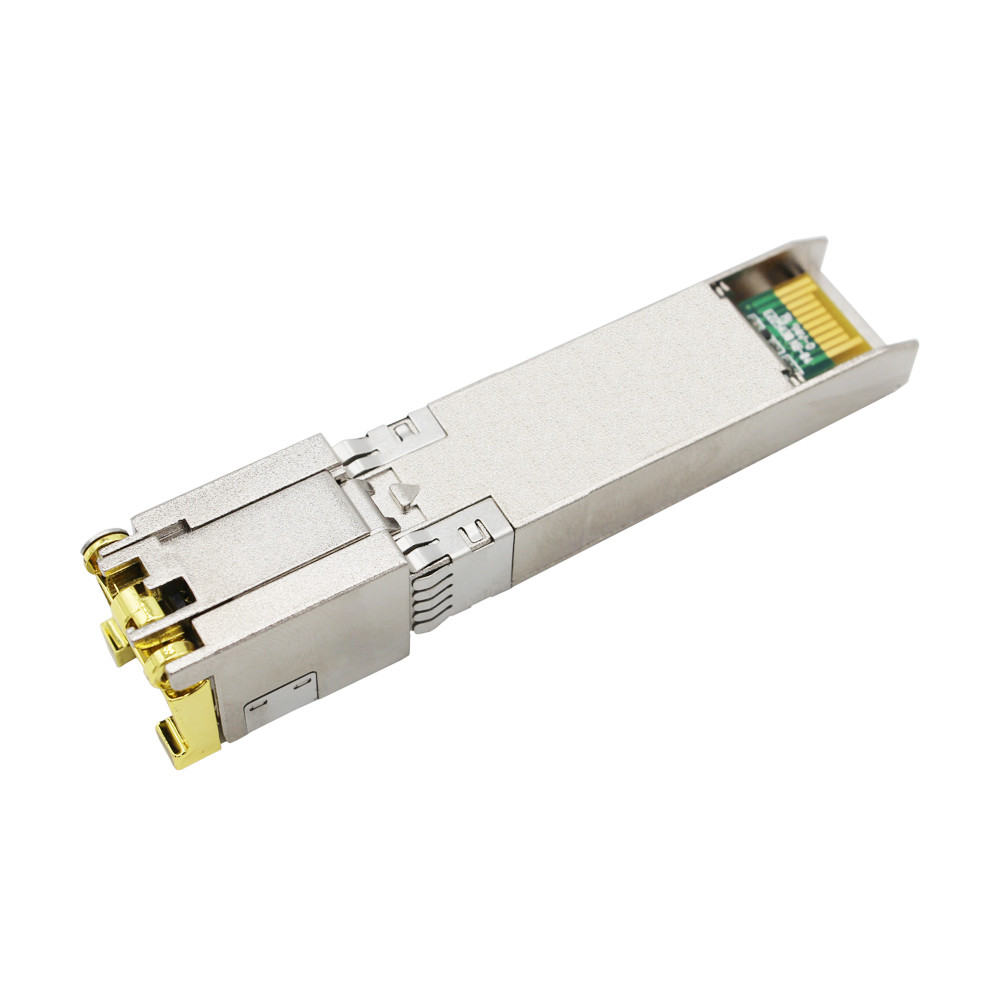

Prpducts Picture:

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE 0

Mechanical Dimensions:

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE 2

Factory show:

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE 4

10G Base-T Electric RJ45 Copper SFP module Transceiver 30m compatible with cisco/Huawei/HP/Mikrotik/Ericsson/ZTE 5

Ordering Information:

Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
SFP-FE-T	100Mbps	SFP	100m	/	/	/	RJ45	0-70℃
SFP-GE-T	1000Mbps	SFP	100m	/	/	/	RJ45	0-70℃
SFP-10G-T	10000Mbps	SFP	80m	/	/	/	RJ45	0-70℃
SFP-10G-T	10000Mbps	SFP	30m	/	/	/	RJ45	0-70℃
