1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module
1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module 1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module 1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module
Contact Now

1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module

Minimum Order Quantity : 2pcs Packaging Details : 10pcs to one plastic plate
Delivery Time : 1-2days Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability : 2000pcs per week
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: UT-GE-LX20

Detail Information
Transmission Speed: 1.25Gb/s Fiber Type: Single-mode,Duplex LC
Distance: 20KM DDM Function: Support
Power Supply: 3.3V Working Temperature: 0~70℃
Wavelength: TRX1310nm Warranty: 3 Years
Compatible: Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

1.25 GB/s 20km SFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1310nm, FP-LD, Single-mode, DDM





Description:

UTOPTEK’s UT-GE-LX20 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 15dB link budge ensure this module 1000Base Ethernet 20km application.



Features:



Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP
Wavelength: TRx1310nm
Distance 20KM
Data Rate (max) 1.25Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Connector LC
Warranty 3 years
Compatible with Cisco, Huawei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box



Applications:

  • 1000Base-LX Ethernet
  • Metro/Access Networks
  • 2×Fiber Channel
  • Other Optical Links

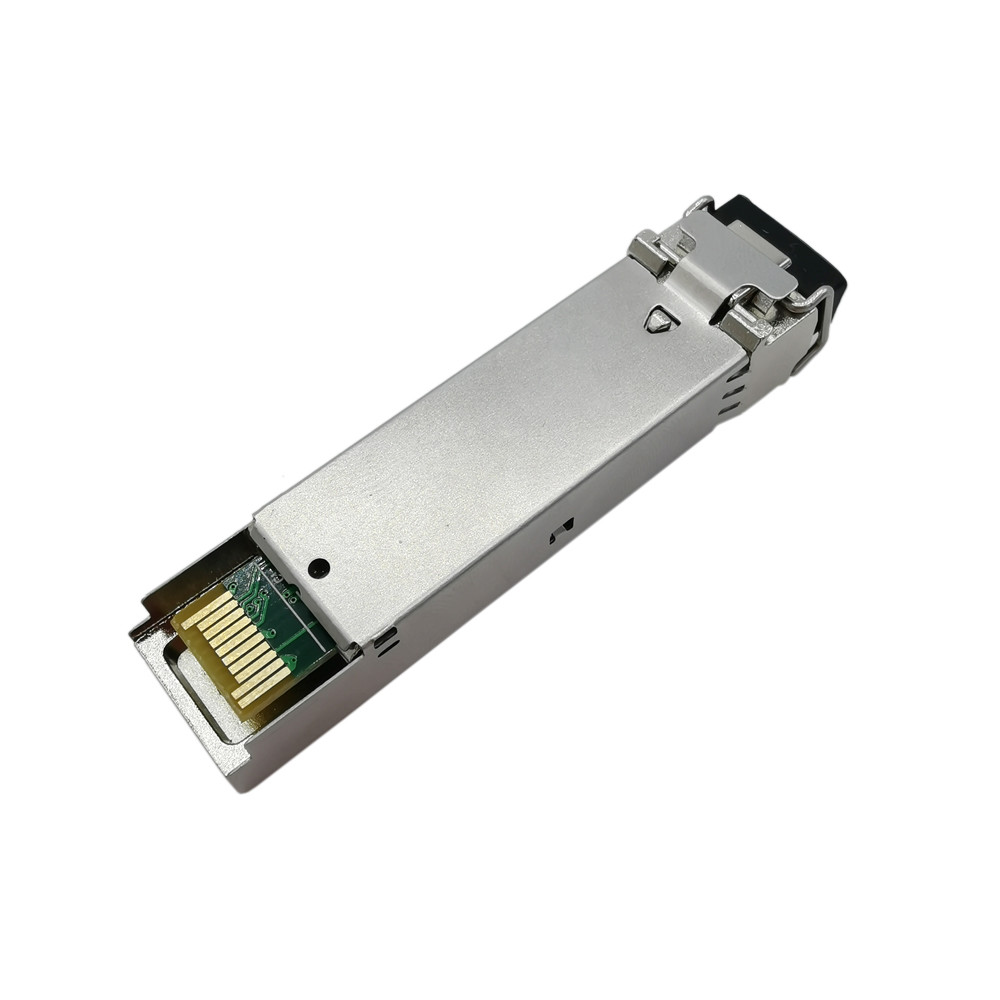

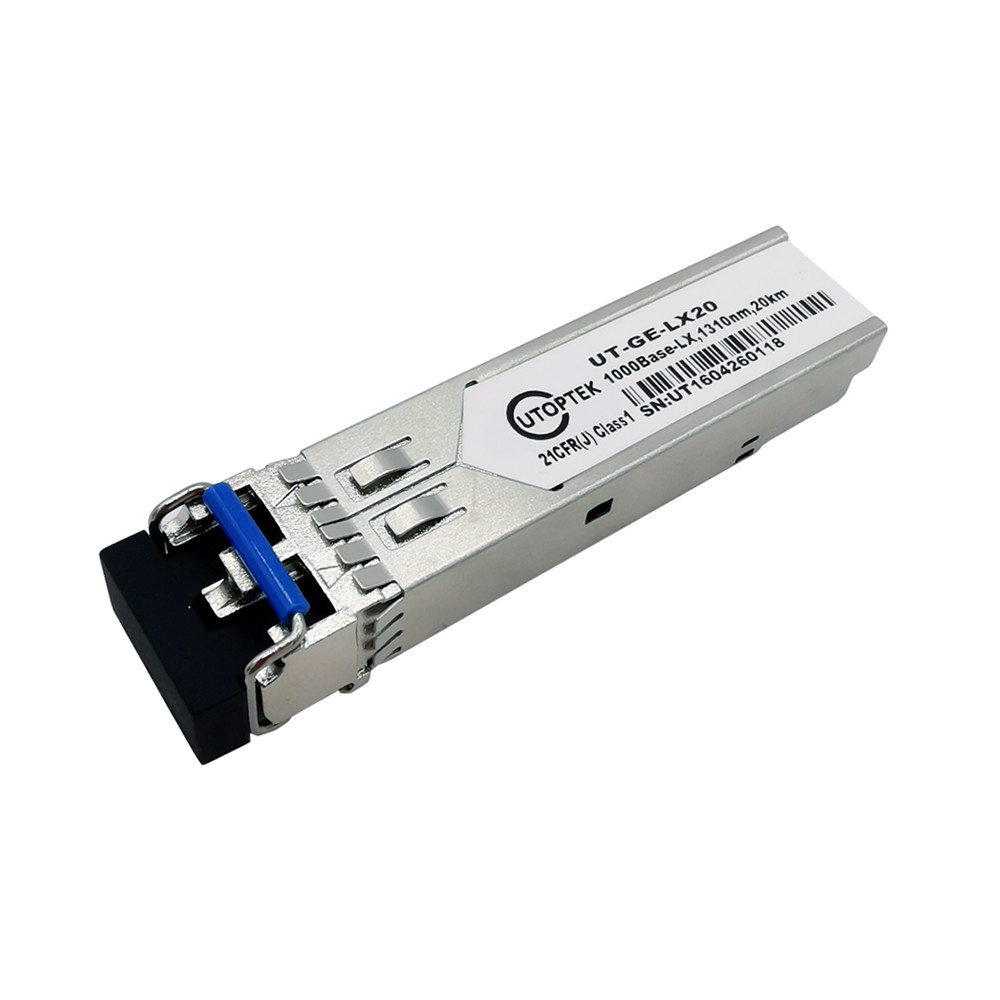

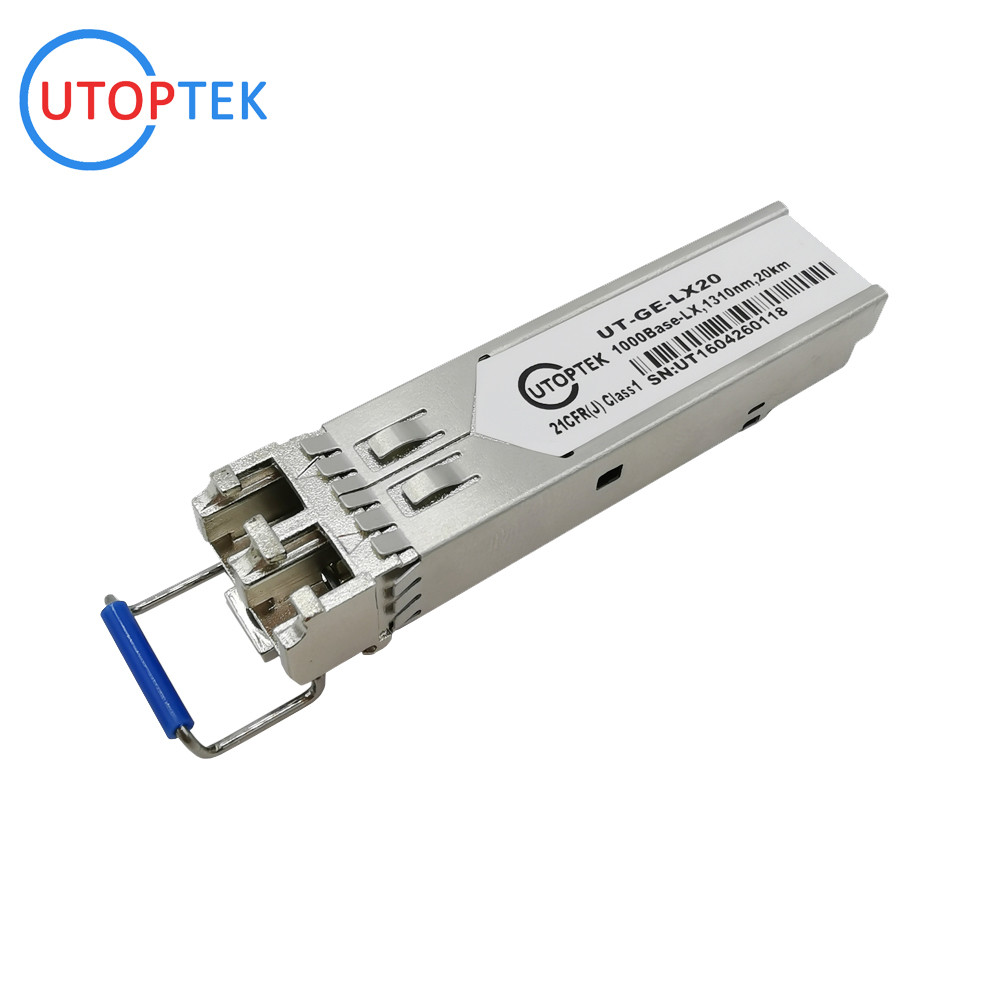

Products Picture:

1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module 01.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module 11.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module 2



Factory Show:

1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module 3

1.25G SFP Module SM 1310nm LC 20KM 30km 40km 50km 60km Optical Module Transceiver 1000base sfp module 4

Ordering Information:

Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
UT-GE-SX850 1.25Gb/s SFP 550m 850nm VCSEL PIN LC 0-70℃
UT-GE-SX1310 1.25Gb/s SFP 2km 1310nm FP PIN LC 0-70℃
UT-GE-LX20 1.25Gb/s SFP 20km 1310nm FP PIN LC 0-70℃
UT-GE-EX40 1.25Gb/s SFP 40km 1310nm DFB PIN LC 0-70℃
UT-GE-ZX60 1.25Gb/s SFP 60km 1550nm DFB PIN LC 0-70℃
UT-GE-ZX80 1.25Gb/s SFP 80km 1550nm DFB PIN LC 0-70℃
UT-GE-ZX100 1.25Gb/s SFP 100km 1550nm DFB PIN LC 0-70℃
UT-GE-ZX120 1.25Gb/s SFP 120km 1550nm DFB APD LC 0-70℃
UT-GE-BX03-L35 1.25Gb/s BiDi SFP 3km Tx1310nm/Rx1550nm FP PIN LC/SC 0-70℃
UT-GE-BX03-L53 1.25Gb/s BiDi SFP 3km Tx1550nm/Rx1310nm FP PIN LC/SC 0-70℃
UT-GE-BX10-L35 1.25Gb/s BiDi SFP 10km Tx1310nm/Rx1550nm FP PIN LC/SC 0-70℃
UT-GE-BX10-L53 1.25Gb/s BiDi SFP 10km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX20-L35 1.25Gb/s BiDi SFP 20km Tx1310nm/Rx1550nm FP PIN LC/SC 0-70℃
UT-GE-BX20-L53 1.25Gb/s BiDi SFP 20km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX20-L34 1.25Gb/s BiDi SFP 20km Tx1310nm/Rx1490nm FP PIN LC/SC 0-70℃
UT-GE-BX20-L43 1.25Gb/s BiDi SFP 20km Tx1490nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX40-L35 1.25Gb/s BiDi SFP 40km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70℃
UT-GE-BX40-L53 1.25Gb/s BiDi SFP 40km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX40-L34 1.25Gb/s BiDi SFP 40km Tx1310nm/Rx1490nm DFB PIN LC/SC 0-70℃
UT-GE-BX40-L43 1.25Gb/s BiDi SFP 40km Tx1490nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX60-L35 1.25Gb/s BiDi SFP 60km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70℃
UT-GE-BX60-L53 1.25Gb/s BiDi SFP 60km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX60-L34 1.25Gb/s BiDi SFP 60km Tx1310nm/Rx1490nm DFB PIN LC/SC 0-70℃
UT-GE-BX60-L43 1.25Gb/s BiDi SFP 60km Tx1490nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX80-L35 1.25Gb/s BiDi SFP 80km Tx1310nm/Rx1550nm DFB PIN LC/SC 0-70℃
UT-GE-BX80-L53 1.25Gb/s BiDi SFP 80km Tx1550nm/Rx1310nm DFB PIN LC/SC 0-70℃
UT-GE-BX80-L45 1.25Gb/s BiDi SFP 80km Tx1490nm/Rx1550nm DFB PIN LC/SC 0-70℃
UT-GE-BX80-L54 1.25Gb/s BiDi SFP 80km Tx1550nm/Rx1490nm DFB PIN LC/SC 0-70℃
UT-GE-BX100-L45 1.25Gb/s BiDi SFP 100km Tx1490nm/Rx1550nm DFB APD LC/SC 0-70℃
UT-GE-BX100-L54 1.25Gb/s BiDi SFP 100km Tx1550nm/Rx1490nm DFB APD LC/SC 0-70℃
UT-GE-BX120-L45 1.25Gb/s BiDi SFP 120km Tx1490nm/Rx1550nm DFB APD LC/SC 0-70℃
UT-GE-BX120-L54 1.25Gb/s BiDi SFP 120km Tx1550nm/Rx1490nm DFB APD LC/SC 0-70℃

SFP-GE-CW40-xx 1.25Gb/s CWDM SFP 40km 1270 ~1610nm DFB PIN LC 0-70℃
SFP-GE-CW60-xx 1.25Gb/s CWDM SFP 60km 1270 ~1610nm DFB PIN LC 0-70℃
SFP-GE-CW80-xx 1.25Gb/s CWDM SFP 80km 1270 ~1610nm DFB PIN LC 0-70℃
SFP-GE-CW120-xx 1.25Gb/s CWDM SFP 120km 1470 ~1610nm DFB APD LC 0-70℃

SFP-GE-DW40-CHxx 1.25Gb/s DWDM SFP 40km 1528.77~1563.86nm Cooled DFB APD LC 0-70℃
SFP-GE-DW80-CHxx 1.25Gb/s DWDM SFP 80km 1528.77~1563.86nm Cooled DFB APD LC 0-70℃
SFP-GE-DW120-CHxx 1.25Gb/s DWDM SFP 120km 1528.77~1563.86nm Cooled DFB APD LC 0-70℃
SFP-GE-DW160-CHxx 1.25Gb/s DWDM SFP 160km 1528.77~1563.86nm Cooled DFB APD LC 0-70℃
