High speed 1.25Gb/s WDM BiDi LC T1310/R1550nm 20km SFP Transceiver compatible cisco/huawei/Ericsson/Mikrotik/Alcatel sfp

Product Description

1.25Gb/s 20Km LC BiDi SFP Transceiver

Hot Pluggable, Single LC, +3.3V, 1310nm Tx/1550nm Rx, FP-LD, Single-mode, DDM

UT-GE-BX20-L35

1.Technical parameters:

2.Features:

• SFP package with LC connector
• 1310nm FP Laser and 1550nm PIN photodetector
• 1550nm DFB Laser and 1310nm PIN photodetector
• Up to 20Km transmission on SMF
• +3.3V single power supply, hot plugging
• LVPECL compatible data input/output interface
• Low EMI and excellent ESD protection
• laser safety standard IEC-60825 compliant and MSA SFP
• Compatible with RoHS
• Compatible with SFF8472

3.Description:

UTOPTEK’s UT-GE-BX20-L35 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 20km application.

4.Applications:

• 1000Base-LX Ethernet
• Metro/Access Networks
• 1×Fiber Channel
• Other Optical Links

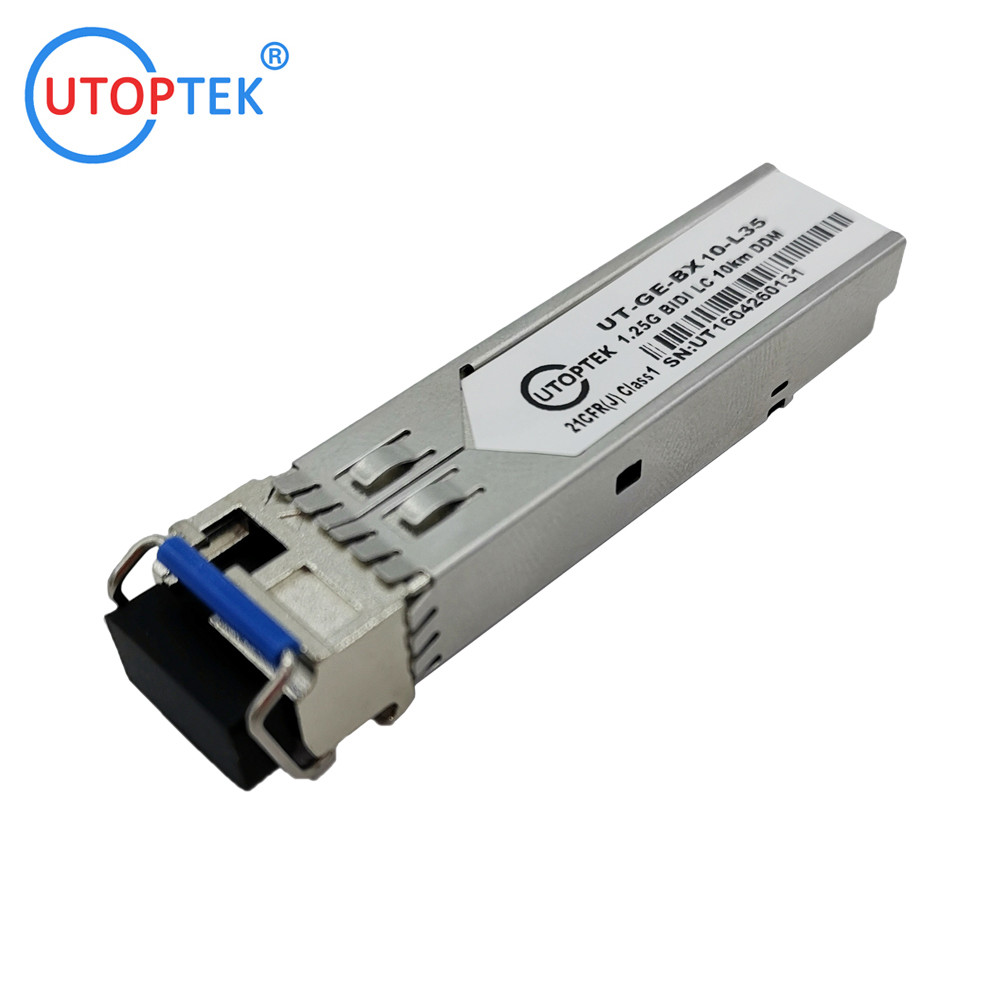

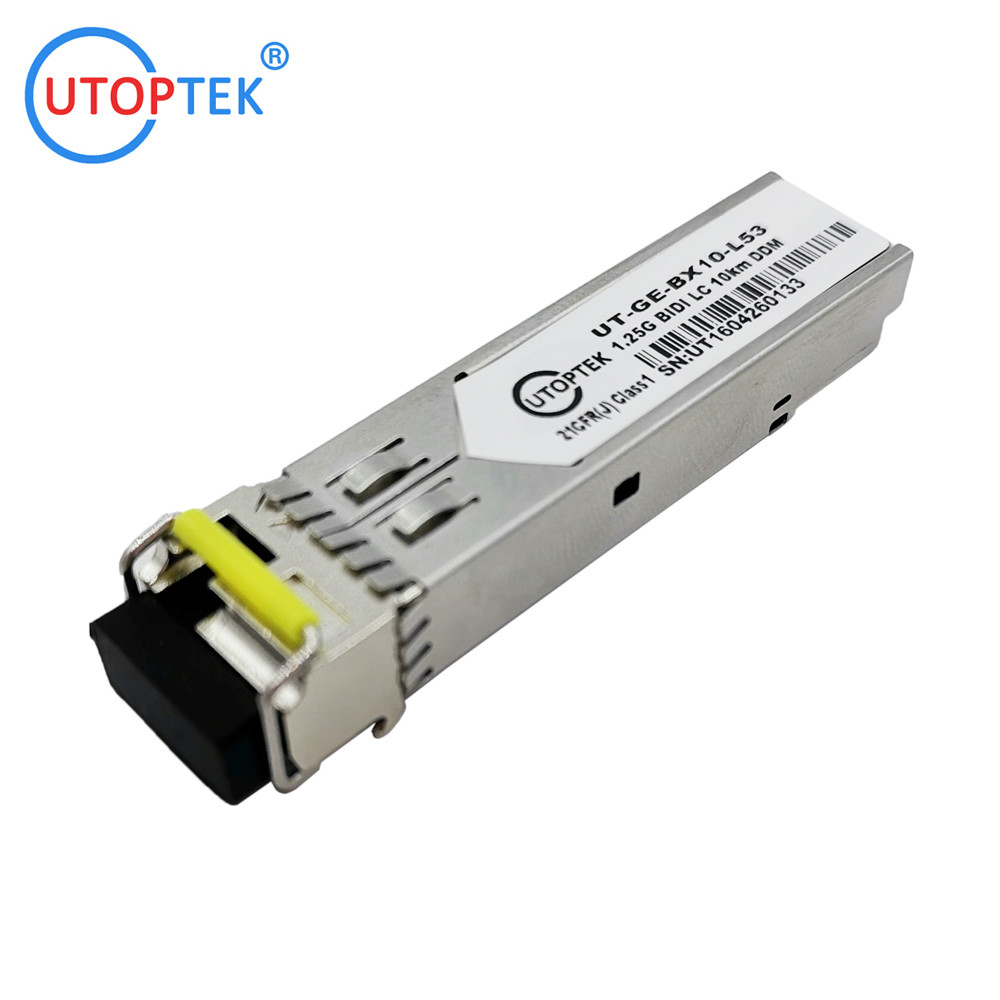

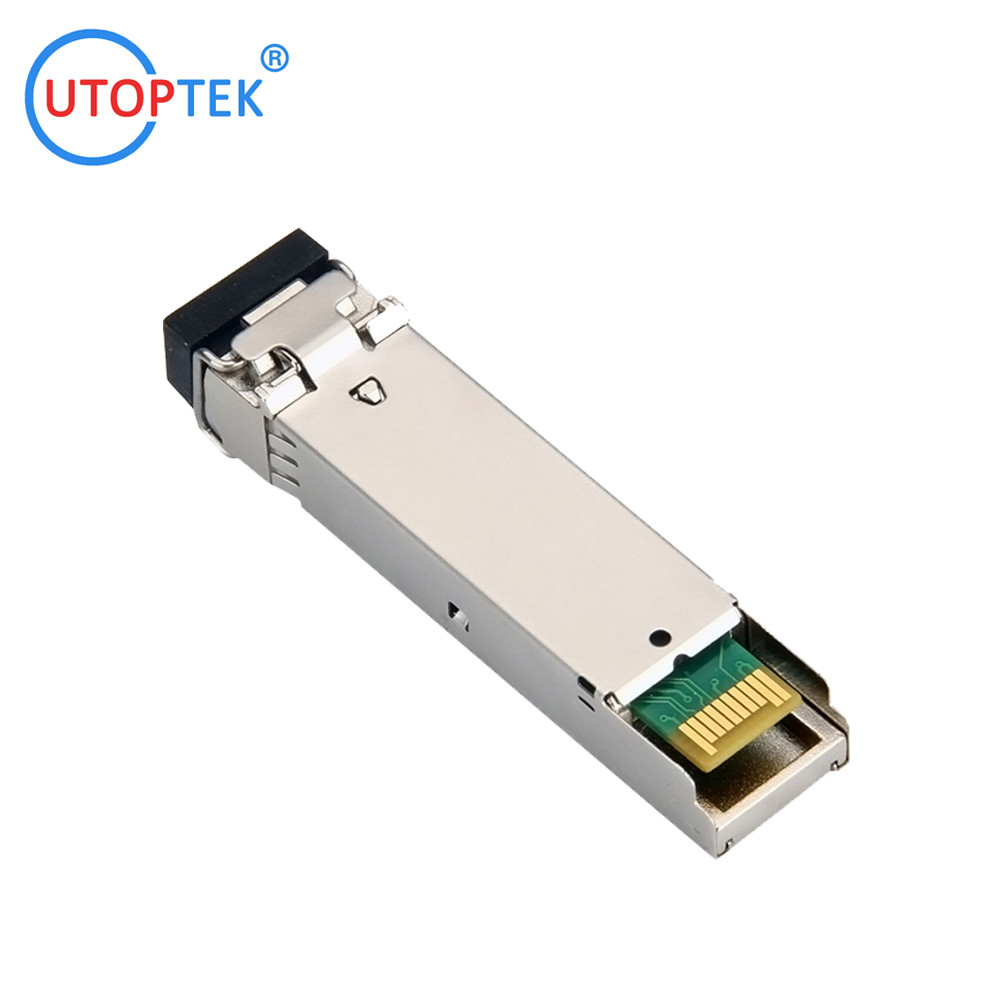

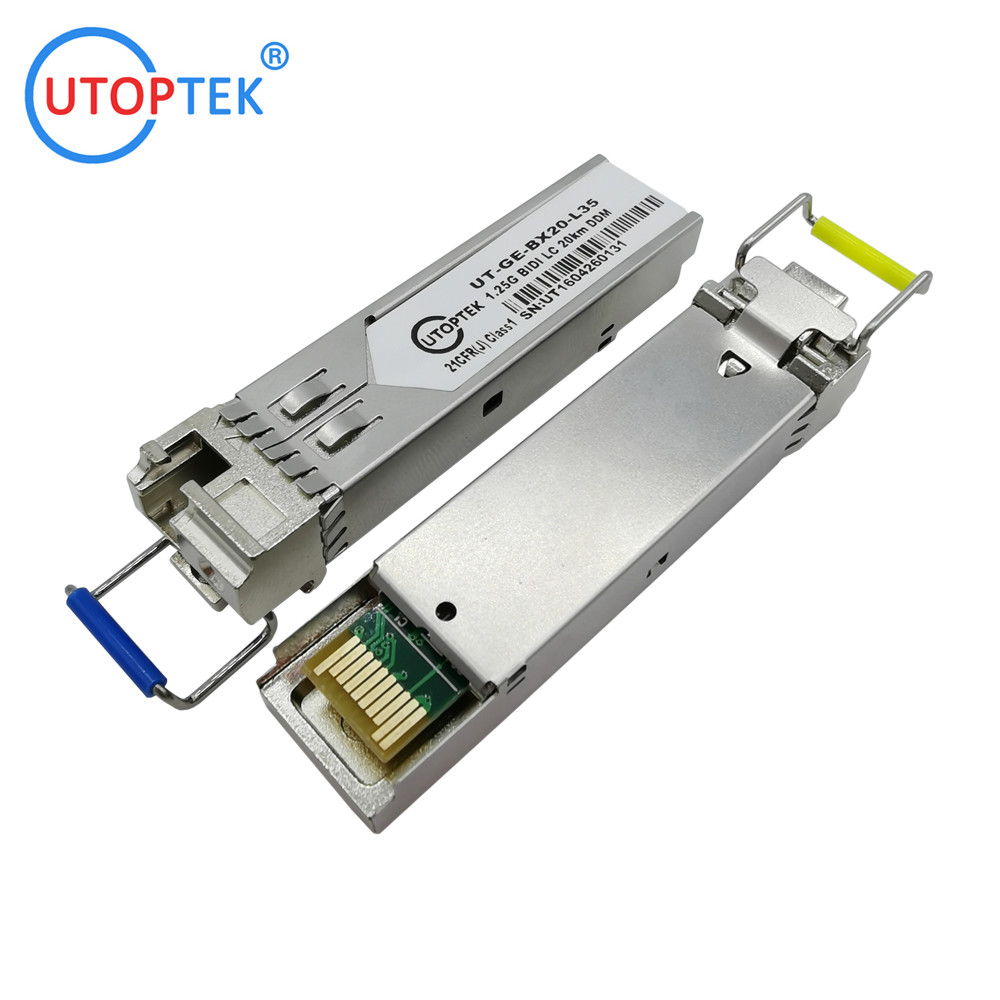

5.Picture show:

Ordering Information:
