Compatible Cisco 40GBase-ER4 QSFP+ Transceiver Module, QSFP-40G-ER4, Refurbished, Cisco 40GBASE QSFP Modules

Name: Compatible Cisco 40GBase-ER4 QSFP+ Transceiver Module, QSFP-40G-ER4, Refurbished, Cisco 40GBASE QSFP Modules
Brand: UTOPTEK
SKU: QSFP-40G-ER4
Rating: 4.5 (199 reviews)

Minimum Order Quantity :	1piece	Packaging Details :	4pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	5000pcs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	QSFP-40G-ER4

Detail Information
Transmission Speed:	40Gb/s	Fiber Type:	Single-mode, Duplex LC
Distance:	40KM	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Aggregate Bandwidth:	> 40Gbps	Per Channel Bandwidth:	11.2Gbps
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..	Warranty:	3 Years

Product Description

40Gb/s ER4 40km QSFP+ Transceiver
Hot Pluggable, Duplex LC Connector, Single mode

1.Features:

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
QSFP+ MSA compliant
Compliant with QDR/DDR Infiniband data rate
Up to 11.2Gb/s data rate per wavelength
4 CWDM lanes MUX/DEMUX design
Up to 40km transmission on single mode fiber (SMF)
Operating case temperature: 0 to 70 ℃
Maximum power consumption 2.5W
LC duplex connector
RoHS compliant

2.Applications:

40GBASE-ER4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 40G Telecom connections

3.Technical specifications:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	QSFP+
Fiber Type	single mode duplex LC
Wavelength:	1271, 1291, 1311 and 1331 nm
Distance	40KM
Data Rate (max)	40Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3V
Power consuption	<2.5W
Connector	Duplex LC
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	4pcs/bag

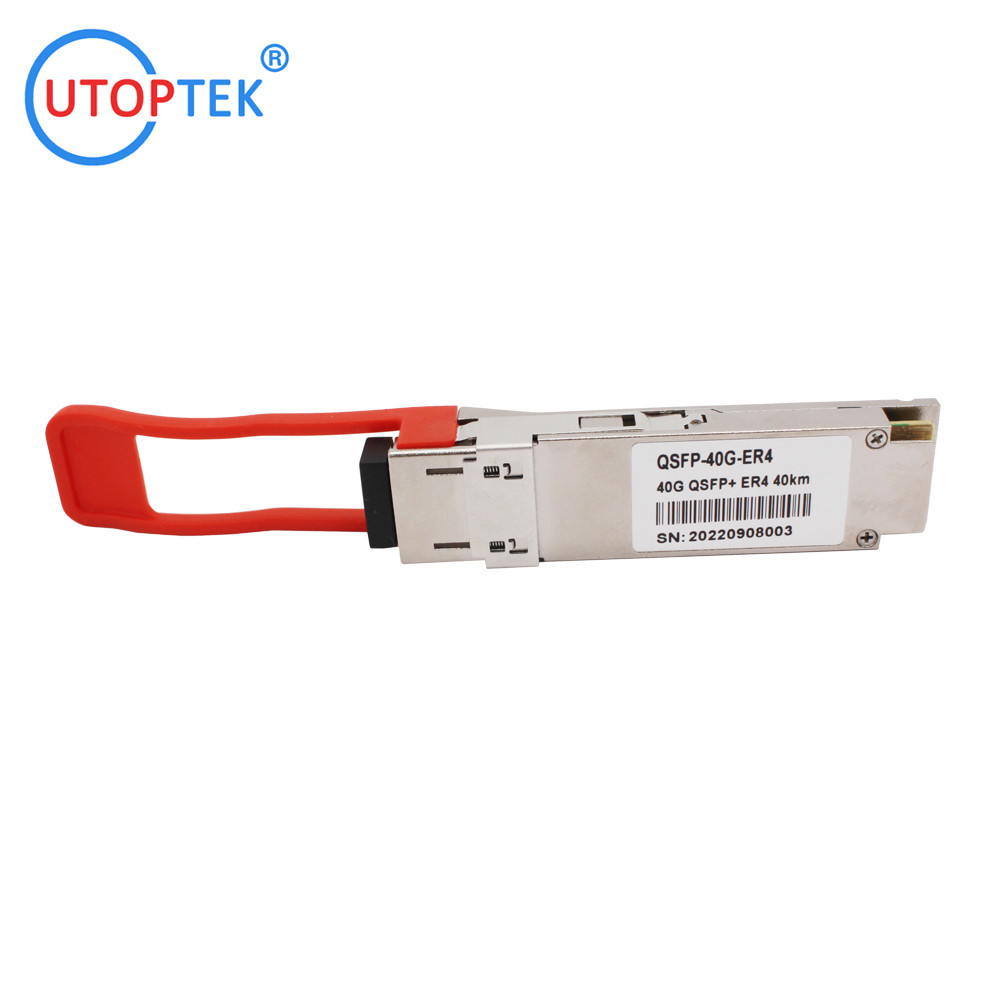

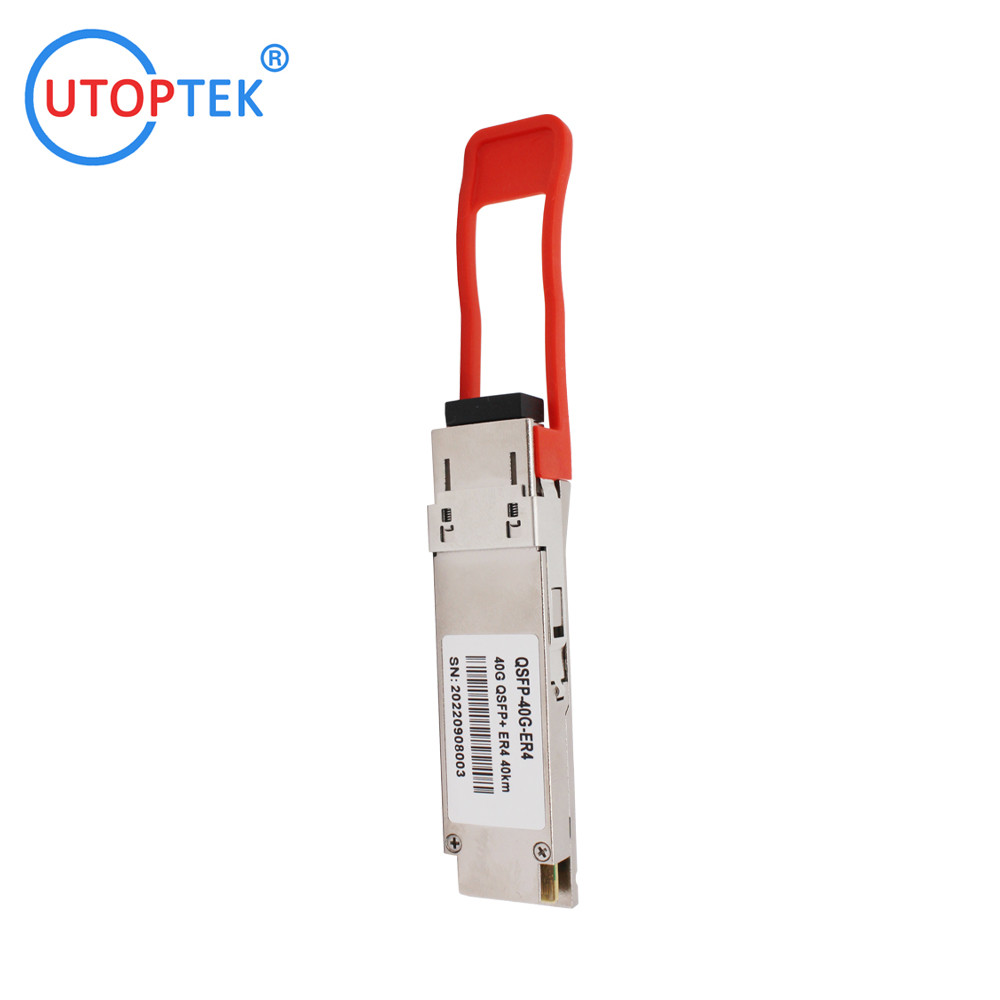

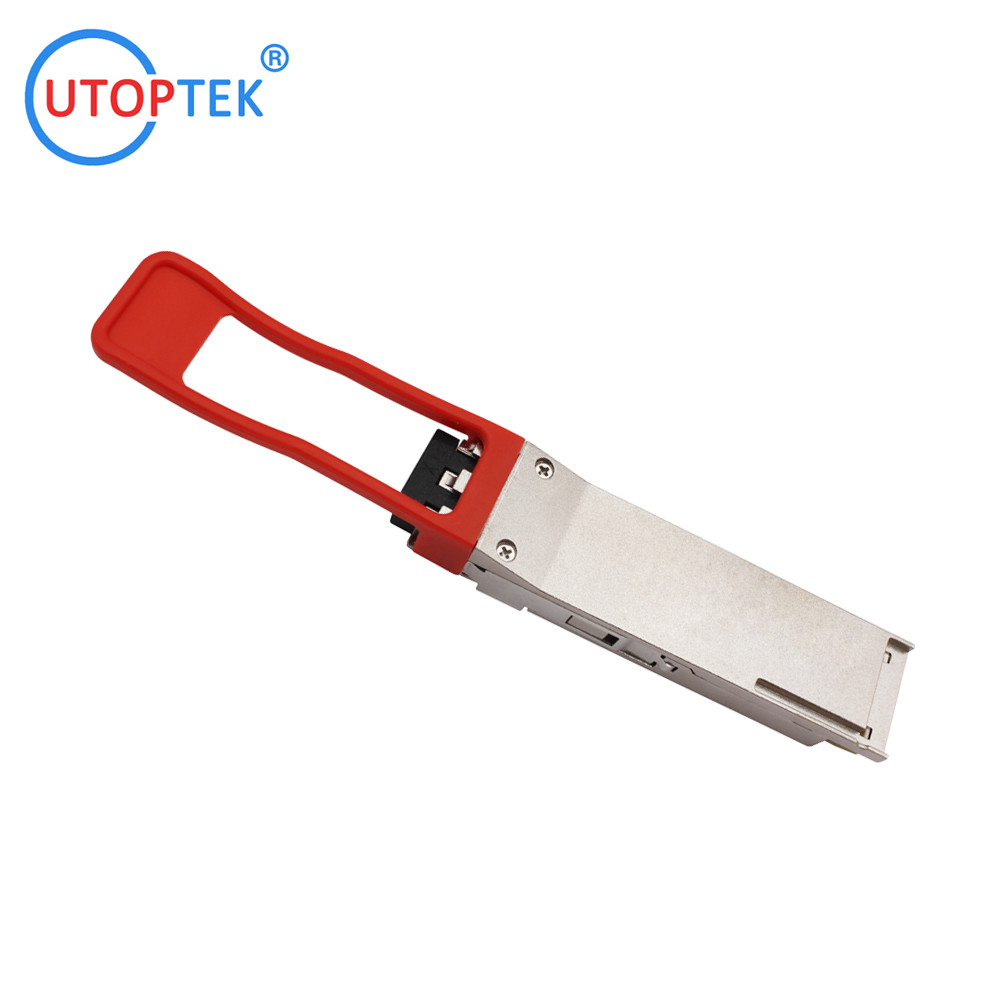

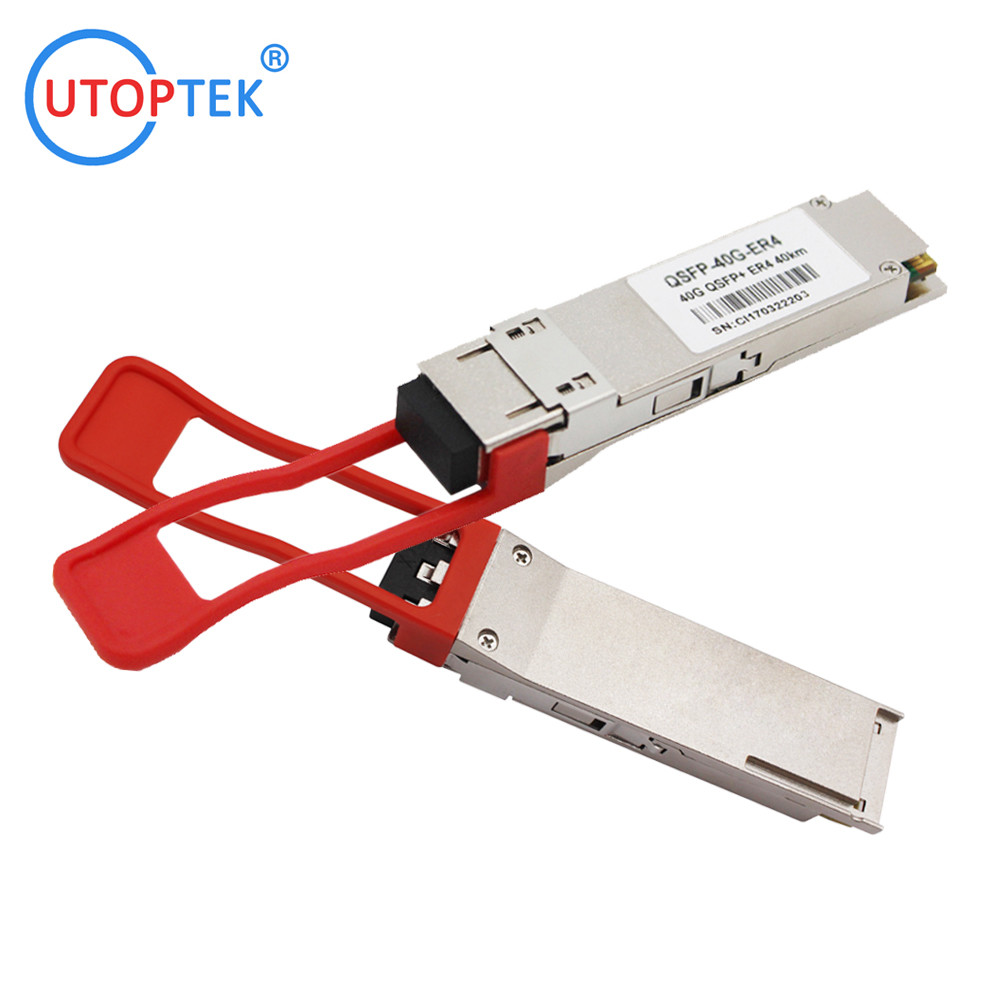

4.Products Picture:

Compatible Cisco 40GBase-ER4 QSFP+ Transceiver Module, QSFP-40G-ER4, Refurbished, Cisco 40GBASE QSFP Modules 0

5.Compatible Testing:

Compatible Cisco 40GBase-ER4 QSFP+ Transceiver Module, QSFP-40G-ER4, Refurbished, Cisco 40GBASE QSFP Modules 3

Compatible Cisco 40GBase-ER4 QSFP+ Transceiver Module, QSFP-40G-ER4, Refurbished, Cisco 40GBASE QSFP Modules 4

6.Related products:

Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
QSFP-40G-SR4	40Gb/s	QSFP+	100m	850nm	VCSEL	PIN	MPO	0-70℃
QSFP-40G-SR-2KM	40Gb/s	QSFP+	2km	1310nm	DFB	PIN	MPO	0-70℃
QSFP-40G-LR-S	40Gb/s	QSFP+	10km	1310nm	DFB	PIN	MPO	0-70℃
QSFP-40G-LR4	40Gb/s	QSFP+	10km	1310nm	DFB	PIN	LC	0-70℃
QSFP-40G-ER4	40Gb/s	QSFP+	40km	1310nm	DFB	APD	LC	0-70℃
