Cisco HUAWEI Compatible 40GBASE-IR4 QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

Minimum Order Quantity :	1piece	Packaging Details :	4pcs/bag
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	500pairs per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	QSFP-40G-IR4

Detail Information
Transmission Speed:	40Gb/s	Fiber Type:	Single-mode, Duplex LC
Distance:	2KM	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Aggregate Bandwidth:	> 40Gbps	Per Channel Bandwidth:	11.2Gbps
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..	Warranty:	3 Years

Product Description

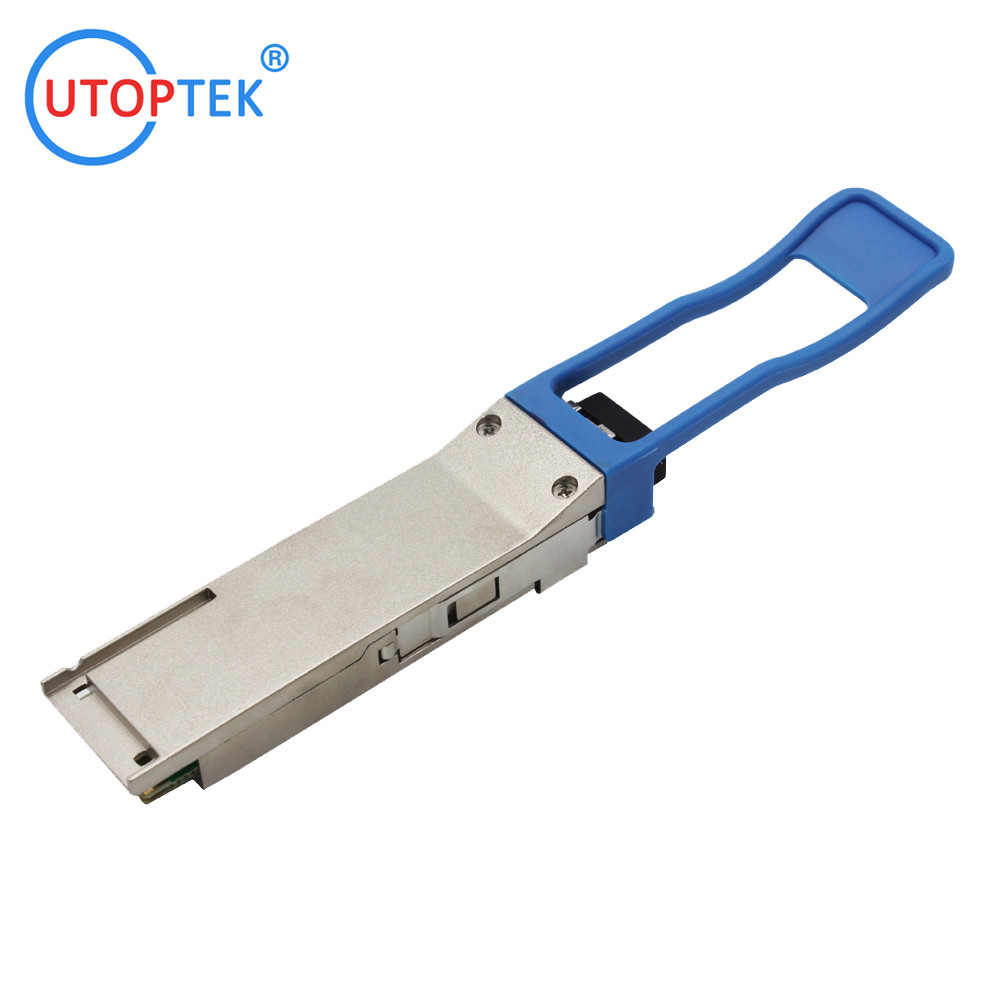

Cisco QSFP-40GE-IR4 Compatible 40GBASE-IR4 QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module

Cisco HUAWEI Compatible 40GBASE-IR4 QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module 0

1.Product Features:

2.Applications:

3.Technical specifications:

4.Optical Characteristics

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Wavelength Assignment	L0	1264.5	1271	1277.5	nm
	L1	1284.5	1291	1297.5	nm
	L2	1304.5	1311	1317.5	nm
	L3	1324.5	1331	1337.5	nm
Transmitter
Side-mode Suppression Ratio	SMSR	30	-	-	dB
Total Average Launch Power	P_T	-	-	8.3	dBm
Optical Modulation Amplitude, each Lane	OMA	-2	-	+3.5	dBm
Difference in Launch Power between any two Lanes (OMA)		-	-	5	dB
Extinction Ratio	ER	3.5	-	-	dB
Relative Intensity Noise	R_in	-	-	-128	dB/Hz	12dB reflection
-20dB Spectral Width		-	-	1	nm	Modulated
Transmitter Reflectance	R_T			-12	dB
Total Jitter				0.2	UI
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Transmitter Output Power Monitoring Accuracy	OPMA	-2		2	dB
Receiver
Damage Threshold	TH_d	3.5			dBm	1
Receiver Sensitivity, each Lane	S_R	-	-	-11.5	dBm
Difference in Receive Power between any two Lanes (OMA)				7.5	dB
Receive Electrical 3 dB upper Cutoff Frequency, each Lane				12.3	GHz
RSSI Accuracy		-2		2	dB

5.Factory Show:

Cisco HUAWEI Compatible 40GBASE-IR4 QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module 3

6.Compatibility:

Cisco HUAWEI Compatible 40GBASE-IR4 QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module 4

Cisco HUAWEI Compatible 40GBASE-IR4 QSFP+ 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module 5

7.Ordering Information:
