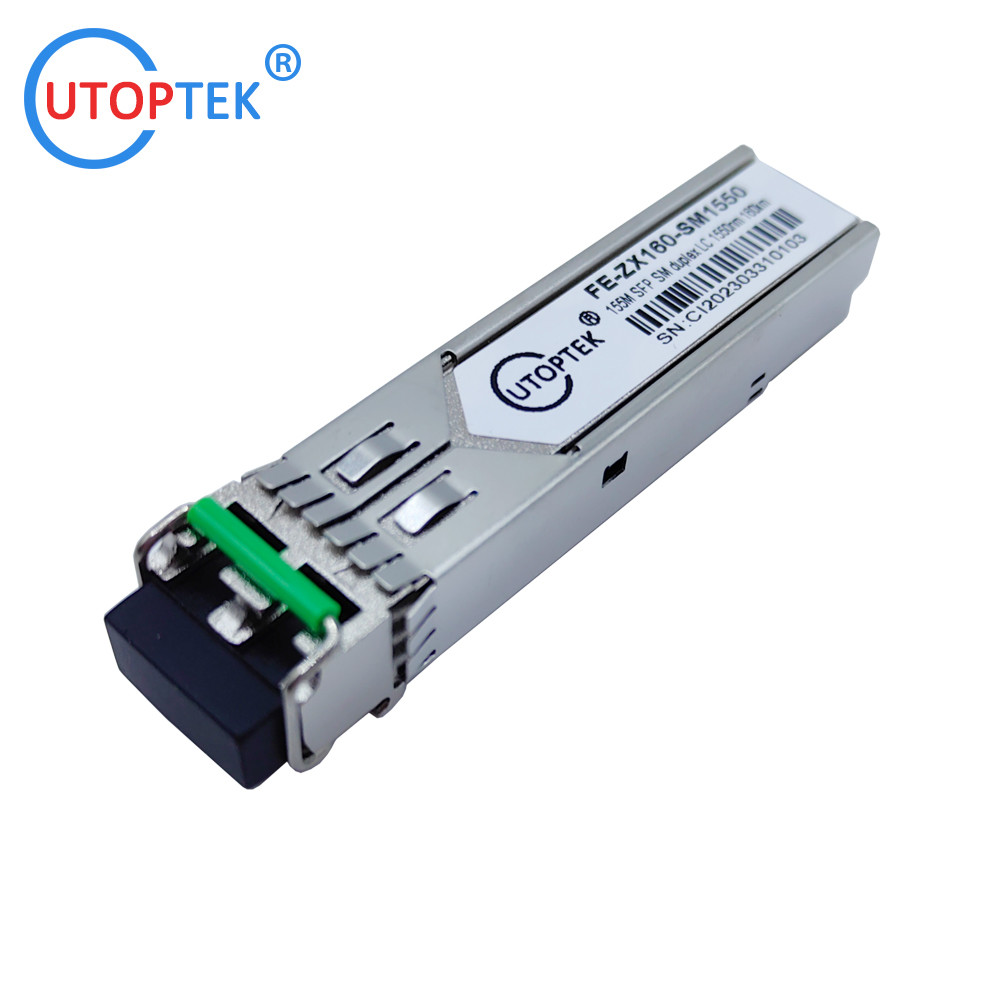

Compatible Cisco Optical Module 155M 160km 1550nm SFP DDM Fiber Optical Transceiver Module

Name: Compatible Cisco Optical Module 155M 160km 1550nm SFP DDM Fiber Optical Transceiver Module
Brand: UTOPTEK
SKU: SFP-FE-ZX160
Rating: 4.8 (175 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	1-2days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	SFP-FE-ZX160

Detail Information
Transmission Speed:	155Mbps	Fiber Type:	Single-mode, Duplex LC
Distance:	160KM	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	TRX1550nm	Warranty:	3 Years
Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

155Mbps 160km SFP Transceiver

Hot Pluggable, Duplex LC, +3.3V, 1550nm, DFB-LD, Single-mode, DDM

Description:

UTOPTEK’s SFP-FE-ZX160 Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses a PIN receiver and the transmitter uses a 1550nm DFB laser, up to 29dB link budge ensure this module SONET OC-3/SDH STM-1 160Km application.

Features:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	SFP
Wavelength:	TRx1550nm
Distance	160KM
Data Rate (max)	155Mbps
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3--5v
Connector	LC
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	10 pcs/box

Applications:

100Base-ZX Ethernet
Metro/Access Networks
2×Fiber Channel
Other Optical Links

Prpducts Picture:

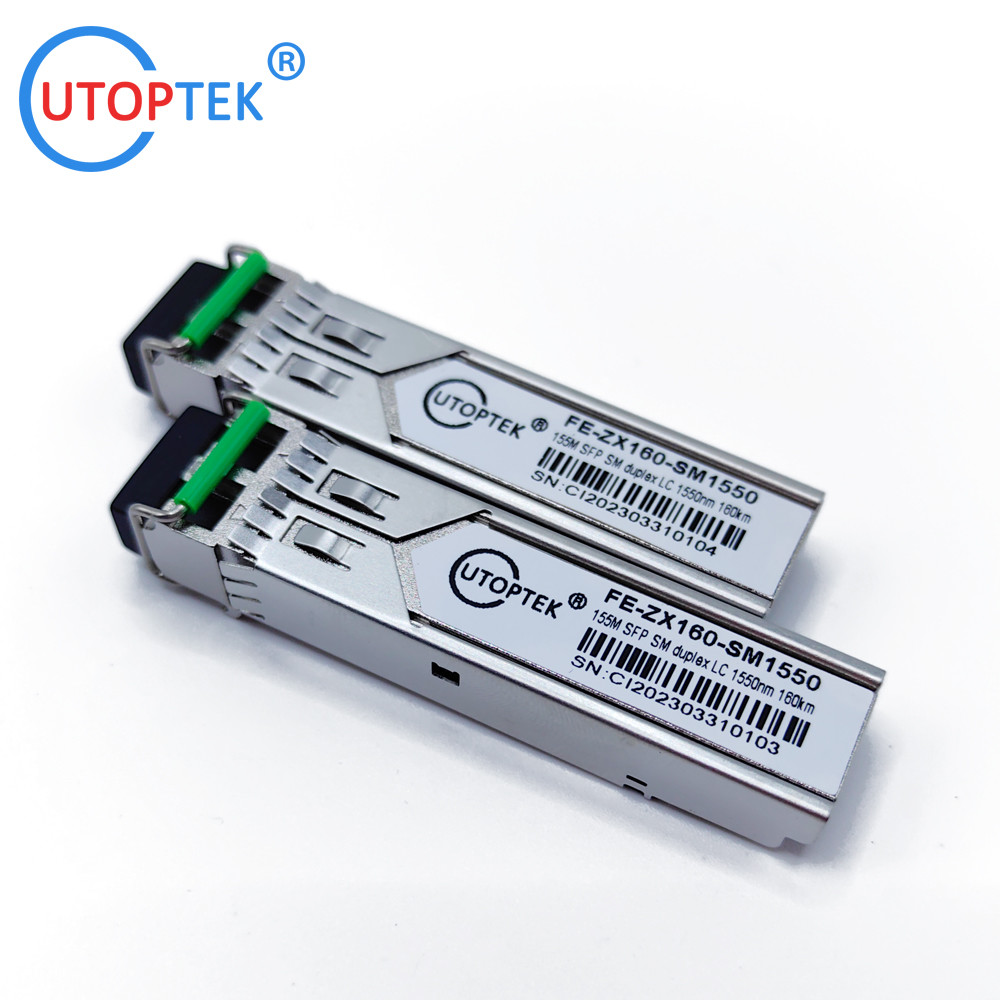

Compatible Cisco Optical Module 155M 160km 1550nm SFP DDM Fiber Optical Transceiver Module 0

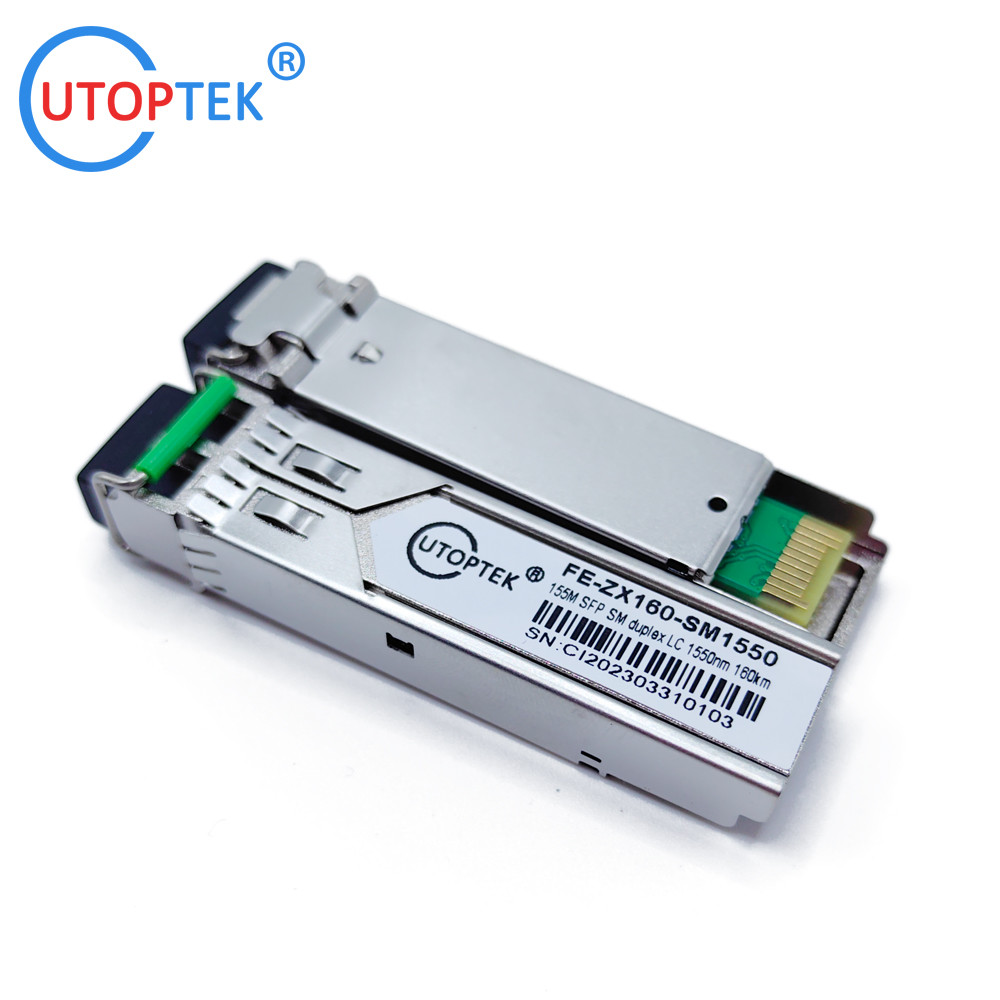

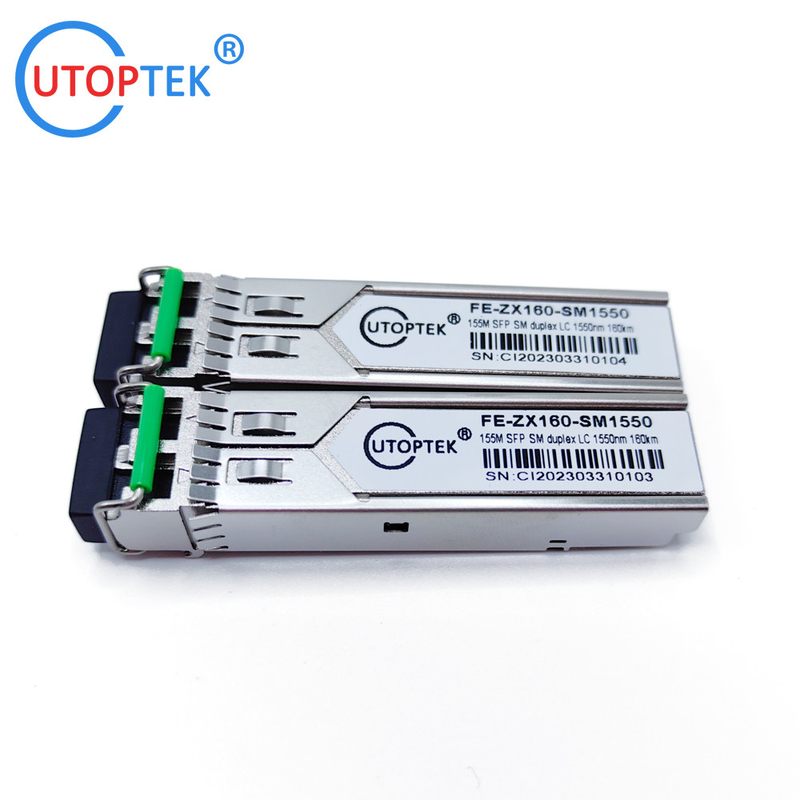

Compatible Cisco Optical Module 155M 160km 1550nm SFP DDM Fiber Optical Transceiver Module 4

Factory Show:

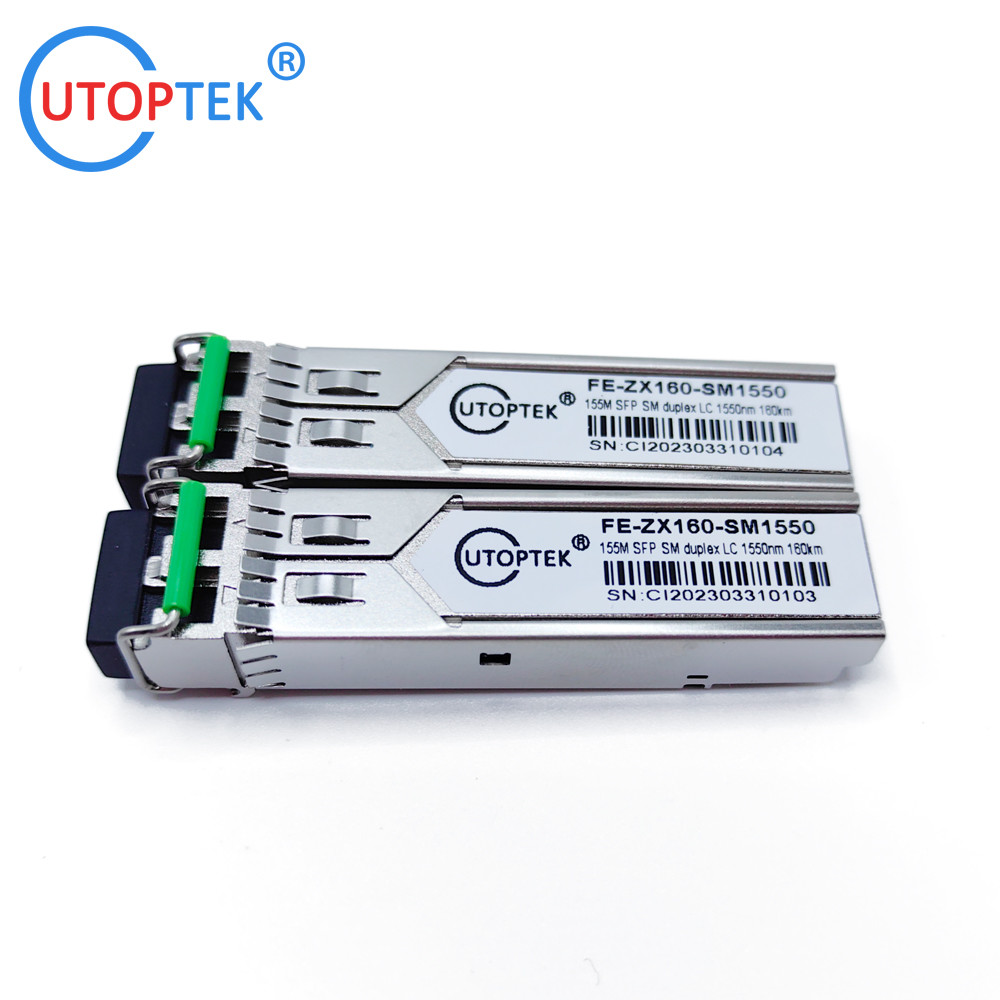

Compatible Cisco Optical Module 155M 160km 1550nm SFP DDM Fiber Optical Transceiver Module 5

Ordering Information:

155Mbps SFP Transceiver
Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
SFP-FE-SX-MM850	155Mbps	SFP	2km	850nm	VCSEL	PIN	LC	0-70℃
SFP-FE-SX-MM1310	155Mbps	SFP	2km	1310nm	FP	PIN	LC	0-70℃
SFP-FE-LX20-SM1310	155Mbps	SFP	20km	1310nm	FP	PIN	LC	0-70℃
SFP-FE-EX40-SM1310	155Mbps	SFP	40km	1310nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX60-SM1550	155Mbps	SFP	60km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX80-SM1550	155Mbps	SFP	80km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX100-SM1550	155Mbps	SFP	100km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX120-SM1550	155Mbps	SFP	120km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-ZX160-SM1550	155Mbps	SFP	160km	1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX20-L35	155Mbps	BiDi SFP	20km	Tx1310nm/Rx1550nm	FP	PIN	LC	0-70℃
SFP-FE-BX20-L53	155Mbps	BiDi SFP	20km	Tx1550nm/Rx1310nm	FP	PIN	LC	0-70℃
SFP-FE-BX40-L35	155Mbps	BiDi SFP	40km	Tx1310nm/Rx1550nm	FP	PIN	LC	0-70℃
SFP-FE-BX40-L53	155Mbps	BiDi SFP	40km	Tx1550nm/Rx1310nm	FP	PIN	LC	0-70℃
SFP-FE-BX60-L35	155Mbps	BiDi SFP	60km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX60-L53	155Mbps	BiDi SFP	60km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX80-L45	155Mbps	BiDi SFP	80km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX80-L54	155Mbps	BiDi SFP	80km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX100-L45	155Mbps	BiDi SFP	100km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX100-L54	155Mbps	BiDi SFP	100km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX120-L45	155Mbps	BiDi SFP	120km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX120-L54	155Mbps	BiDi SFP	120km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
SFP-FE-BX160-L45	155Mbps	BiDi SFP	160km	Tx1490nm/Rx1550nm	DFB	PIN	LC	0-70℃
SFP-FE-BX160-L54	155Mbps	BiDi SFP	160km	Tx1550nm/Rx1490nm	DFB	PIN	LC	0-70℃
