QSFP28-100G-CWDM4 Manufacturer 100G module 2km Single mode 1310nm duplex LC Cisco/huawei compatible

Product Description

100G QSFP28 2km LC Optical Transceiver Module

QSFP28-100G-CWDM4

1.Product Features:

• Supports 100GBASE-CWDM4(103.1Gb/s);
• Lane bit rate 25.78 Gb/s;
• Up to 2km transmission on SMF;
• CWDM DML laser and PIN receiver;
• High speed I/O electrical interface (CAUI-4);
• I2C interface with integrated Digital Diagnostic monitoring;
• QSFP28 MSA package with duplex LC connector;
• Single +3.3V power supply;
• Maximum power consumption 3.5 W;
• Operating case temperature: 0 to +70 °C;
• Compliant to 100G CWDM4 MSA;
• Compliant to IEEE802.3bm;
• Compliant to SFF-8665 and SFF-8679;
• Complies with EU Directive 2011/65/EU (RoHS 6);

2.Applications:

• 100GBASE-CWDM4 application with FEC;

3.Technical specifications:

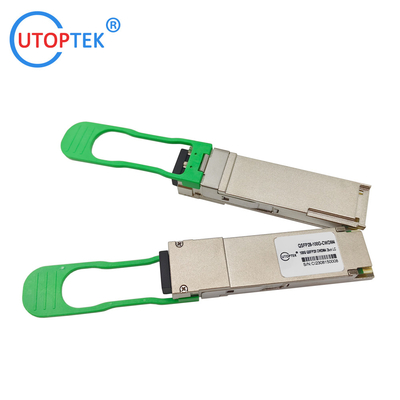

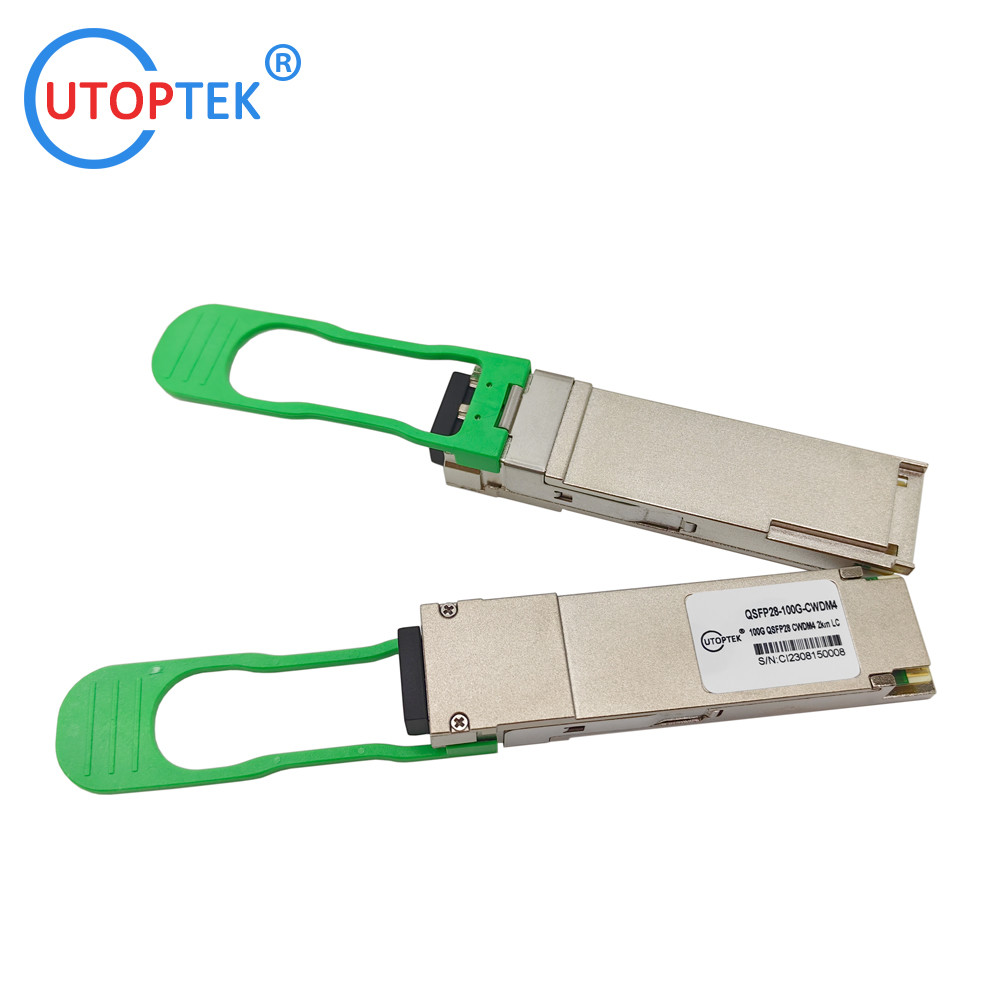

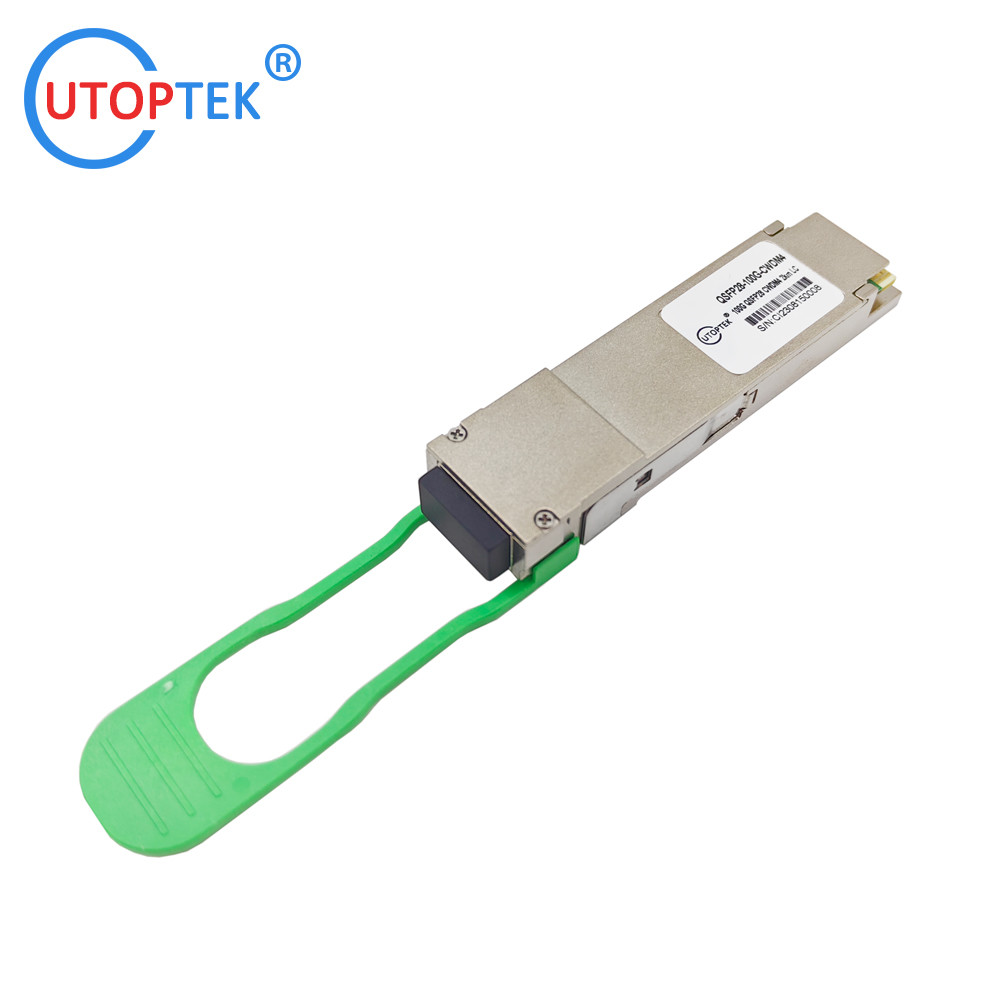

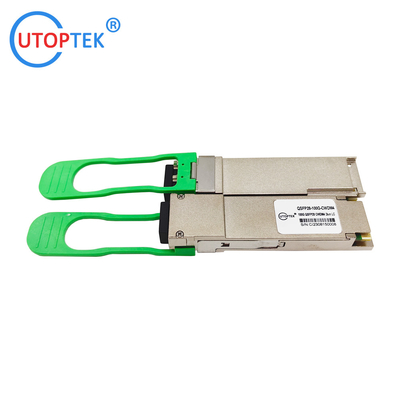

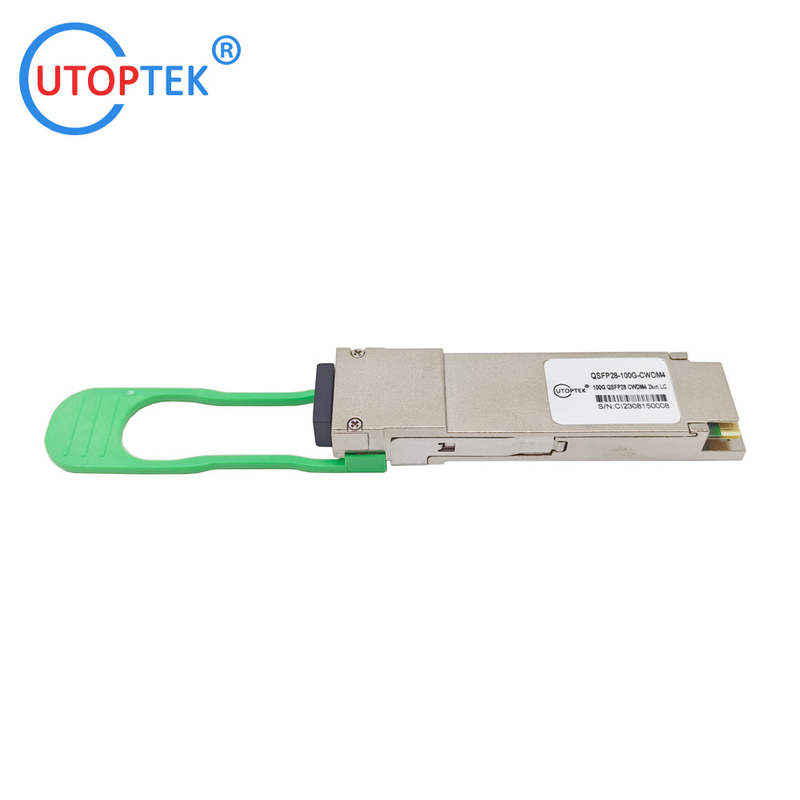

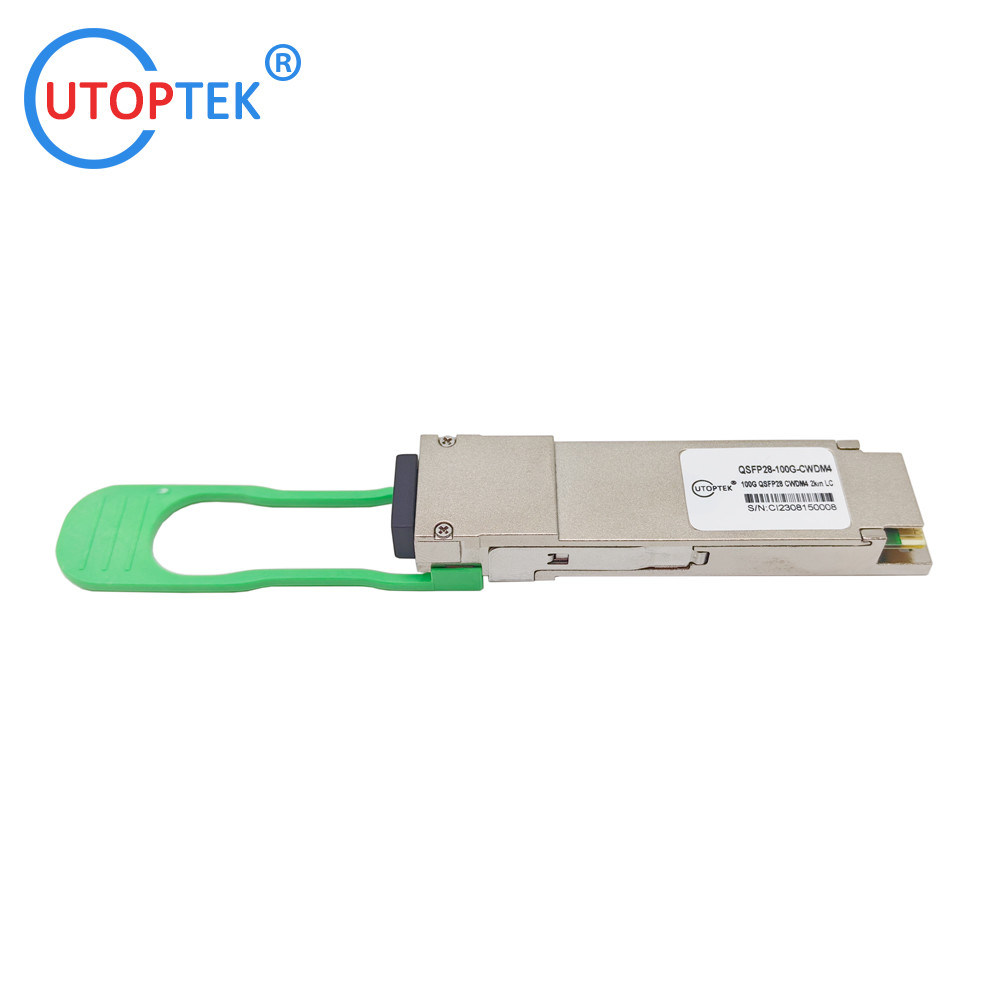

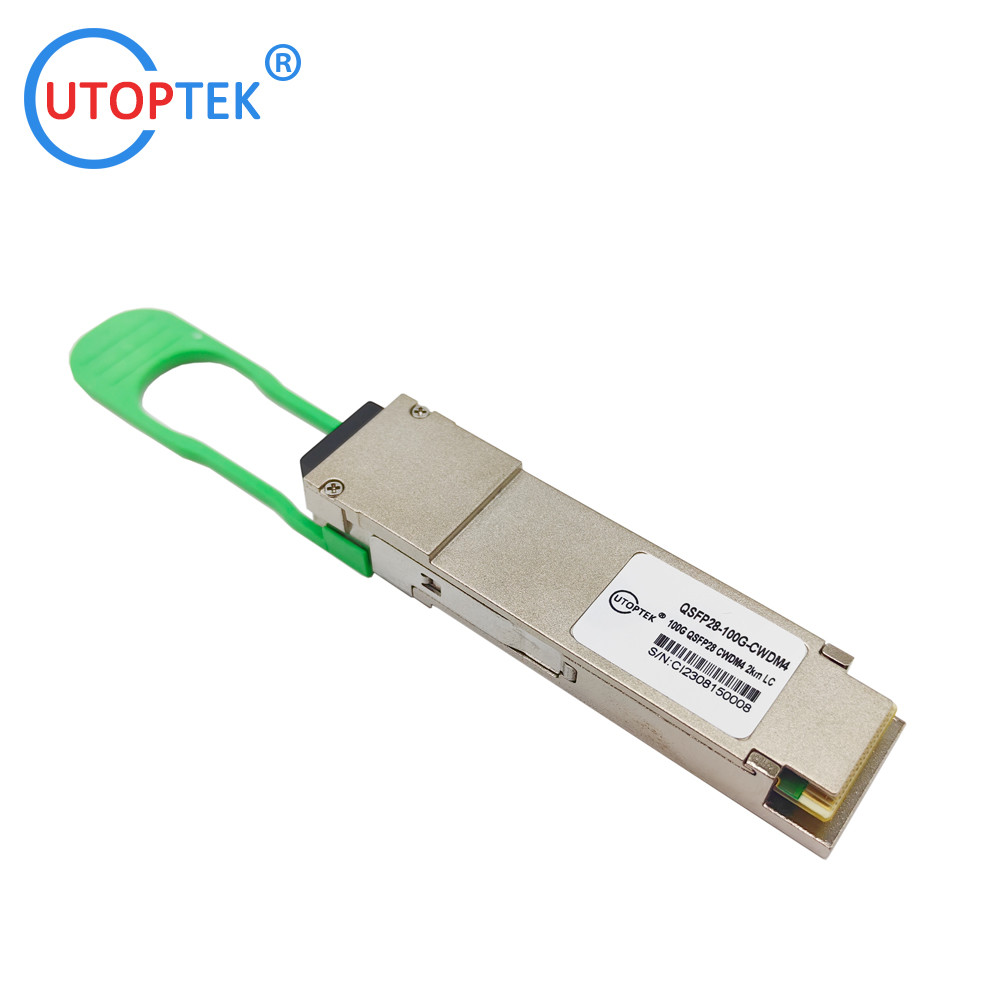

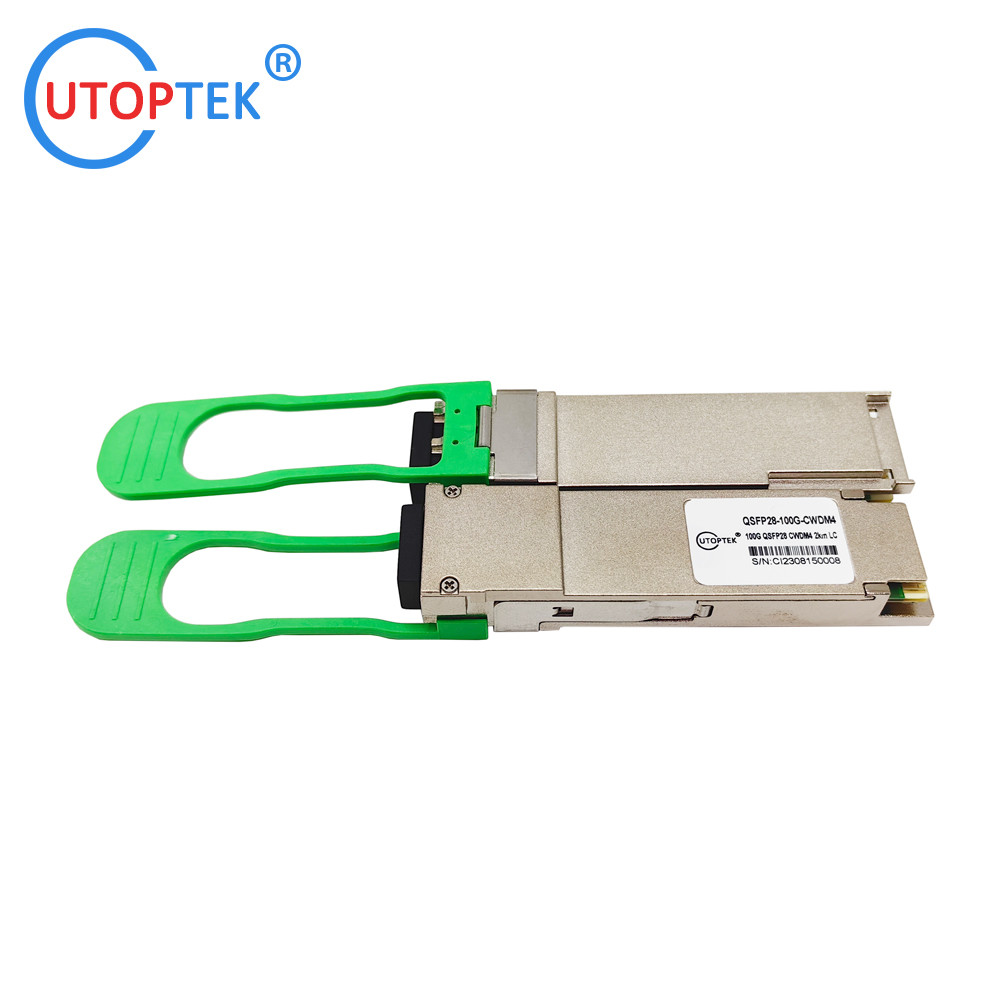

4.Product photoes

5.Factory Show:

6.Compatibility:

7.Ordering Information:
