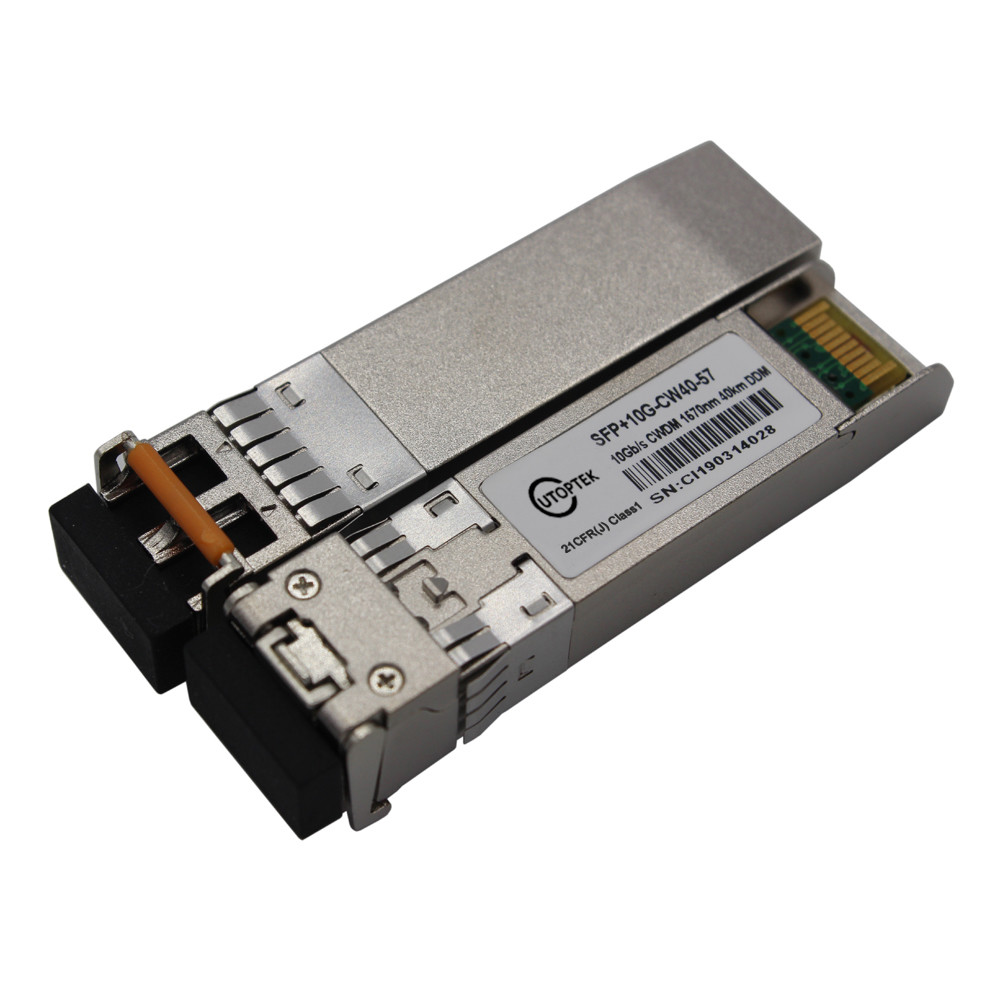

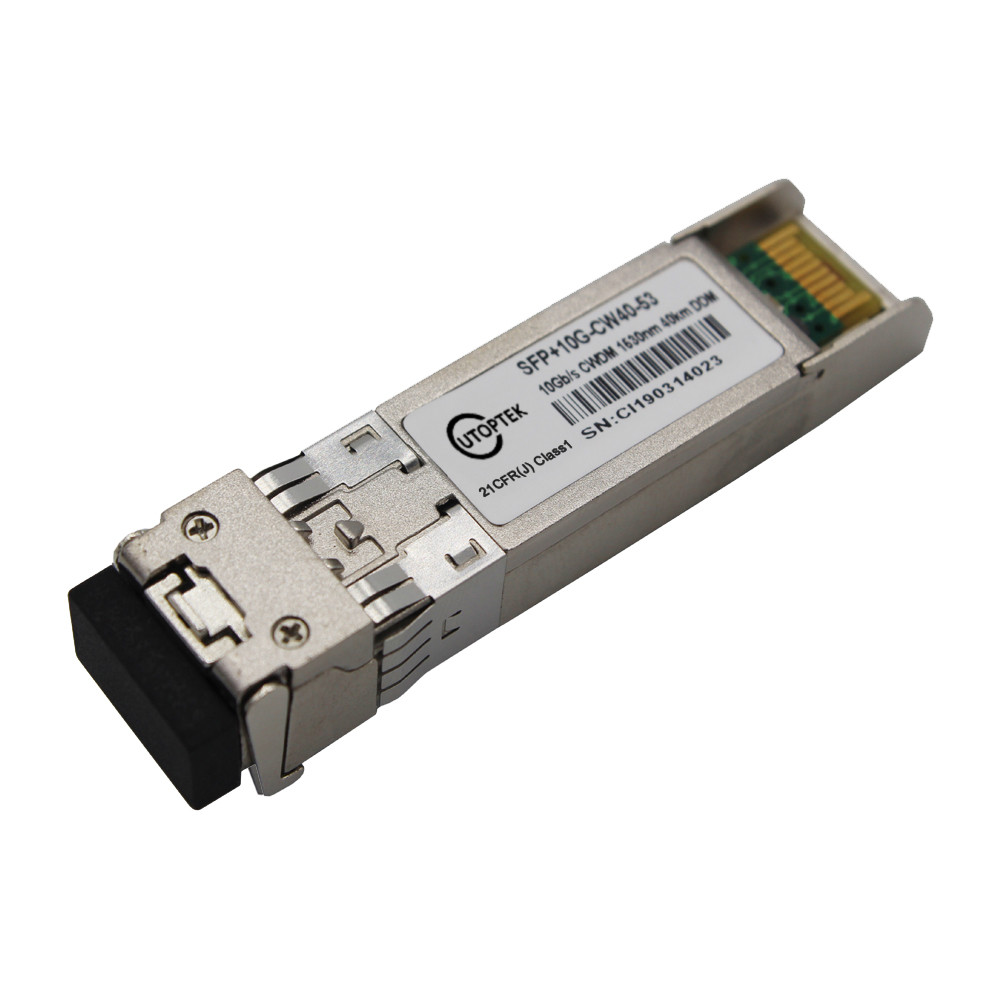

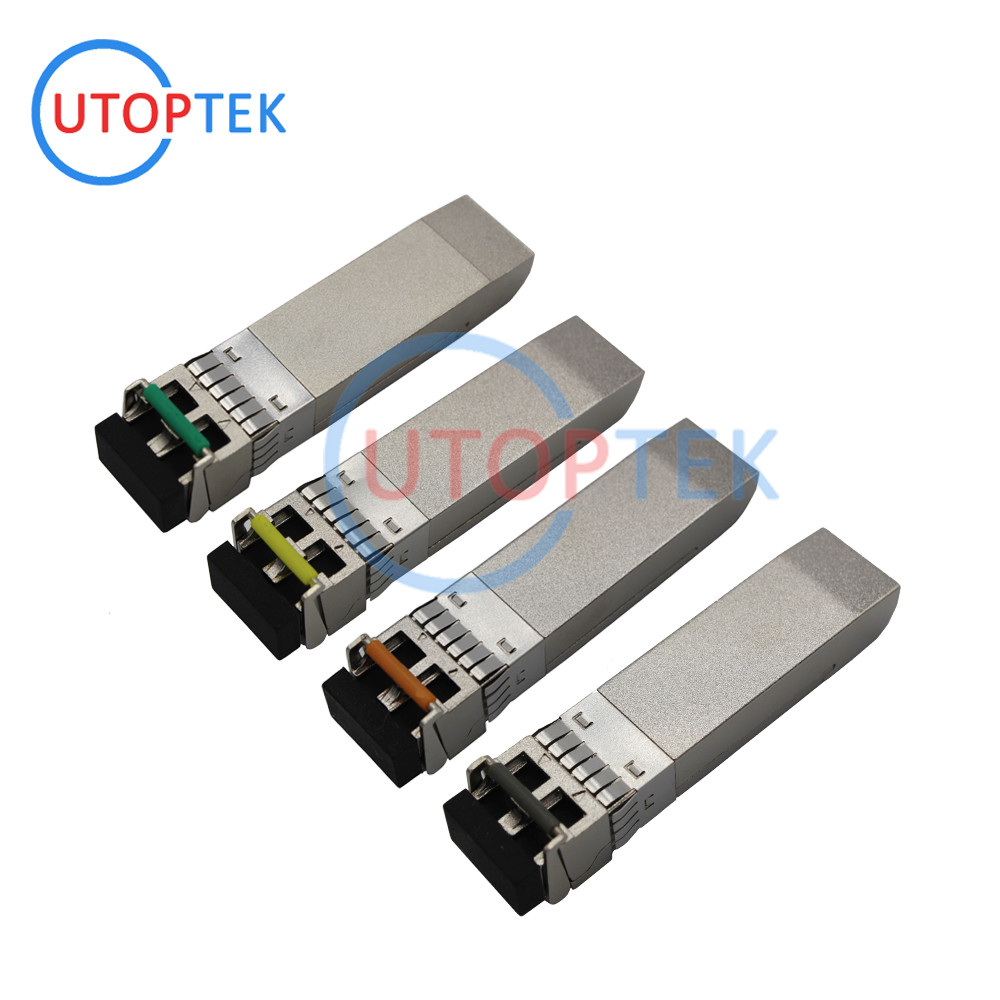

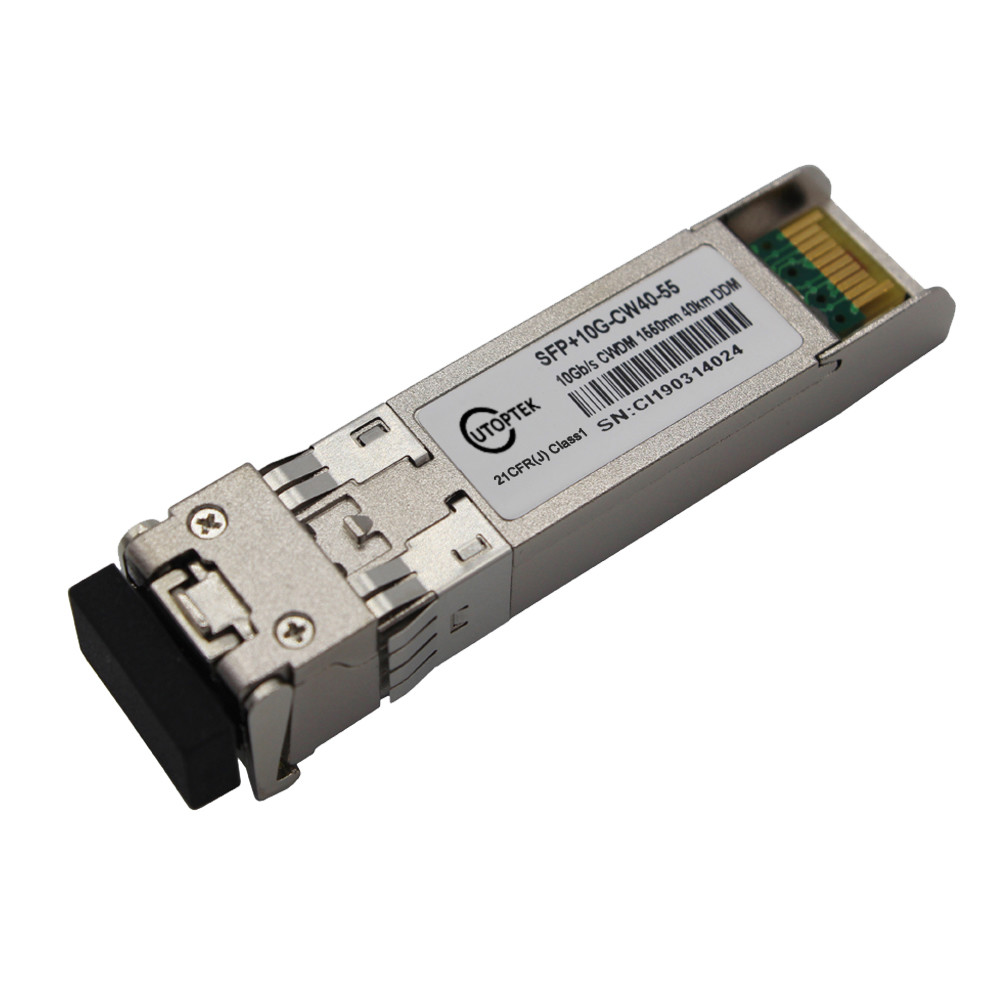

10G CWDM SFP+ 20km 1270nm~1610nm hot pluggable sfp for CWDM MUX-DEMUX using generic sfp module

Product Description

10Gb/s 20km CWDM SFP+ Transceiver
Hot Pluggable, Duplex LC, +3.3V, 1270～1610nm, CWDM DFB, Single mode

Description

This CWDM-SFP-10G-CXX is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The CWDM-SFP-10G-CXX converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance 1270～1610nm CWDM DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 20km links.

The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Features:

• Supports 9.95 to 11.3Gb/s bit rates
• Hot-Pluggable
• Duplex LC connector
• 1270～1610nm CWDM DFB transmitter, PIN photo-detector
• SMF links up to 20km
• 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
• Power Supply :+3.3V
• Power consumption<1.5W
• Temperature Range: 0~ 70°C
• RoHS compliant

Factory Show:

Ordering Information:
