155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle
155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle
Contact Now

155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle

Minimum Order Quantity : 1 pair Packaging Details : 10pcs to one plastic plate
Delivery Time : 1-2days Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability : 2000pcs per week
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: SFP-FE-BX20-L35/53

Detail Information
Transmission Speed: 155Mbps Fiber Type: Single-mode, Simplex LC
Distance: 20KM DDM Function: Support
Power Supply: 3.3V Working Temperature: 0~70℃
Wavelength: Tx1310nm/Rx1550nm Warranty: 3 Years
Compatible: Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

155Mb/s 20Km LC BiDi SFP Transceiver

Hot Pluggable, Single LC, +3.3V, Tx1310nm/Rx1550nm, FP-LD, Single-mode, DDM





Description:

UTOPTEK’s SFP-FE-BX20-L35 Transceivers are a high performance, cost effective module which have a single LC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 19dB link budge ensure this module SONET OC-3 / SDH STM -1 20km application.



Features:



Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP
Wavelength: Tx1310nm/Rx1550nm
Distance 20KM
Data Rate (max) 155Mbps
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Connector LC
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box



Applications:

  • 100Base-BX Ethernet
  • SONET OC-3/SDH STM-1
  • 1×Fiber Channel
  • Other Optical Links

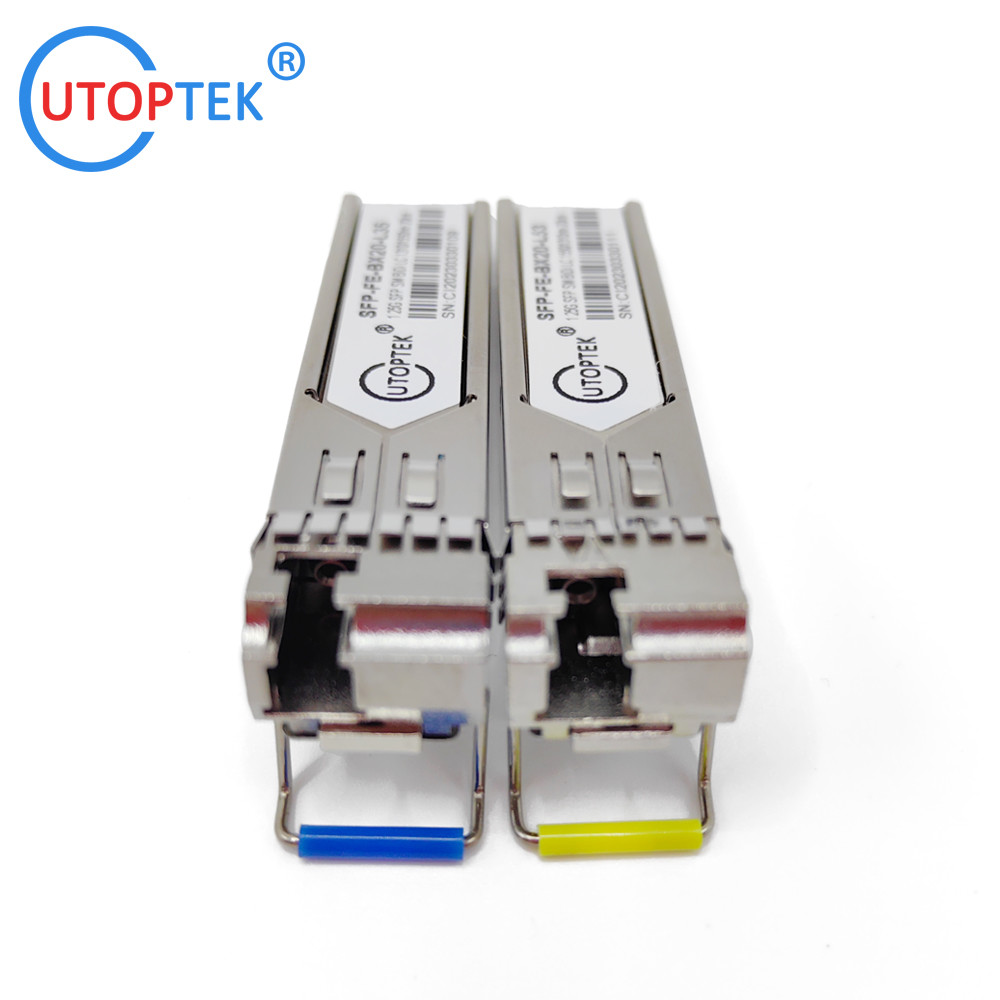

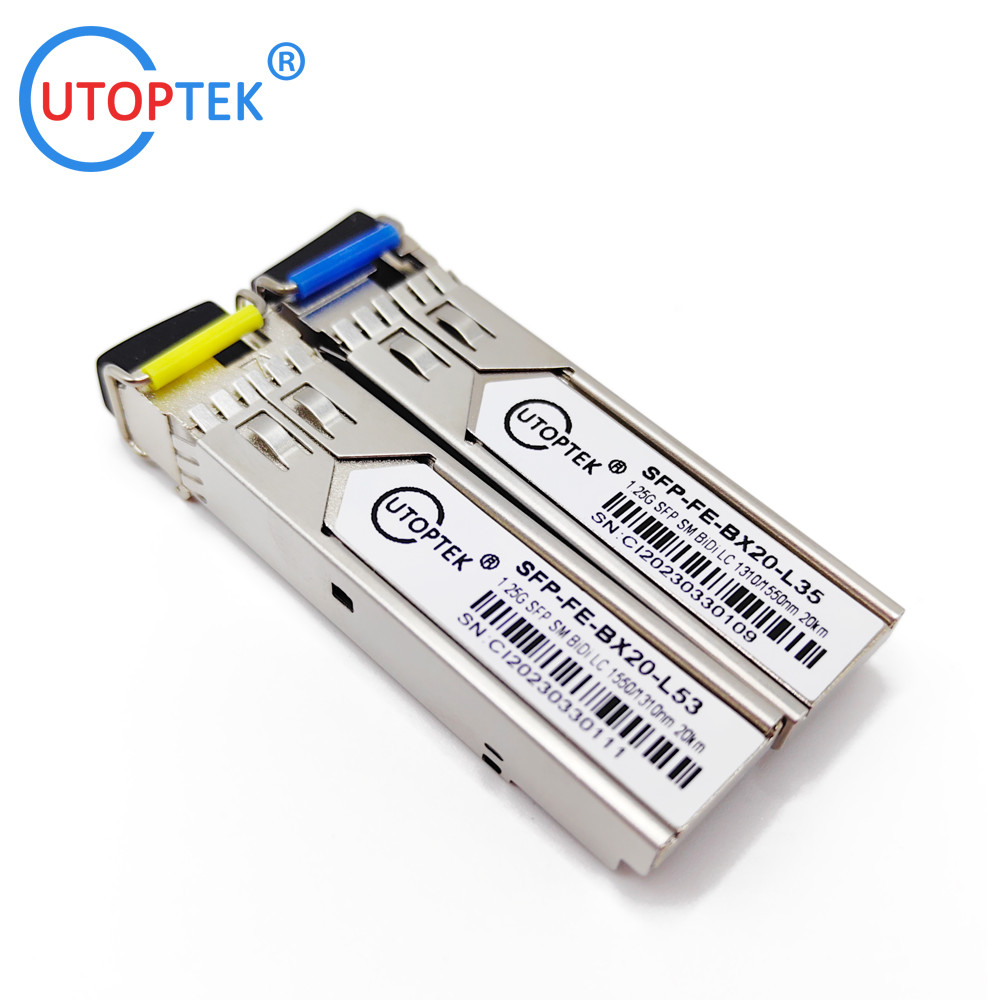

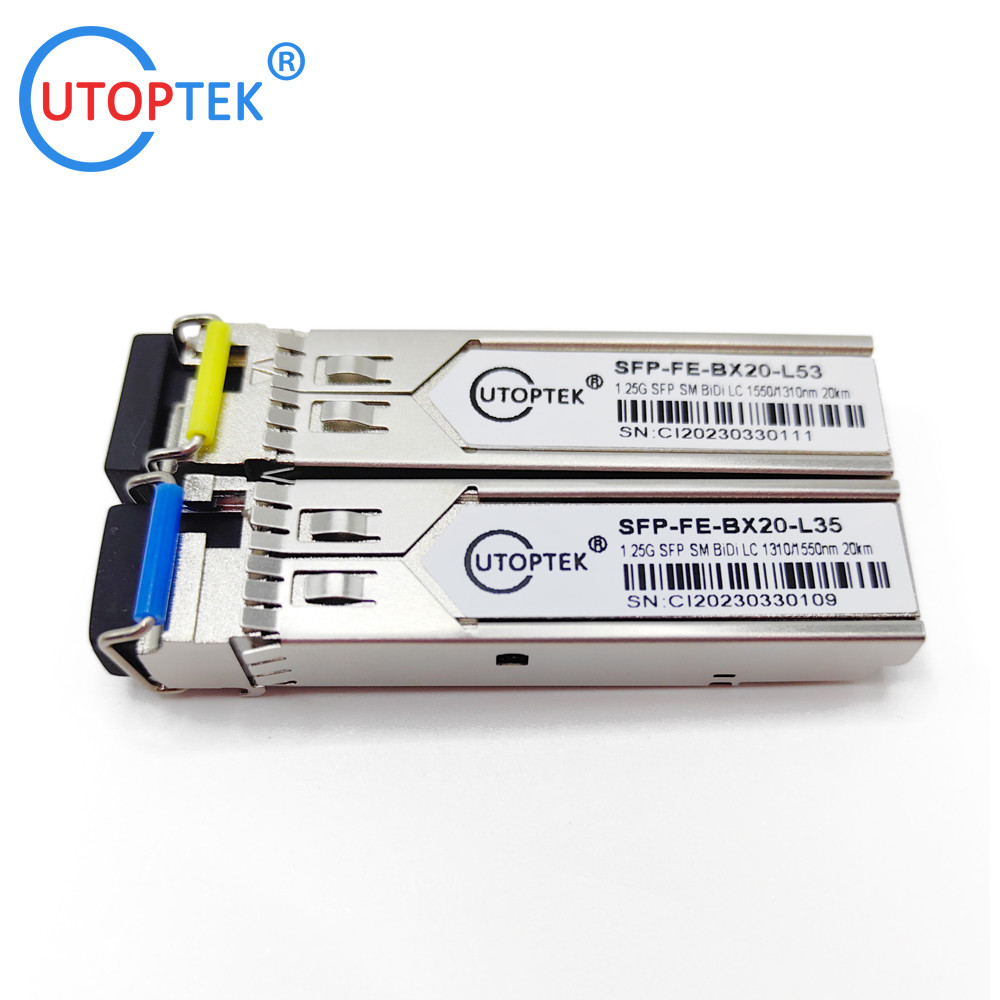

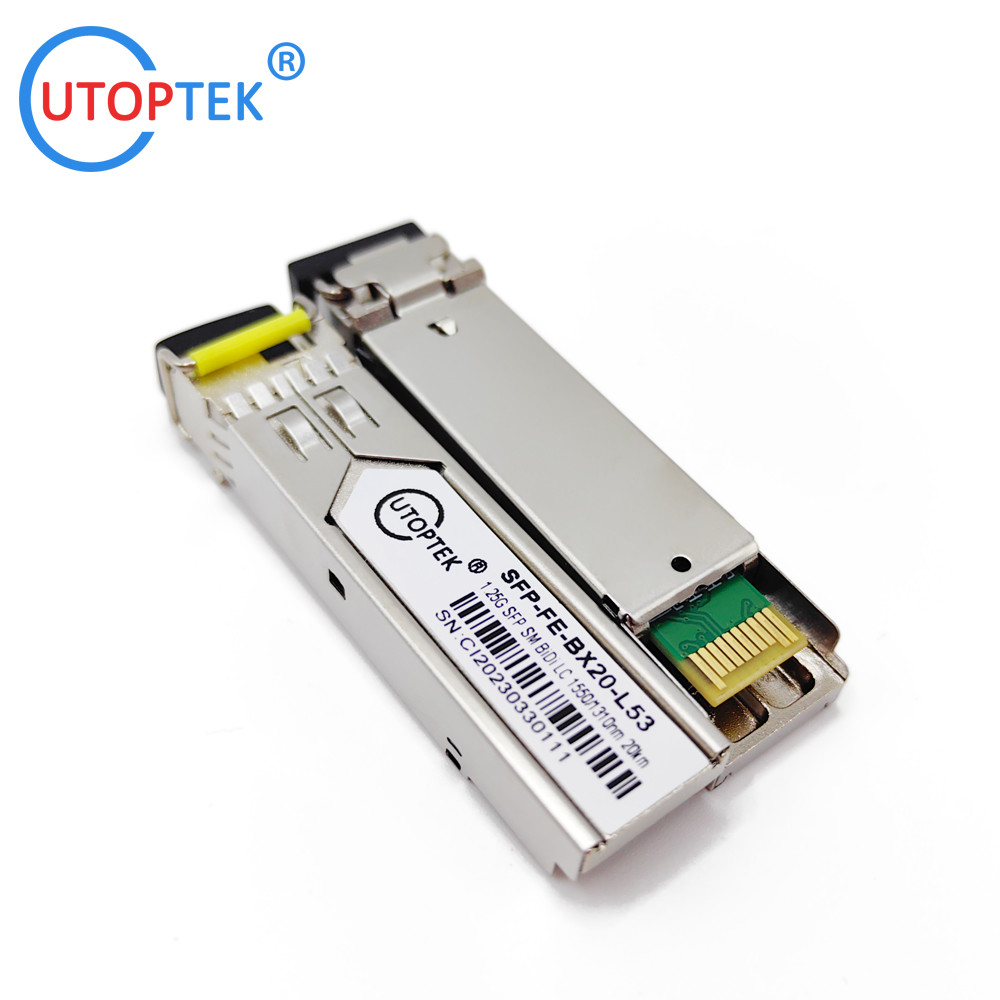

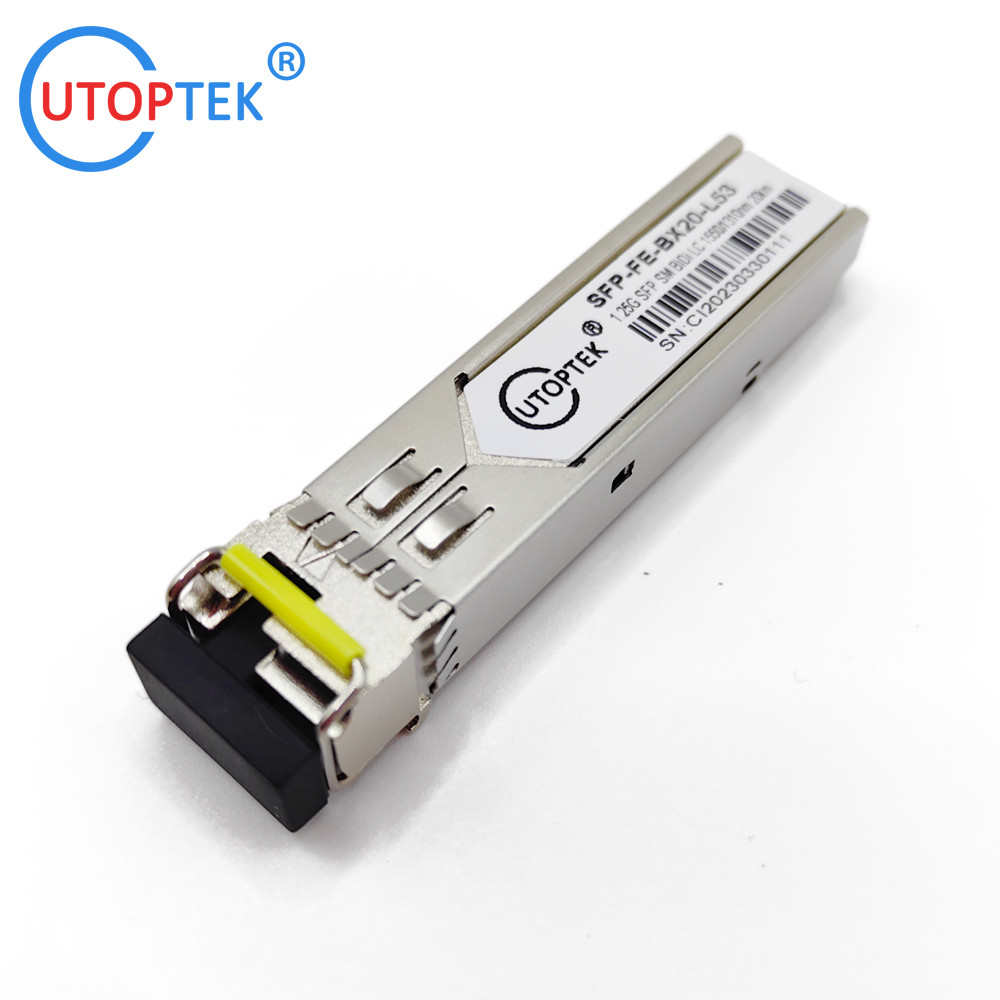

Prpducts Picture:

155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 0155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 1155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 2155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 3155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 4



155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 5



Factory Show:

155M SFP SMF Bidi LC 20km 1310/1550nm optical fiber sfp transceiver module for cisco/huawei/ZTE/Viettle 6

Ordering Information:

155Mbps SFP Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-FE-SX-MM850 155Mbps SFP 2km 850nm VCSEL PIN LC 0-70℃
SFP-FE-SX-MM1310 155Mbps SFP 2km 1310nm FP PIN LC 0-70℃
SFP-FE-LX20-SM1310 155Mbps SFP 20km 1310nm FP PIN LC 0-70℃
SFP-FE-EX40-SM1310 155Mbps SFP 40km 1310nm DFB PIN LC 0-70℃
SFP-FE-ZX60-SM1550 155Mbps SFP 60km 1550nm DFB PIN LC 0-70℃
SFP-FE-ZX80-SM1550 155Mbps SFP 80km 1550nm DFB PIN LC 0-70℃
SFP-FE-ZX100-SM1550 155Mbps SFP 100km 1550nm DFB PIN LC 0-70℃
SFP-FE-ZX120-SM1550 155Mbps SFP 120km 1550nm DFB PIN LC 0-70℃
SFP-FE-ZX160-SM1550 155Mbps SFP 160km 1550nm DFB PIN LC 0-70℃
SFP-FE-BX20-L35 155Mbps BiDi SFP 20km Tx1310nm/Rx1550nm FP PIN LC 0-70℃
SFP-FE-BX20-L53 155Mbps BiDi SFP 20km Tx1550nm/Rx1310nm FP PIN LC 0-70℃
SFP-FE-BX40-L35 155Mbps BiDi SFP 40km Tx1310nm/Rx1550nm FP PIN LC 0-70℃
SFP-FE-BX40-L53 155Mbps BiDi SFP 40km Tx1550nm/Rx1310nm FP PIN LC 0-70℃
SFP-FE-BX60-L35 155Mbps BiDi SFP 60km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-FE-BX60-L53 155Mbps BiDi SFP 60km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-FE-BX80-L45 155Mbps BiDi SFP 80km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-FE-BX80-L54 155Mbps BiDi SFP 80km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-FE-BX100-L45 155Mbps BiDi SFP 100km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-FE-BX100-L54 155Mbps BiDi SFP 100km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-FE-BX120-L45 155Mbps BiDi SFP 120km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-FE-BX120-L54 155Mbps BiDi SFP 120km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
SFP-FE-BX160-L45 155Mbps BiDi SFP 160km Tx1490nm/Rx1550nm DFB PIN LC 0-70℃
SFP-FE-BX160-L54 155Mbps BiDi SFP 160km Tx1550nm/Rx1490nm DFB PIN LC 0-70℃
