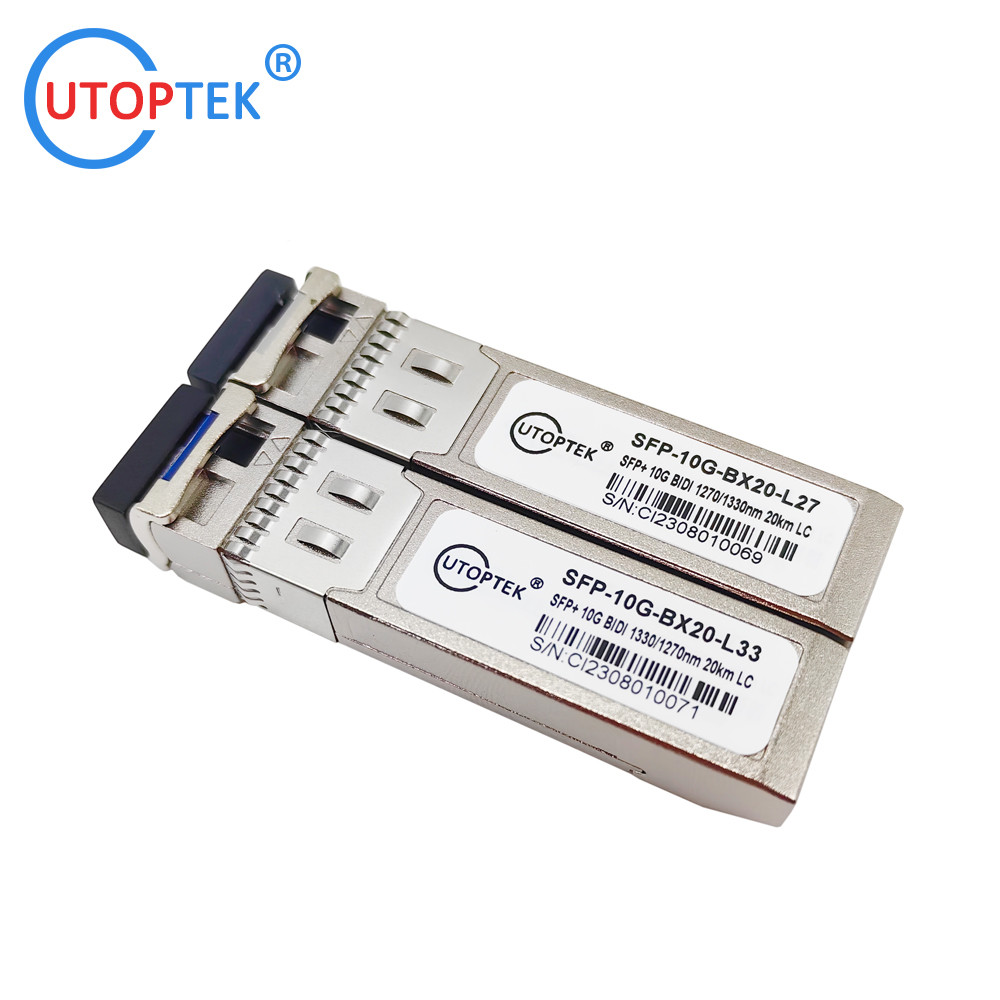

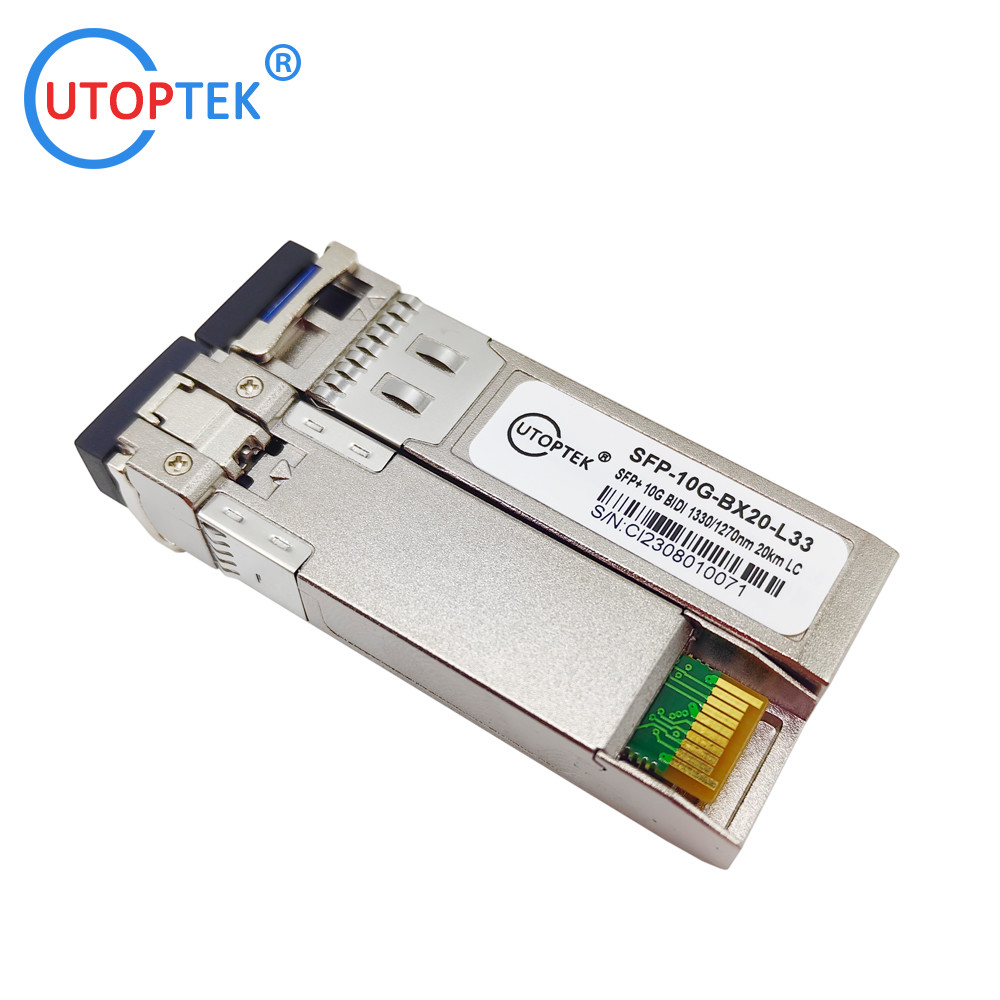

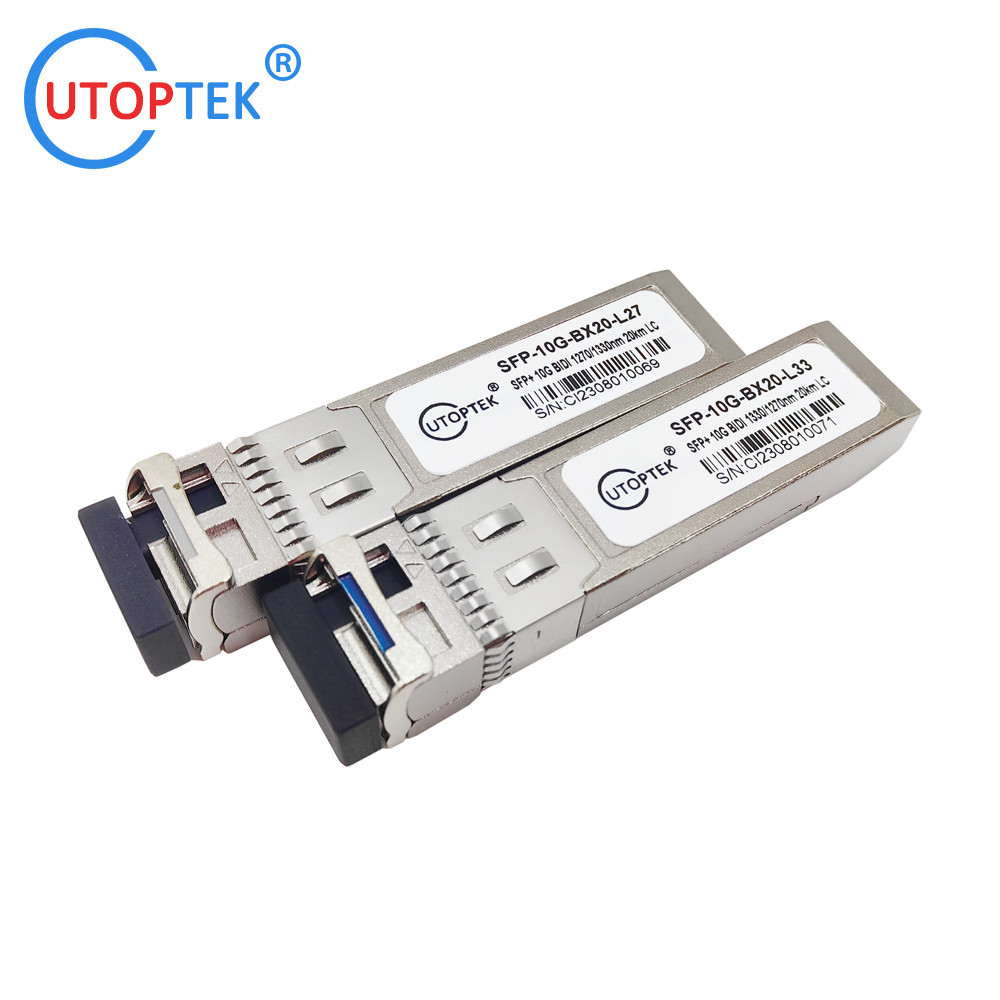

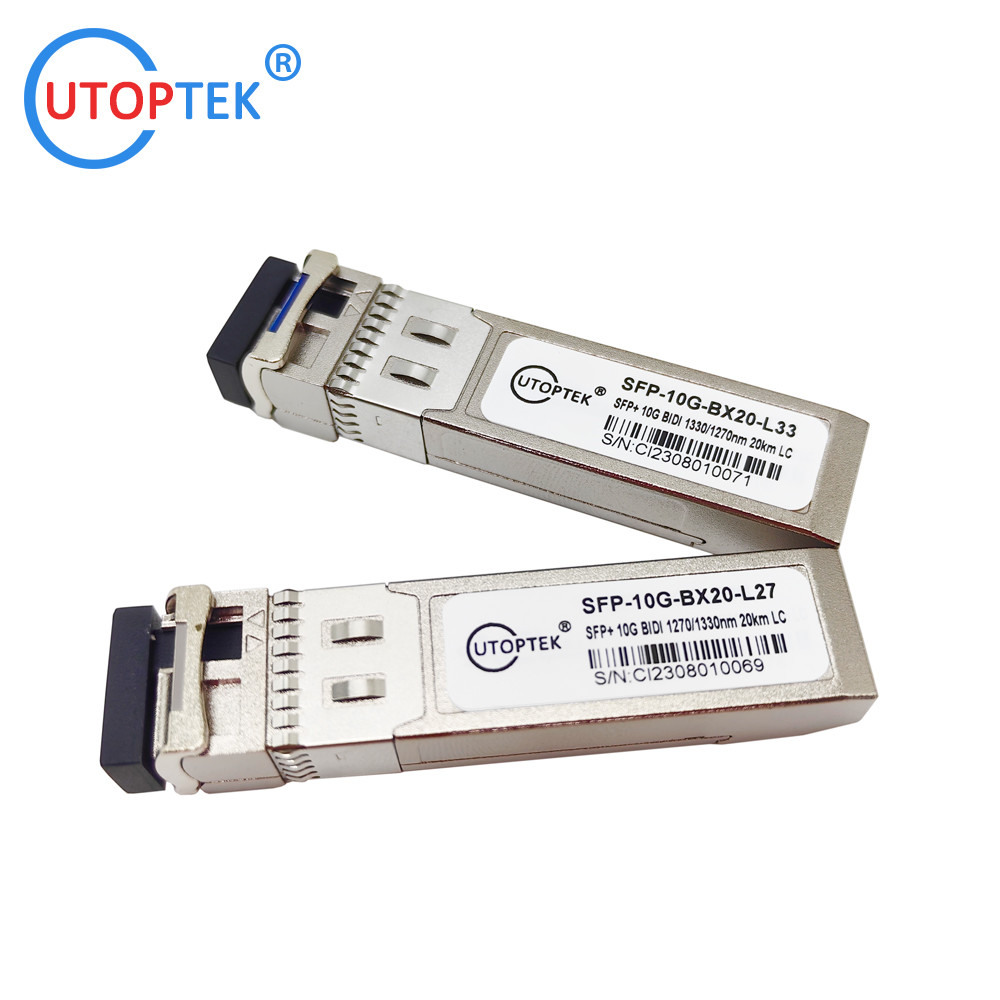

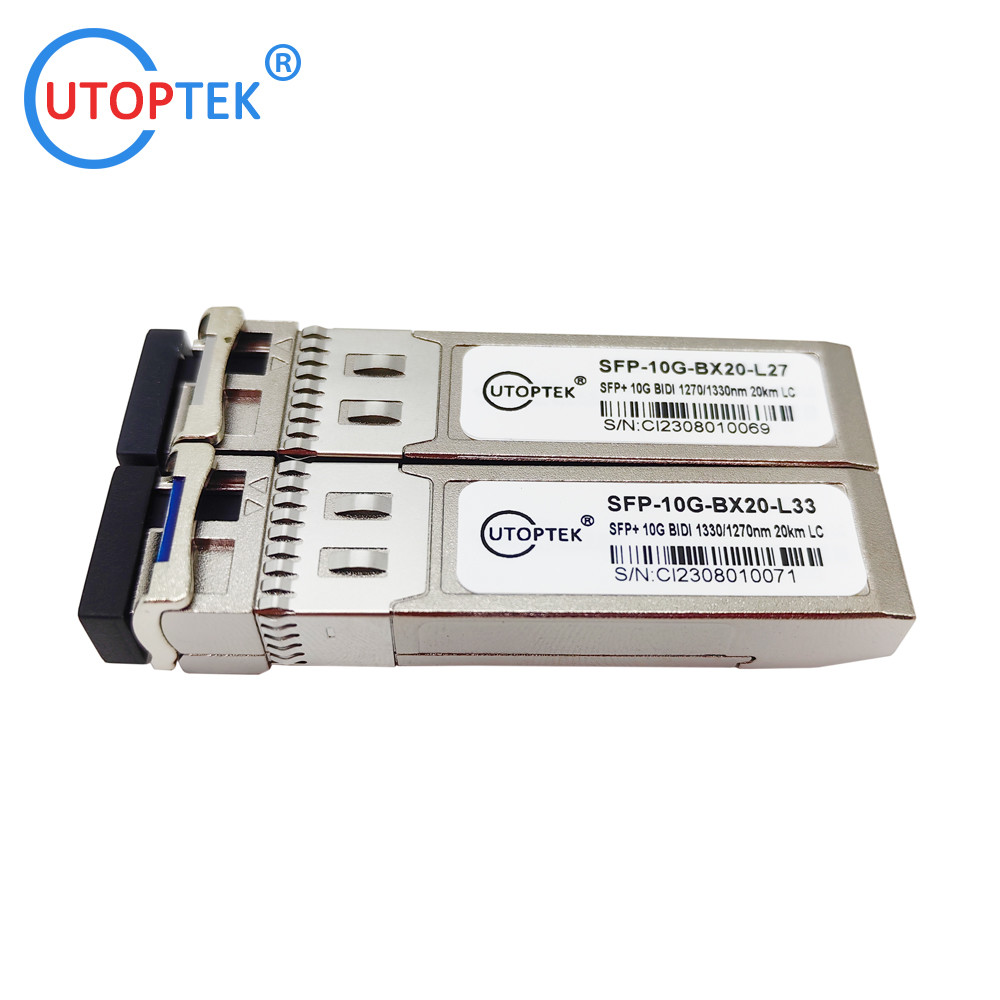

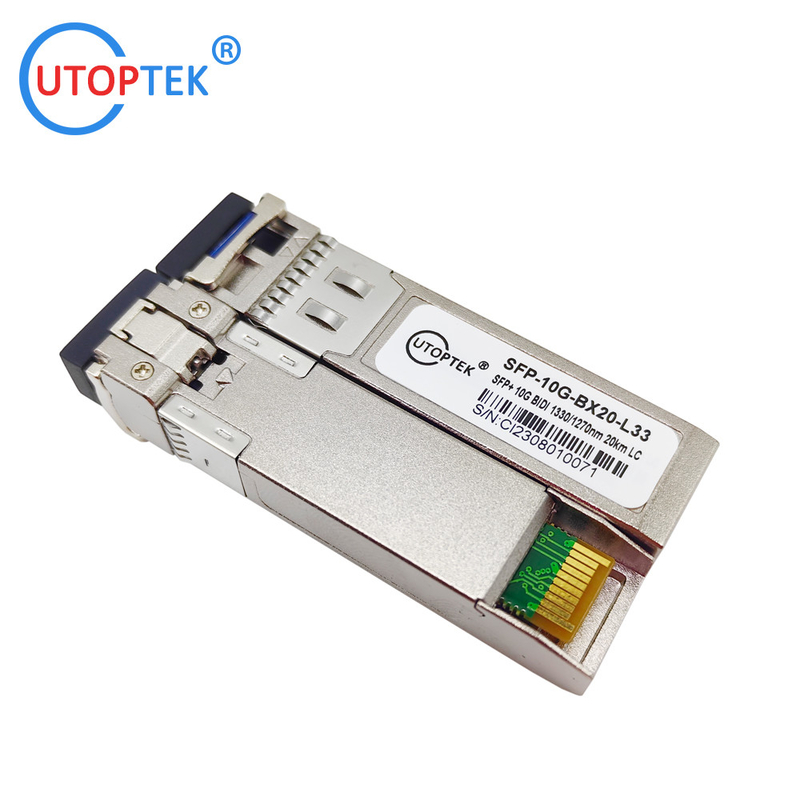

SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module
SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module
Contact Now

SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module

Minimum Order Quantity : 2pcs Packaging Details : 10pcs to one plastic plate
Delivery Time : 1-2days Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability : 2000pcs per month
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: SFP-10G-BX20-L33/27

Detail Information
Transmission Speed: 10Gb/s Fiber Type: Single-mode,Single LC
Distance: 20km DDM Function: Support
Power Supply: 3.3V Working Temperature: 0~70℃
Wavelength: Tx1330nm/Rx1270nm Warranty: 3 Years
Compatible: Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..

Product Description

10Gb/s 20km SFP+ Transceiver Hot Pluggable, Single LC, +3.3V, 1270nm/1330nm DFB, DDM
SFP-10G-BX20-L27 (Tx1270nm/Rx1330nm)
SFP-10G-BX20-L33 (Tx1330nm/Rx1270nm)

Features:

  • Up to 20 km transmission on SMF
  • Up to10.3125Gbps
  • 1270nm DFB laser and PIN receiver
  • Electronic Interface compliant with SFF-8431
  • 2-wire interface for integrated Digital Diagnostic monitoring
  • SFP+ MSA package with single LC connector
  • Hot pluggable
  • Very low EMI and excellent ESD protection
  • +3.3V power supply
  • Power consumption less than 1.0W
  • Operating case temperature: 0~+70°C





Brand UTOPTEK, OEM
Condition 100% New
Form Factor SFP+
Wavelength: Tx1330nm/Rx1270nm
Distance 20KM
Data Rate (max) 10Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3--5v
Power consuption

<1.5W
Connector Simplex LC
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 10 pcs/box





Factory Show:

SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module 0SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module 1SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module 2SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module 3

SFP+ BiDi WDM 10GbE 20km Universal Optical Transceiver Tx1270/Rx1330nm single mode 10g bidi 20km sfp module 4



Ordering Information:

10Gbps SFP+ Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
SFP-10G-SR 10Gb/s SFP+ 300m 850nm VCSEL PIN LC 0-70℃
SFP-10G-LR10 10Gb/s SFP+ 10km 1310nm DFB PIN LC 0-70℃
SFP-10G-LR 10Gb/s SFP+ 20km 1310nm DFB PIN LC 0-70℃
SFP-10G-ERM 10Gb/s SFP+ 40km 1310nm DFB APD LC 0-70℃
SFP-10G-ER 10Gb/s SFP+ 40km 1550nm EML PIN LC 0-70℃
SFP-10G-ZR 10Gb/s SFP+ 60km 1550nm EML APD LC 0-70℃
SFP-10G-ZR 10Gb/s SFP+ 80km 1550nm EML APD LC 0-70℃
SFP-10G-ZR100 10Gb/s SFP+ 100km 1550nm EML APD LC 0-70℃

SFP-10G-BX20-L27 10Gb/s BiDi SFP+ 20km Tx1270/Rx1330nm DFB PIN LC 0-70℃
SFP-10G-BX20-L33 10Gb/s BiDi SFP+ 20km Tx1330/Rx1270nm DFB PIN LC 0-70℃
SFP-10G-BX40-L27 10Gb/s BiDi SFP+ 40km Tx1270/Rx1330nm DFB PIN LC 0-70℃
SFP-10G-BX40-L33 10Gb/s BiDi SFP+ 40km Tx1330/Rx1270nm DFB PIN LC 0-70℃
SFP-10G-BX60-L27 10Gb/s BiDi SFP+ 60km Tx1270/Rx1330nm DFB APD LC 0-70℃
SFP-10G-BX60-L33 10Gb/s BiDi SFP+ 60km Tx1330/Rx1270nm DFB APD LC 0-70℃
SFP-10G-BX80-L49 10Gb/s BiDi SFP+ 80km Tx1490/Rx1550nm EML APD LC 0-70℃
SFP-10G-BX80-L55 10Gb/s BiDi SFP+ 80km Tx1550/Rx1490nm EML APD LC 0-70℃
SFP-10G-BX80-L49 10Gb/s BiDi SFP+ 80km Tx1490/Rx1570nm EML APD LC 0-70℃
SFP-10G-BX80-L57 10Gb/s BiDi SFP+ 80km Tx1570/Rx1490nm EML APD LC 0-70℃
SFP-10G-BX100-L49 10Gb/s BiDi SFP+ 100km Tx1490/Rx1550nm EML APD LC 0-70℃
SFP-10G-BX100-L55 10Gb/s BiDi SFP+ 100km Tx1550/Rx1490nm EML APD LC 0-70℃

SFP+10G-CW10-xx 10Gb/s CWDM SFP+ 10km 1270~1610nm DFB PIN LC 0-70℃
SFP+10G-CW20-xx 10Gb/s CWDM SFP+ 20km 1270~1370nm DFB PIN LC 0-70℃
SFP+10G-CW20-xx 10Gb/s CWDM SFP+ 20km 1470~1570nm DFB PIN LC 0-70℃
SFP+10G-CW20-xx 10Gb/s CWDM SFP+ 20km 1570~1610nm DFB PIN LC 0-70℃
SFP+10G-CW40-xx 10Gb/s CWDM SFP+ 40km 1270~1610nm DFB PIN LC 0-70℃
SFP+10G-CW40-xx 10Gb/s CWDM SFP+ 40km 1470~1610nm EML PIN LC 0-70℃
SFP+10G-CW80-xx 10Gb/s CWDM SFP+ 80km 1470~1610nm EML APD LC 0-70℃
SFP+10G-CW100-xx 10Gb/s CWDM SFP+ 100km 1470~1550nm EML APD LC 0-70℃

SFP+10G-DW40-CHxx 10Gb/s DWDM SFP+ 40km 1528.77~1563.86nm EML PIN LC 0-70℃
SFP+10G-DW80-CHxx 10Gb/s DWDM SFP+ 80km 1528.77~1563.86nm EML APD LC 0-70℃
SFP+10G-DW100-CHxx 10Gb/s DWDM SFP+ 100km 1528.77~1563.86nm EML APD LC 0-70℃
