EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment
EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment
Contact Now

EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment

Minimum Order Quantity : 2pcs Packaging Details : 10pcs to one plastic plate
Delivery Time : 2-3days Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability : 2000pcs per week
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: EPON OLT PX20+++

Detail Information
Transmission Speed: 1.25Gb/s Fiber Type: Single-mode,Simplex SC
Distance: 20KM DDM Function: Support
Power Supply: 3.3V Working Temperature: 0~70℃
Wavelength: Tx1490/Rx1310 Warranty: 1 Year
Compatible: All Brands

Product Description

EPON OLT PX20+++ 1.25Gbps SFP Tx1490nm/Rx1310nm Single SC 20km optical SFP transceiver module



Ordering models:



PON SFP Transceiver
Part No. Data Rate Form Factor Distance Wavelength Laser optical power Interface DDM
EPON OLT
PX20+		 1.25Gbps SFP 20KM Tx1490Rx1310nm DFB/APD +2~+5dBm SC YES
EPON OLT
PX20++		 1.25Gbps SFP 20KM Tx1490Rx1310nm DFB/APD +5~+7dBm SC YES
EPON OLT
PX20+++		 1.25Gbps SFP 20KM Tx1490Rx1310nm DFB/APD >7dBm SC YES

GPON OLT
class B+		 2.5G/1.25Gbps SFP 20KM Tx1490Rx1310nm DFB/APD +2~+5dBm SC YES
GPON OLT
class C+		 2.5G/1.25Gbps SFP 20KM Tx1490Rx1310nm DFB/APD +3~+5dBm SC YES
GPON OLT
class C++		 2.5G/1.25Gbps SFP 20KM Tx1490Rx1310nm DFB/APD +5~+7dBm SC YES
GPON OLT
class C+++		 2.5G/1.25Gbps SFP 20KM Tx1490Rx1310nm DFB/APD >7dBm SC YES

XPON
STICK ONU		 GPON:TX1.25G/RX2.5Gbps
EPON:TX1.25G/RX1.25Gbps		 SFP 20KM Tx1310Rx1490nm DFB/APD GPON/EPON SC YES
GPON
STICK ONU		 TX1.25G/RX2.5Gbps SFP 20KM Tx1310Rx1490nm DFB/APD GPON SC YES
EPON
STICK ONU		 TX1.25G/RX1.25Gbps SFP 20KM Tx1310Rx1490nm DFB/APD EPON SC YES







Features:

  • Typical data rate 1.25 Gbps, Maximal reach 20km
  • Hot-pluggable SFP Package with BIDI SC Receptacle
  • IEEE 802.3-2008 1000BASE-PX20 EPON OLT side application
  • bi-directional transmission with symmetric 1.25 Gbps upstream/downstream
  • 1490nm DFB laser Continuous Transmitter
  • 1310nm APD-TIA Burst-mode receiver
  • +3.3V single power supply
  • Low power consumption
  • operating case temperature:
    Standard: 0℃~+70℃
    Industrial:-40℃~+85℃
  • Excellent EMI and EMC characteristics
  • Digital diagnostic interface compliant with SFP MSA and SFF-8472
  • Compliant with RoHs2.0







Applications:

  • IEEE802.3ah 1000BASE-PX20/PX20++/PX20+++/PX30

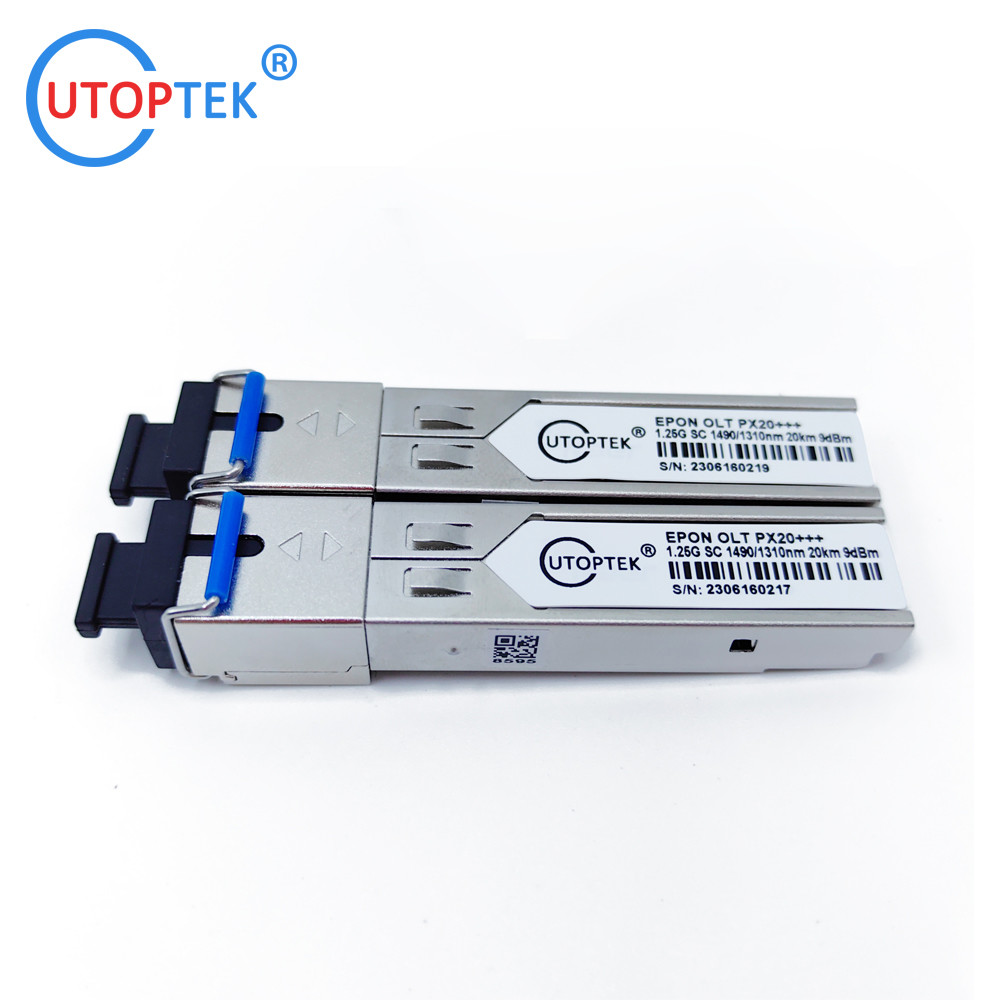

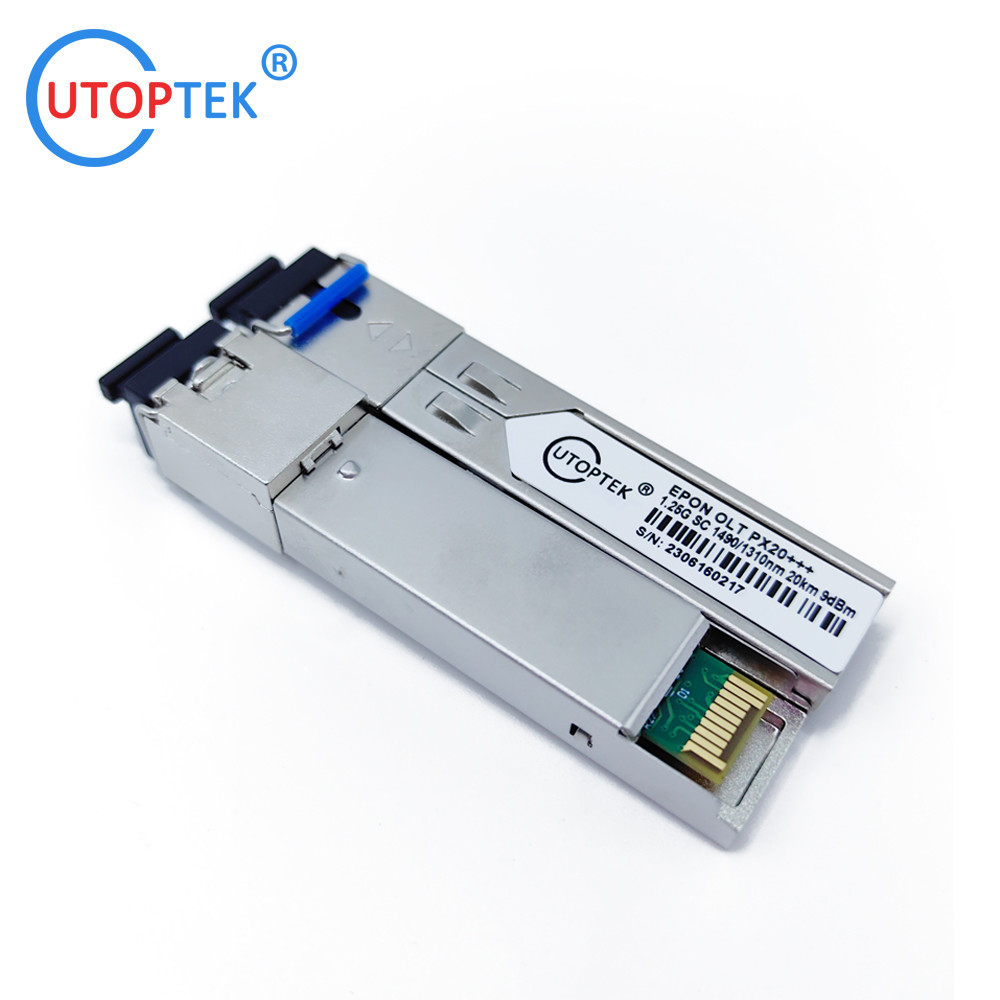

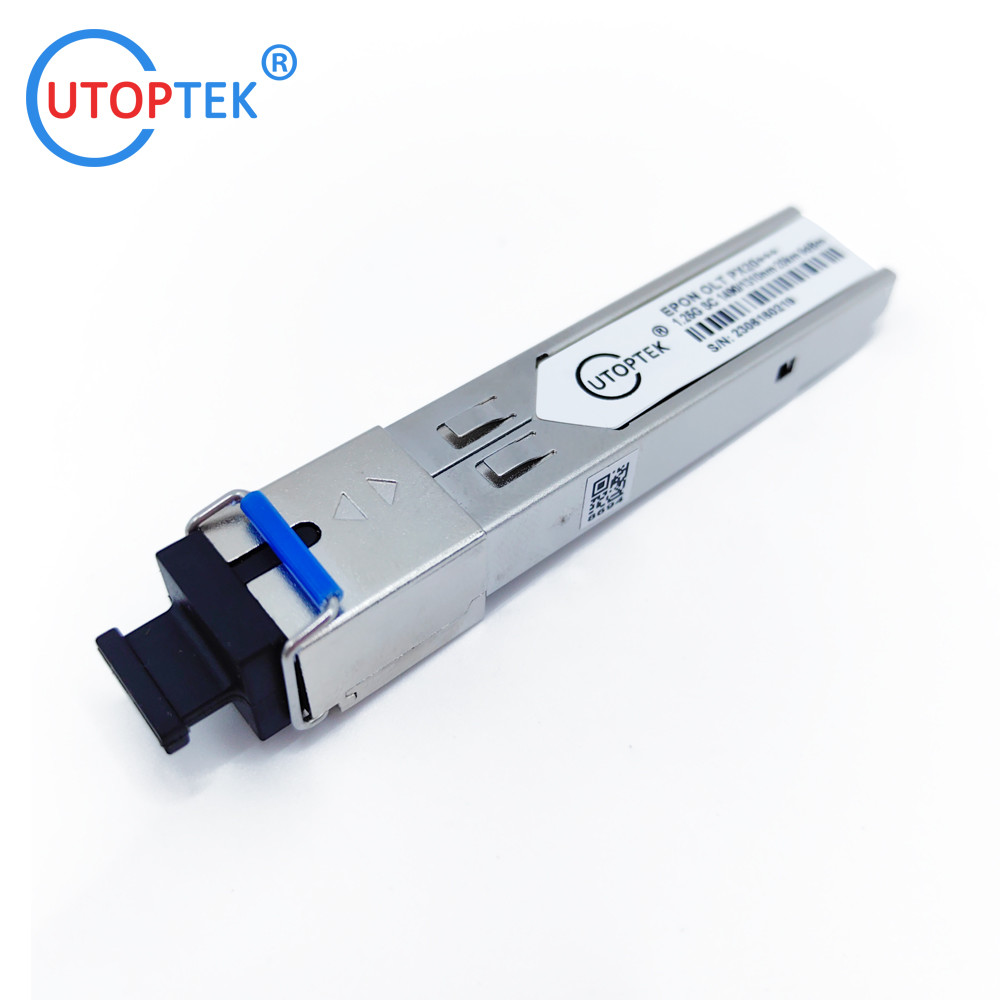

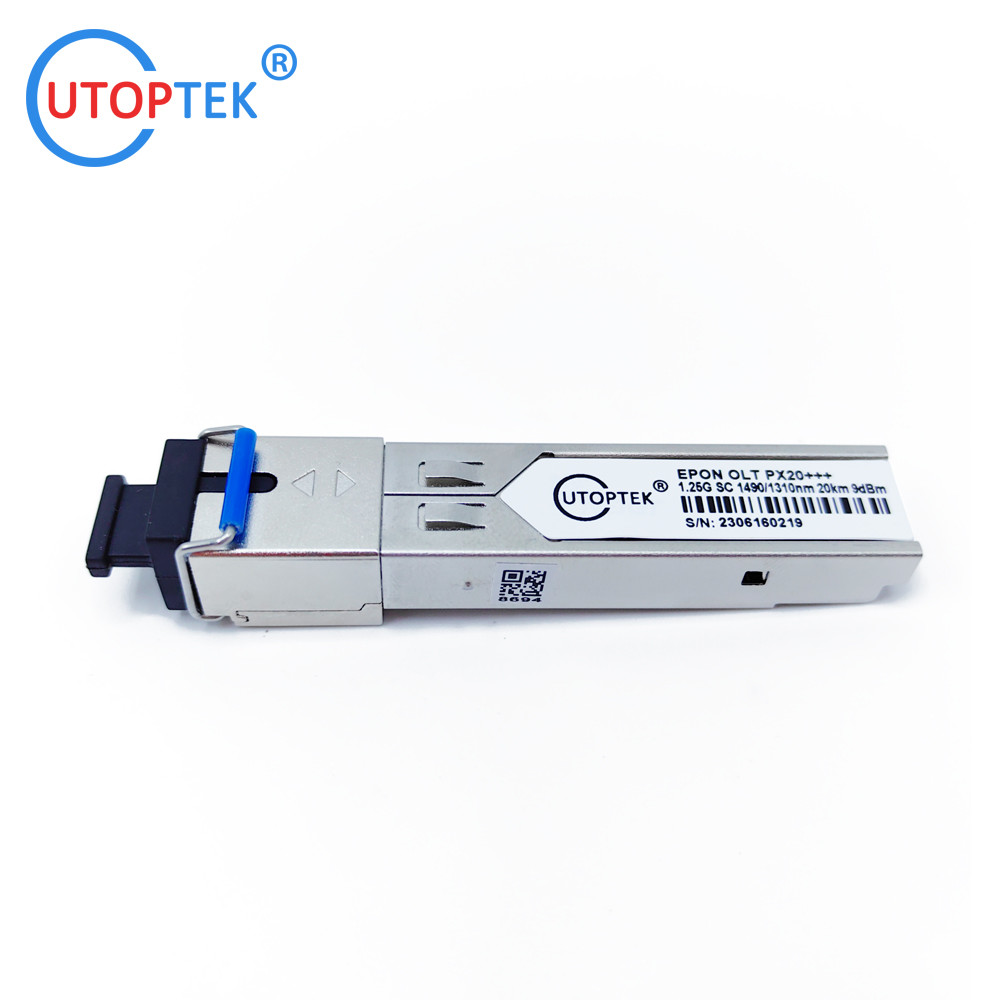

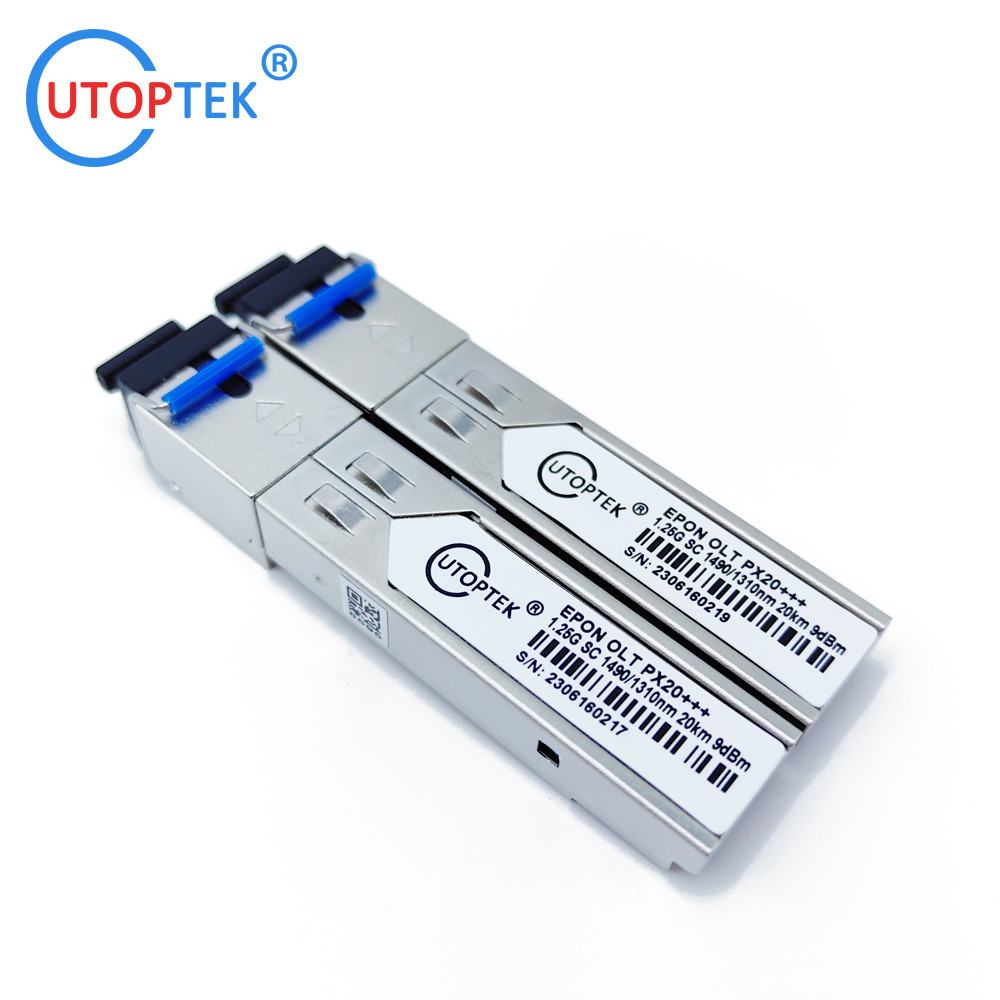

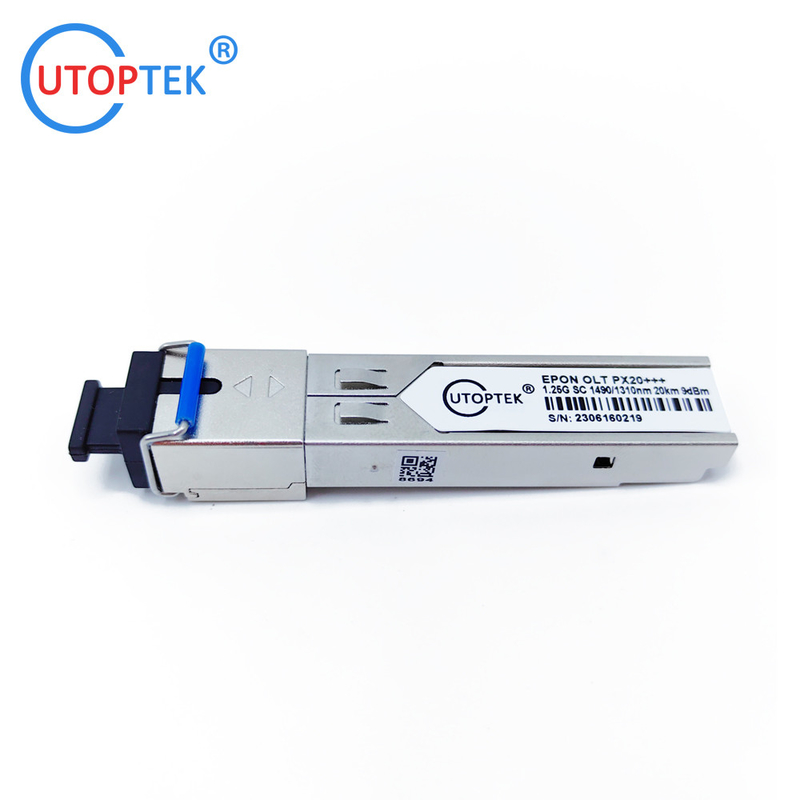

Product pictures:

EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment 0EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment 1EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment 2

EPON OLT PX20+++ 9dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment 3
