industrial Unmanaged 4x10/100/1000Base-T to 2x1000M-Fx Ethernet switch DIN Rail DC12-52V -40~85degree

Name: industrial Unmanaged 4x10/100/1000Base-T to 2x1000M-Fx Ethernet switch DIN Rail DC12-52V -40~85degree
Brand: UTOPTEK
SKU: UT24G-SFP
Rating: 4.8 (142 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	26pcs/carton with power adapter ; 60pcs/carton without power adapter.
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union, Paypal, Wechat, Alipay etc.
Supply Ability :	5000 per month

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT24G-SFP

Detail Information
Product Name:	Industrial Ethernet Switch	Ethernet Port:	4x 10/100/1000M RJ45
Fiber Port:	2x Fiber (SFP Slot)	Transmission Speed:	10/100/1000Mbps
Material:	Aluminum Alloy	Working Temp.:	-40°C To 85°C
Power Input:	DC12-52V	Transmission Distance:	Depends On Sfp
Warranty:	5years	Installation:	Din Rail, Wall Mount
Lightning:	4kv	Powe No.:	Redundant Power

Product Description

Industrial Grade Fiber media converter
4-port 10/100/1000Mbps RJ45 + 2-port 1000Mbps Fiber SFP Slot
Model: UT24G-SFP

Features:

4-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
2-port 1000Base-Fx interface SC/FC/ST/SFP
Multi-Mode up to 2km; Single-Mode up to 20km/40km/60km/80km
Automatic MAC address learning and aging
10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports 10/100/1000Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation for lightning protection
12V to 52V DC, redundant power input
-40℃ to 85℃ operating temperature range.
IP40 aluminum housing
Supports 6KV DC Ethernet ESD protection
Supports 6KV DC EFT protection for power line
Free Fall, Shock and Vibration Stability

Technical Paremeters:

Technical Specification
Product Name	4 Port 10/100/1000M Industrial Media Converter
Product Model	UT24G-SFP
Interface	4 x 10/100/1000Base-T RJ45 port + 2x 1000Mbps Fiber (SC/FC/ST/SFP)
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media	Multi-mode: 2KM Single-mode: 20/40/60/80KM
Performance Specification	Bandwidth: 1Gbps Packet Buffer Memory: 512K Packet Forwarding Rate:0.744Mpps/port MAC Address Table: 1K
Forwarding Mode	Store-and-Forward
Protection	6KV Lightening protection, IP40 protection
LED Indicators	Power: PWR; OPT/Link; Link/Act
Power Supply	Input Voltage: Non-POE: DC24V(12-52V) POE: DC52V (48～57V) /Terminal block
Other Specifications
Working Environment	Working temperature: -40～+85℃ ; Storage temperature: -40～+85℃ Relative Humidity: 5%~95 %( no condensation)
Industry Standard	FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
Shell	IP40 protect grade, metal shell
Installation	DIN-Rail or Wall mounts
Packing List	1×Industrial Media Converter (plus terminal block) 1×User Manual/Certificate of quality/Warranty card 1×DIN-Rail mounting kit
Certification	CE mark, commercial; FCC Part 15 Class B; VCCI Class B EN 55022 (CISPR 22), Class B
MTBF	300,000 hours
Weight & Size	Product Weight: 0.36 KG Packing weight: 0.46KG Product size (L×W×H): 118m× 86mm× 40mm Packing size(L×W×H): 220mm× 220mm× 67mm
Warranty	5-years

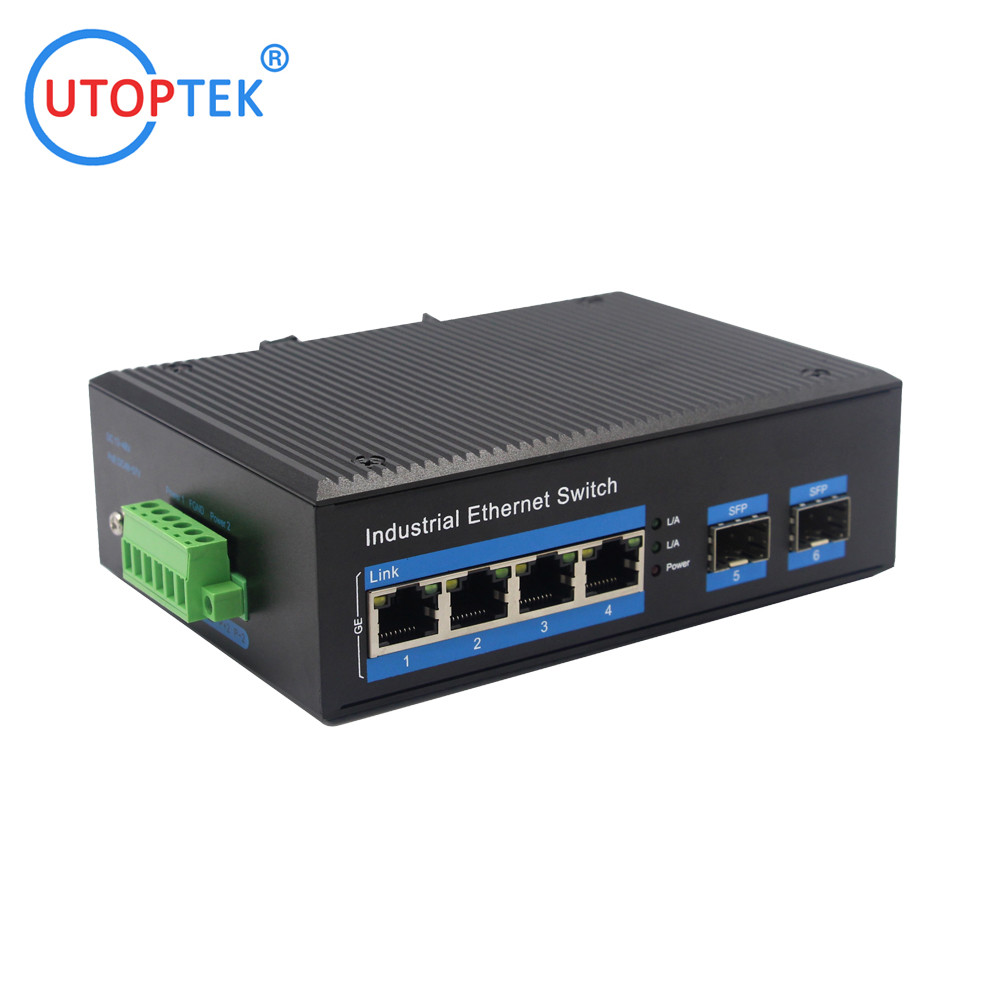

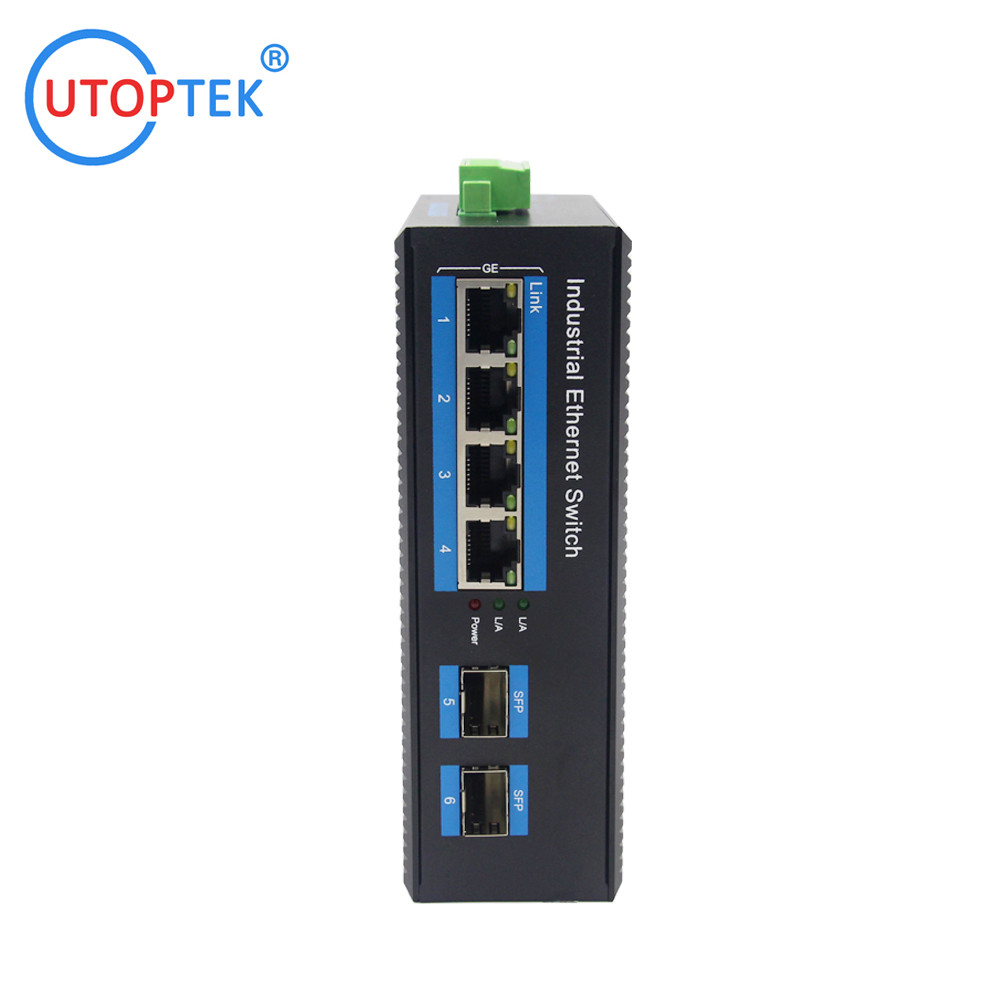

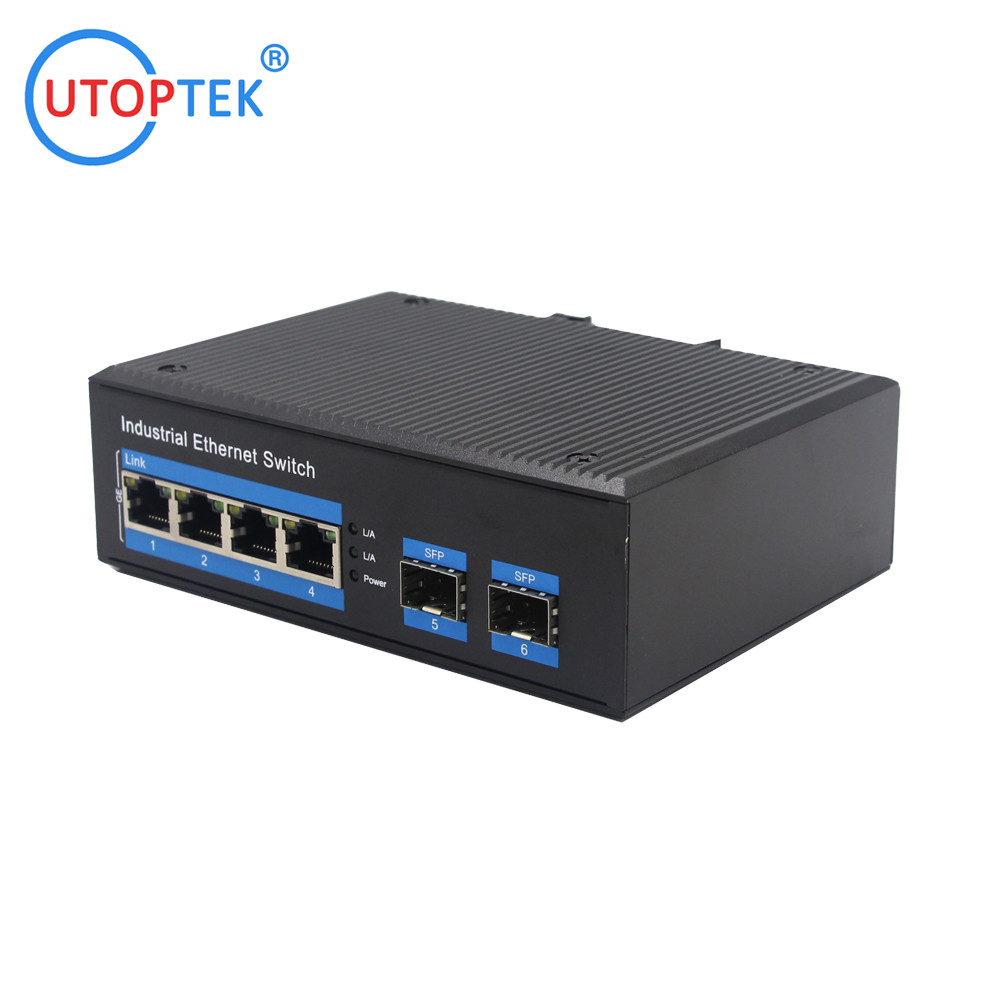

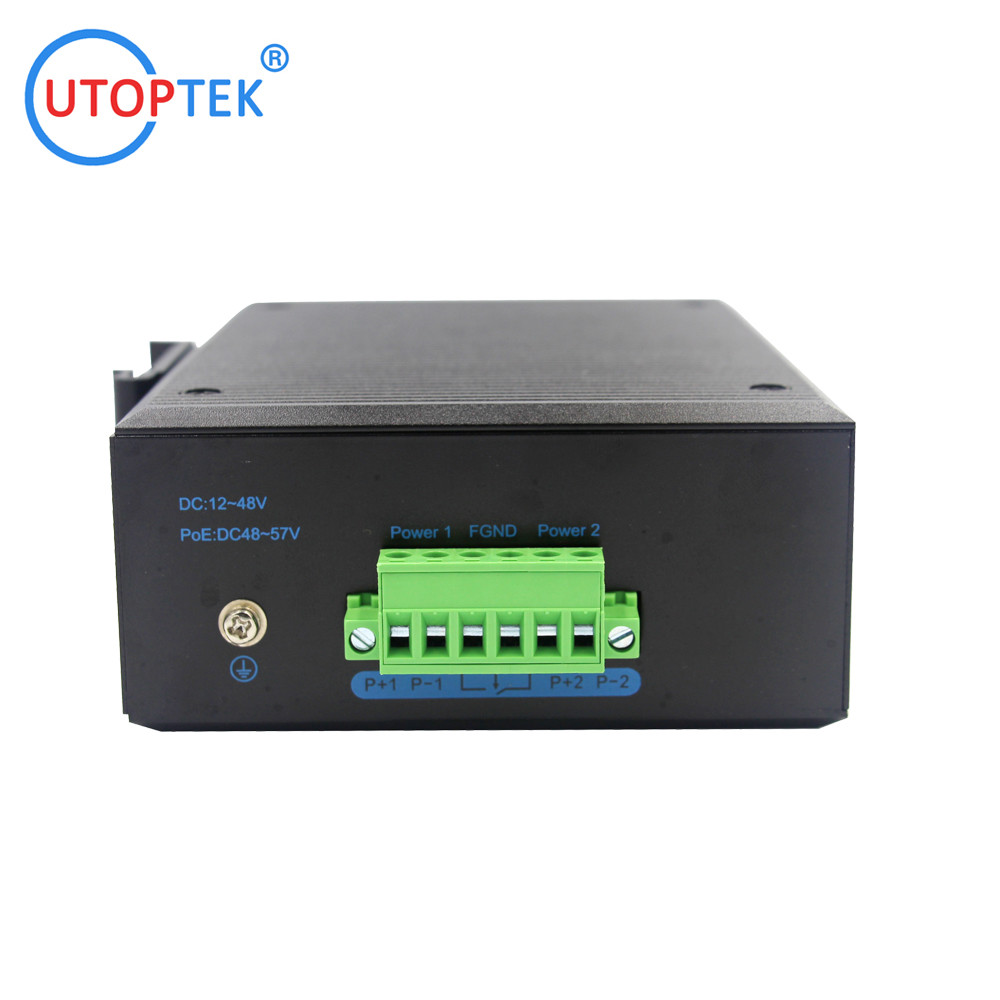

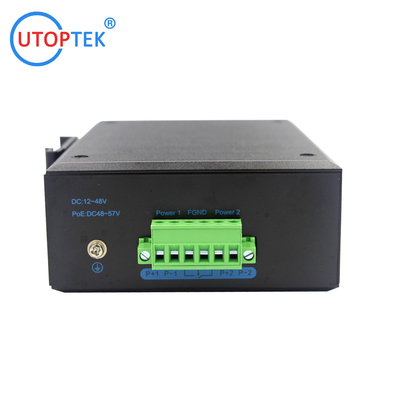

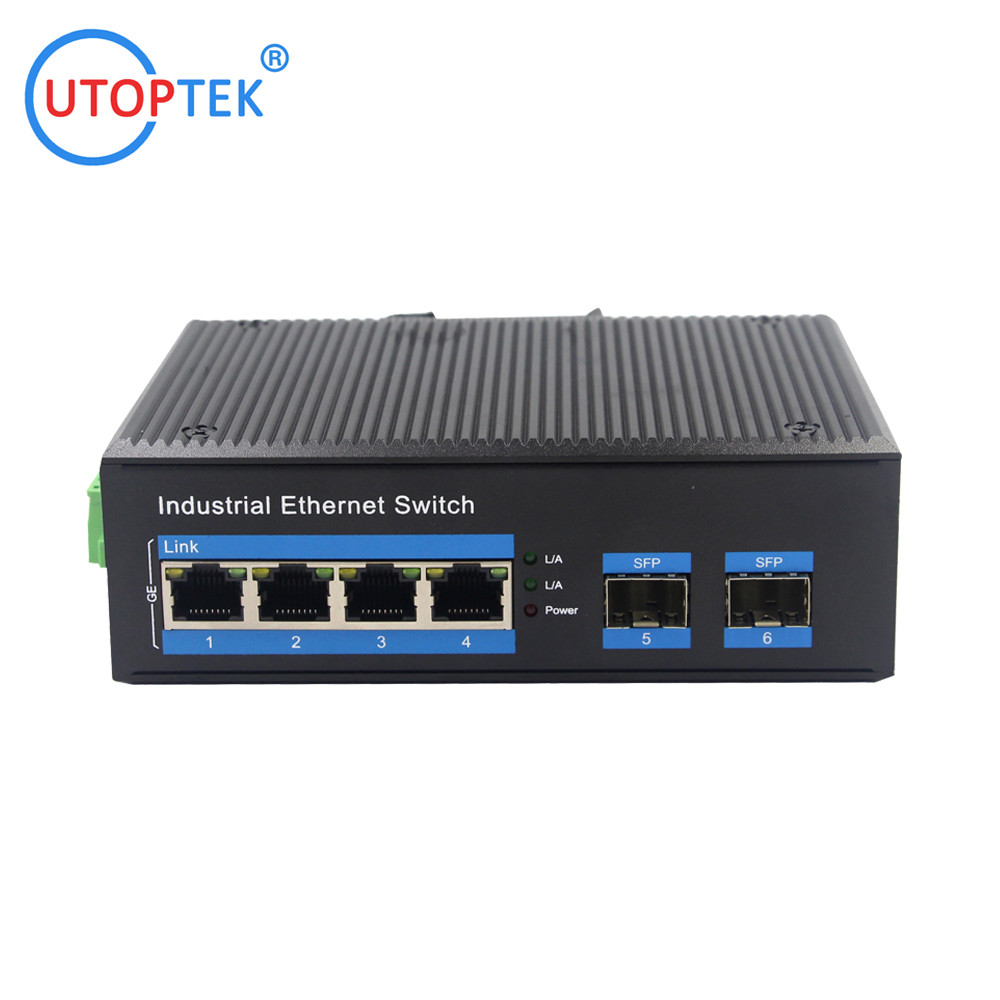

Product pictures:

industrial Unmanaged 4x10/100/1000Base-T to 2x1000M-Fx Ethernet switch DIN Rail DC12-52V -40~85degree 0
Ordering informations:

10/100/1000M Industrial Fiber Switch (Aluminum Case, -40 ~+85 ℃)
UT11G-SC20	Industrial 10/100/1000M 1 fiber port + 1 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC12~52V, exclude power adapter
UT11GP-SC20	Industrial 10/100/1000M 1 fiber port + 1 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, exclude power adapter
UT12G-SC20	Industrial 10/100/1000M 1 fiber port + 2 RJ45 port, SC, dual fiber SM 20km, DIN Rail type, DC12~52V, exclude power adapter
UT12GP-SC20	Industrial 10/100/1000M 1 fiber port + 2 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, exclude power adapter
UT14G-SC20	Industrial 10/100/1000M 1 fiber port + 4 RJ45 port, SC, dual fiber SM 20km, DIN Rail type,DC12~52V, exclude power adapter
UT14GP-SC20	Industrial 10/100/1000M 1 fiber port + 4 RJ45 POE port, SC, dual fiber SM 20km, DIN Rail type, DC48~57V, exclude power adapter
UT05G	Industrial 5x10/100/1000Mbps RJ45 ports network switch, DIN Rail type, DC12~52V,exclude power adapter
UT05GP	Industrial 5x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC48~57V,exclude power adapter
UT08G	Industrial 8x10/100/1000Mbps RJ45 ports network switch, DIN Rail type,DC12~52V,exclude power adapter
UT08GP	Industrial 8x10/100/1000Mbps RJ45 POE ports network switch, DIN Rail type, DC48~57V,exclude power adapter
UT11G-SFP	Industrial 10/100/1000M 1 SFP port + 1 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT11GP-SFP	Industrial 10/100/1000M 1 SFP port + 1 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT12G-SFP	Industrial 10/100/1000M 1 SFP port + 2 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT12GP-SFP	Industrial 10/100/1000M 1 SFP port + 2 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT14G-SFP	Industrial 10/100/1000M 1 SFP port + 4 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT14GP-SFP	Industrial 10/100/1000M 1 SFP port + 4 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT18G-SFP	Industrial 10/100/1000M 1 SFP port + 8 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT18GP-SFP	Industrial 10/100/1000M 1 SFP port + 8 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT24G-SFP	Industrial 10/100/1000M 2 SFP port + 4 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT24GP-SFP	Industrial 10/100/1000M 2 SFP port +4 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT28G-SFP	Industrial 10/100/1000M 2 SFP port + 8 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
UT28GP-SFP	Industrial 10/100/1000M 2 SFP port + 8 RJ45 POE port, DIN Rail type,DC48~57V, exclude power adapter
UT82G-SFP	Industrial 10/100/1000M 8 SFP port + 2 RJ45 port, DIN Rail type,DC12~52V, exclude power adapter
48V-DC power	DC 48V/2.5A,120W suitable for PoE 1-8 port
52V-DC power	DC 52V/2.3A,120W suitable for PoE 1-8 port
