40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible
40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible
Contact Now

40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible

Minimum Order Quantity : 1piece Packaging Details : 4pcs to one plastic plate
Delivery Time : 1-2days Payment Terms : T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability : 5000pcs per month
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: QSFP-40G-ZR4

Detail Information
Transmission Speed: 40Gb/s Fiber Type: Single-mode, Duplex LC
Distance: 80KM DDM Function: Support
Power Supply: 3.3V Working Temperature: 0~70℃
Aggregate Bandwidth: > 40Gbps Per Channel Bandwidth: 11.2Gbps
Compatible: Cisco,Huawei,HP,H3C,Juniper,Extreme Etc.. Warranty: 3 Years

Product Description

40Gb/s ZR4 80km QSFP+ Transceiver
Hot Pluggable, Duplex LC Connector, Single mode





1.Features:

  • 4 lanes MUX/DEMUX design
  • Integrated LAN WDM TOSA / ROSA
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4
  • QSFP MSA compliant
  • APD photo-detector
  • Up to 80 km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C
  • RoHS Compliant Part





2.Applications:



  • Rack to rack
  • Data centers Switches and Routers
  • Metro networks
  • Switches and Routers
  • 40G BASE-ZR4





3.Technical specifications:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor QSFP+
Fiber Type single mode duplex LC
Wavelength:

1296 nm, 1300 nm, 1305 nm and 1309 nm
Distance

80KM
Data Rate (max) 40Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3V
Power consuption

<2.5W
Connector Duplex LC
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 4pcs/bag

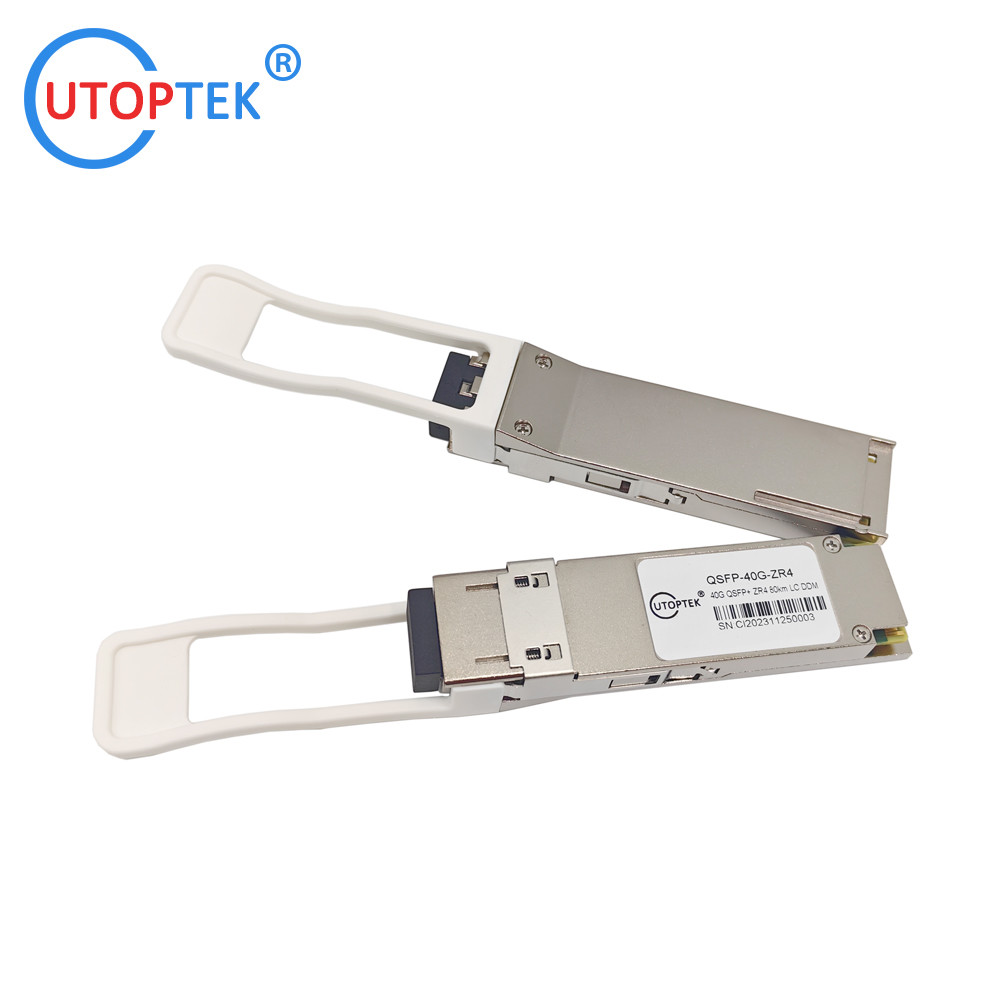

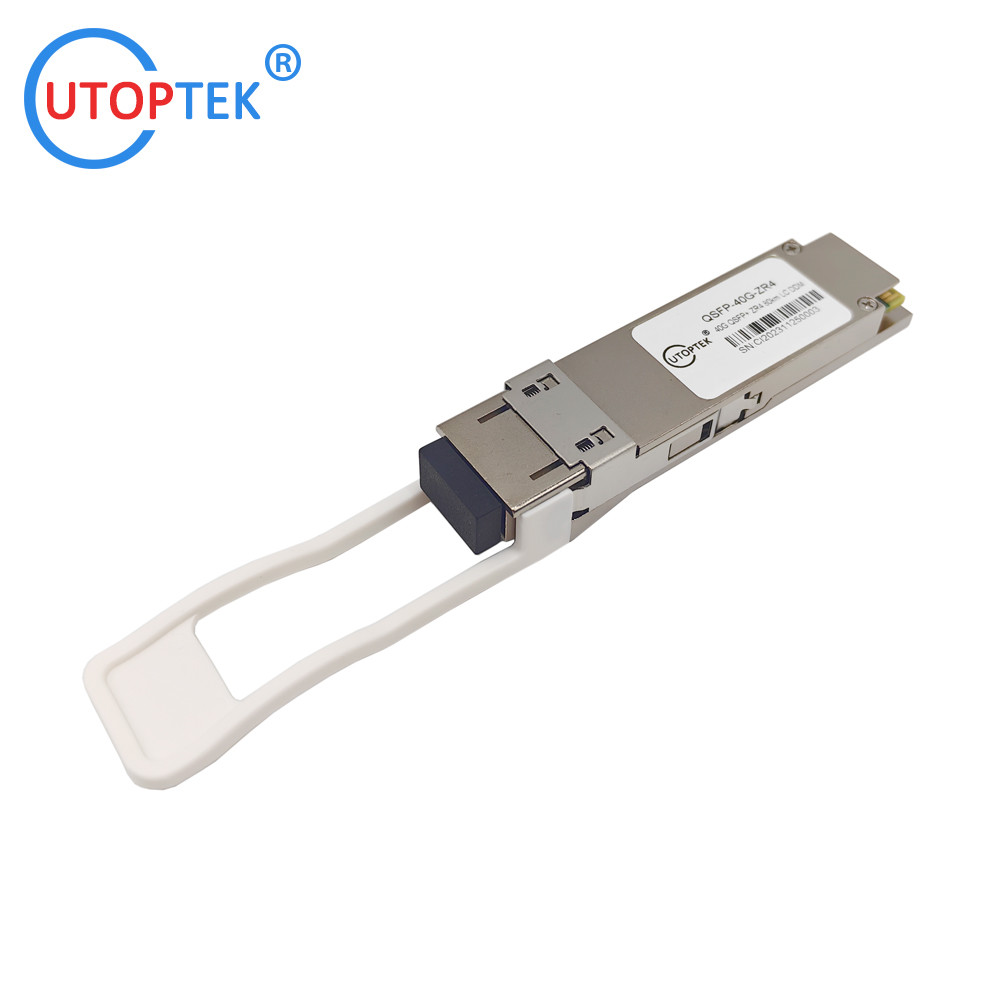

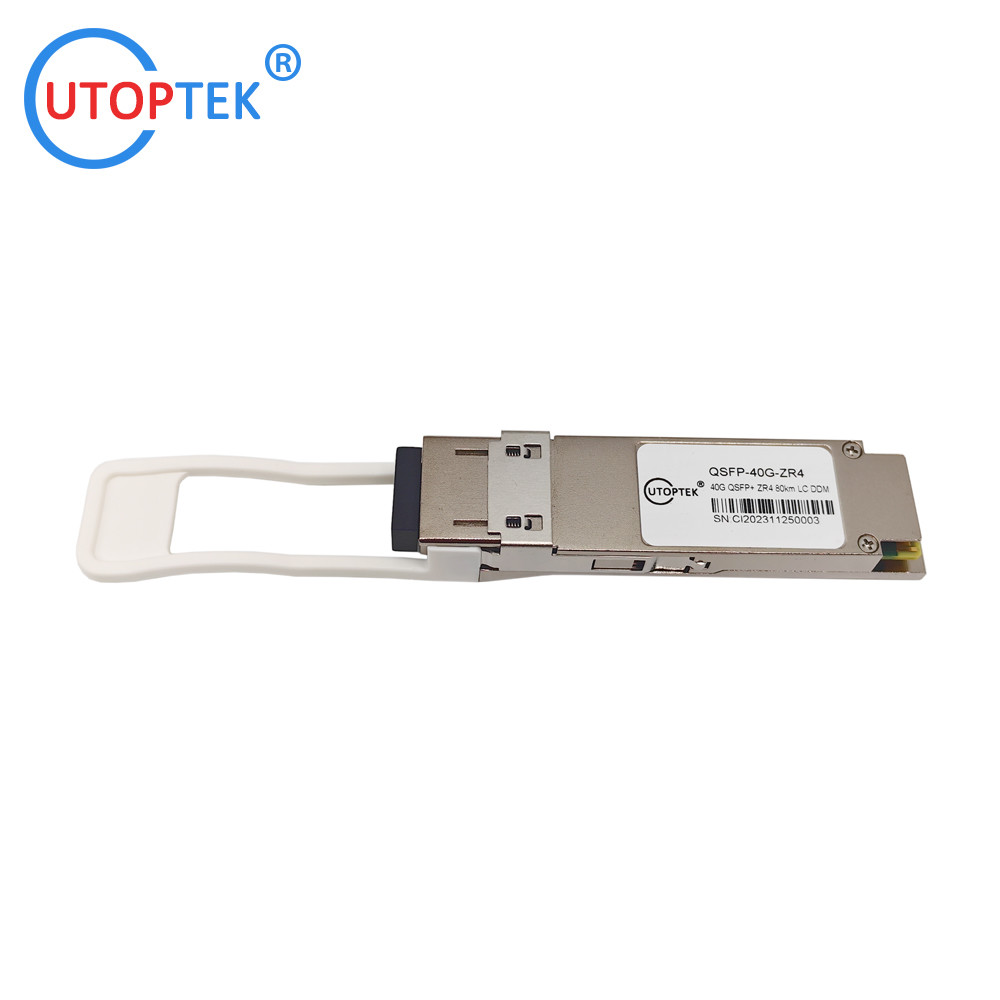

4.Products Picture:

40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 040G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 140G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 2

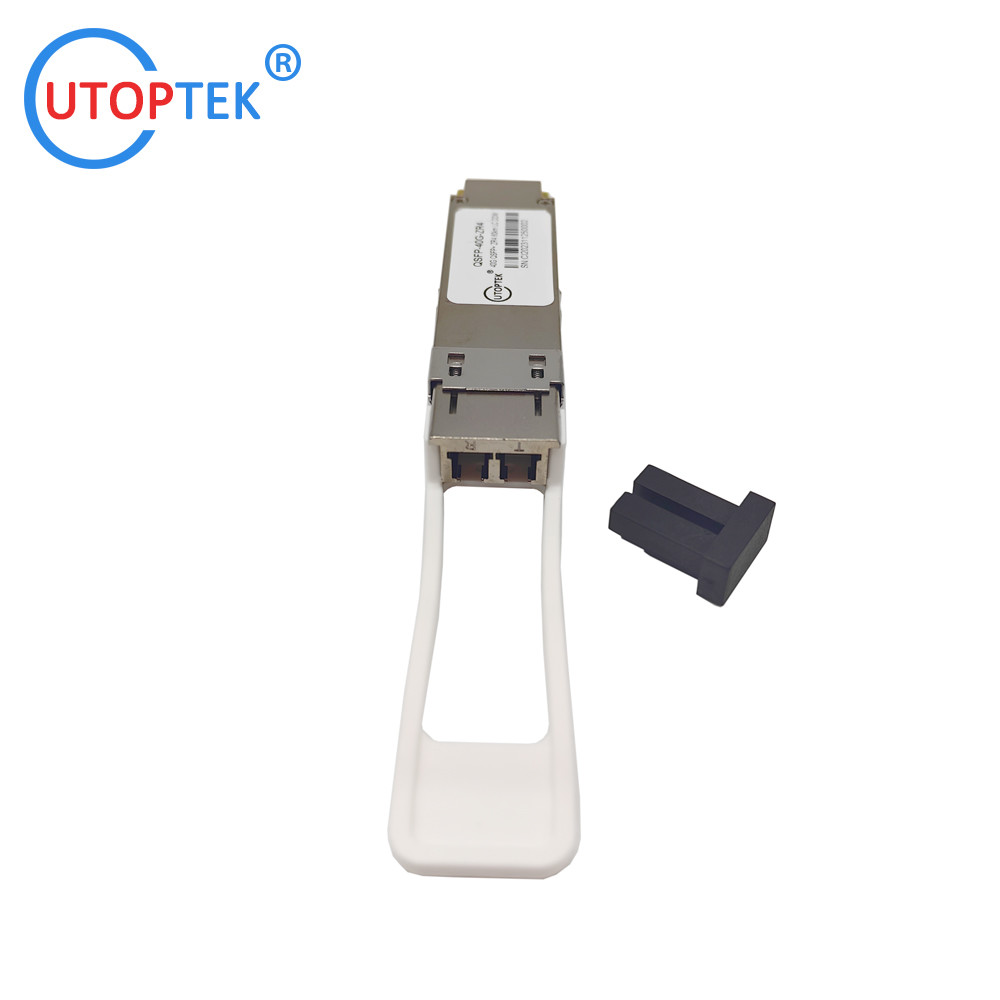

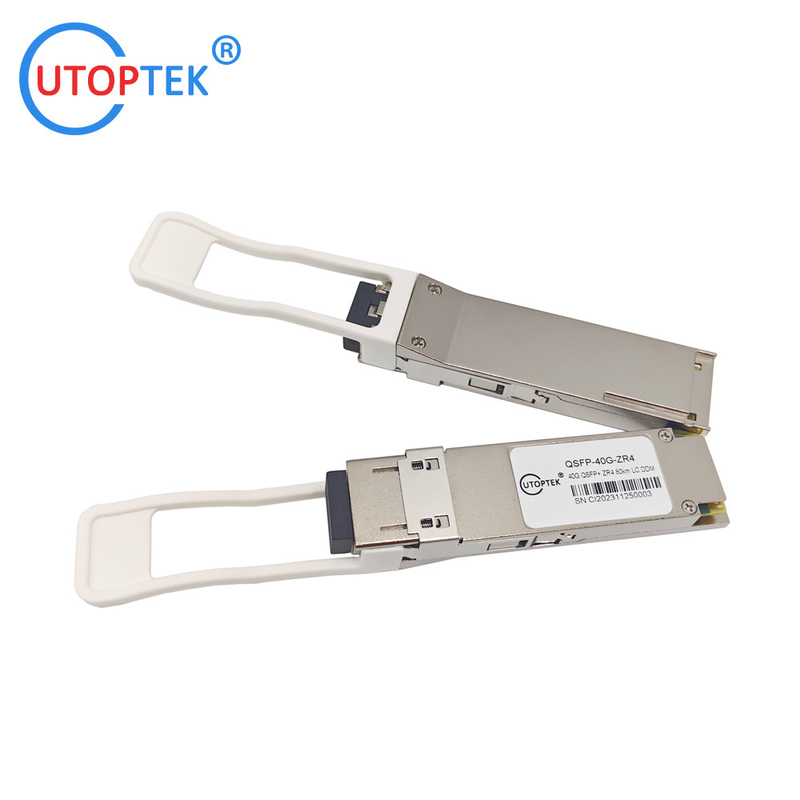

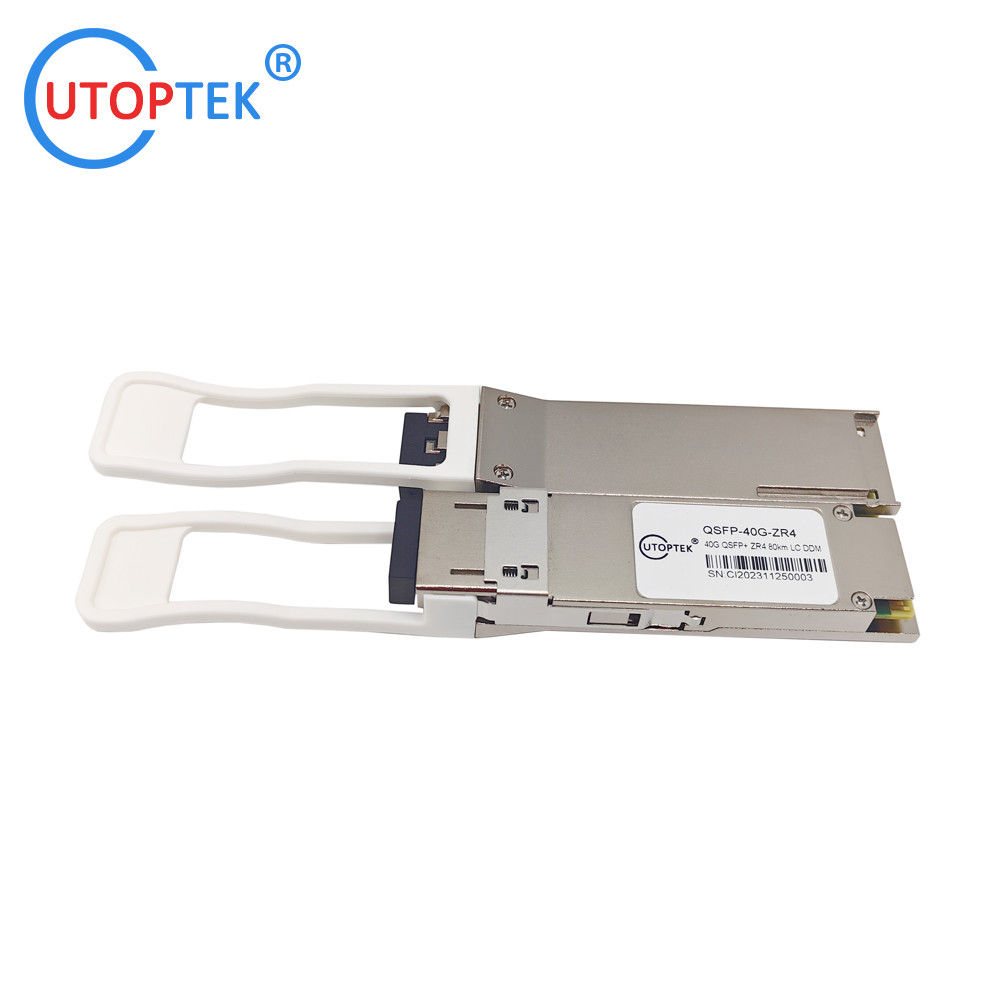

5.Compatible Testing:

40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 3



40G qsfp 80km ZR4 LC connector optical transceiver module singlemode Cisco compatible 4





6.Related products:

40Gbps QSFP+ Transceiver
Part No. Data Rate Form Factor Distance Wavelength Transmitter Receiver Interface Temp.
QSFP-40G-SR-BD 40Gb/s QSFP+ 100m 850nm/900nm DFB PIN LC 0-70℃
QSFP-40G-SR4 40Gb/s QSFP+ 100m 850nm VCSEL PIN MPO 0-70℃
QSFP-40G-SR-2KM 40Gb/s QSFP+ 2km 1310nm DFB PIN MPO 0-70℃
QSFP-40G-LX4 40Gb/s QSFP+ 2km/150m 1310nm/850nm DFB PIN LC 0-70℃
QSFP-40G-LR-S 40Gb/s QSFP+ 10km 1310nm DFB PIN MPO 0-70℃
QSFP-40G-LR4 40Gb/s QSFP+ 10km 1310nm DFB PIN LC 0-70℃
QSFP-40G-LR4 40Gb/s QSFP+ 20km 1310nm DFB PIN LC 0-70℃
QSFP-40G-ER4 lite 40Gb/s QSFP+ 30km 1310nm DML APD LC 0-70℃
QSFP-40G-ER4 40Gb/s QSFP+ 40km 1310nm DML APD LC 0-70℃
QSFP-40G-ZR4 40Gb/s QSFP+ 80km 1310nm DML APD LC 0-70℃
