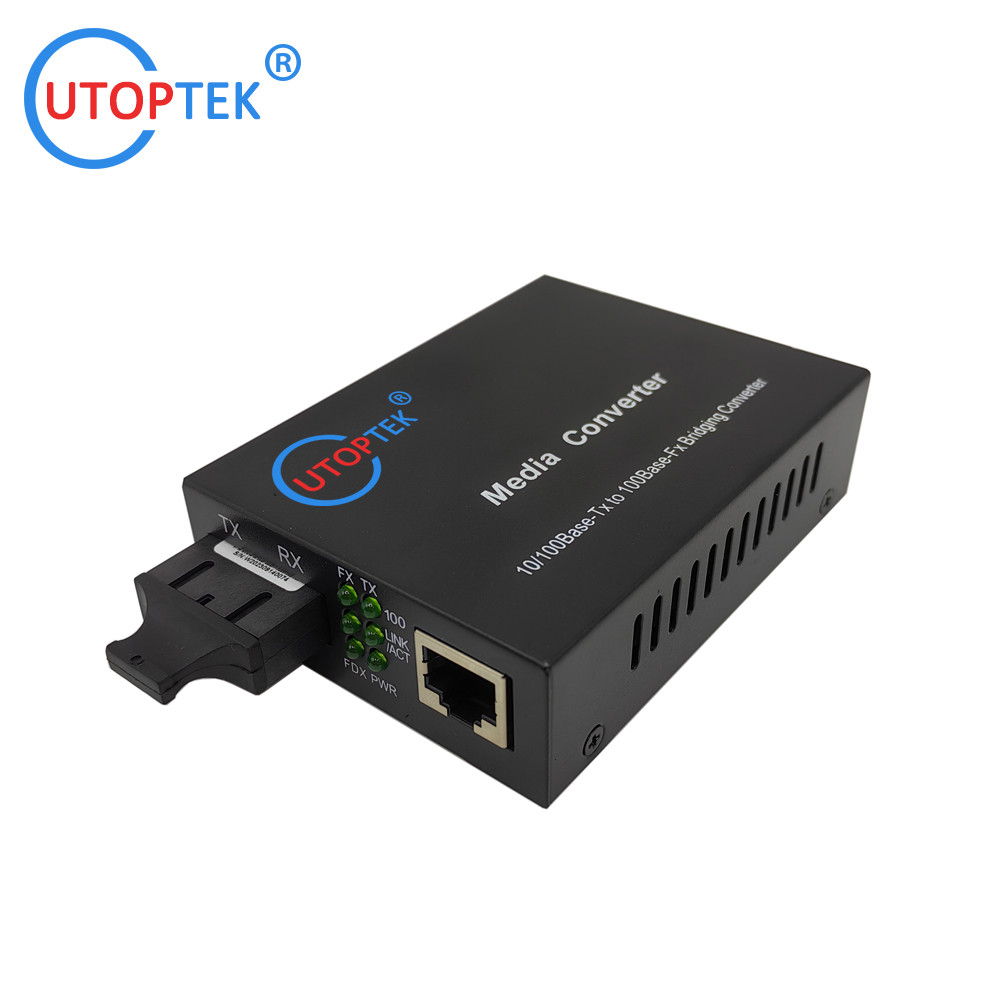

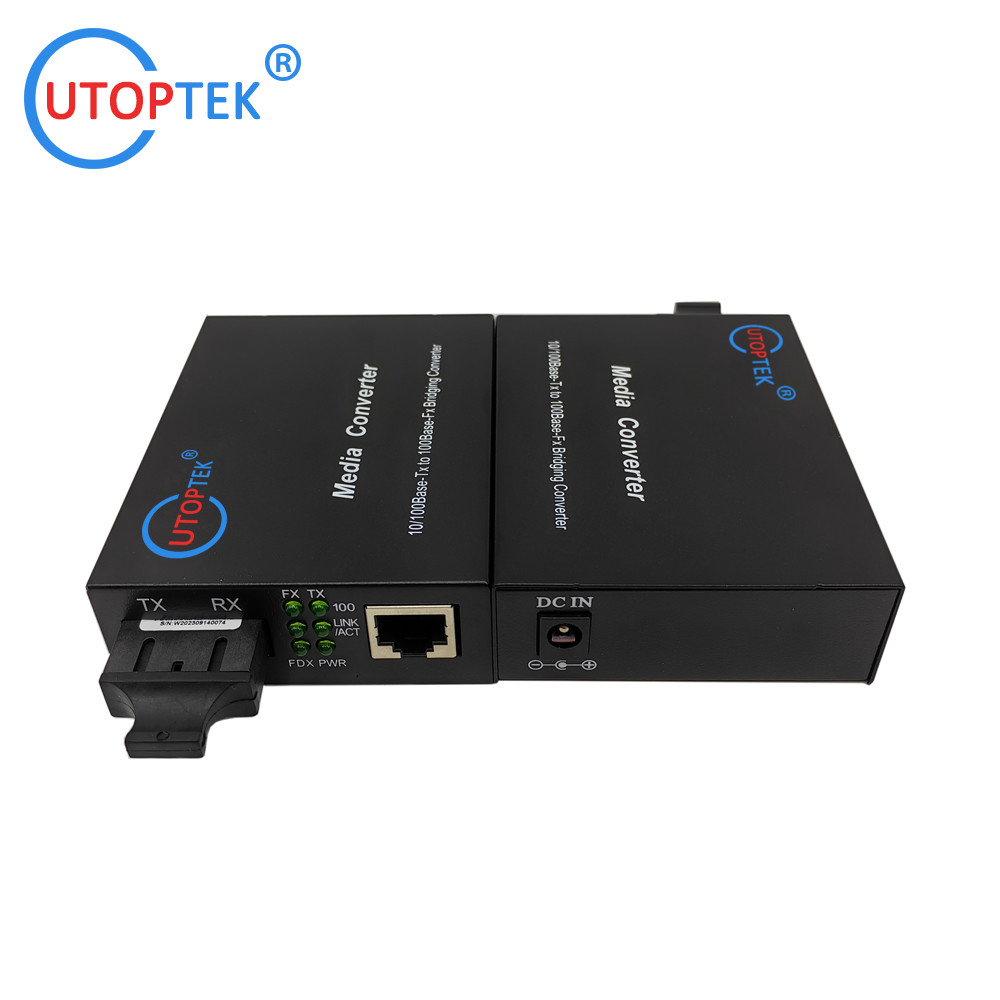

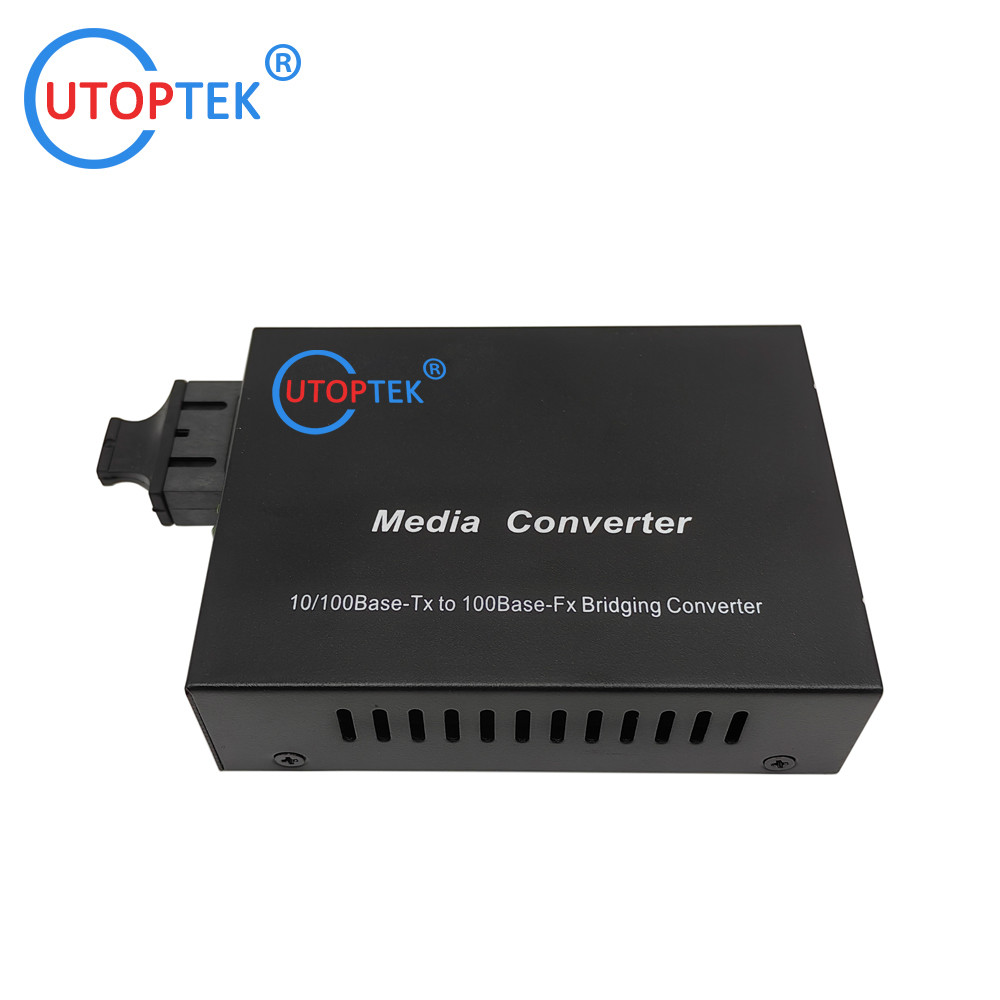

10/100Mbps MultiMode dual SC 1310nm 2km Ethernet to Fiber optical Media Converter China factory

Minimum Order Quantity :	2pcs	Packaging Details :	60pcs/Carton, 5537.548.5CM, G.W.:15Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-MC2101-SX

Detail Information
Product Name:	Fiber Media Converter	Speed:	10/100Mbps
Interface:	1 Fiber+1 RJ45 Port	Fiber Type:	Multi Mode, Dual Fiber
Fiber Connector:	SC/ST/FC,LC(SFP) Optional	Power Input:	DC5V Or 12V Optional
Distance:	2km	Wavelength:	TRX1310nm
Warranty:	12months	Product Size:	94x70x25mm
N.W/G.W(kg):	0.18kg/0.36kg	Housing Material:	Iron
Operating Temperature:	0～+70°C

Product Description

10/100Mbps Multi Mode Dual Fiber 2km 1310nm Optical Fiber Media Converter

Overview:

This compact Fiber Media Converter transforms 100Base-T (Copper) media to 100Base-SX/LX (Fiber) media and vice versa. The 100Base-T

RJ-45 port supports a full duplex connection at wire speed. The Fiber optical supports both multimode (SX) or single-mode (LX) fiber port.

Features:

1x 10/100Mbps Auto-Negotiation RJ45 Port Supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode from the TX port
LEDs Indicate Ethernet, Fiber Link and the Power Status at a Glance
Plug-and-play, Support 19inch 2U 14Slots Chassis & Stand-alone Use
Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
Extends Fiber distances up to: 0~2km on Multimode, 0~120km on Single Mode
Fiber port support ST, SC, FC(1*9), SFP optical connectors are optional

Technical sheet:

Fixed Port	1*10/100Base--TX RJ45 port (Data)
Fixed Port	1*100M Optical Fiber Port
Network Protocol	IEEE802.3
	IEEE802.3i 10BASE-T
	IEEE802.3u100BASE-TX
	IEEE802.3x
Port Specification	10/100BaseT(X) Auto
Transmission Mode	Store and Forward(full wire speed)
Bandwidth	155Mbps
Packet Forwarding	7.2Mpps
MAC Address	2K
Buffer	2.5M
MTBF	>100,000 hours
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter)
	100BASE-TX : Cat5 or later UTP(100 meter)
	Multi mode double fiber(MAX 850M/2KM)
	Single mode double fiber (default 20KM)
	Single mode single fiber(default 20KM)
	Optional 3-120KM Optical Fiber Module
Watt	≤5W
LED Indicator	PWR:Power LED
	FDX:Working status LED
	TX :Network Port LED
	FX:(Optical fiber LED)
	Link/Act(Optical Fiber Port State LED)

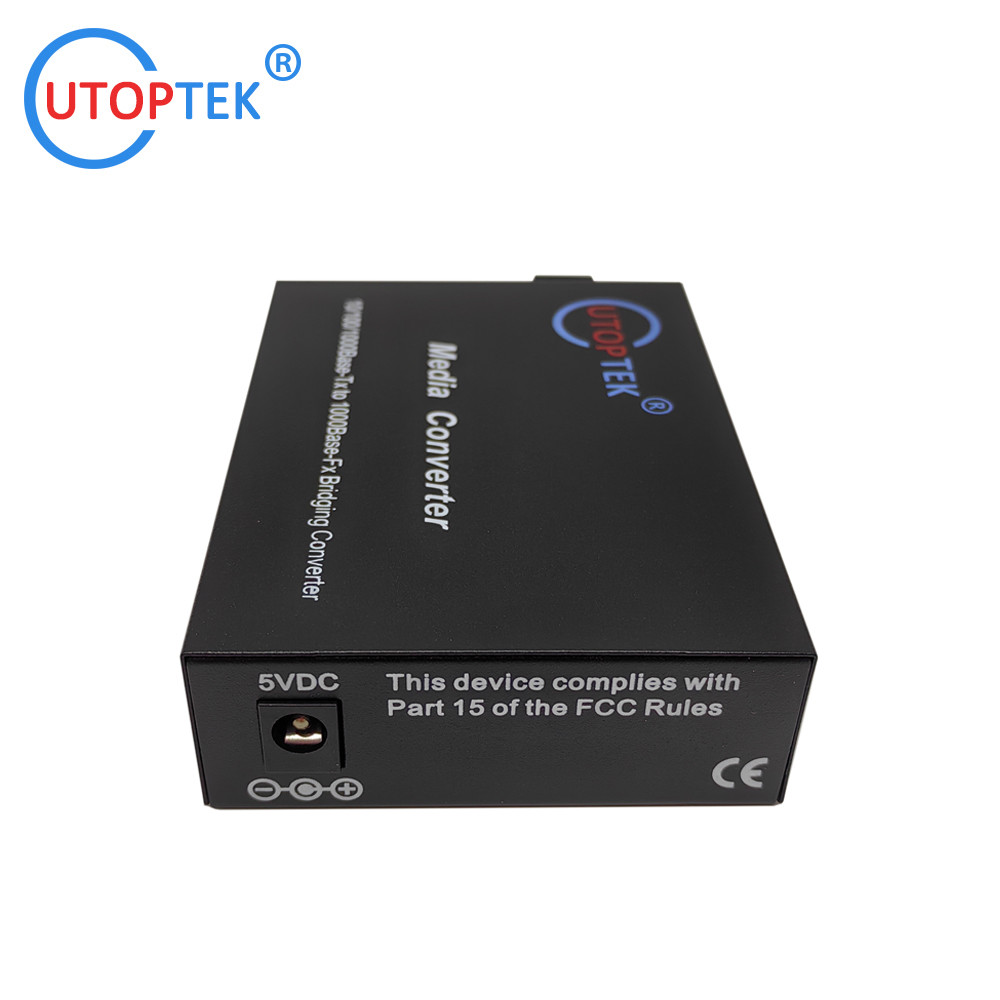

Power	External power: DC5V ; Input: AC100~240V;50/60Hz
Operating Temperature/Humidity	0～+70°C; 5%～90% RH Non coagulation
Storage Temperature/Humidity	-20～+75°C; 5%～95% RH Non coagulation
Product size/Packing size(LWH)	94mm70mm25mm
Product size/Packing size(LWH)	230mm125mm55mm
N.W/G.W(kg)	0.18kg/0.36kg
Installation	Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level	3KV 8/20us
Lightning Protection level	IP30
Certificate	CE mark, commercial; CE/LVD EN60950；
Certificate	FCC Part 15 Class B; RoHS; CNAS;MA
Warranty	Whole device for 1 year

Packing and Shipping:

Fiber Media Converters are packaged in foam-lined boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, serial number, and the customer's name and address.

The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.

10/100Mbps MultiMode dual SC 1310nm 2km Ethernet to Fiber optical Media Converter China factory 0

Connection topology:

10/100Mbps MultiMode dual SC 1310nm 2km Ethernet to Fiber optical Media Converter China factory 1

Order Models:

Model	Speed	Fiber Type		Wavelength	Dist.	Optical port
UT-MC2101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:850nm	2km	SC
UT-MC2101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:1310nm	2km	SC
UT-MC2101-S20	10/100Base-Tx to 100Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC2101-SFP	10/100Base-Tx to 100Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP

UT-MC3101-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:850nm	550m	SC
UT-MC3101-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:1310nm	550m	SC
UT-MC3101-S20	10/100/1000Base-Tx to 1000Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC3101-SFP	10/100/1000Base-Tx to 1000Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP
UT-MC10G-SFP	10G Base-Tx to 10G Base-R	SM/MM	SF/DF	depends on SFP	0~100km	SFP+
For long distance: 20/40/60/80/100/120km, pls contact our sales.
