EPON OLT PX20++ 7dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment

Name: EPON OLT PX20++ 7dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment
Brand: UTOPTEK
SKU: EPON OLT PX20++
Rating: 4.9 (160 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	EPON OLT PX20++

Detail Information
Transmission Speed:	1.25Gb/s	Fiber Type:	Single-mode,Simplex SC
Distance:	20KM	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	Tx1490/Rx1310	Warranty:	1 Year
Compatible:	All Brands

Product Description

EPON OLT PX20++ 1.25Gbps SFP Tx1490nm/Rx1310nm Single SC 20km optical SFP transceiver module

Ordering models:

PON SFP Transceiver
Part No.	Data Rate	Form Factor	Distance	Wavelength	Laser	optical power	Interface	DDM
EPON OLT PX20+	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+2~+5dBm	SC	YES
EPON OLT PX20++	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+5~+7dBm	SC	YES
EPON OLT PX20+++	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	>7dBm	SC	YES
EPON OLT PX20++++	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	>9dBm	SC	YES

GPON OLT class B+	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+2~+5dBm	SC	YES
GPON OLT class C+	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+3~+5dBm	SC	YES
GPON OLT class C++	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+5~+7dBm	SC	YES
GPON OLT class C+++	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	>7dBm	SC	YES

XPON STICK ONU	GPON:TX1.25G/RX2.5Gbps EPON:TX1.25G/RX1.25Gbps	SFP	20KM	Tx1310Rx1490nm	DFB/APD	GPON/EPON	SC	YES
GPON STICK ONU	TX1.25G/RX2.5Gbps	SFP	20KM	Tx1310Rx1490nm	DFB/APD	GPON	SC	YES
EPON STICK ONU	TX1.25G/RX1.25Gbps	SFP	20KM	Tx1310Rx1490nm	DFB/APD	EPON	SC	YES

Features:

Typical data rate 1.25 Gbps, Maximal reach 20km
Hot-pluggable SFP Package with BIDI SC Receptacle
IEEE 802.3-2008 1000BASE-PX20 EPON OLT side application
bi-directional transmission with symmetric 1.25 Gbps upstream/downstream
1490nm DFB laser Continuous Transmitter
1310nm APD-TIA Burst-mode receiver
+3.3V single power supply
Low power consumption
operating case temperature:
Standard: 0℃~+70℃
Industrial:-40℃~+85℃
Excellent EMI and EMC characteristics
Digital diagnostic interface compliant with SFP MSA and SFF-8472
Compliant with RoHs2.0

Applications:

IEEE802.3ah 1000BASE-PX20/PX20++/PX20+++/PX30

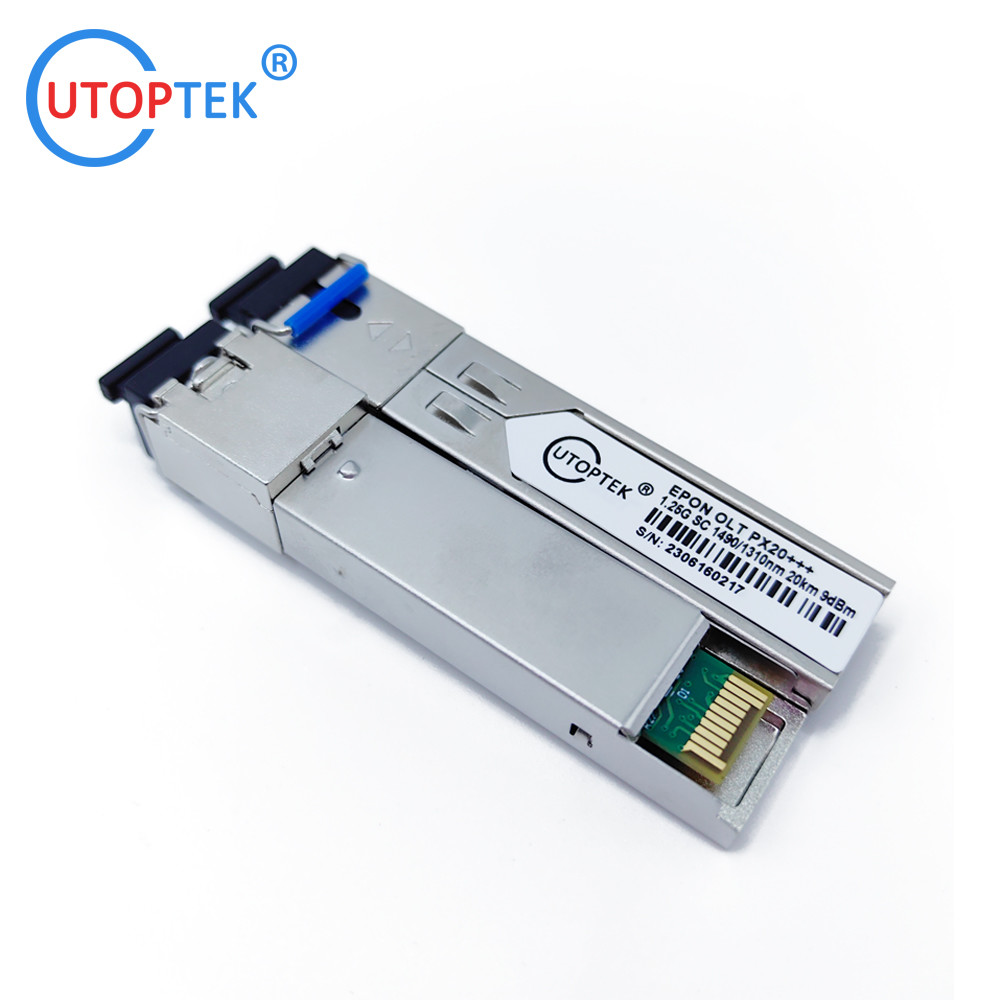

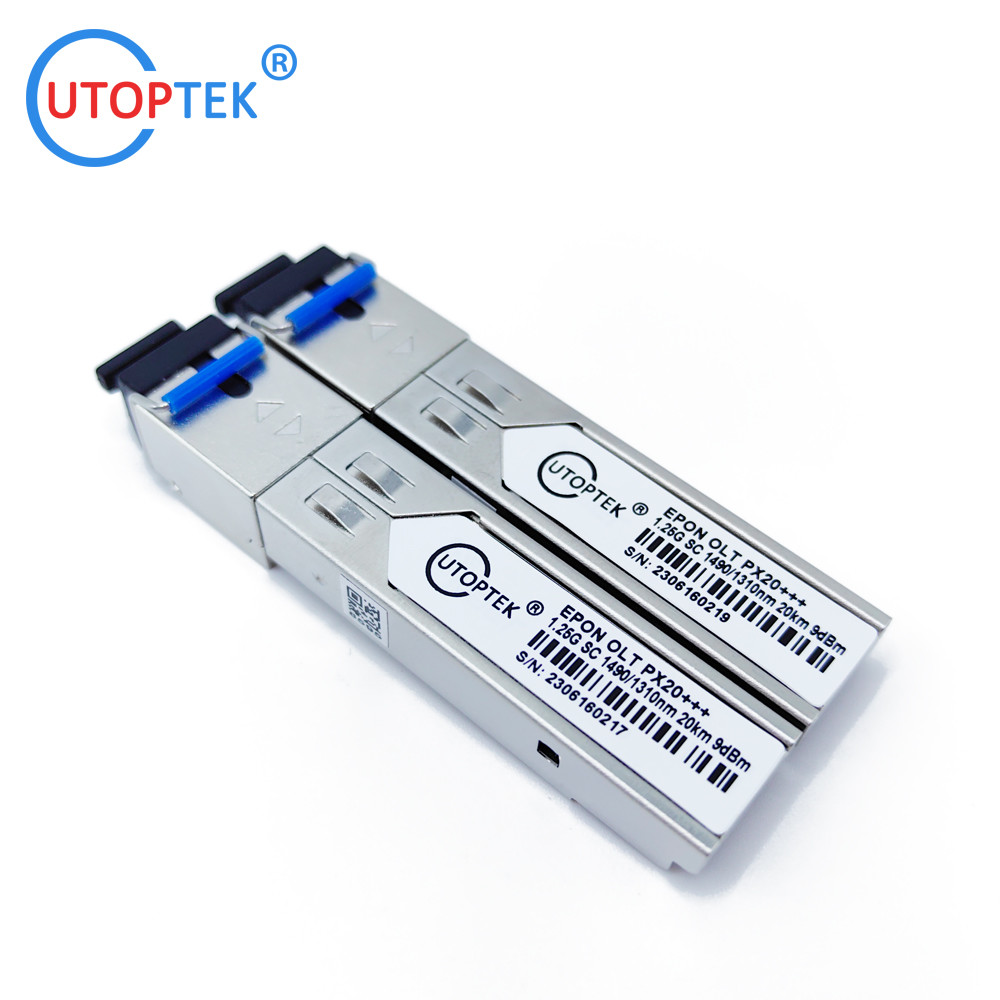

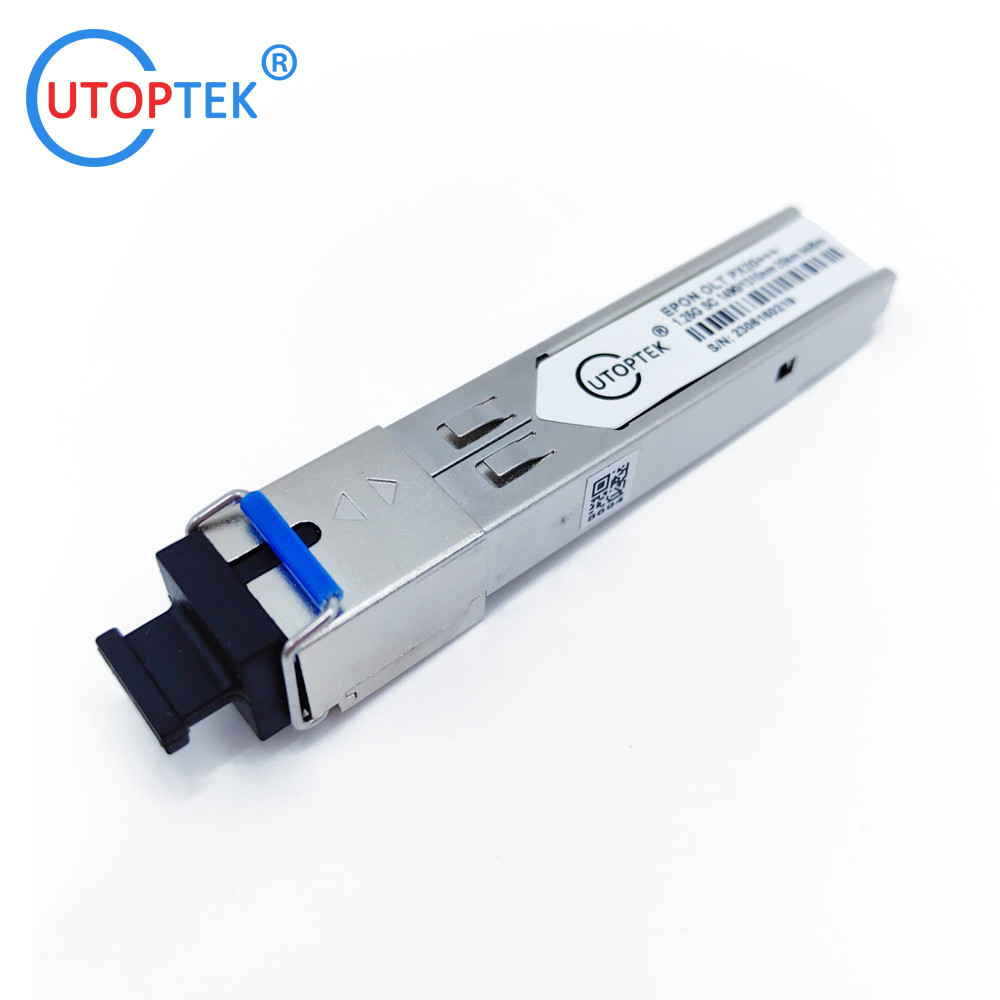

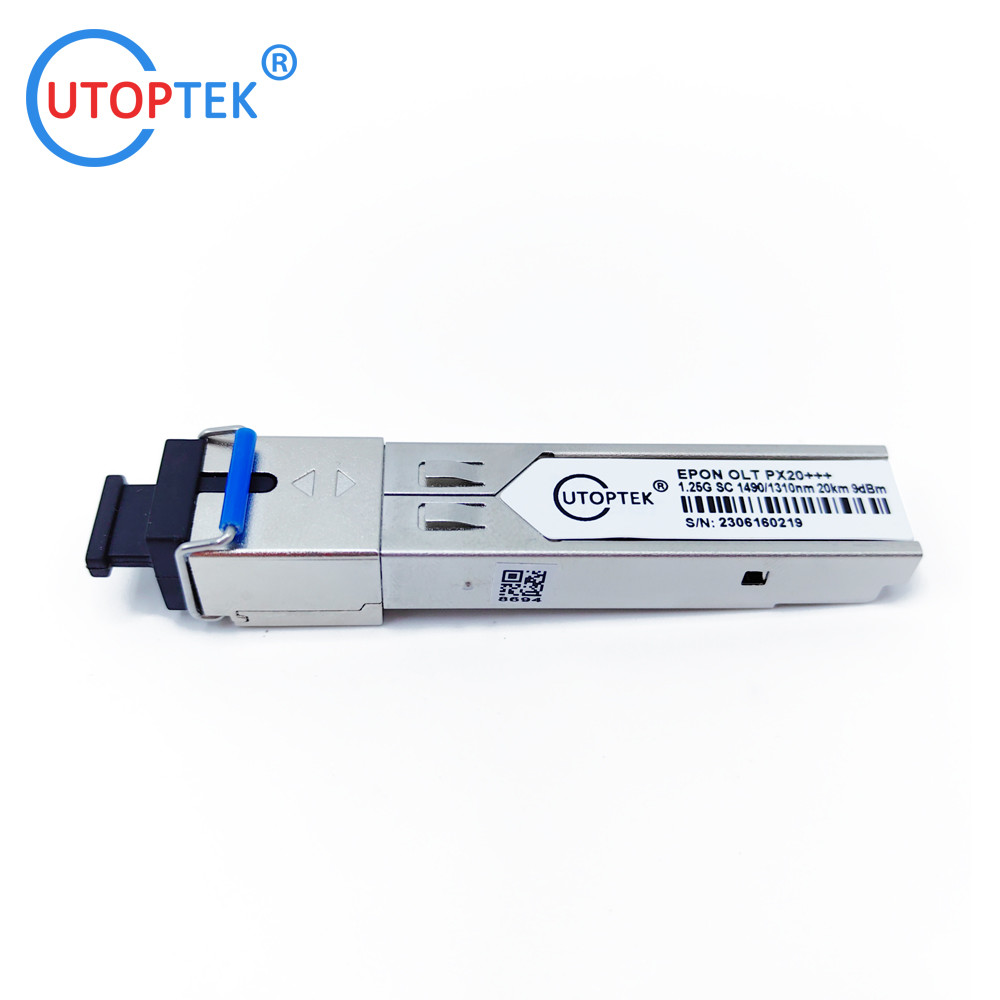

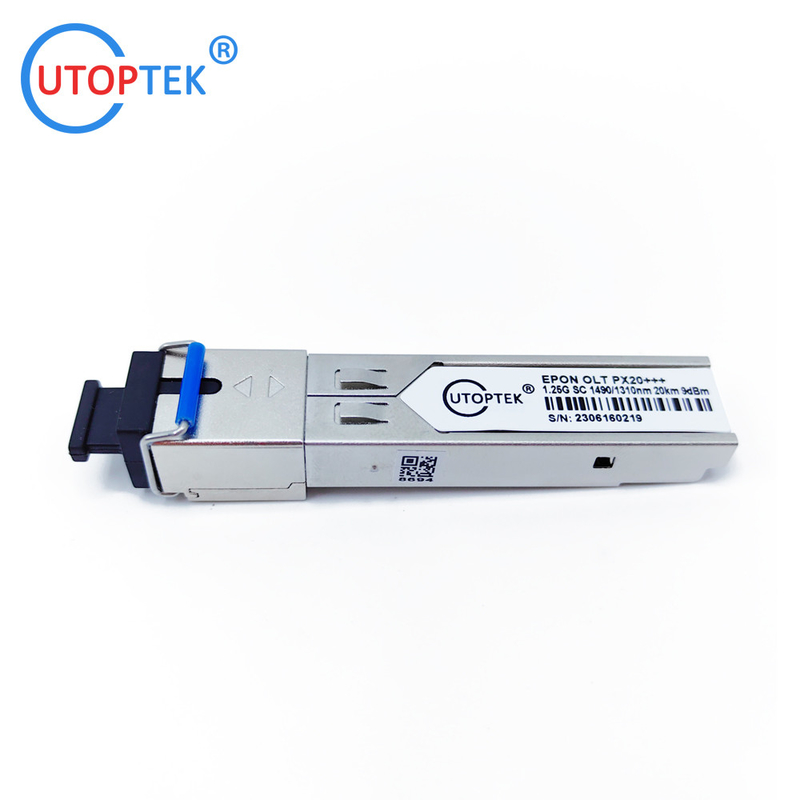

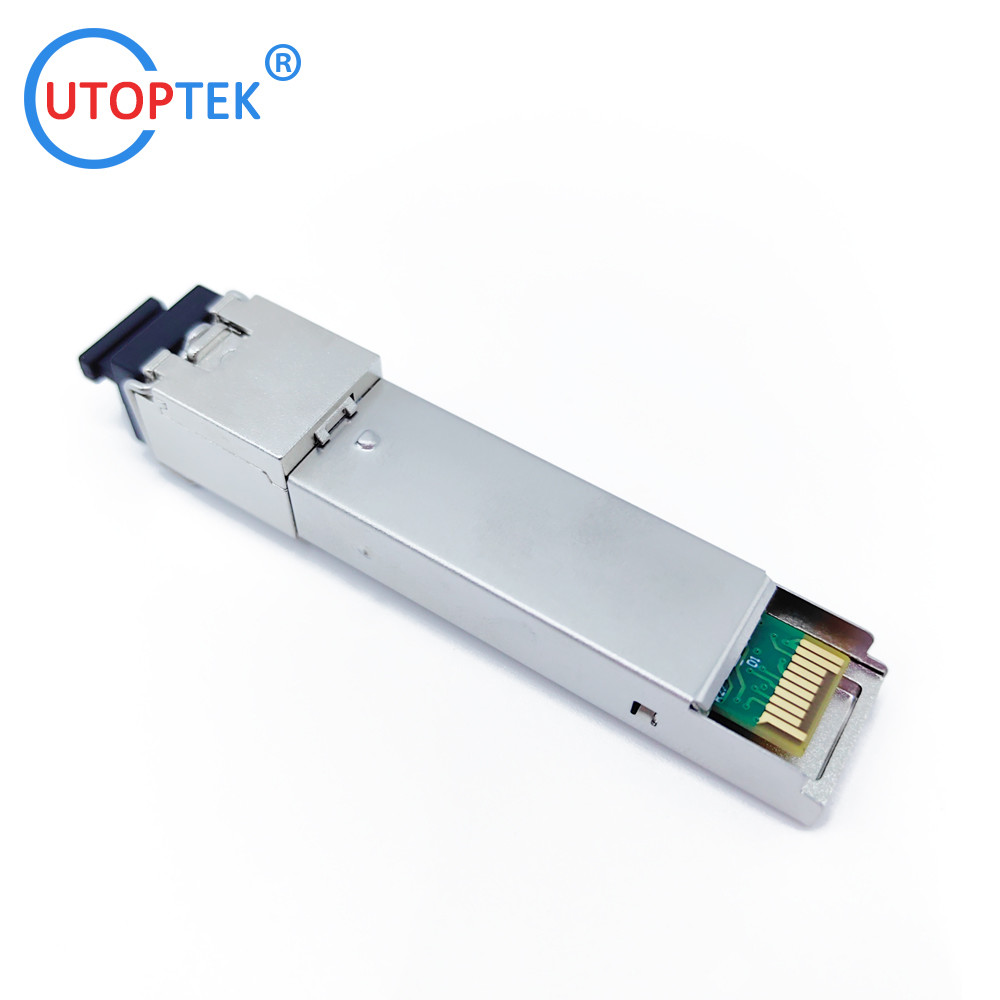

Product pictures:

EPON OLT PX20++ 7dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment 0

EPON OLT PX20++ 7dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment 3

EPON OLT PX20++ 7dBm 1.25Gbps SFP Tx1490nm/Rx1310nm with SC 20km for V-Sol/ODI/Hioso equipment
