2.5Gb/s SFP Multi-mode 850nm 300m duplex LC optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP

Product Description

2.5Gb/s SFP Transceiver 300m

Hot Pluggable, Duplex LC, +3.3V, 850nm, VCSEL, Multi-mode, DDM

Description:

UTOPTEK’s SFP-2.5G-SX850 Transceiver are high performance, cost effective modules supporting dual data-rate of 2.488Gbps and 300m transmission distance with MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features:

Product Features

* Up to 2.488Gb/s bi-directional data links

* 850nm VCSEL laser and PIN photodetector

* Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

* Digital Diagnostic Monitoring: Internal Calibration or External Calibration

* 300m transmission with 50/125µm MMF

* Compatible with RoHS

* +3.3V single power supply

* Operating case temperature:

Standard : 0 to +70°C

Extended : -20 to +85°C

Applications

* SDH STM-16 and SONET OC-48 system

* 2X Fiber Channel

* Switch to Switch interface

* Switched backplane applications

* Router/Server interface

* Other optical transmission systems

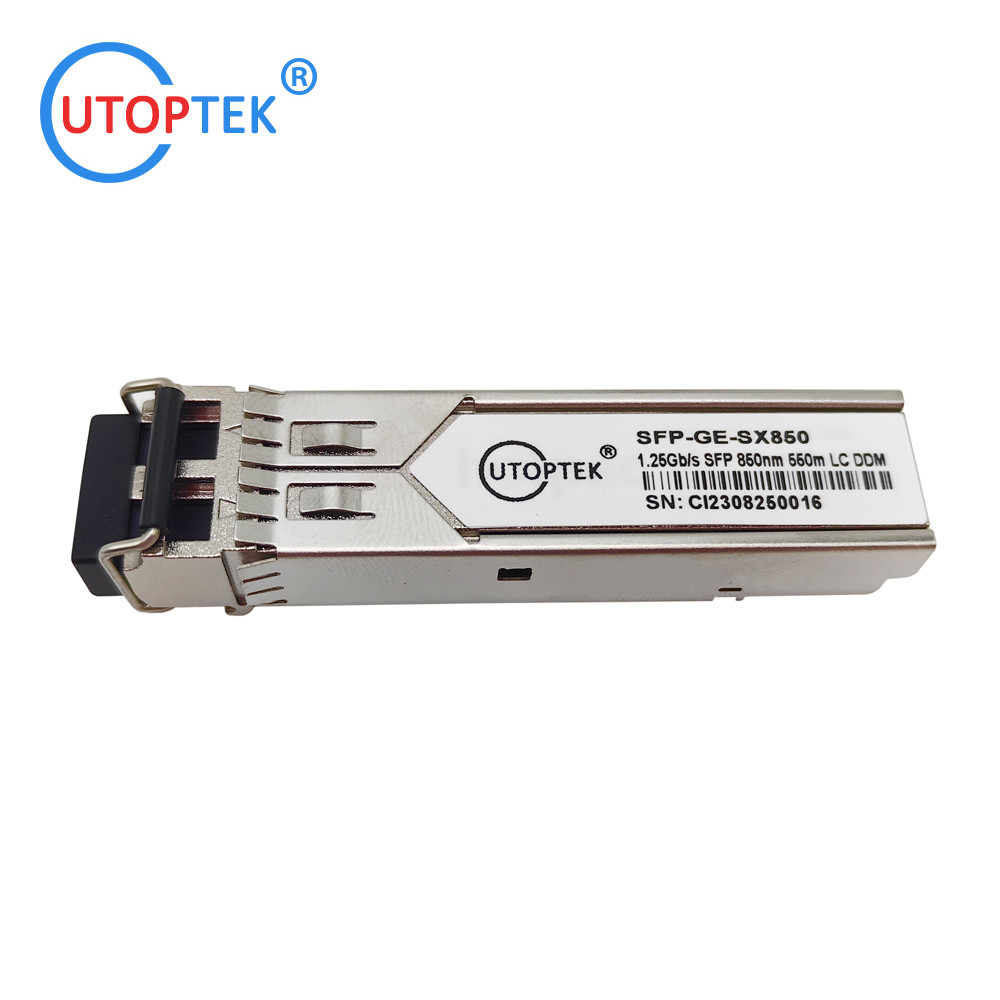

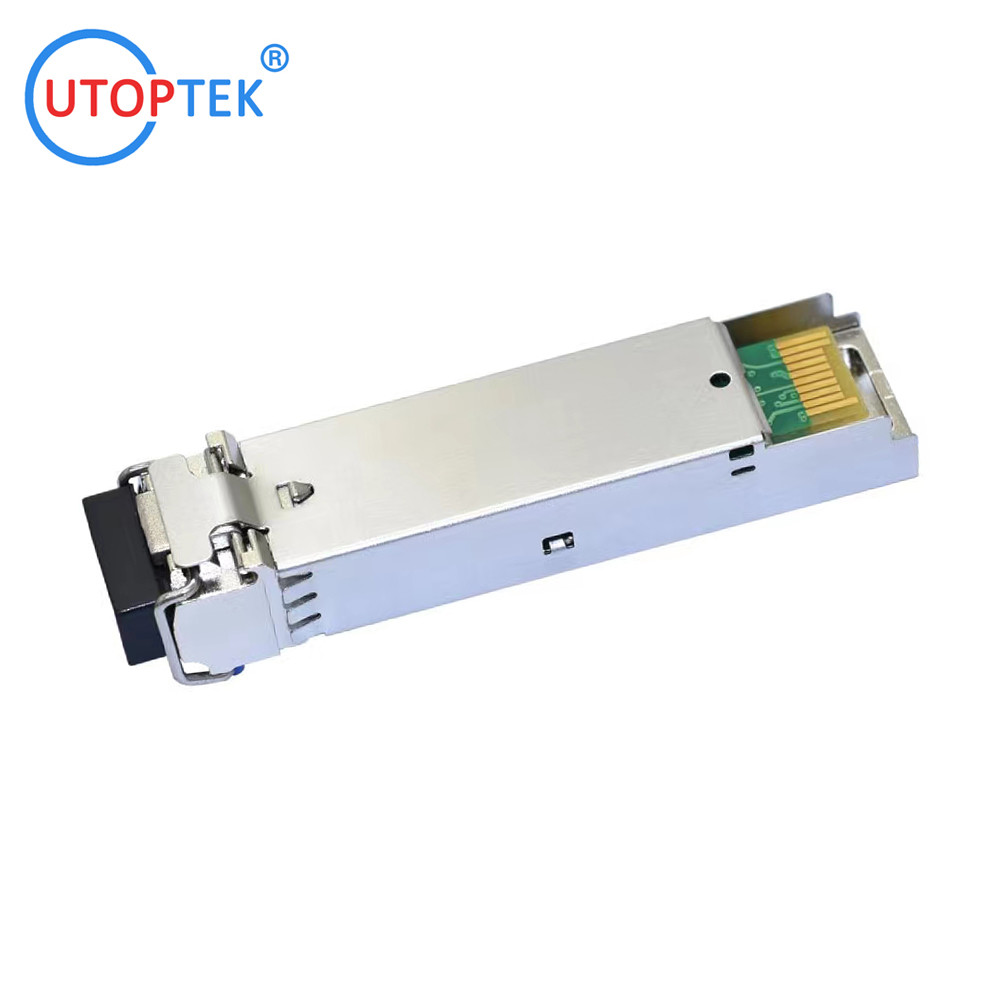

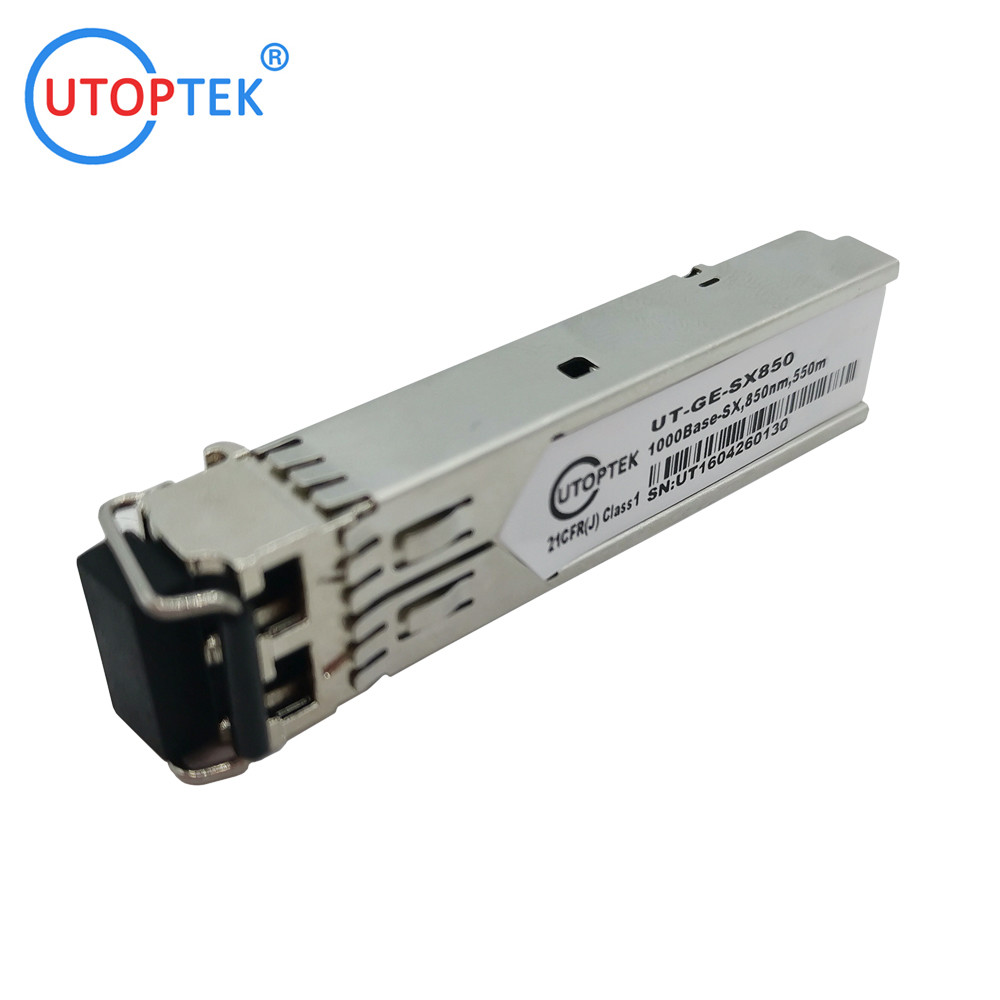

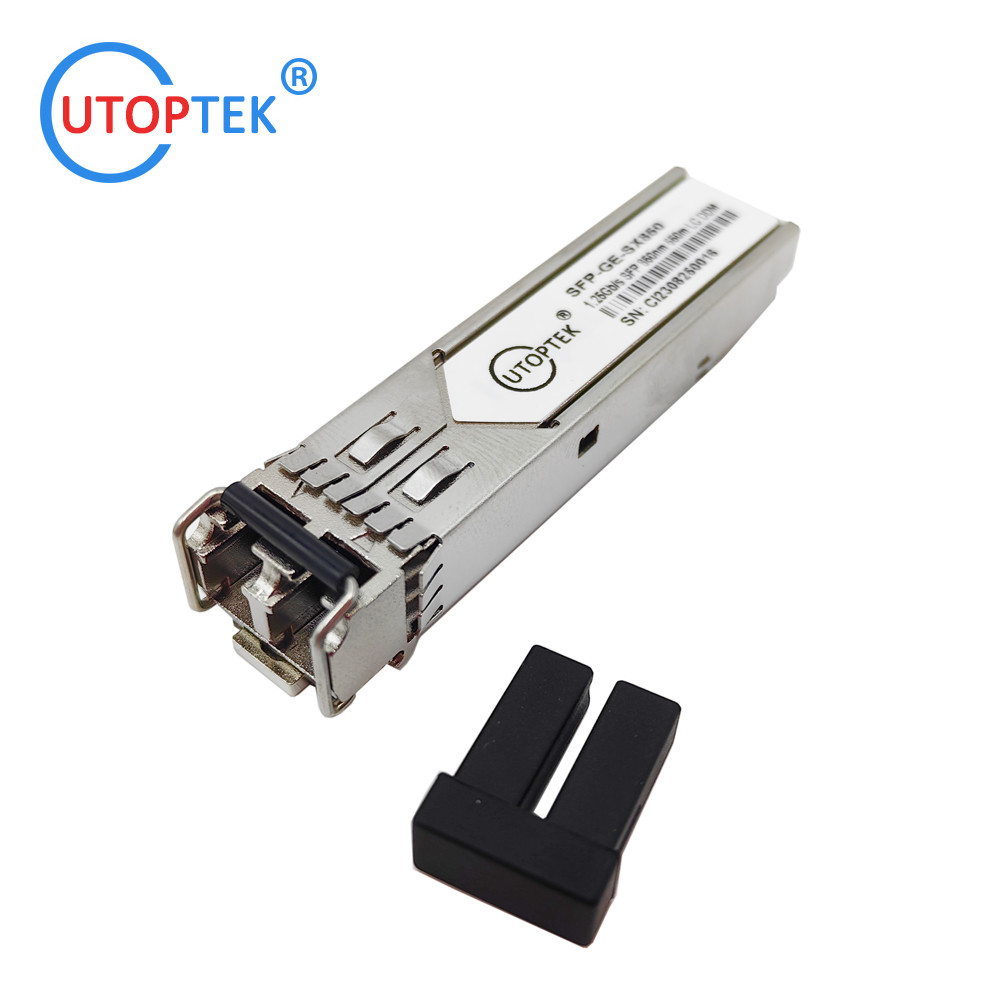

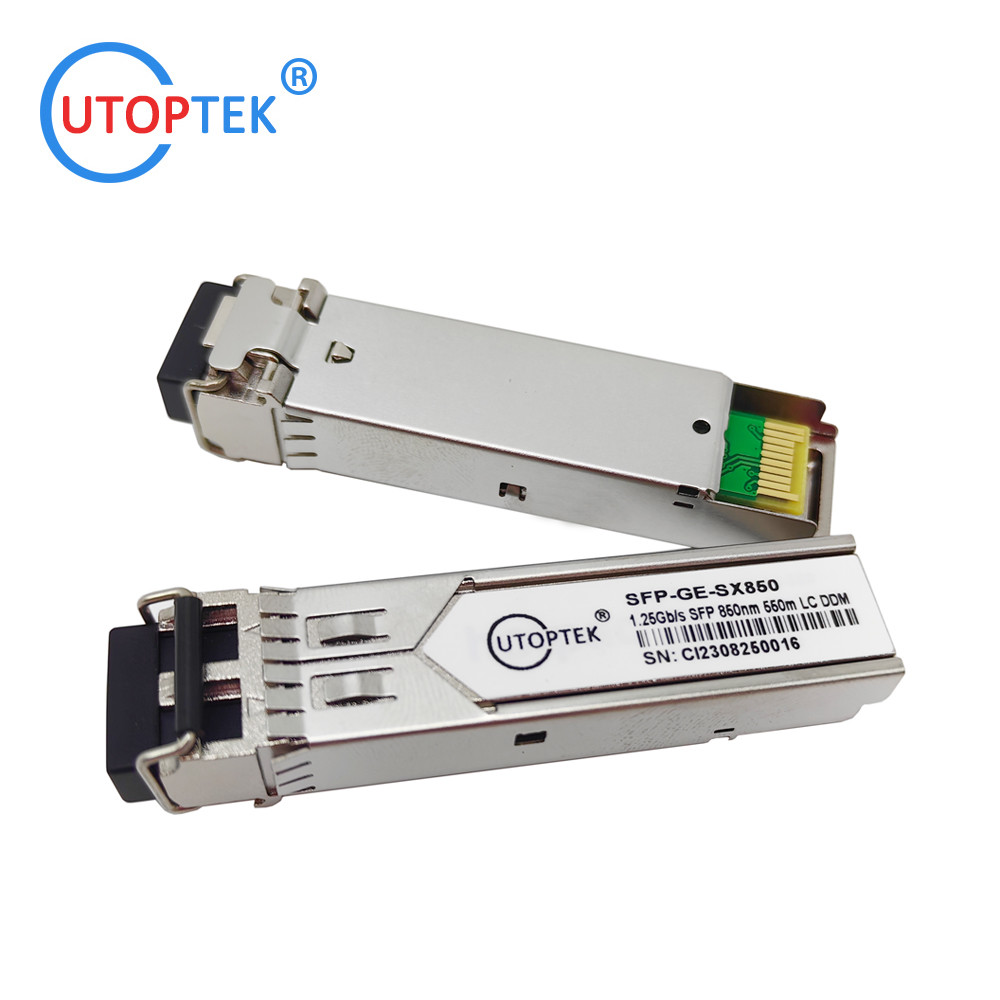

Prpducts Picture:

Ordering Information:
