2.5Gb/s SFP Bidi LC 40km 1310/1550nm optical fiber Transceiver Module DDM for cisco/huawei/Aruba/HP

Product Description

2.5Gb/s 40Km LC BiDi SFP Transceiver (Multi-rate)

Hot Pluggable, Single SC, +3.3V, 1310nm Tx/1550nm Rx, DFB-LD, Single-mode, DDM

Description:

UTOPTEK’s SFP-2.5G-BX40 Transceiver are a high performance, cost effective module which have a single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm DFB laser, up to 13dB link budge ensure this module SONET OC-48 / SDH STM -16 40km application.

Features:

Product Features

• Up to 2.67Gb/s Data Links
• Hot-Pluggable
• Single SC connector
• Up to 40 km on 9/125μm SMF
• 1310nm DFB laser transmitter
• 1550nm PIN photo-detector
• Single +3.3V Power Supply
• Monitoring Interface Compliant with SFF-8472
• Maximum power dissipation <1W
• Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
• RoHS compliant and Lead Free

Applications:

• SONET OC-48 / SDH STM -16
• SONET OC-12 / SDH STM -4
• SONET OC-3 / SDH STM -1
• Gigabit Ethernet
• 1x/2xFibre Channel

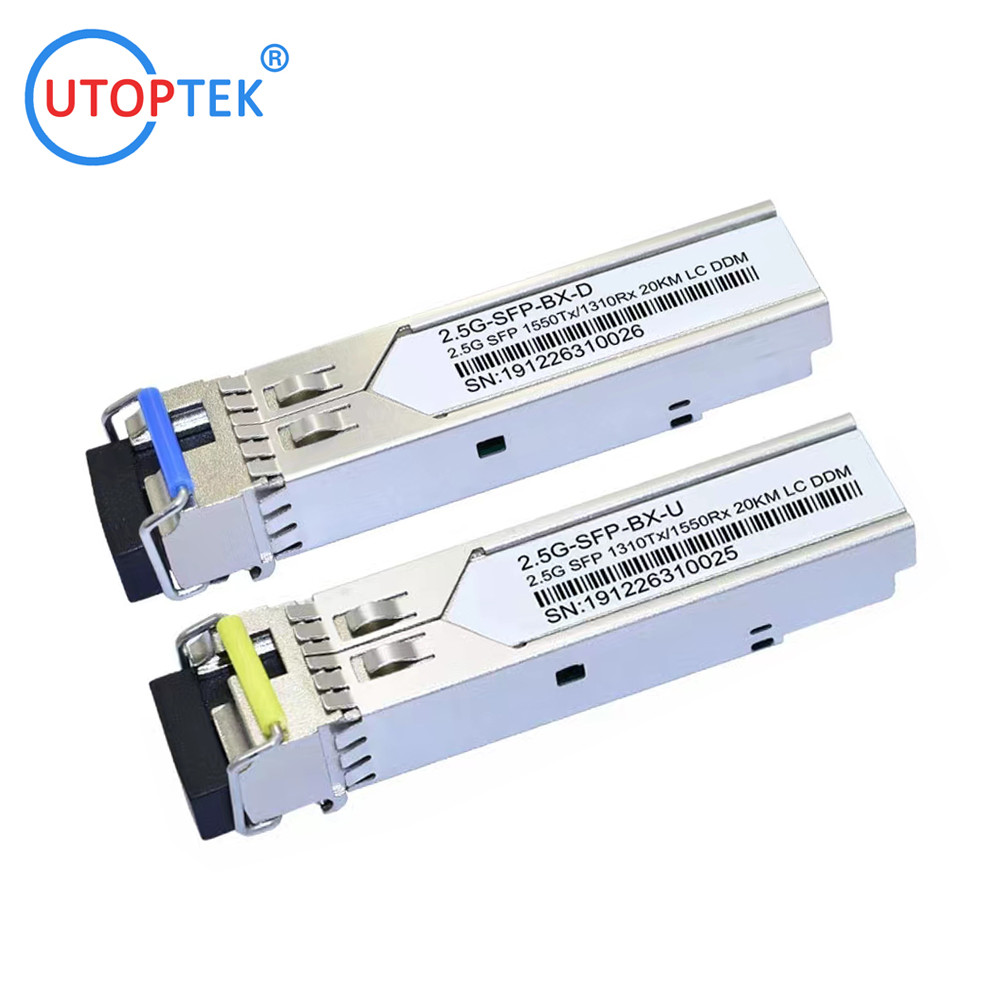

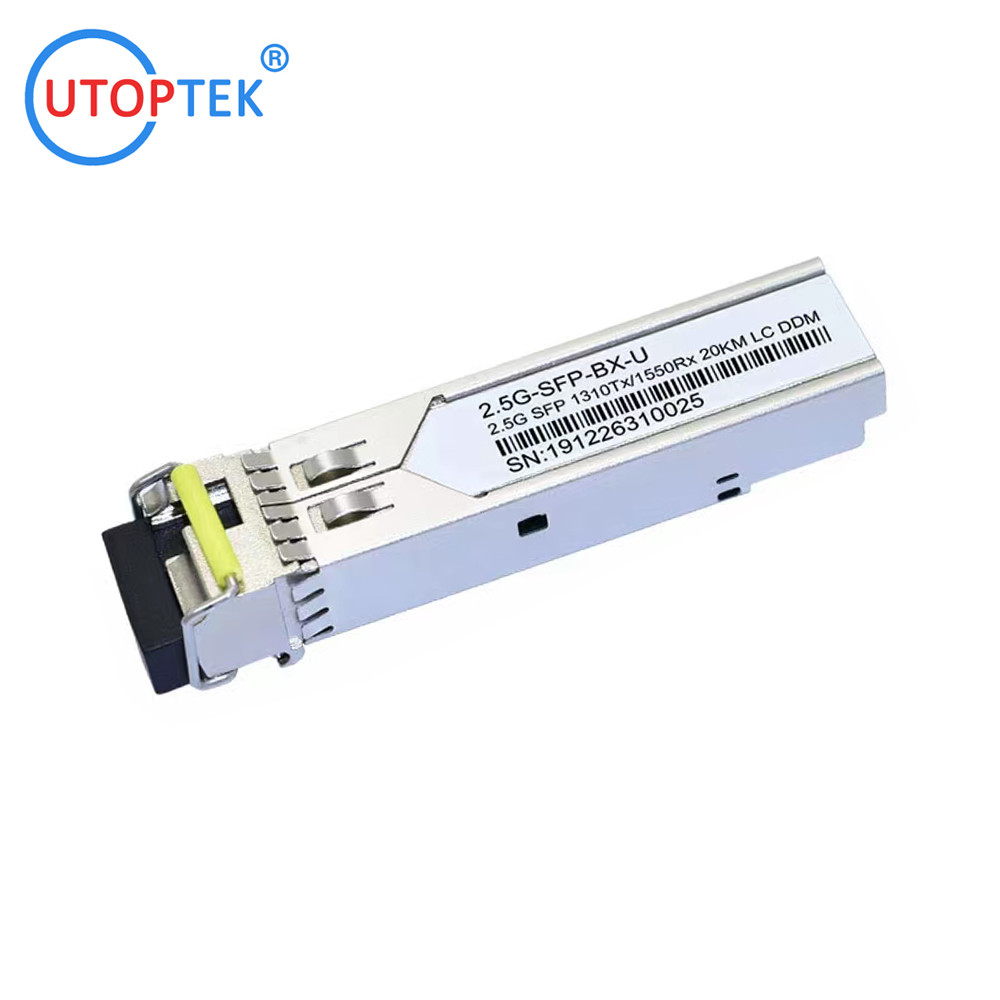

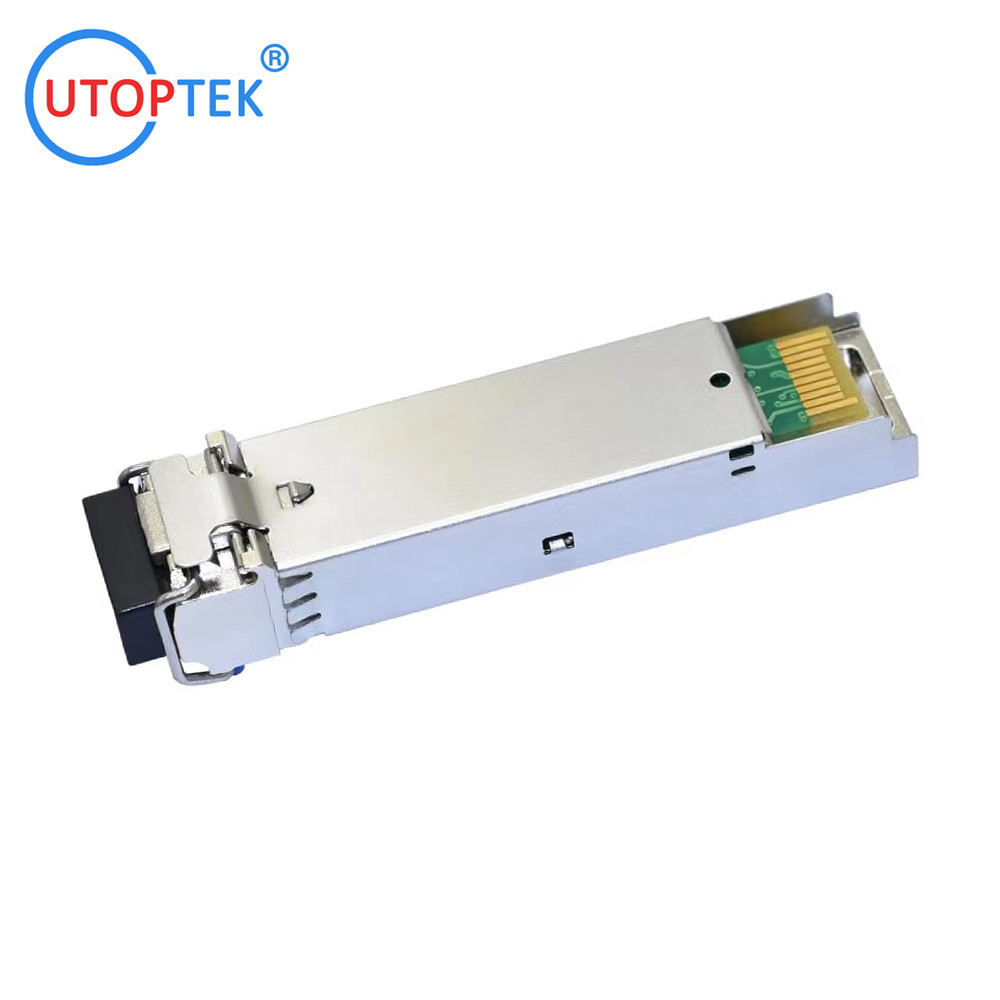

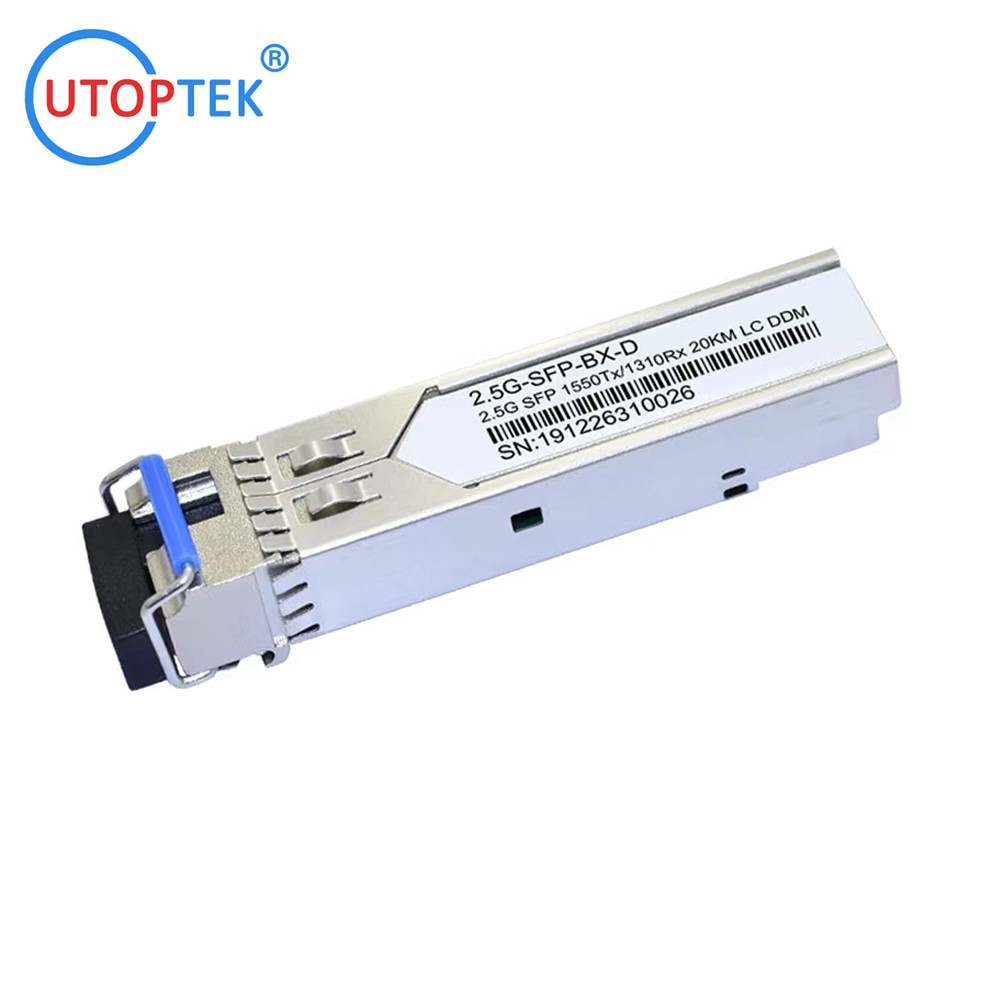

Prpducts Picture:

Ordering Information:
