Marvell chip high qualiqty 10/100/1000Base-T RJ45 Copper SFP module transceiver for cisco/Huawei/juniper/Nokia

Product Description

SFP-GE-T

Marvell Chip High quality 10/100/1000 BASE-T Copper SFP Transceiver


Description:

SFP-GE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE Std 802.3 . The SFP-GE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, IC be reset.

Features:

• Up to 1.25 Gb/s bi-directional data links
• Hot-pluggable SFP footprint
• Low power dissipation(1.05W typical)
• Compact RJ-45 connector assembly
• Fully metal enclosure, for lower EMI
• RoHS compliant and lead-free
• Single +3.3V power supply
• 10/100/1000 BASE-T operation in host systems with 1000BASE-X interface
• 1.25 Gigabit Ethernet over Cat 5 cable
• Ambient Operating temperature: 0°C to +70°C


Applications:

• 10/100/1000Mbps Ethernet over Cat 5 cable
• Switch/Router to Switch/Router Link
• High speed I/O for file severs

Factory Show:

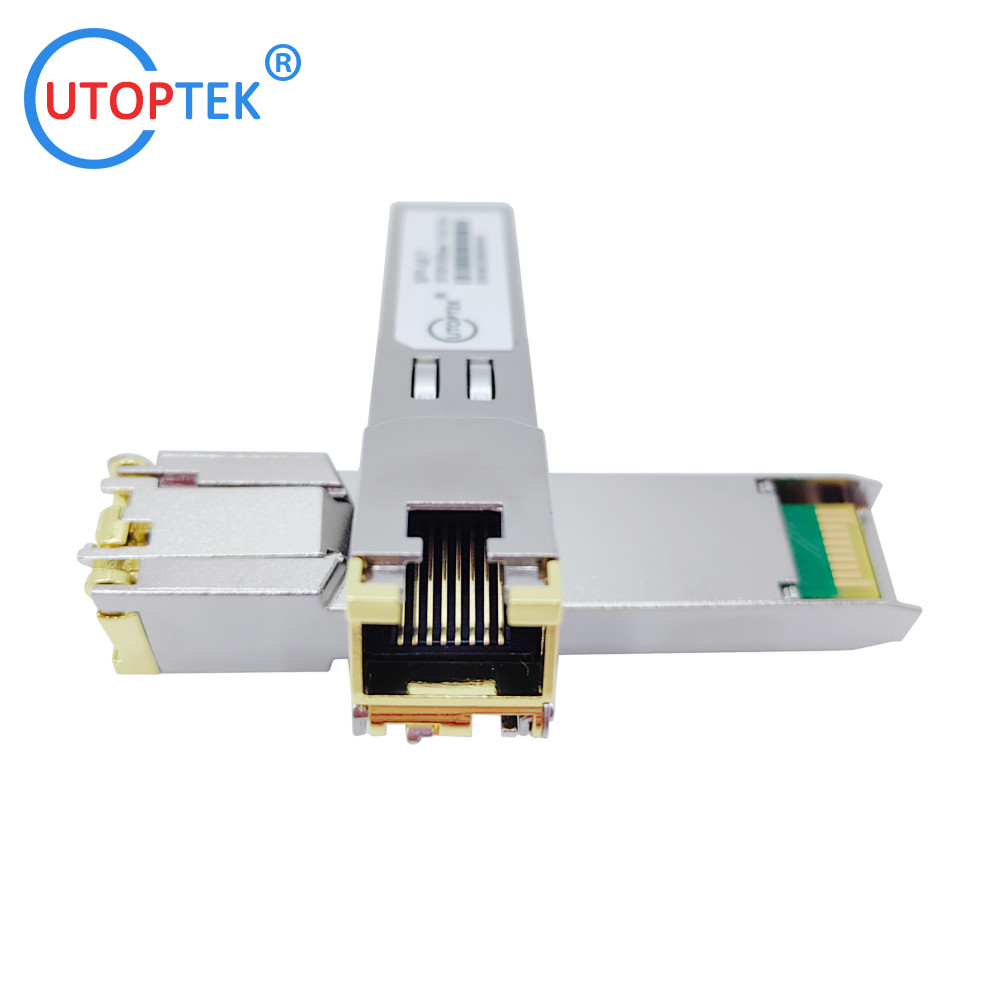

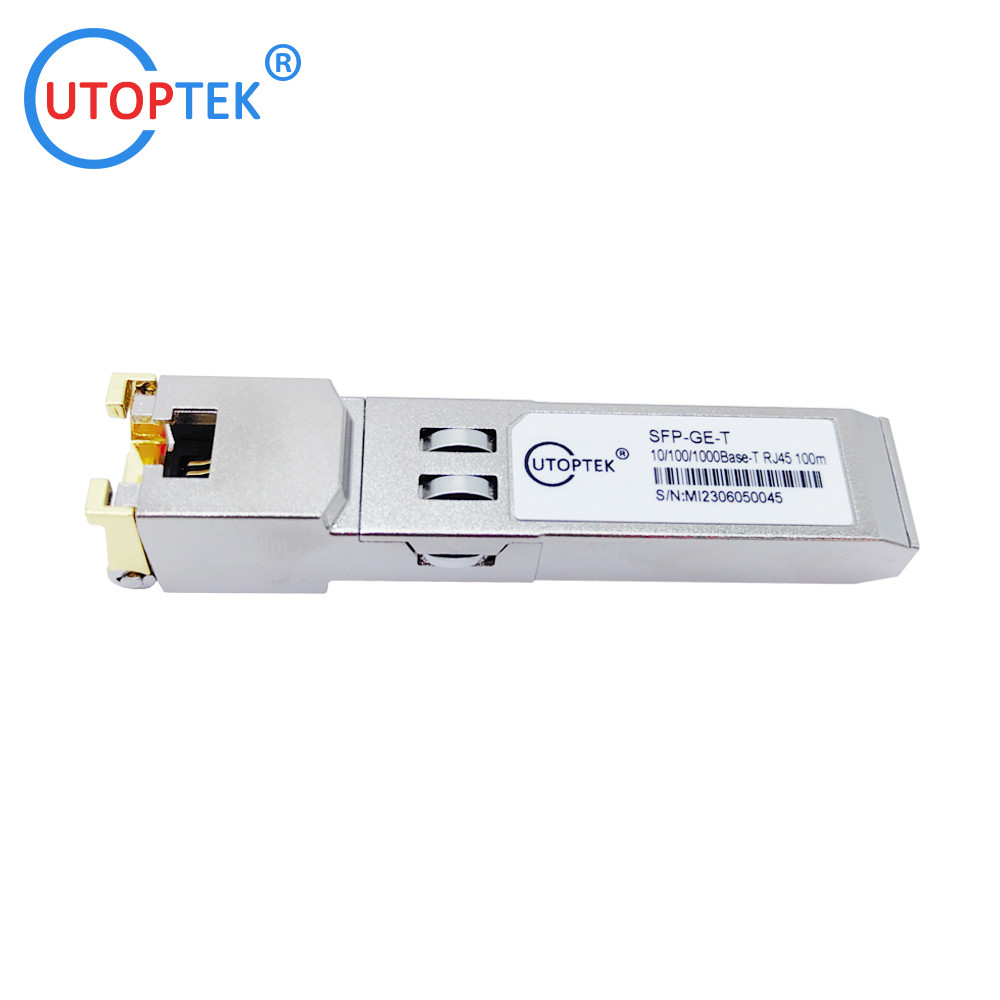

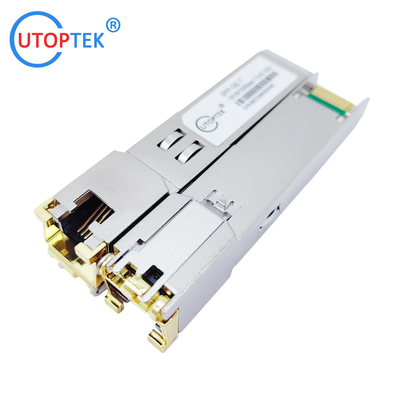

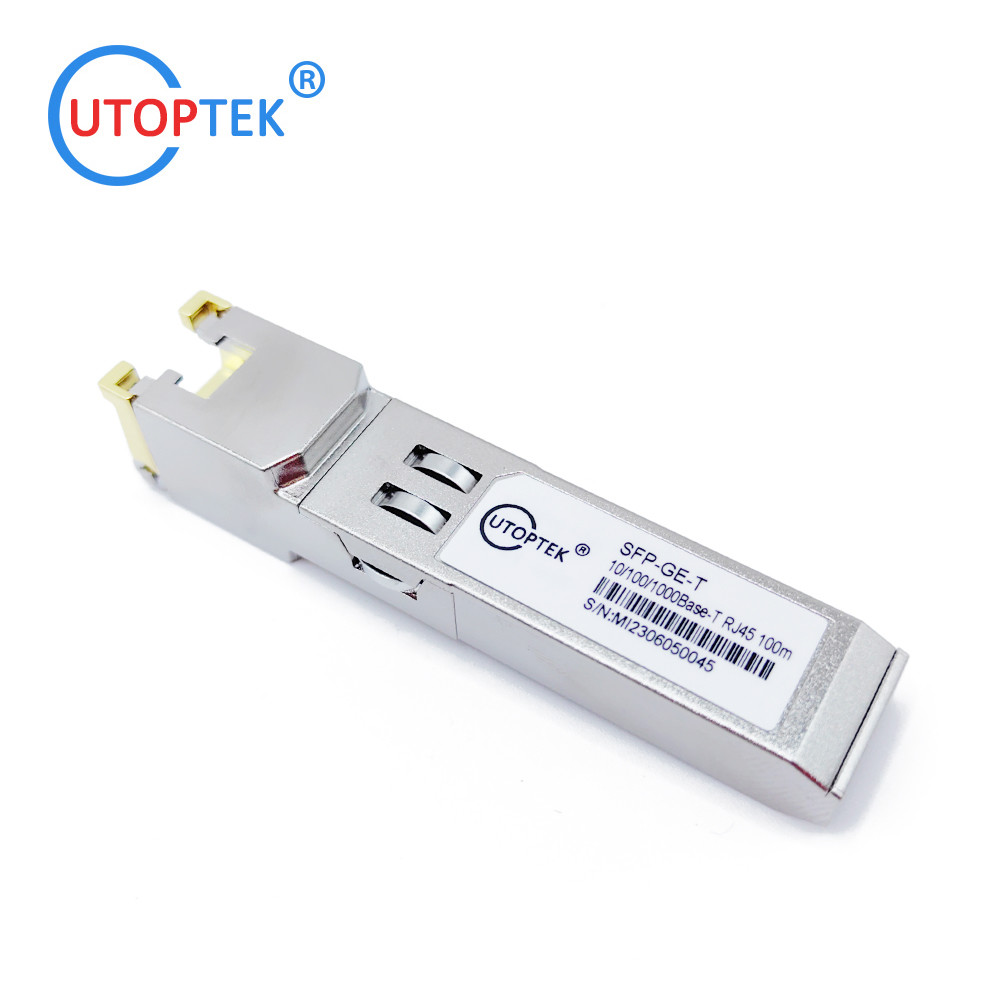

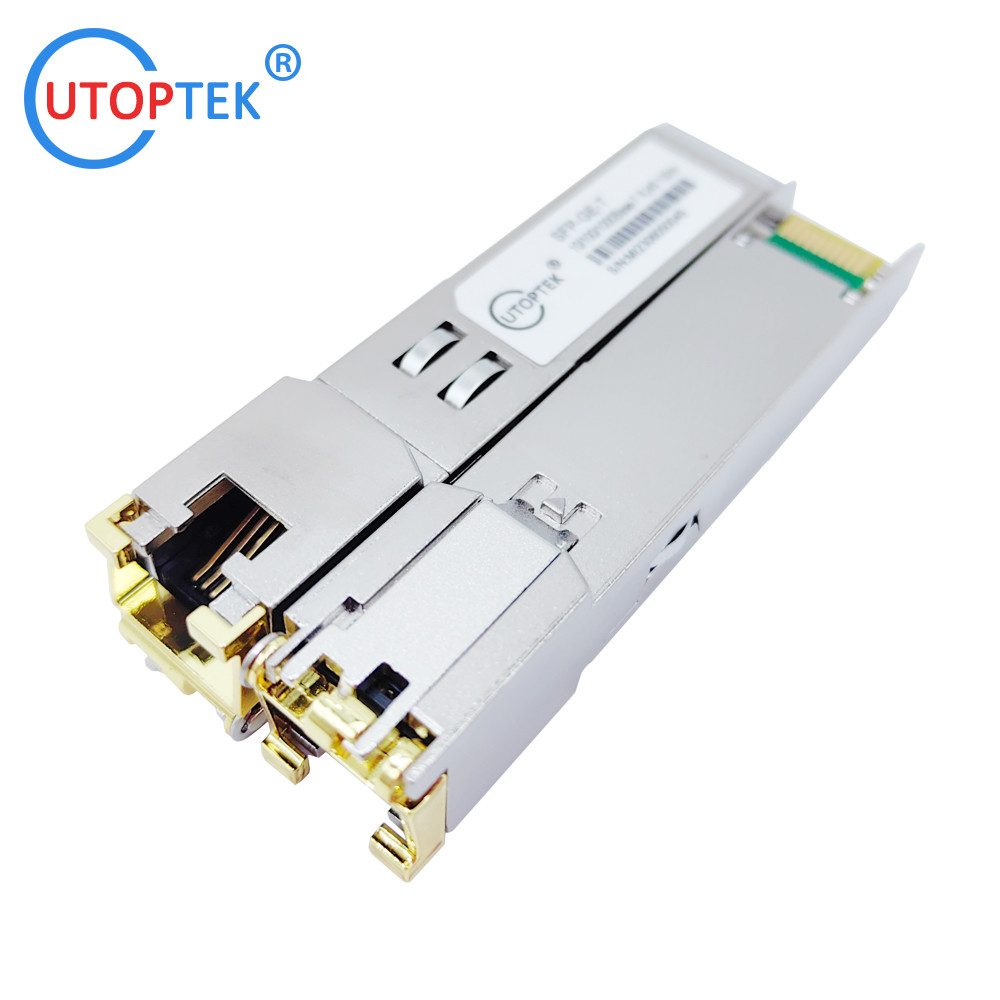

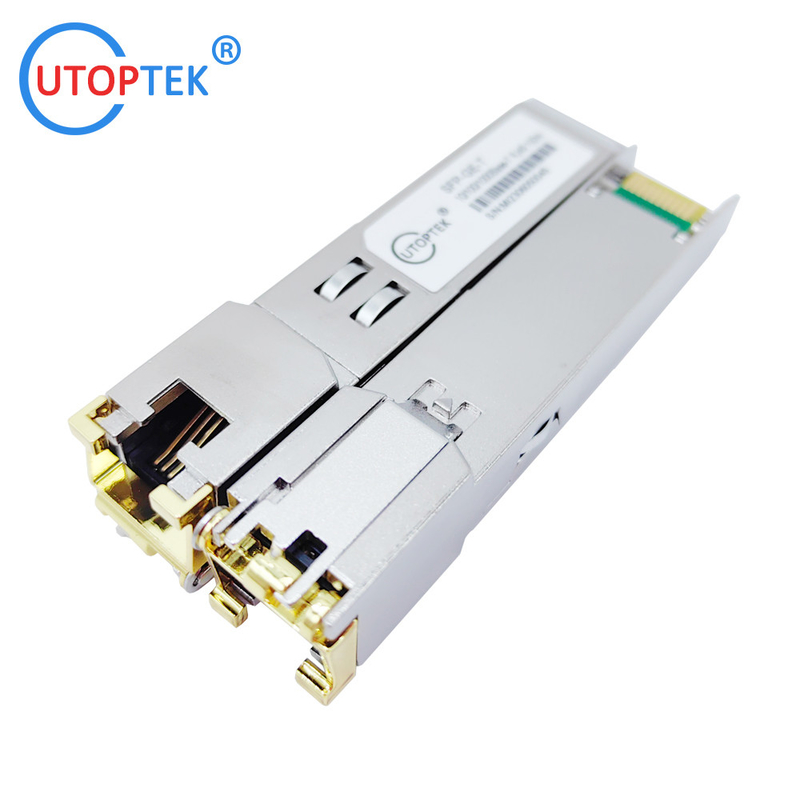

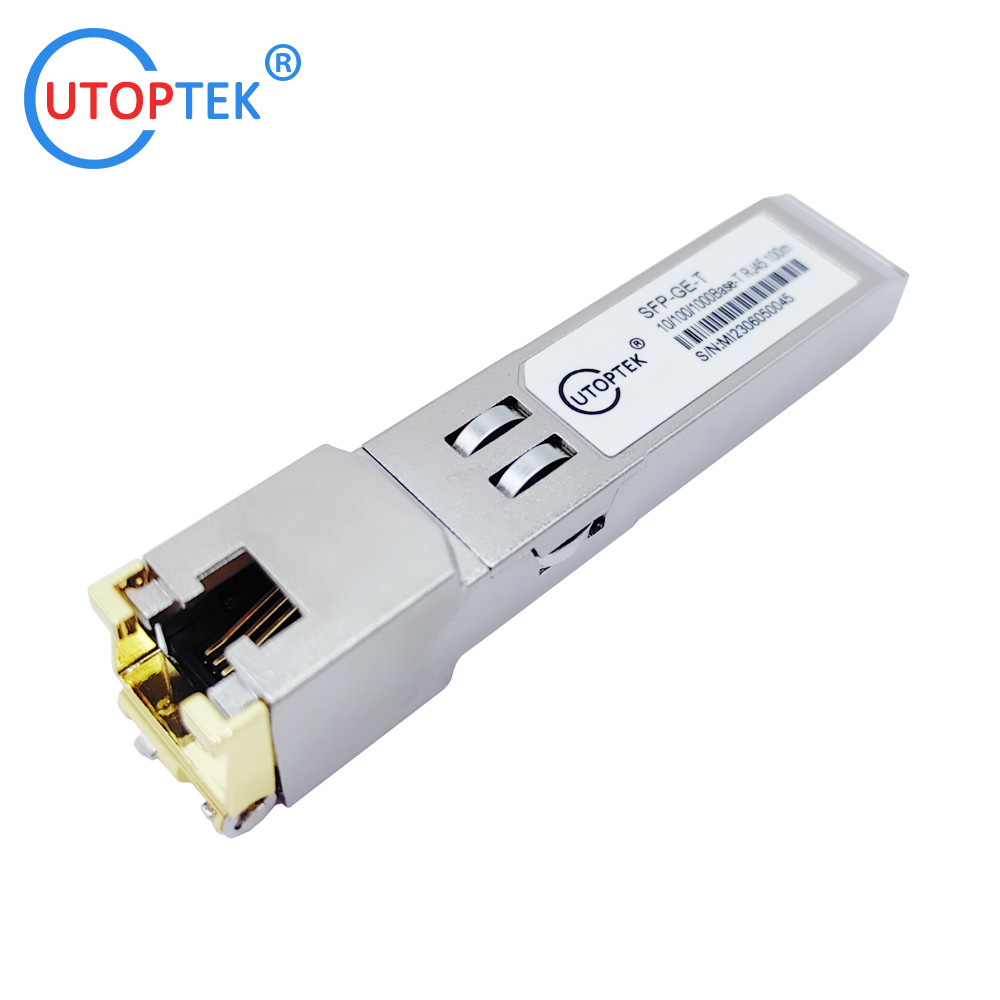

Products Picture:

​

Mechanical Dimensions:


Ordering Information:
