10/100/1000Mbps 2port RJ45+8port SFP fiber ethernet media converter switch normal switch

10/100/1000Mbps 2port RJ45+8port SFP fiber ethernet media converter switch normal switch

Product Description:

The UT-SW8002-SFP is a 10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has 2x 10/100/1000Mbps Ethernet ports and 8x 1.25Gbps fiber ports. We have various optical modules from 10Base-T to 1000Base-T as you require. It can extend the transmission distance, and also have many other advantages such as isolation protection, good data security, working stability and easy maintenance.

Features:

•  Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX
•  8*1.25Gbps SFP fiber ports and 2*1000M Ethernet ports with auto-negotiation function
•  Support MDI/MDIX and half/full-duplex with auto-negotiation function
•  Each port has the complete LED Indicator light
•  Support single mode single fiber,single mode dual fiber,multi-mode dual fiber and SFP slot
•  Support IEEE802.1d Spanning Tree
•  Support IEEE802.1q and VLAN division
•  Support high performance QoS function on each port
•  Support broadcast storm control
•  Support 5-12V voltage input
•  Support 9K Jumbo Packet
•  Support 8K MAC table
•  Support IEEE802.3x flow control and back pressure control
•  Require no configuration and will instantly operate as soon as you power it up
•  Low power consumption chip with heat sink built in to ensure longtime efficient operation.

Technical Parameters:

Packing and Shipping:

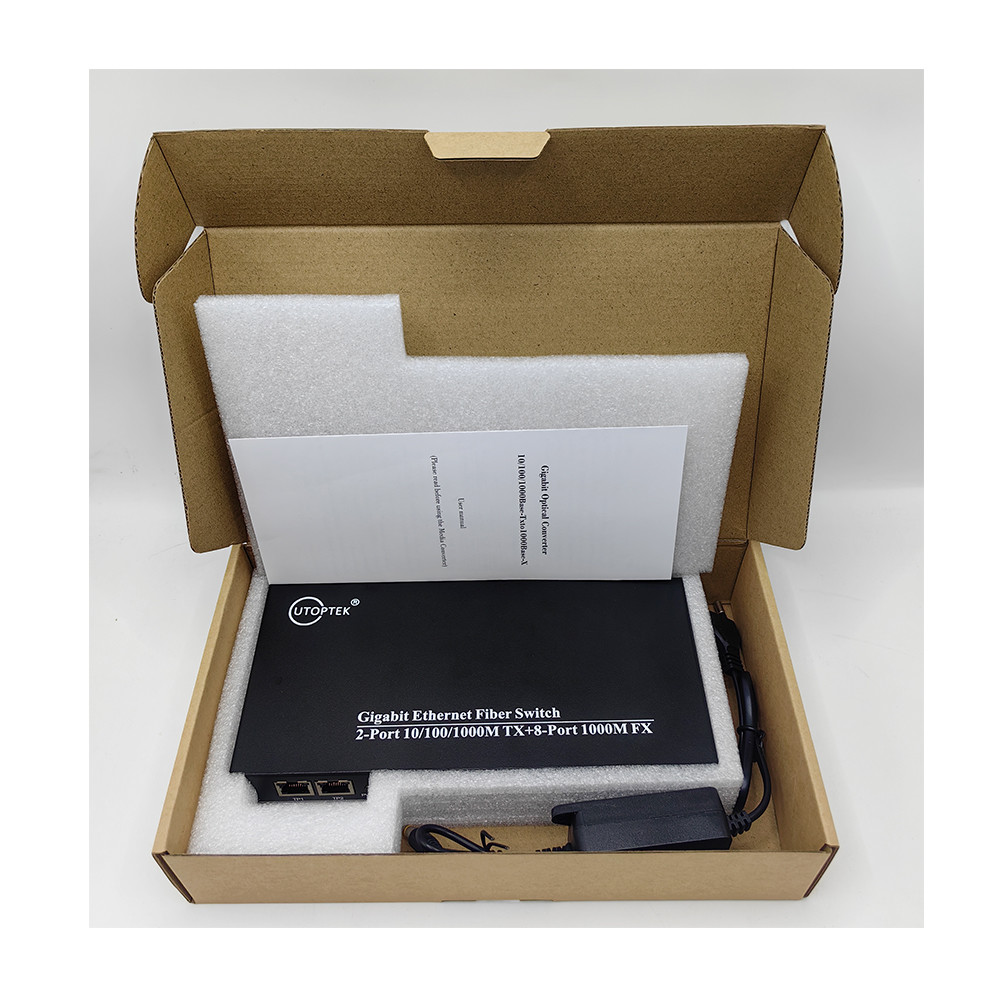

• UTOPTEK's Fiber Media Converter are packaged in a foam boxes for protection during shipping. The box is then placed inside a larger shipping box with adequate packing materials to prevent damage during shipping and handling. All shipping boxes are labeled with the product name, Model number, and can be customized customer's Logo too.
• The product is shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking numbers are provided to customers once the product has been shipped.

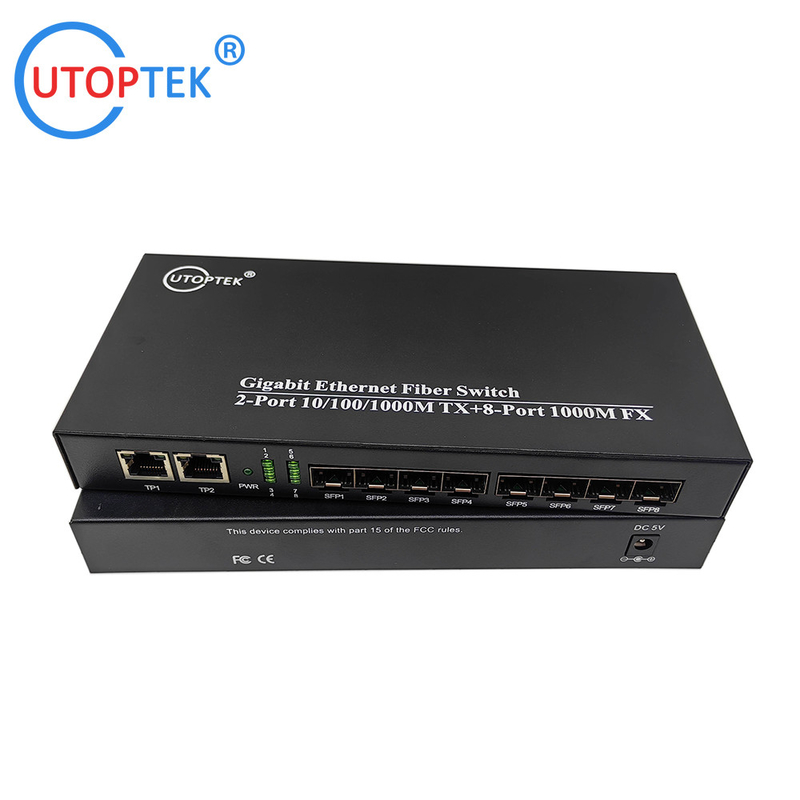

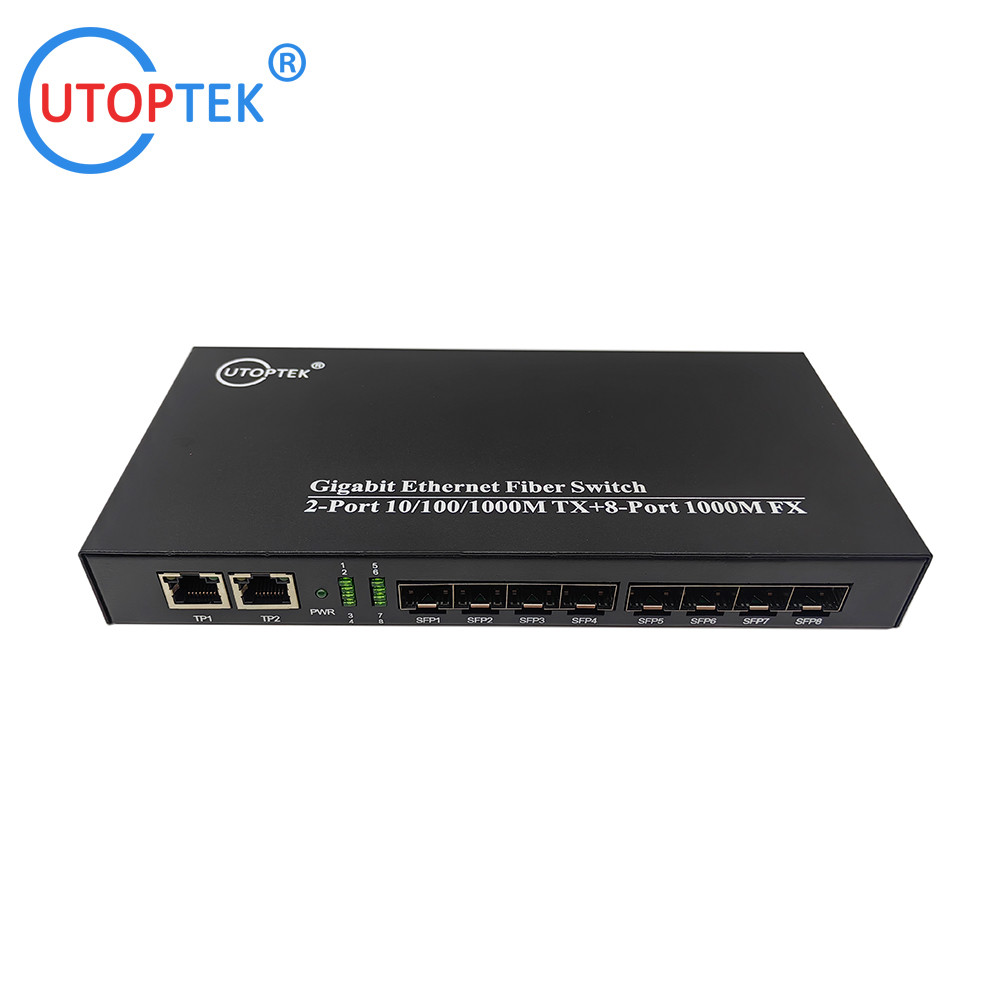

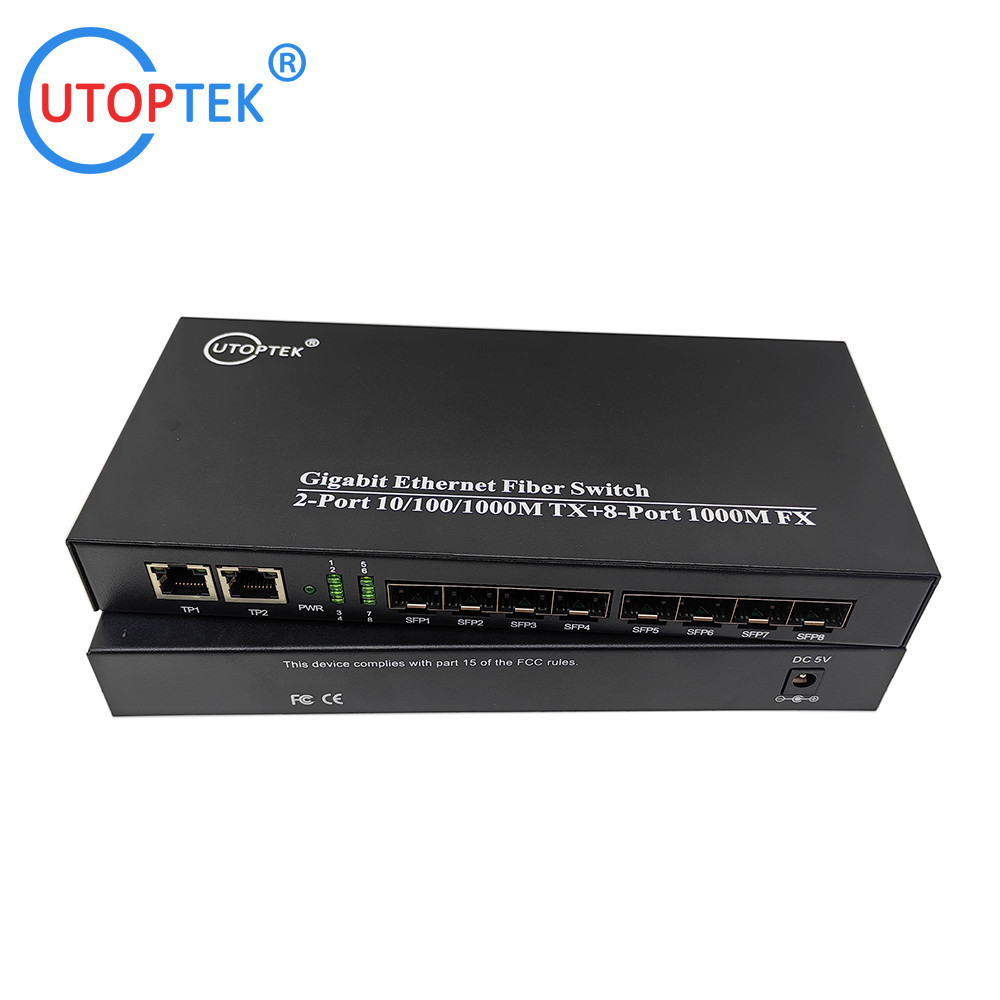

Product photoes:

Product Application:

Ordering Models:

UT-SW102SX	Fiber Ethernet Switch 2*10/100Base-Tx to 1*100Base-Fx dual fiber MM 1310nm 2km SC external power supply
UT-SW102S20	Fiber Ethernet Switch 2*10/100Base-Tx to 1*100Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW102S20A	Fiber Ethernet Switch 2*10/100Base-Tx to 1*100Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW102S20B	Fiber Ethernet Switch 2*10/100Base-Tx to 1*100Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW104SX	Fiber Ethernet Switch 4*10/100Base-Tx to 1*100Base-Fx dual fiber MM 1310nm 2km SC external power supply
UT-SW104S20	Fiber Ethernet Switch 4*10/100Base-Tx to 1*100Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW104S20A	Fiber Ethernet Switch 4*10/100Base-Tx to 1*100Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW104S20B	Fiber Ethernet Switch 4*10/100Base-Tx to 1*100Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW107SX	Fiber Ethernet Switch 7*10/100Base-Tx to 1*100Base-Fx dual fiber MM 1310nm 2km SC external power supply
UT-SW107S20	Fiber Ethernet Switch 7*10/100Base-Tx to 1*100Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW107S20A	Fiber Ethernet Switch 7*10/100Base-Tx to 1*100Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW107S20B	Fiber Ethernet Switch 7*10/100Base-Tx to 1*100Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW108SX	Fiber Ethernet Switch 8*10/100Base-Tx to 1*100Base-Fx dual fiber MM 1310nm 2km SC external power supply
UT-SW108S20	Fiber Ethernet Switch 8*10/100Base-Tx to 1*100Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW108S20A	Fiber Ethernet Switch 8*10/100Base-Tx to 1*100Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW108S20B	Fiber Ethernet Switch 8*10/100Base-Tx to 1*100Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW202C	Fiber Ethernet Switch 2*10/100Base-Tx to 2*100Base-Fx dual fiber MM 1310nm 2km SC external power supply
UT-SW202S20	Fiber Ethernet Switch 2*10/100Base-Tx to 2*100Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW202S20A	Fiber Ethernet Switch 2*10/100Base-Tx to 2*100Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW202S20B	Fiber Ethernet Switch 2*10/100Base-Tx to 2*100Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW204SX	Fiber Ethernet Switch 4*10/100Base-Tx to 2*100Base-Fx dual fiber MM 1310nm 2km SC external power supply
UT-SW204S20	Fiber Ethernet Switch 4*10/100Base-Tx to 2*100Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW204S20A	Fiber Ethernet Switch 4*10/100Base-Tx to 2*100Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW204S20B	Fiber Ethernet Switch 4*10/100Base-Tx to 2*100Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW206SX	Fiber Ethernet Switch 6*10/100Base-Tx to 2*100Base-Fx dual fiber MM 1310nm 2km SC external power supply
UT-SW206S20	Fiber Ethernet Switch 6*10/100Base-Tx to 2*100Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW206S20A	Fiber Ethernet Switch 6*10/100Base-Tx to 2*100Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW206S20B	Fiber Ethernet Switch 6*10/100Base-Tx to 2*100Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW1002C05	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 1*1000Base-Fx dual fiber MM 850nm 0.55km SC external power supply
UT-SW1002S20	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 1*1000Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW1002S20A	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 1*1000Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW1002S20B	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 1*1000Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW1004SX	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 1*1000Base-Fx dual fiber MM 850nm 0.55km SC external power supply
UT-SW1004S20	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 1*1000Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW1004S20A	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 1*1000Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW1004S20B	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 1*1000Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW1008SX	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 1*1000Base-Fx dual fiber MM 850nm 0.55km SC external power supply
UT-SW1008S20	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 1*1000Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW1008S20A	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 1*1000Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW1008S20B	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 1*1000Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW2002SX	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 2*1000Base-Fx dual fiber MM 850nm 0.55km SC external power supply
UT-SW2002S20	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 2*1000Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW2002S20A	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 2*1000Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW2002S20B	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 2*1000Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW2004SX	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 2*1000Base-Fx dual fiber MM 850nm 0.55km SC external power supply
UT-SW2004S20	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 2*1000Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW2004S20A	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 2*1000Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW2004S20B	Fiber Ethernet Switch 4*10/100/1000Base-Tx to 2*1000Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW2008SX	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 2*1000Base-Fx dual fiber MM 850nm 0.55km SC external power supply
UT-SW2008S20	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 2*1000Base-Fx dual fiber SM 1310nm 20km SC external power supply
UT-SW2008S20A	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 2*1000Base-Fx single fiber Tx1310nm/Rx1550nm 20km SC external power supply
UT-SW2008S20B	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 2*1000Base-Fx single fiber Tx1550nm/Rx1310nm 20km SC external power supply
UT-SW1002-SFP	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 1*1000Base-Fx SFP slot, with external DC5V power supply, not include SFP module.
UT-SW1004-SFP	Fiber Ethernet Switch 4* 10/100/1000Base-Tx to 1*1000Base-Fx SFP slot, with external DC5V power supply, not include SFP module.
UT-SW1008-SFP	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 1*1000Base-Fx SFP slots, with external DC5V power supply, not include SFP module.
UT-SW2002-SFP	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 2*1000Base-Fx SFP slot, with external DC5V power supply, not include SFP module.
UT-SW2004-SFP	Fiber Ethernet Switch 4* 10/100/1000Base-Tx to 2*1000Base-Fx SFP slot, with external DC5V power supply, not include SFP module.
UT-SW4003-SFP	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 4*1000Base-Fx SFP slots, DC5V power, not include SFP module.
UT-SW2008-SFP	Fiber Ethernet Switch 8*10/100/1000Base-Tx to 2*1000Base-Fx SFP slots, with external DC5V power supply, not include SFP module.
UT-SW8001-SFP	Fiber Ethernet Switch 1*10/100/1000Base-Tx to 8*1000Base-Fx SFP slots, with external DC5V power supply, not include SFP module.
UT-SW8002-SFP	Fiber Ethernet Switch 2*10/100/1000Base-Tx to 8*1000Base-Fx SFP slots, with external DC5V power supply, not include SFP module.

FAQ:

Q1 . What's your MOQ?

A1 .1 pc/pair is ok, we don't have MOQ limited.

Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.

Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.

Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.

Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.

Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
