Layer3+ Management 48 port 10/100/1000M RJ45+6port 10G SFP/SFP+ Fiber Network Ethernet switch(UT-SW48G-6SFP+)

Contact Now

Layer3+ Management 48 port 10/100/1000M RJ45+6port 10G SFP/SFP+ Fiber Network Ethernet switch(UT-SW48G-6SFP+)

Name: Layer3+ Management 48 port 10/100/1000M RJ45+6port 10G SFP/SFP+ Fiber Network Ethernet switch(UT-SW48G-6SFP+)
Brand: UTOPTEK
SKU: UT-SW48G-6SFP+
Rating: 5 (125 reviews)

Minimum Order Quantity :	1pcs	Packaging Details :	box package, Size: 52040055mm, G.W:5Kg
Delivery Time :	1-2working days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC ROHS	Model Number:	UT-SW48G-6SFP+

Detail Information
Product Name:	Management 48port Network Switch	Ethernet Port:	48xRJ45 10/100/1000Mbps
Uplink Port:	6-port 10GBase-R SFP/SFP+	Console Port:	1xRJ45 Console Port
Power Input:	AC 100~240VAC, 50/60Hz	Distance:	Depends On SFP Module
Switching Capacity:	336G	MAC Capacity:	32K
Product Size:	440(W) X 44(H) X 300(D)mm	Weight:	5Kg
Warranty:	3 Years

Product Description

UT-SW48G-6SFP+

Layer3 Management 10/100/1000M 48xRJ45+6port 10G SFP/SFP+ Fiber Network switch

Description:

UT-SW48G-6SFP+ standard layer 3 management switch, with 48 gigabit Ethernet ports, 6x10G SFP+ ports, ultra-high backplane bandwidth, with high-speed data processing capability, improve data smooth transmission performance, using high-speed forwarding chip plus standard power supply protocol chip, built-in high-power power supply, Seiko metal body anti-static paint, excellent port performance.

Simple to use, easy to operate, plug and play, lossless transmission security monitoring zero congestion, to meet the demand for high-density network environment, suitable for financial, government institutions, hotels, shopping malls, campuses, hospitals and small and medium-sized enterprises to establish an economical and efficient network. Support Class 5 or Class 5 Ethernet wireless AP access and network monitoring cameras and other transmission data signals, while providing DC power supply for this internal device.

Features

48x 10/100/1000Mbps automatic adjustment RJ45 ports
6*1G/10G SFP+ Uplink Fiber port
1*Console port
Desktop design, easy to install and use
Supply power to Cat5,5e,cat6 and up Ethernet wireless access point (AP) and network surveillance cameras
Meets the standards of the IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab
Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
Automatic adjustment, plug and play, no need software and protocol conversion

Technicial Parameters:

Physical Specification	Description
Performance • Switching Capacity: 336Gbps • Throughput: 160.7Mpps • MAC Capacity: 32K
Hardware • Flash Memory: 256MB • DRAM: 4GB
Interface	• 48-Port 10/100/1000M Base-T • 1-Port Console(With RJ-45)	• 6-Port 10G Base-R(SFP/SFP+)
Power	• Input:AC 100~240VAC, 50/60Hz	• Power Consumption: 40W
Environmental	• Operating Temperature: -40~70℃ • Storage Temperature: -20~70℃	• Operating Humidity: 20~85%RH (Non-Condensing) • Storage Humidity: 5~95%RH (Non-Condensing)
Mechanical • Dimension: 440(W) x 44(H) x 300(D)mm • Weight:5kg
Air Flow • FAN : Forced-Air Cooling

Software Specifications

Features

Description

Status

• System Information

• Logging Message

• Port

• Link Aggregation

• MAC Address Table

Network

• DNS

• Hosts

• System Time

Port

• Port Setting

• Error Disabled

• Link Aggregation

• EEE

• Jumbo Frame

• Port Security

• Protected Port

• Storm Control

POE Setting

• POE Port Setting

• POE Port Timer Setting

VLAN

• VLAN

• Voice VLAN

• Protocol VLAN

• MAC VLAN

• Surveillance VLAN

• GVRP

MAC Address

Table

• Dynamic Address

• Static Address

• Filtering Address

• Port Security Address

Spanning

Tree

• Property

• Port Setting

• MST Instance

• MST Port Setting

• Statistics

ERPS

• Property

• ERSP Instance

Lookback

• Lookback Config

Discovery

LLDP

• Property

• Port Setting

• MED Network Policy

• Packet View

• Local Informantion

• Neighbor

• Statistics

DHCP

• Property

• IP Pool Setting

• VLAN IF AddressGroup Setting

• Client List

• Client Static Binding Table

Multicast

• General

• IGMP Snooping

• MLD Snooping

• MVR

Routing

• IPV4 Management and Interfaces

• IPV6 Management and Interfaces

• Rip Routes Management

• OSPF Routes Management

Security

• RADIUS

• TACACS+

• AAA

• Management Access

• Authentication Manager

• Port Security

• Protected Port

• Storm Control

• Dos

• Dynamaic ARP Inspection

• DHCP Snooping

• IP Source Guard

ACL

• MAC ACL

• MAC ACE

• IPV4 ACL

• IPV4 ACE

• IPV6 ACL

• IPV6 ACE

• ACL Binding

Qos

• General

• Rate Limit

Diagnostics

• Logging

• Mirroring

• Ping

• Traceroute

• Copper Test

• Fiber Module

• UDLD

Management

• User Account

• Firmware

• Configuration

• SNMP

• RMON

Products Show:

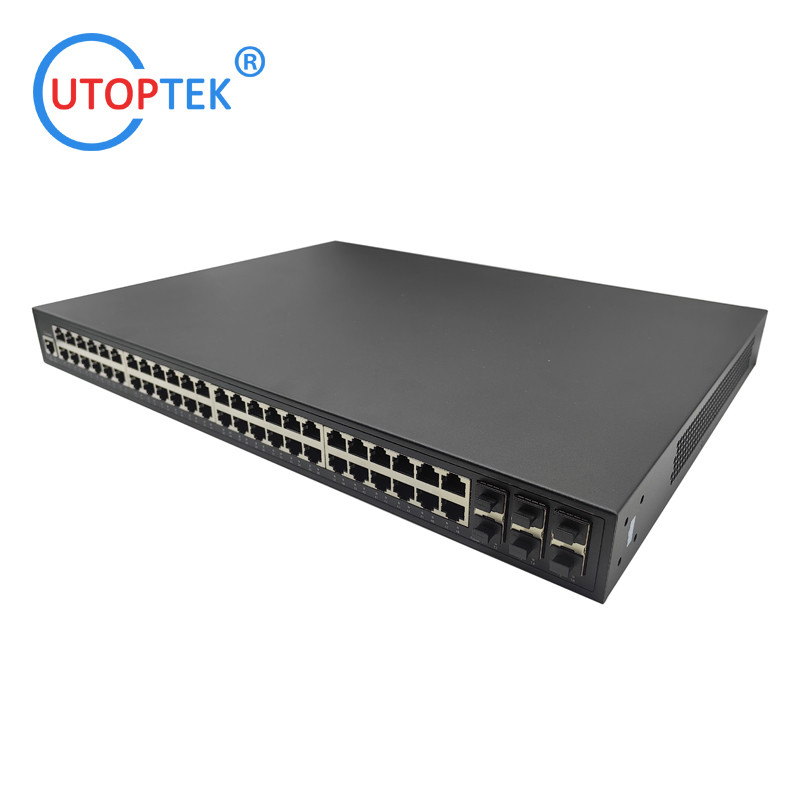

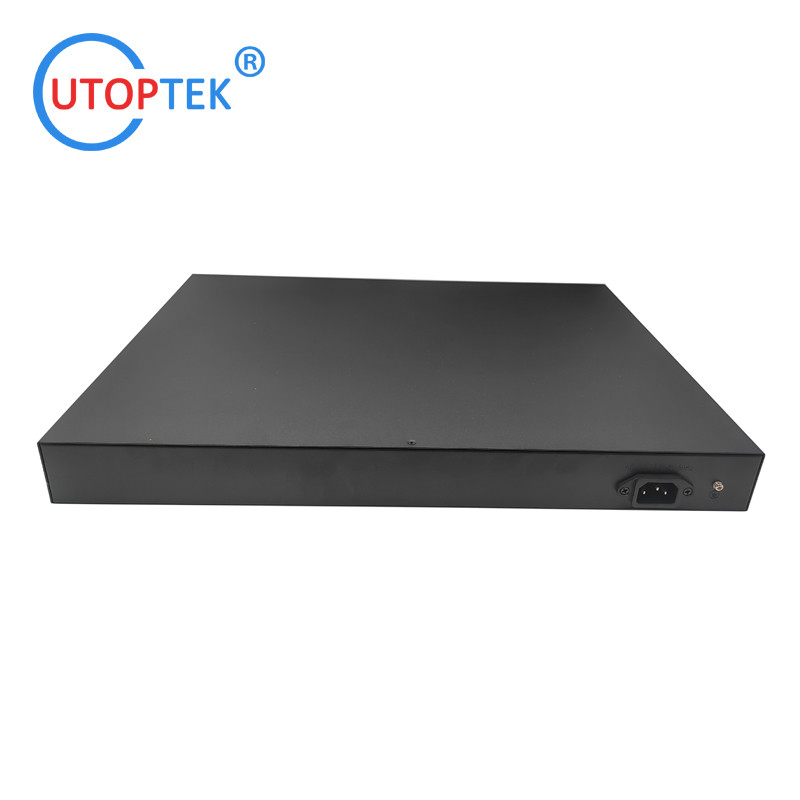

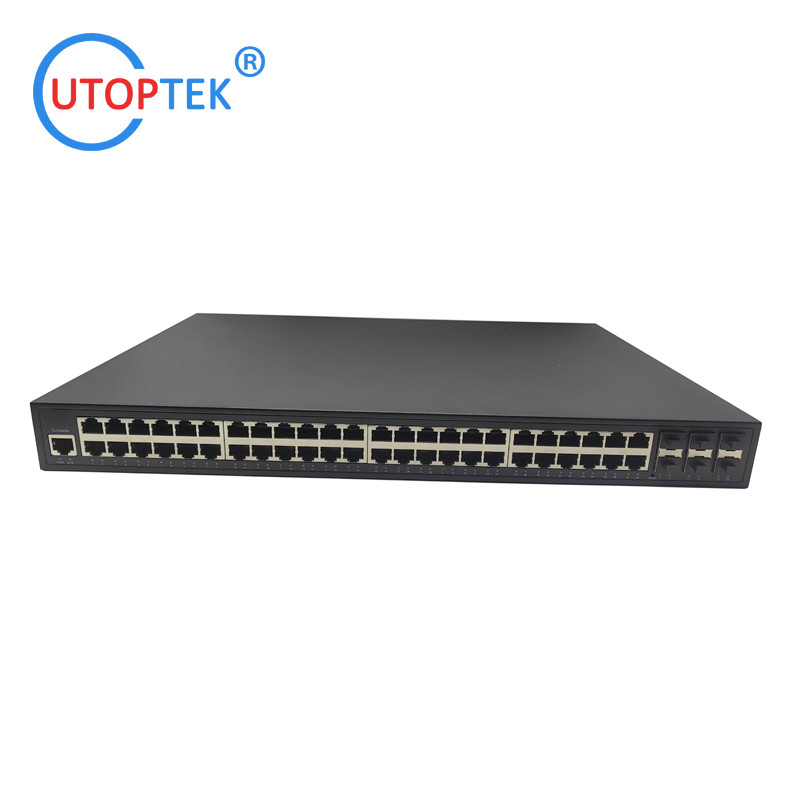

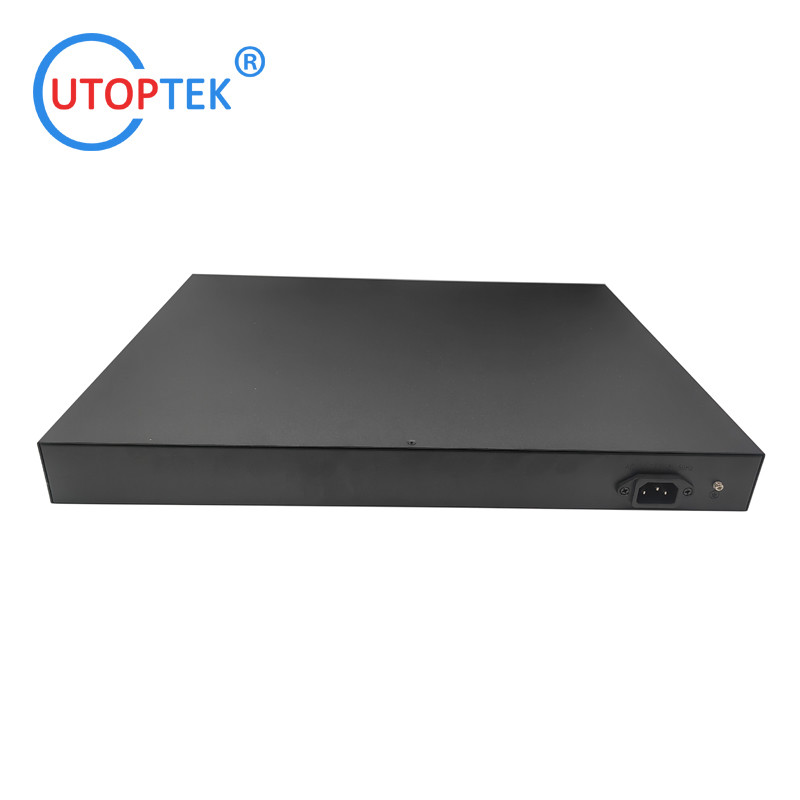

Layer3+ Management 48 port 10/100/1000M RJ45+6port 10G SFP/SFP+ Fiber Network Ethernet switch(UT-SW48G-6SFP+) 0

Ordering information:

With POE Function:
UT-PS0802GM-SFP	L2 Managed Gigabit 8POE+2SFP, 120W power
UT-PS1644GM-SFP	L2 Managed Gigabit 16POE+4UTP/SFP, Total 300W power, AC power plug
UT-PS2444GM-SFP	L2 Managed Gigabit 24POE+4UTP/SFP, Total 400W power, AC power plug
UT-PS48GP-6SFP+	L3 Managed Gigabit 48POE+6SFP/SFP+,Total 800W power, AC power plug
Without POE Funtion:
UT-SW0802GM-SFP	L2 Managed Gigabit 8RJ45+2SFP, No POE, AC power plug
UT-SW1644GM-SFP	L2 Managed Gigabit 16RJ45+4UTP/SFP,, No POE, AC power plug
UT-SW2444GM-SFP	L2 Managed Gigabit 24RJ45+4UTP/SFP, No POE, AC power plug
UT-SW48G-6SFP+	L3 Managed Gigabit 48RJ45+6SFP/SFP+,No POE, AC power plug
