XPON/GPON/EPON ONU SFP 1.25G/2.5G SFP Module Tx1310nm/Rx1490nm with SC 20km for both EPON and GPON Using

Name: XPON/GPON/EPON ONU SFP 1.25G/2.5G SFP Module Tx1310nm/Rx1490nm with SC 20km for both EPON and GPON Using
Brand: UTOPTEK
SKU: XPON STICK ONU SFP
Rating: 4.7 (136 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	10pcs to one plastic plate
Delivery Time :	2-3days	Payment Terms :	T/T, Western Union,Paypal, Alipay,Wechat etc.
Supply Ability :	2000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	XPON STICK ONU SFP

Detail Information
Transmission Speed:	1.25G/2.5Gbps	Fiber Type:	Single-mode,Simplex SC
Distance:	20KM	DDM Function:	Support
Power Supply:	3.3V	Working Temperature:	0~70℃
Wavelength:	Tx1310/Rx1490	Warranty:	1 Year
Compatible:	All Brands	Working For:	Both EPON And GPON

Product Description

XPON STICK ONU SFP 1.25G/2.5G 1310nmTX/1490nmRX 20km SC sfp module for both Gpon ang Epon

The product is an MSA-compliant SFP that incorporates not just the optics for an ONU, but all of the electronics need as well.
lt is a "PON on a Stick" that an entire FTTH ONU in a slightly oversized SFP. It can be plugged into networking equipment.
Allowing the data interfaces on a switch, router etc. to be customized for different fiber environments and distance requirements.

Product Features:

Single fiber bi-directional data links GPON ONU and application with GPON MAC function.
1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
Single 3.3V power supply
Digital diagnostic monitor interface compatible with SFF-8472
SFP MSA compliance
Low EMI and excellent ESD protection
Class I laser safety standard IEC-60825 compliant
RoHS compliance
Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
Complies with ITUT-T G.984.2, G.984.2 Amendment 1
Complies with ITUT G.988 ONU management and control interface (OMCI) specification

Applications

Gigabit Ethernet Passive Optical Networks (GPON /EPON) -ONU side

Ordering models:

PON SFP Transceiver
Part No.	Data Rate	Form Factor	Distance	Wavelength	Laser	optical power	Interface	DDM
EPON OLT PX20+	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+2~+5dBm	SC	YES
EPON OLT PX20++	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+5~+7dBm	SC	YES
EPON OLT PX20+++	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	>7dBm	SC	YES
EPON OLT PX20++++	1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	>9dBm	SC	YES

GPON OLT class B+	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+2~+5dBm	SC	YES
GPON OLT class C+	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+3~+5dBm	SC	YES
GPON OLT class C++	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	+5~+7dBm	SC	YES
GPON OLT class C+++	2.5G/1.25Gbps	SFP	20KM	Tx1490Rx1310nm	DFB/APD	>7dBm	SC	YES

XPON STICK ONU	GPON:TX1.25G/RX2.5Gbps EPON:TX1.25G/RX1.25Gbps	SFP	20KM	Tx1310Rx1490nm	DFB/APD	GPON/EPON	SC	YES
GPON STICK ONU	TX1.25G/RX2.5Gbps	SFP	20KM	Tx1310Rx1490nm	DFB/APD	GPON	SC	YES
EPON STICK ONU	TX1.25G/RX1.25Gbps	SFP	20KM	Tx1310Rx1490nm	DFB/APD	EPON	SC	YES

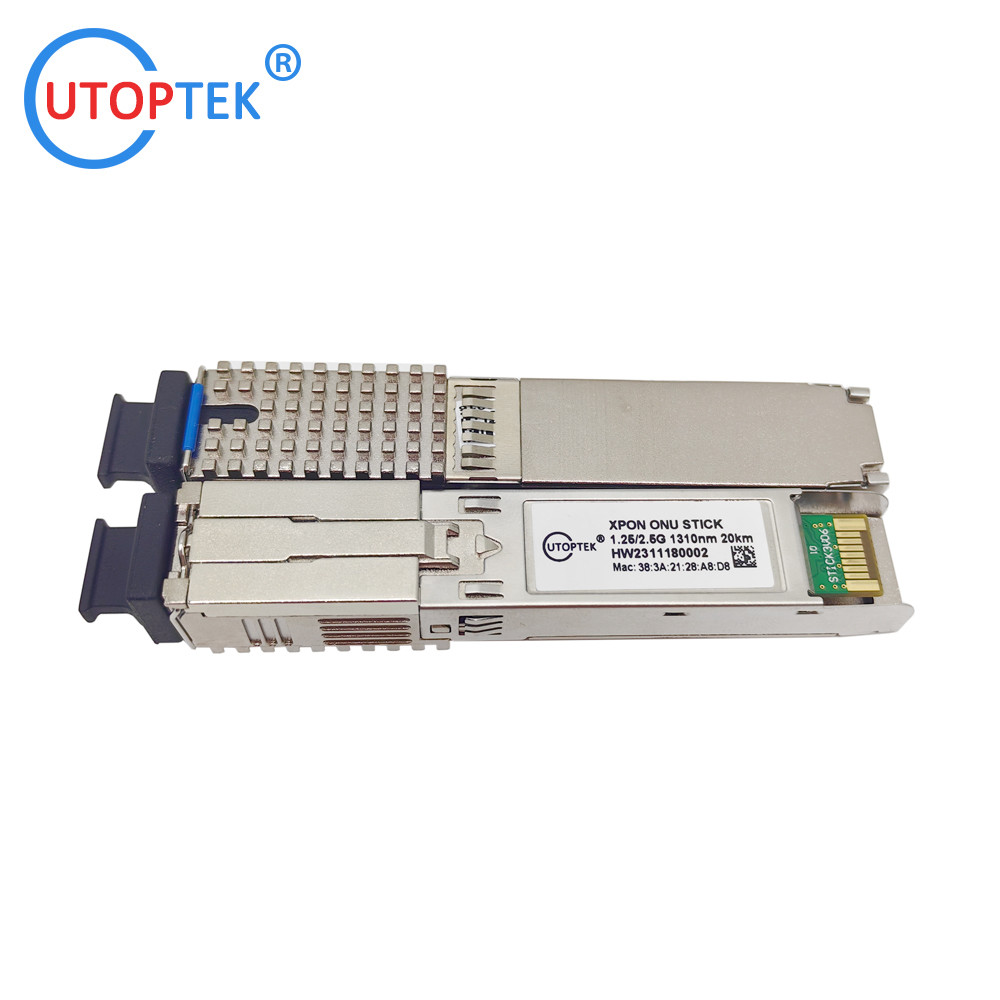

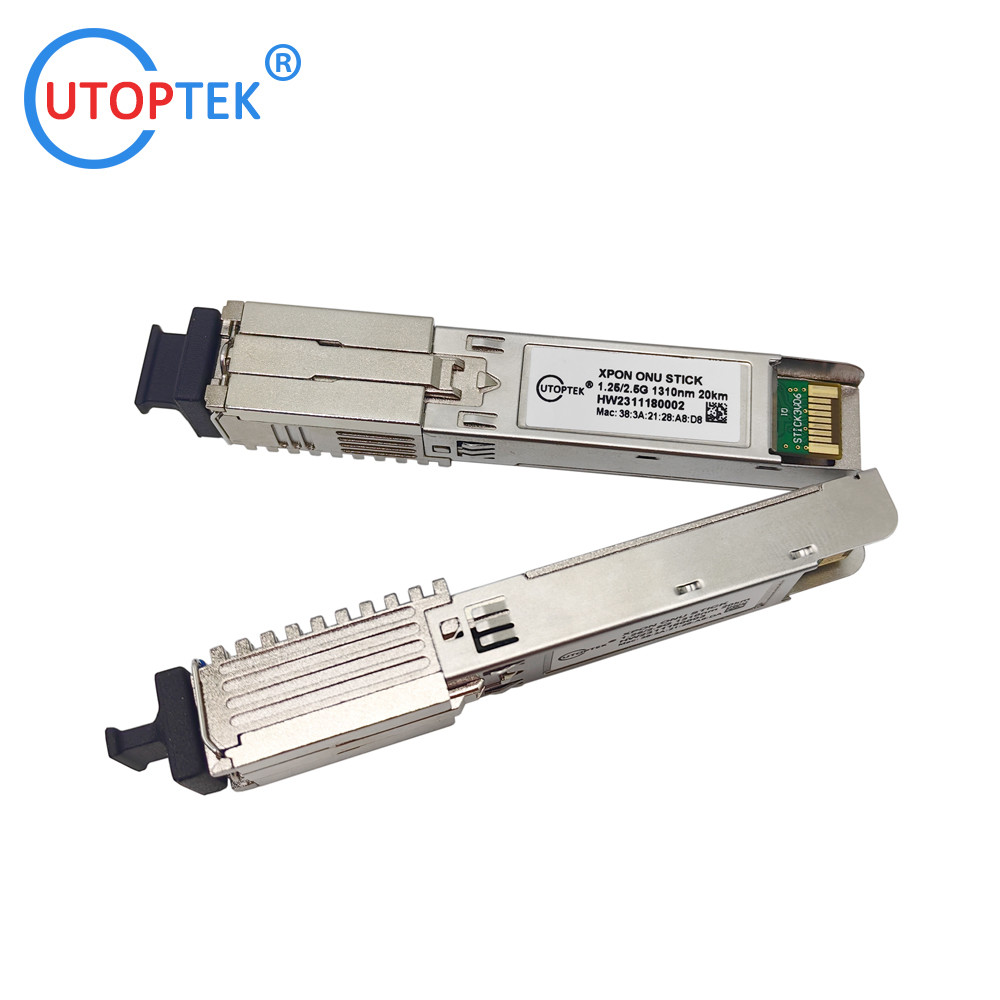

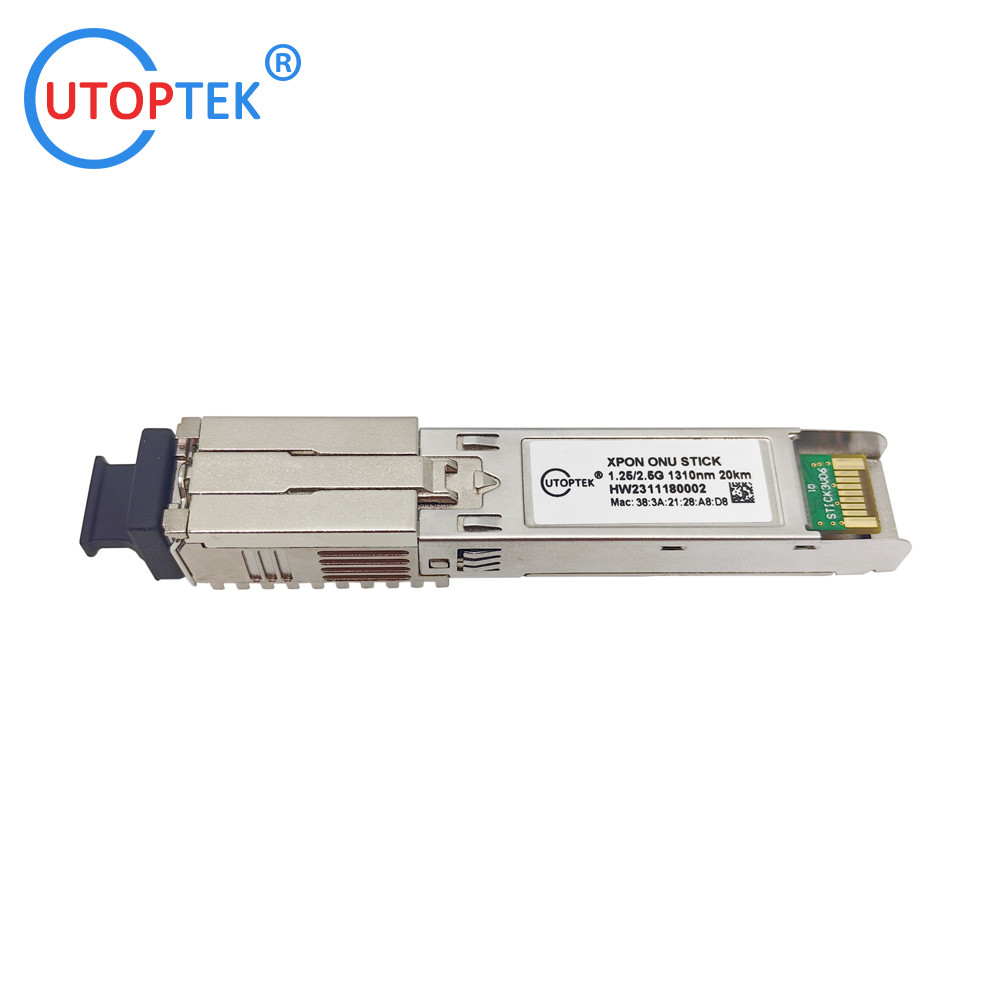

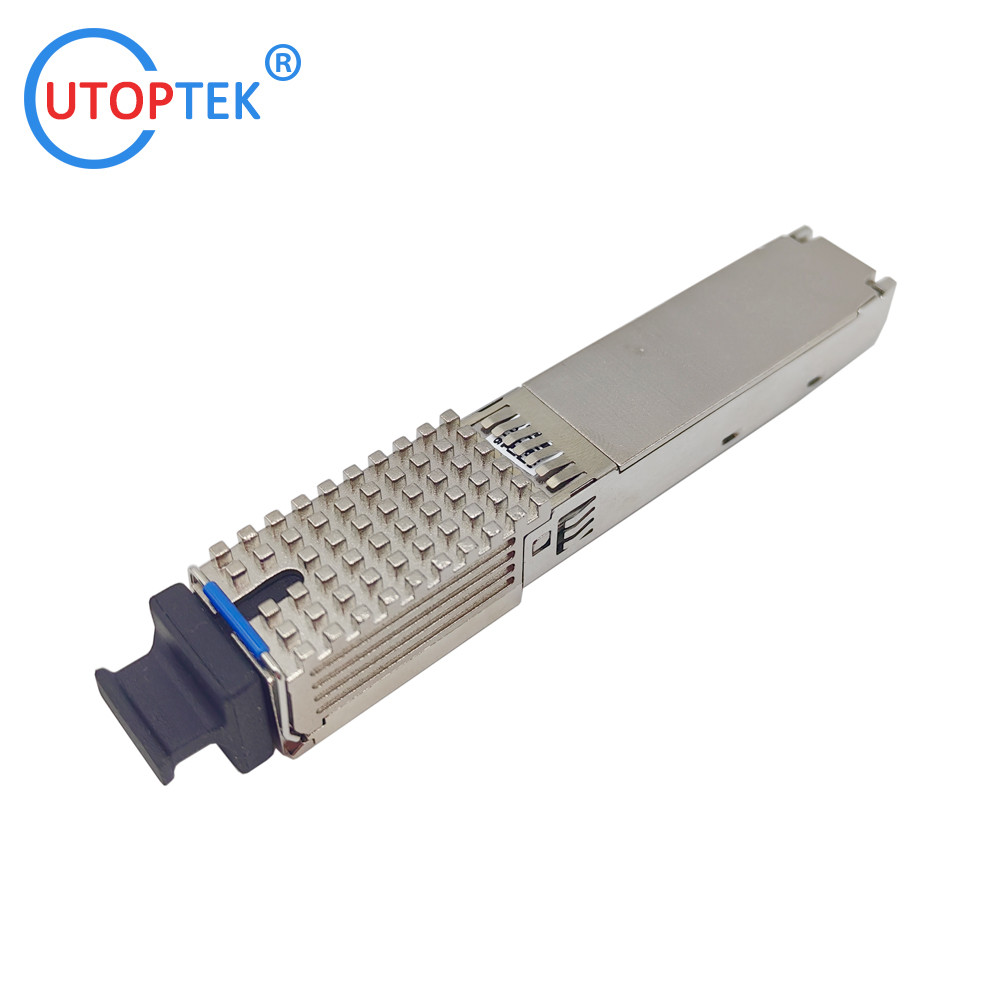

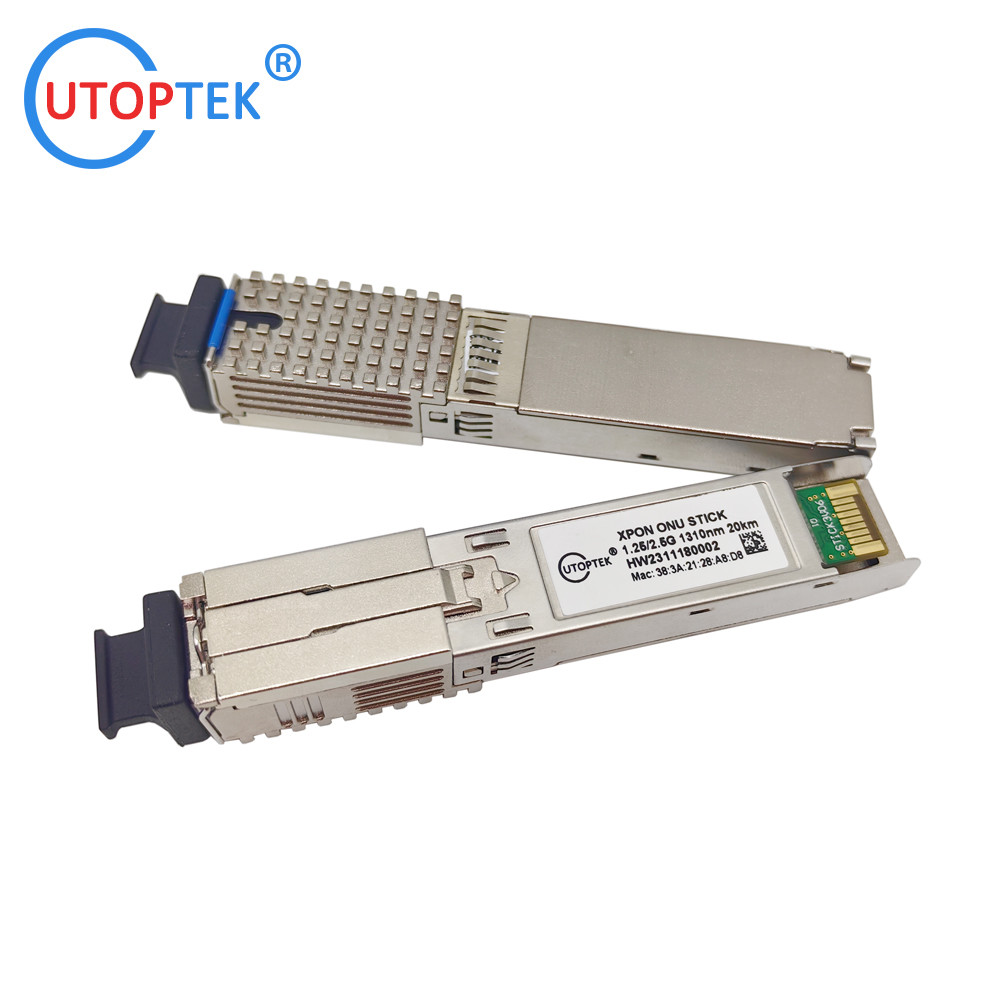

Product pictures:

XPON/GPON/EPON ONU SFP 1.25G/2.5G SFP Module Tx1310nm/Rx1490nm with SC 20km for both EPON and GPON Using 0

XPON/GPON/EPON ONU SFP 1.25G/2.5G SFP Module Tx1310nm/Rx1490nm with SC 20km for both EPON and GPON Using 4

XPON/GPON/EPON ONU SFP 1.25G/2.5G SFP Module Tx1310nm/Rx1490nm with SC 20km for both EPON and GPON Using
