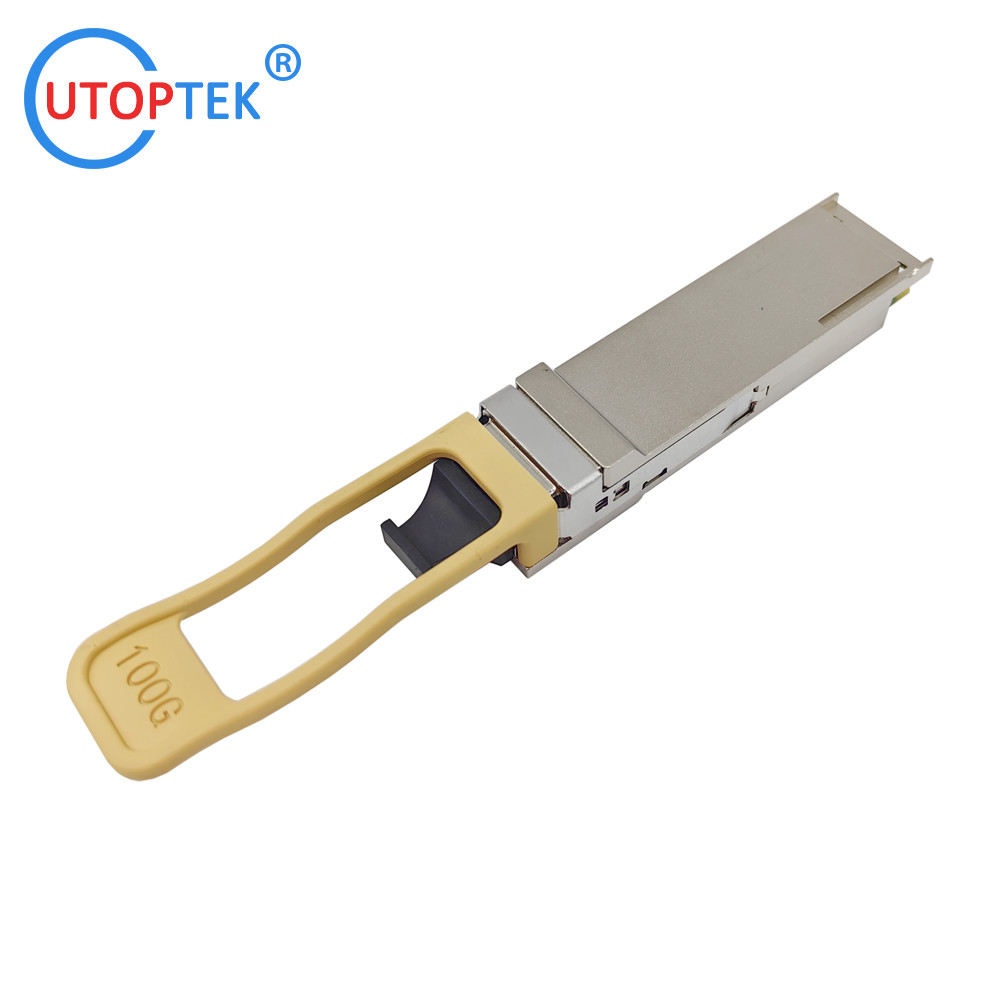

Cisco Compatible QSFP28-100G-SR4 MMF MPO/MTP 850nm 100m optical sfp transceiver 100G module for Cisco/huawei/Microtik

Name: Cisco Compatible QSFP28-100G-SR4 MMF MPO/MTP 850nm 100m optical sfp transceiver 100G module for Cisco/huawei/Microtik
Brand: UTOPTEK
SKU: QSFP28-100G-SR4
Rating: 4.5 (199 reviews)

Minimum Order Quantity :	1	Packaging Details :	4pcs per tray
Delivery Time :	2-3working days	Payment Terms :	T/T, Western Union

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	QSFP28-100G-SR4

Detail Information
Speed:	100Gbps	Fiber Type:	Multi Mode
Wavelength:	850nm	Fiber Connector:	MPO
Distance:	100m	Power Supply:	3.3V
Working Temperature:	0~70℃	Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..
Warranty:	3 Years	Package:	4pcs Per Tray

Product Description

QSFP28-100G-SR4 transceiver module MMF MPO 850nm 100m optical sfp transceiver 100G module Cisco huawei compatible

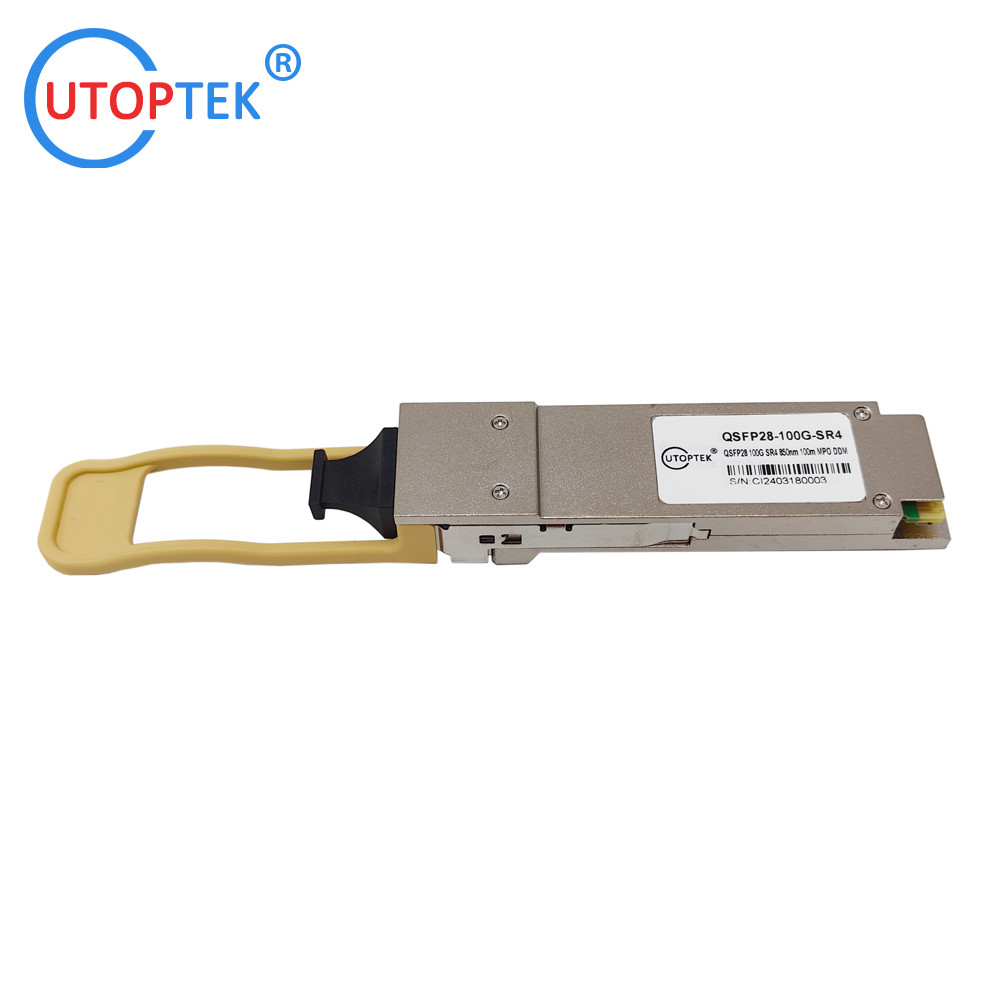

Cisco Compatible QSFP28-100G-SR4 MMF MPO/MTP 850nm 100m optical sfp transceiver 100G module for Cisco/huawei/Microtik 2

1.Product Features:

4 independent full-duplex channels
Up to 27.95Gbps per channel bandwidth
Aggregate bandwidth of > 100Gbps
MTP/MPO optical connector
QSFP28 MSA compliant
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Digital diagnostic capabilities
Single +3.3V power supply operating
Temperature range 0°C to 70°C
RoHS Compliant Part

2.Applications:

Local Area Network (LAN)
Wide Area Network (WAN)
Ethernet switches and router applications

3.Technical specifications:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	QSFP28
Fiber Type	Multi mode, MPO
Wavelength:	850nm
Distance	100M
Data Rate (max)	100Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3V
Power consuption	<2.5W
Connector	MPO
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	4pcs/box

4.Optical Characteristics

Parameter	Symbol	Min	Typ	Max	Unit	Ref.
Transmitter
Optical Wavelength	λ	840		860	nm
RMS Spectral Width	Pm		0.5	0.65	nm
Average Optical Power per Channel	Pavg	-8	-2.5	0	dBm
Laser Off Power Per Channel	Poff			-30	dBm
Optical Extinction Ratio	ER	3.5			dB
Relative Intensity Noise	Rin			-128	dB/HZ	1
Optical Return Loss Tolerance				12	dB
Receiver
Optical Center Wavelength	λC	840		860	nm
Receiver Sensitivity per Channel	R		-10.5		dBm
Maximum Input Power	PMAX	0.5			dBm
Receiver Reflectance	Rrx			-12	dB
LOS De-Assert	LOSD			-14	dBm
LOS Assert	LOSA	-30			dBm
LOS Hysteresis	LOSH	0.5			dB

5.Factory Show:

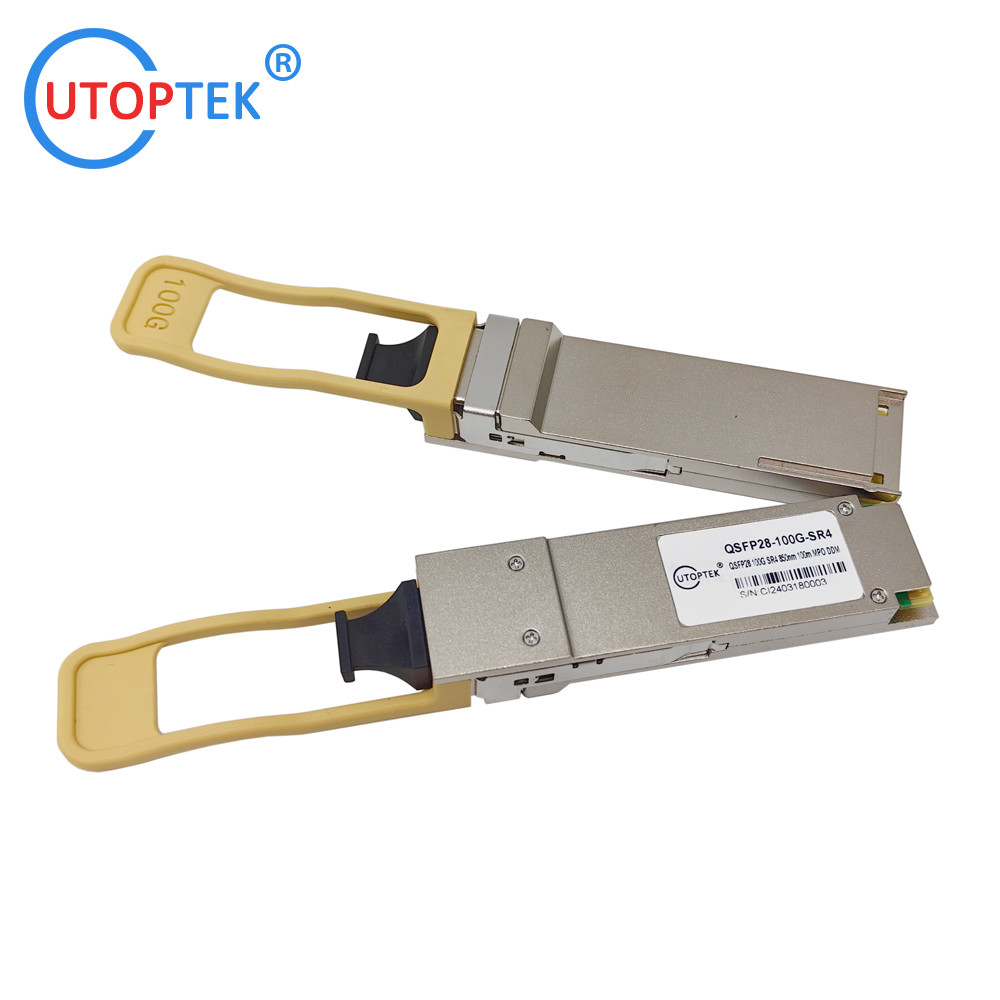

Cisco Compatible QSFP28-100G-SR4 MMF MPO/MTP 850nm 100m optical sfp transceiver 100G module for Cisco/huawei/Microtik 3

6.Compatibility:

Cisco Compatible QSFP28-100G-SR4 MMF MPO/MTP 850nm 100m optical sfp transceiver 100G module for Cisco/huawei/Microtik 4

Cisco Compatible QSFP28-100G-SR4 MMF MPO/MTP 850nm 100m optical sfp transceiver 100G module for Cisco/huawei/Microtik 5

7.Ordering Information:

100Gbps QSFP28 Transceiver
Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
QSFP28-100G-SR4	100Gb/s	QSFP28	100m	850nm	VCSEL	PIN	MPO	0-70℃
QSFP28-100G-LR4	100Gb/s	QSFP28	10km	1310nm	DFB	PIN	LC	0-70℃
QSFP28-100G-LR4-20	100Gb/s	QSFP28	20km	1310nm	DFB	PIN	LC	0-70℃
QSFP28-100G-ER4	100Gb/s	QSFP28	40km	1310nm	EML	APD	LC	0-70℃
QSFP28-100G-PSM4	100Gb/s	QSFP28	2km	1310nm	DFB	PIN	MPO	0-70℃
QSFP28-100G-CWDM4	100Gb/s	QSFP28	10km	1270-1330nm	CWDM EML	PIN	LC	0-70℃
QSFP28-100G-CWDM4	100Gb/s	QSFP28	2km	1270-1330nm	CWDM EML	PIN	LC	0-70℃
QSFP28-100G-ZR 60km	100Gb/s	QSFP28	60km	1310nm	EML	APD	LC	0-70℃
QSFP28-100G-ZR4	100Gb/s	QSFP28	80km	1310nm	EML	APD	LC	0-70℃
QSFP28-100G-BX20-U	100Gb/s	QSFP28	10km	1291-1311nm
QSFP28-100G-BX20-D	100Gb/s	QSFP28	10km	1310-1291nm
