Cisco Qsfp-100g-LR4 20km Compatible 100Gbase-Lr4 Qsfp28 1310nm 20km Dom Optical Transceiver Module

Minimum Order Quantity :	1	Packaging Details :	4pcs per tray
Delivery Time :	2-3working days	Payment Terms :	T/T, Western Union

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	QSFP28-100G-LR4 20km

Detail Information
Speed:	100Gbps	Fiber Type:	Single Mode Duplex LC
Wavelength:	1310nm	Fiber Connector:	LC Connector
Distance:	20km	Power Supply:	3.3V
Working Temperature:	0~70℃	Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..
Warranty:	3 Years	Package:	4pcs Per Tray

Product Description

QSFP28-100G-LR4 Single mode 1310nm duplex LC 20km optical sfp transceiver 100G module Cisco huawei compatible

1.Product Features:

4 lanes MUX/DEMUX design
Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF28
Support 100GBASE-LR4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps
Aggregate bandwidth of > 100Gbps
Duplex LC connector
Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part

2.Applications:

3.Technical specifications:

4.Optical Characteristics

Parameter	Symbol	Min	Typ	Max		Unit		Ref.
Transmitter
	L0	1294.53	1295.56		1296.59		nm

Wavelength Assignment
	L1	1299.02	1300.05		1301.09		nm
	L2	1303.54	1304.58		1305.63		nm
	L3	1308.09	1309.14		1310.19		nm
Side-mode Suppression Ratio	SMSR	30	-		-		dB
Total Average Launch Power	PT	-4	-		8.3		dBm
Average Launch Power, each Lane		-4	-		4.5		dBm
Difference in Launch Power between any two Lanes (OMA)		-	-		6.5		dB
Optical Modulation Amplitude, each Lane	OMA	-4			4.5		dBm
Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane		-4.8	-				dBm
TDP, each Lane	TDP				2.2		dB
Extinction Ratio	ER	4	-		-		dB
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}		{0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
Optical Return Loss Tolerance		-	-		20		dB
Average Launch Power OFF Transmitter, each Lane	Poff				-30		dBm
Relative Intensity Noise	Rin				-128		dB/HZ	1
Optical Return Loss Tolerance		-	-		12		dB
Receiver
Damage Threshold	THd	3.3				dBm		1
Average Power at Receiver Input, each Lane	R	-10.6		0		dBm
RSSI Accuracy		-2		2		dB
Receiver Reflectance	Rrx			-26		dB
Receiver Power (OMA), each Lane		-	-	3.5		dBm
LOS De-Assert	LOSD			-15		dBm
LOS Assert	LOSA	-25				dBm
LOS Hysteresis	LOSH	0.5				dB

5.Product Show:

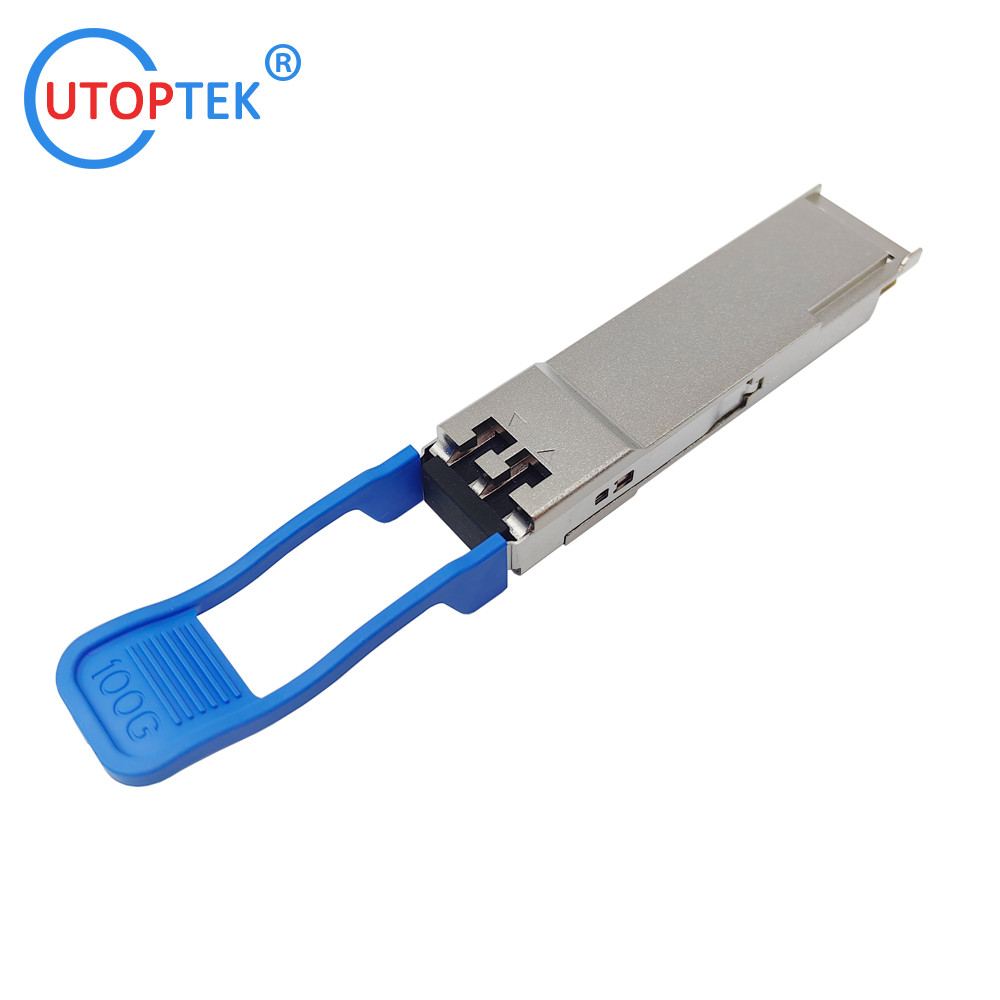

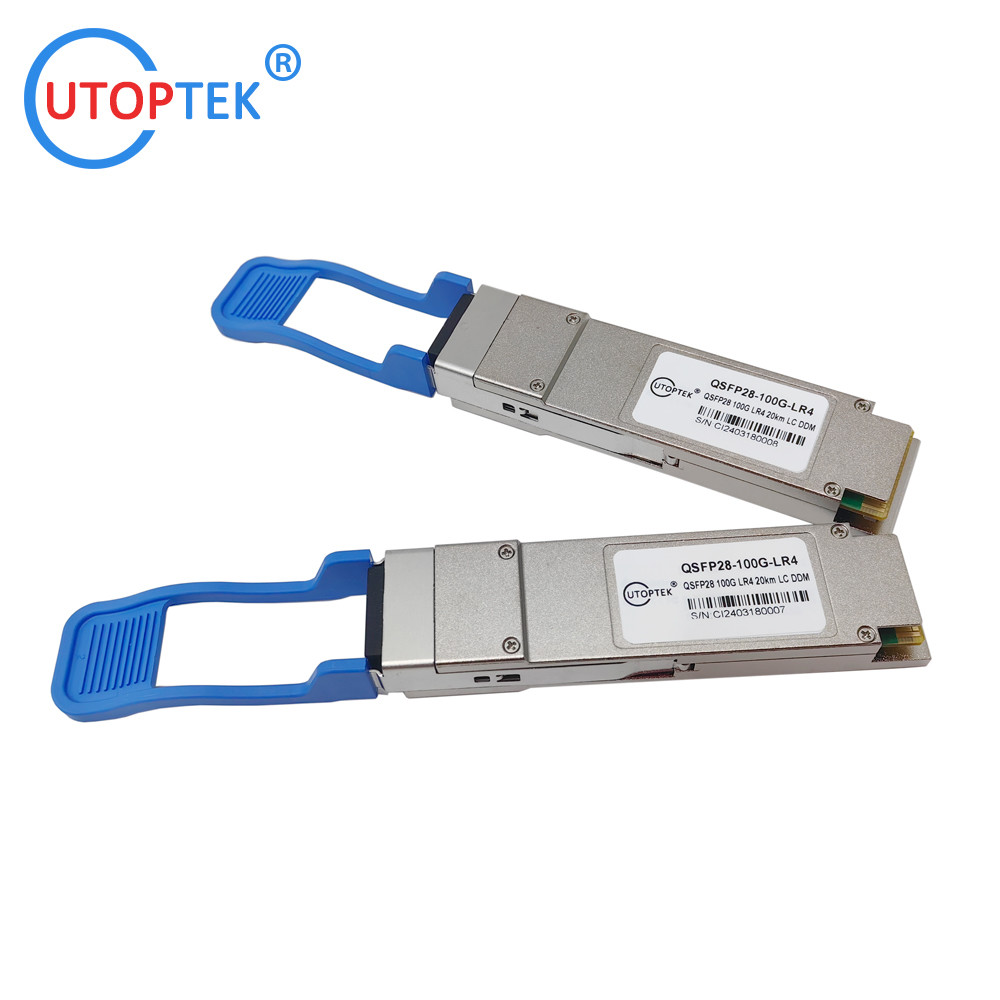

Cisco Qsfp-100g-LR4 20km Compatible 100Gbase-Lr4 Qsfp28 1310nm 20km Dom Optical Transceiver Module 4

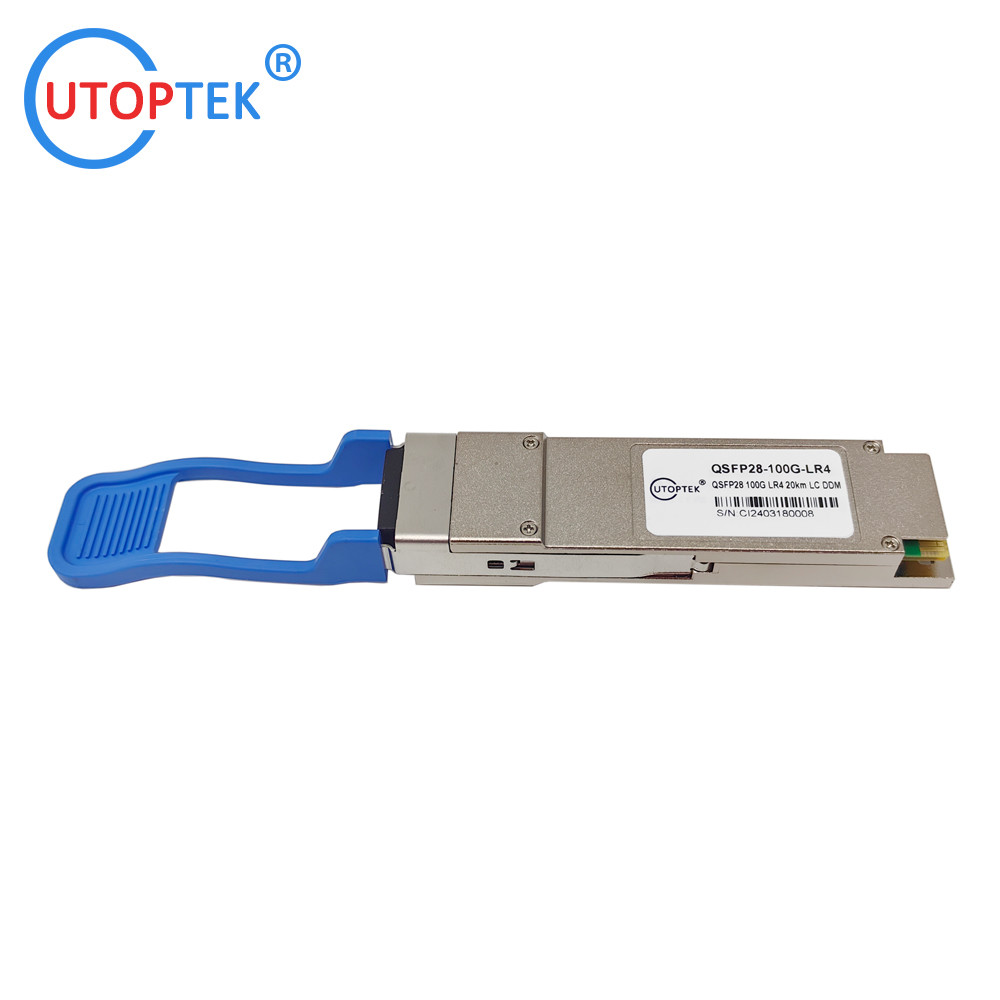

Cisco Qsfp-100g-LR4 20km Compatible 100Gbase-Lr4 Qsfp28 1310nm 20km Dom Optical Transceiver Module 5
