Product Description
Overview:
The Model UT-1EP2W-S/M digital video signal transmitter can extend the transmission distance of the digital camera's video signal, POE is also supported, The camera and other terminal POE devices can be powered by the transmitter, No separate power supply is required. The product adopts industrial grade design, Applicable to all kinds of video transmission systems, Such as security monitoring system, Elevator video network coverage, Multimedia Network Teaching System, Industrial Automations, Medical monitoring display system, Advertising screen real-time playback system.
Key Feature
1.Support the local end to power the remote device,the maximum output is 30W.
2.Support 2 megapixels HD video transmission.
3.Support multiple cable transmission.
4.Support multicast function.
5. Support POE over Coaxial/TP
6. High power POE (up to 30W, compliant with IEEE 802.3af/at standard)
7. Transparent transmission, no need for software adjustment, no need to change the upper layer software
8. Built-in ESD protection circuit, which can effectively prevent electrostatic damage
9. Transmission distance up to 500 meters (75-5 coaxial line)
10. The maximum physical layer rate is 240Mbps
11. Low power consumption, strong anti-interference ability
Typical Application
1. Elevator network video surveillance.
2.Elevator swipe card control management system(elevator control).
3.Elevator network coverage.
4. Product equipment monitoring and management.
5.Industrial control.
Technical sheet:
| Category |
Item |
Parameters |
| Power Adapter |
Input |
DC44V~57V / 1A |
| Output |
POE30W /POE60W |
| Transmission |
Transmission medium |
Coaxial Cable, Twisted Pair Cable, Telephone Cable, RVV Cable
TP/UTP: Cat.5, Cat.5E, Cat.6
|
| Transmission Distance |
(2*0.75mm³ RVV Cable) 500meters
(UTP:Cat.5) 500meters (56V power)
|
| maximum throughput(Bandwidth) |
45Mbps |
| multicast |
Support IGMP multicast protocol |
| Connector |
DC_IN |
2.1x5.5mm DC Connector |
| DC_OUT |
RJ45
(30W:1,2,3,6)
(60W:1,2,3,6,4,5,7,8)
|
| Ethernet |
RJ45 (1,2 & 3,6) |
| Twisted pair signal input and output |
5.08mm×2 |
| GND |
Frame GND |
| LED |
Master |
Device indicator:
M side: ON
S side:OFF
(Pls check M & S before connect the power)
|
| Link |
IP Signal indicator:
TP signal is connected, ON;
TP signal isn't connected,OFF.
|
| Power |
Connect the power, ON. |
| RJ45 Green |
Communication indicator:
Blinking during communication
|
| RJ45 Yellow |
POE indicator:
POE is enabled, ON;
overload or under voltage , Blink.
|
| Case |
Size |
94×71.4×26 mm |
| Color |
Black |
| Weight |
190g |
| Environmental Requirement |
Working Environment |
-20℃~70℃ |
| Humidity |
0-95% |
| Storage temperature |
-40℃~85℃ |

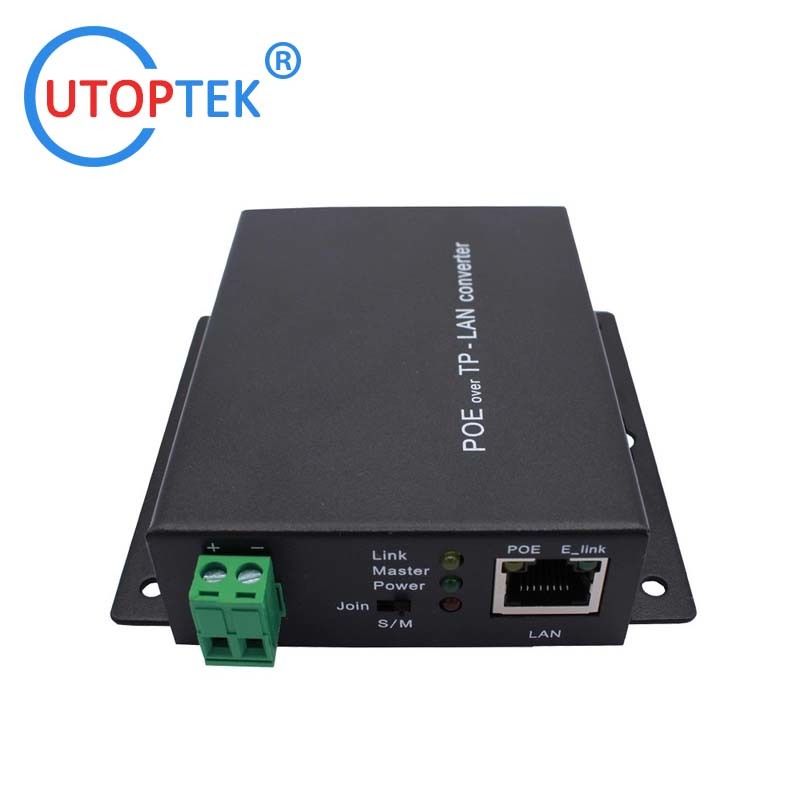

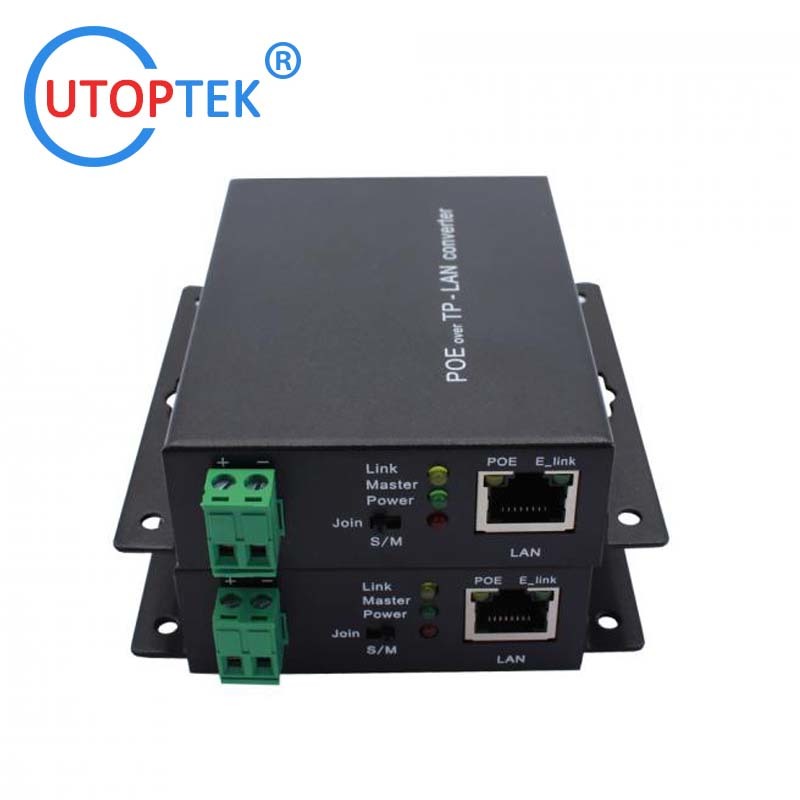

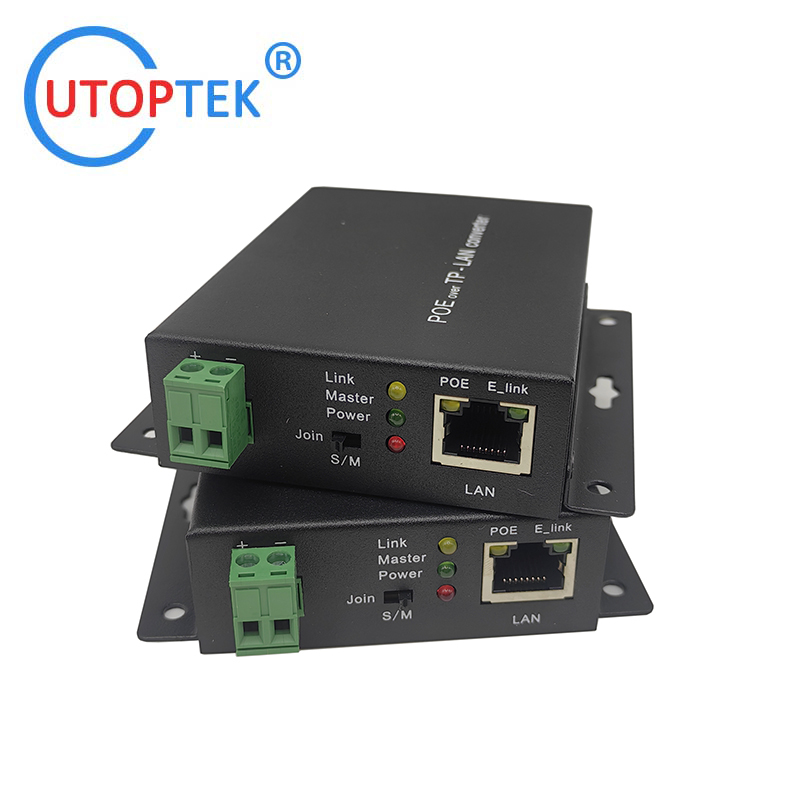

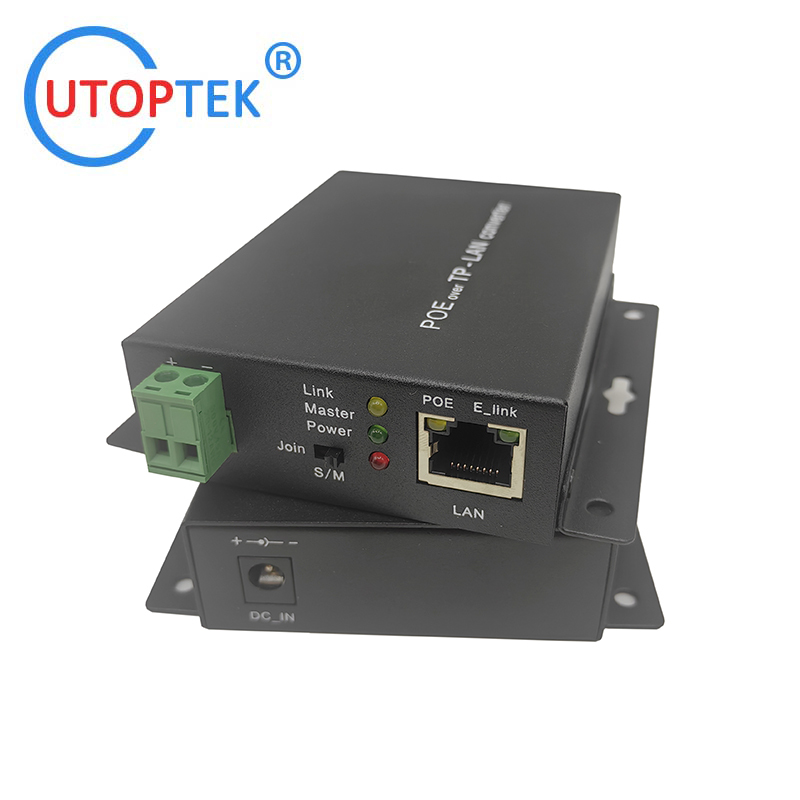

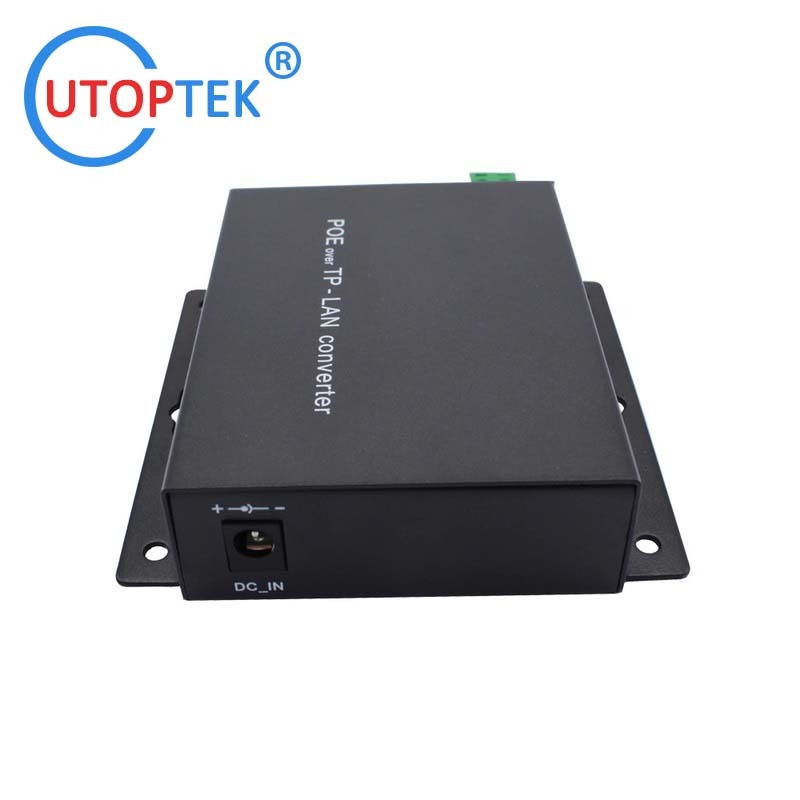

Products show:
Connection topology:
Order Models:
| UT-1E1C-S/M |
10/100Mbps 1*LAN+1*BNC, EOC Ethernet over Coaxial Extender,0~1.5km,
Power Supply: DC12V |
Pair |
| UT-1E2W-S/M |
10/100Mbps 1*LAN+2*2wire port, EOC Ethernet over twisted-pair cable Extender,0~1.5km,
Power Supply: DC12V |
Pair |
| UT-1EP1C-S/M |
10/100Mbps 1*LAN POE+1*BNC, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V |
Pair |
| UT-1EP2W-S/M |
10/100Mbps 1*LAN POE+1*2wire port, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V |
Pair
|
