UT-1E1EP-S/M POE RJ45 over 2wire TP-LAN extender EOC Converter 500meters for outdoor/indoor/elevator IP camera

Name: UT-1E1EP-S/M POE RJ45 over 2wire TP-LAN extender EOC Converter 500meters for outdoor/indoor/elevator IP camera
Brand: UTOPTEK
SKU: UT-1E1EP-S/M
Rating: 5 (172 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	50pairs/Carton, 574350CM, G.W.:18Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-1E1EP-S/M

Detail Information
Product Name:	EOC Converter	Interface:	2wire+1*RJ45 POE Port
Speed:	10/100Mbps	Extend Distance:	0~500meters
Power Input:	DC44V~57V	Product Size:	94×71.4×26 Mm
Warranty:	12months	N.W/G.W(kg):	0.19kg/0.36kg
Housing Material:	Metal	Operating Temperature:	0～+70°C
Support POE Function:	YES

Product Description

Overview:

The Model UT-1E1EP digital video signal transmitter can extend the transmission distance of the digital camera's video signal, POE is also supported, The camera and other terminal POE devices can be powered by the transmitter, No separate power supply is required. The product adopts industrial grade design, Applicable to all kinds of video transmission systems, Such as security monitoring system, Elevator video network coverage, Multimedia Network Teaching System, Industrial Automations, Medical monitoring display system, Advertising screen real-time playback system.

Key Feature

1. Support the local end to supply power to remote devices, with a maximum output of 60W;

2. Support 2 megapixel high-definition video transmission(1080p);

3. Support multiple cable transmission;

4. Support multicast function.

Technical sheet:

Category	Item	Parameters
Power Adapter	Input	DC44V~57V / 1A
Power Adapter	Output	POE30W /POE60W
Transmission	Transmission medium	Coaxial Cable, Twisted Pair Cable, Telephone Cable, RVV Cable TP/UTP: Cat.5, Cat.5E, Cat.6
	Transmission Distance	(2*0.75mm³ RVV Cable) 500meters (UTP:Cat.5) 500meters (56V power)
	maximum throughput(Bandwidth)	45Mbps
	multicast	Support IGMP multicast protocol

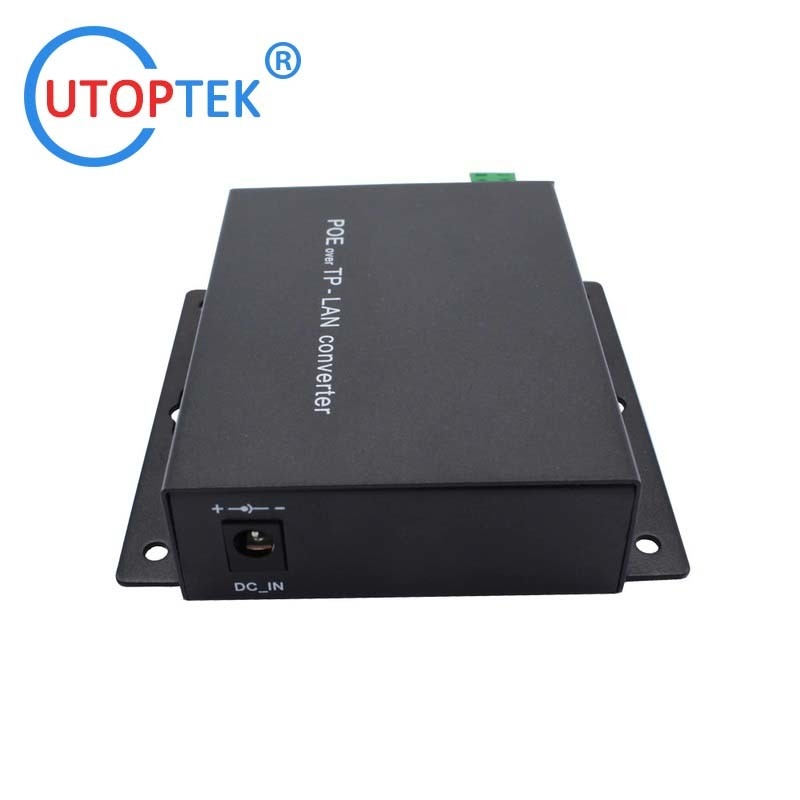

Connector	DC_IN	2.1x5.5mm DC Connector
	DC_OUT	RJ45 (30W:1,2,3,6) (60W:1,2,3,6,4,5,7,8)
	Ethernet	RJ45 (1,2 & 3,6)
	Twisted pair signal input and output	5.08mm×2
	GND	Frame GND
LED	Master	Device indicator: M side: ON S side:OFF (Pls check M & S before connect the power)
	Link	IP Signal indicator: TP signal is connected, ON; TP signal isn't connected,OFF.
	Power	Connect the power, ON.
	RJ45 Green	Communication indicator: Blinking during communication
	RJ45 Yellow	POE indicator: POE is enabled, ON; overload or under voltage , Blink.
Case	Size	94×71.4×26 mm
	Color	Black
	Weight	190g
Environmental Requirement	Working Environment	-20℃~70℃
	Humidity	0-95%
	Storage temperature	-40℃~85℃

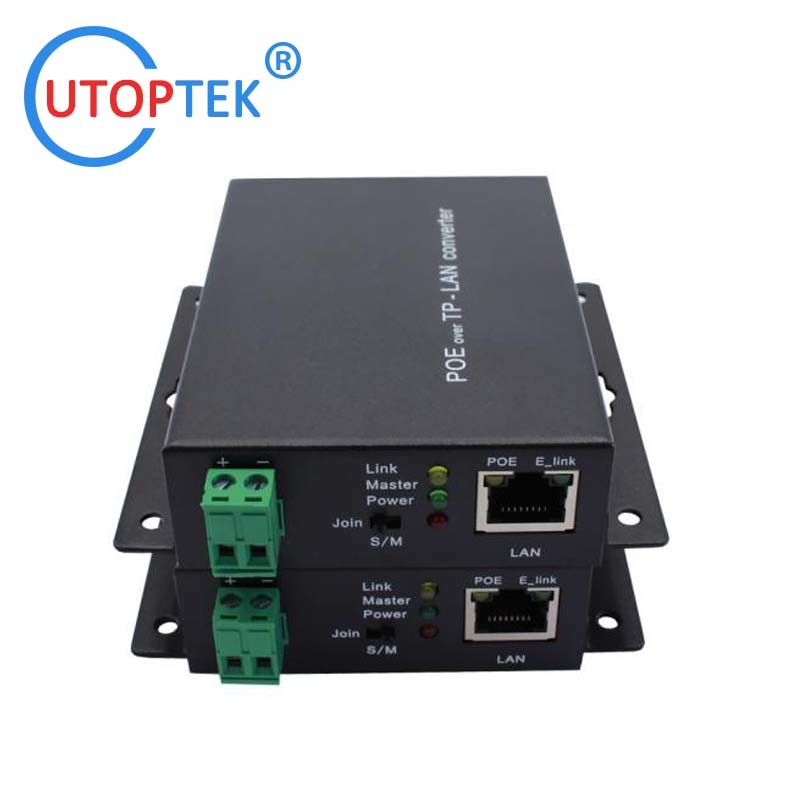

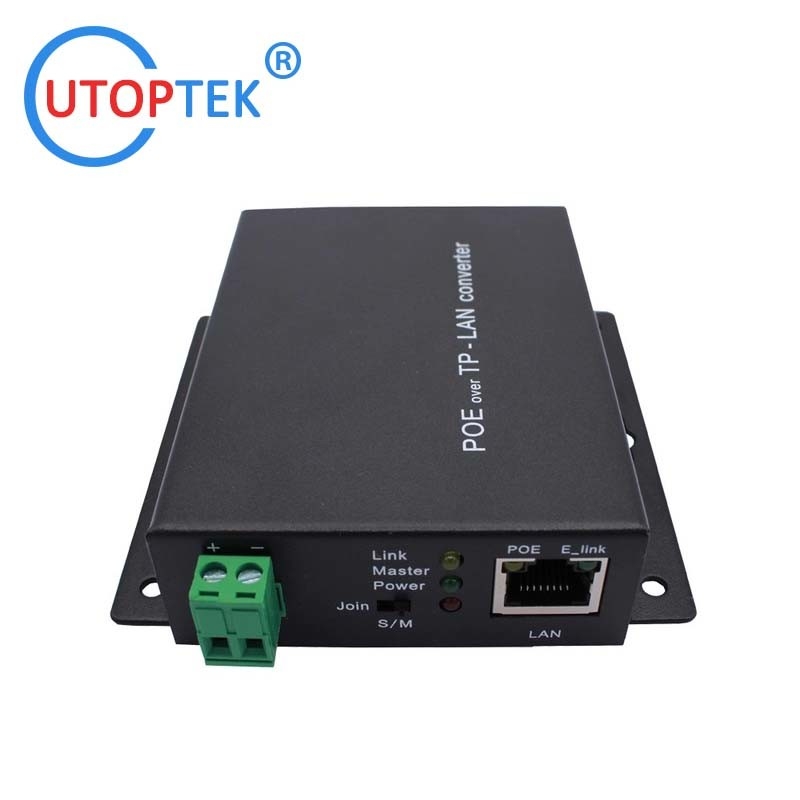

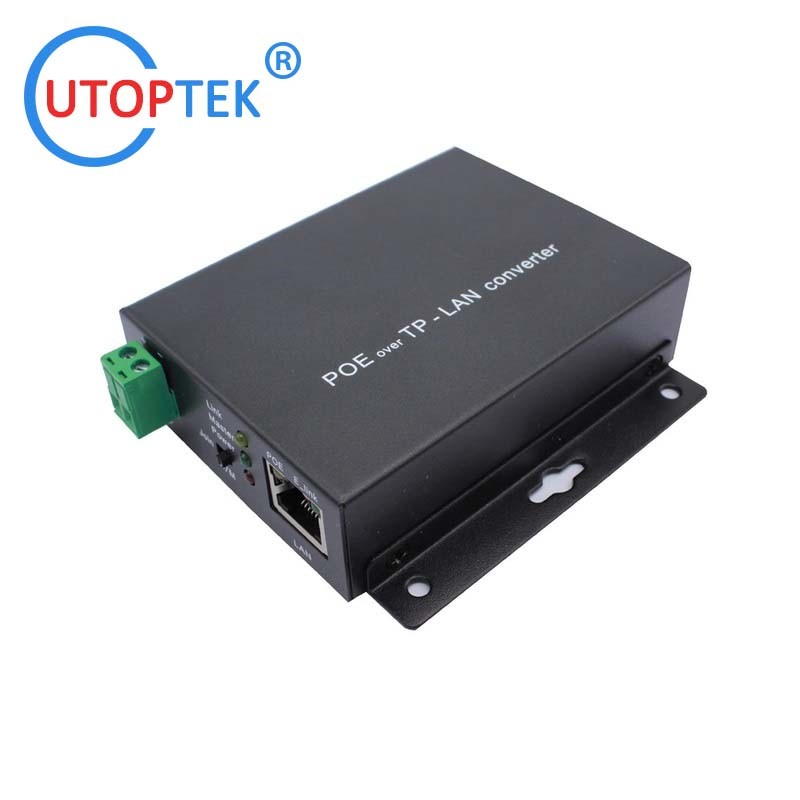

Products show:

UT-1E1EP-S/M POE RJ45 over 2wire TP-LAN extender EOC Converter 500meters for outdoor/indoor/elevator IP camera 0

Connection topology:

UT-1E1EP-S/M POE RJ45 over 2wire TP-LAN extender EOC Converter 500meters for outdoor/indoor/elevator IP camera 3

Order Models:

UT-1E1C-S/M	10/100Mbps 1LAN+1BNC, EOC Ethernet over Coaxial Extender,0~1.5km, Power Supply: DC12V	Pair
UT-1E2W-S/M	10/100Mbps 1LAN+22wire port, EOC Ethernet over twisted-pair cable Extender,0~1.5km, Power Supply: DC12V	Pair
UT-1EP1C-S/M	10/100Mbps 1LAN POE+1BNC, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V	Pair
UT-1EP2W-S/M	10/100Mbps 1LAN POE+12wire port, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V	Pair
