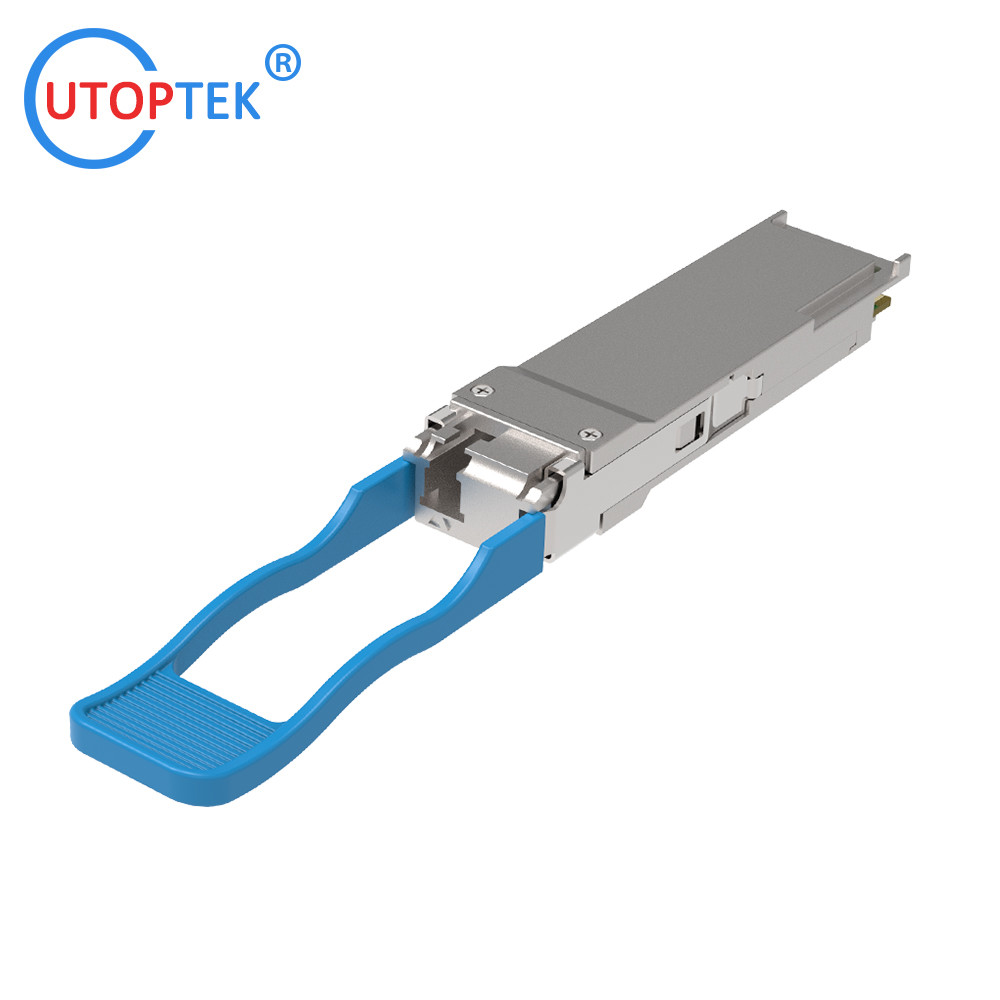

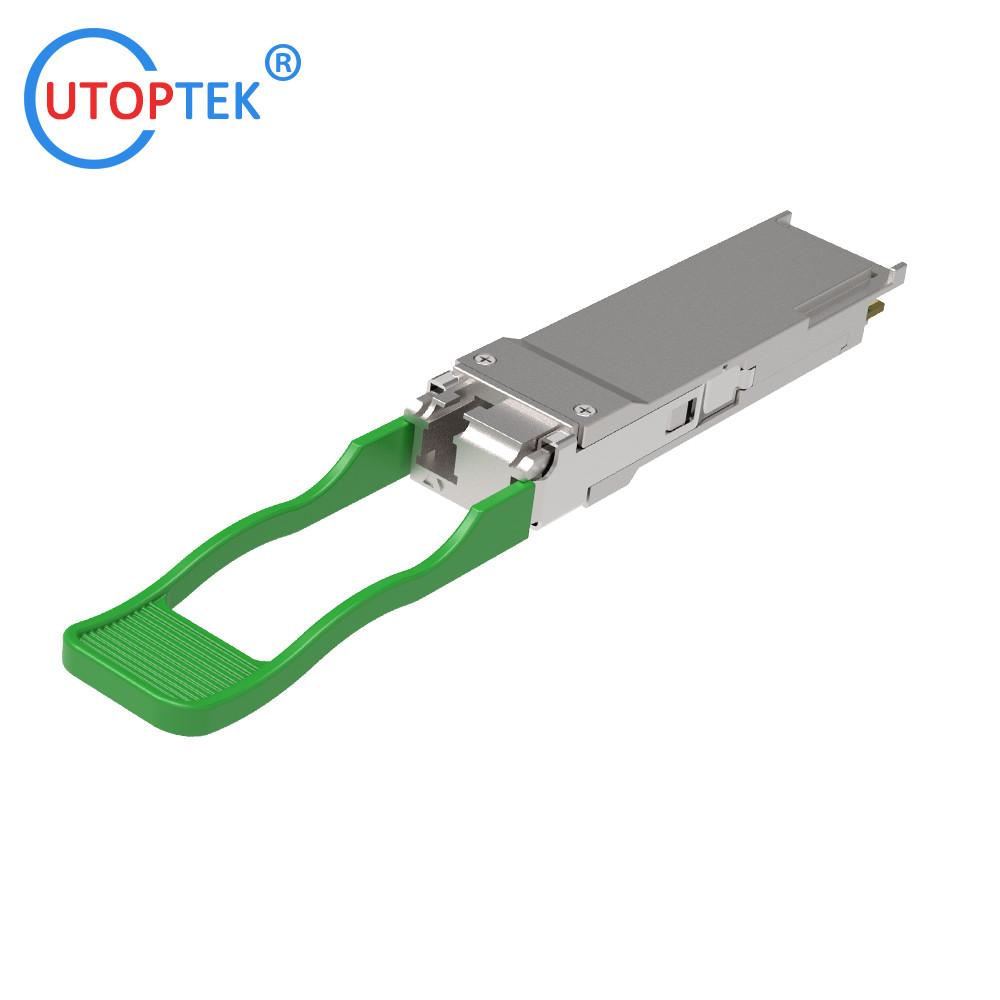

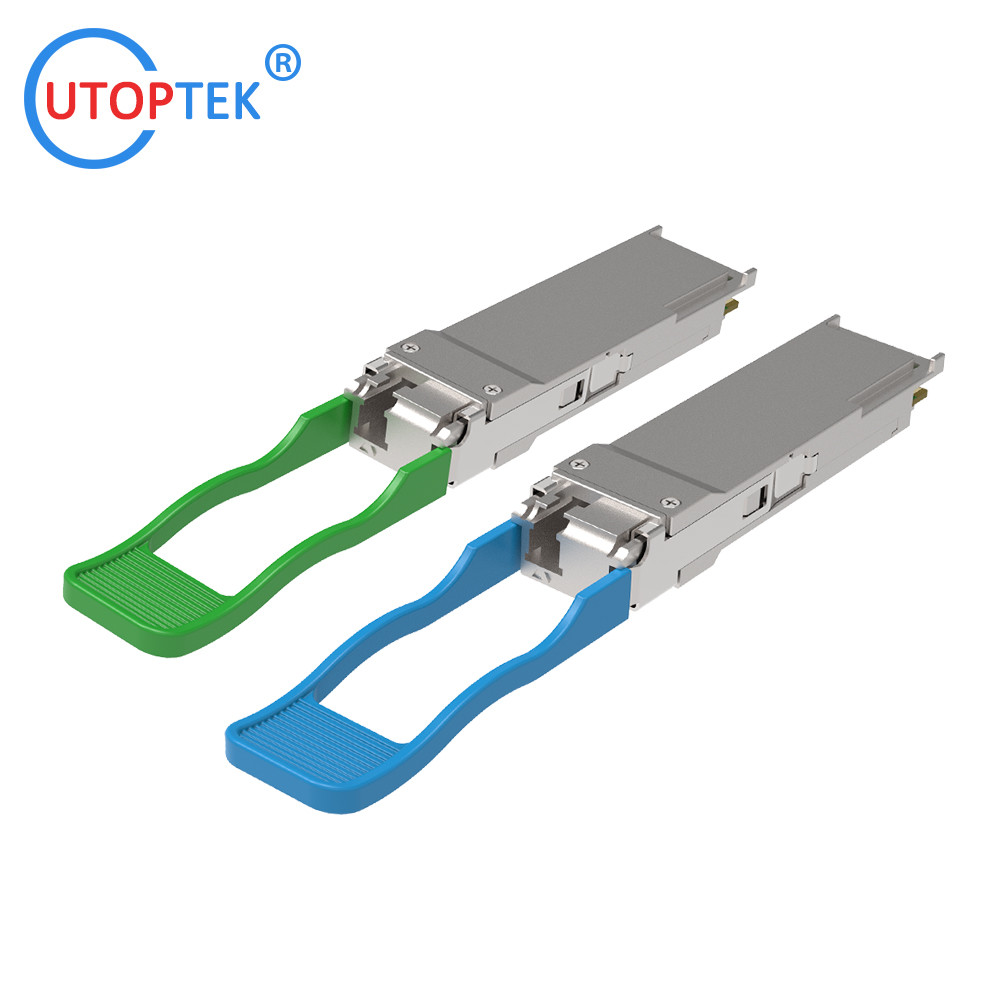

100G QSFP28 Bidi 30km Single mode single fiber LC Fiber optical 100G transceiver module

Name: 100G QSFP28 Bidi 30km Single mode single fiber LC Fiber optical 100G transceiver module
Brand: UTOPTEK
SKU: QSFP28-100G-BX30-U/D
Rating: 4.6 (171 reviews)

Minimum Order Quantity :	1pair	Packaging Details :	4pcs per tray
Delivery Time :	2-3working days	Payment Terms :	T/T, paypal, Western Union

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	QSFP28-100G-BX30-U/D

Detail Information
Speed:	100Gbps	Fiber Type:	Single Mode Single LC
Wavelength:	1305/1309nm	Fiber Connector:	LC Connector
Distance:	30km	Power Supply:	3.3V
Working Temperature:	0~70℃	Compatible:	Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..
Warranty:	3 Years	Package:	4pcs Per Tray

Product Description

QSFP28-100G-BX30-U/D 100G Bidi LC 30km Single mode 1305-1309nm optical QSFP28 transceiver 100G module

1.Product Features:

Supports 100GBASE-ER1 BIDI
Lane signaling rate 106.25Gb/s with PAM4
Up to 30km transmission on SMF
EML Laser and APD receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4)
Support KP4 FEC inside the module
High speed I/O electrical interface
I2C interface with integrated Digital Diagnostic monitoring
QSFP28 MSA package with simplex LC connector
Single +3.3V power supply
Power consumption <4W
Operating case temperature: 0 to +70 °C
Compliant to 802.3cu, SFF-8636&SFF-8679 standard
Compliant to 100G Lambda MSA 100G-ER1 Optical Specifications
Complies with EU Directive 2015/863/EU

2.Applications:

Data Center
100G Ethernet

3.Technical specifications:

Brand	UTOPTEK, OEM
Condition	100% New
Form Factor	QSFP28
Fiber Type	Single mode, Single LC
Wavelength:	1305-1309nm
Distance	30KM
Data Rate (max)	100Gb/s
Working Temperature (°C)	0°C~70°C
Storage Temperature (°C)	-40°C~+85°C
Relative Humidity	0~85%
Voltage Supply	3.3V
Power consuption	<2.5W
Connector	LC connector
Warranty	3 years
Compatible with	Cisco, Haiwei, HP etc.
Time of delivery	1-2 working days
Package	4pcs/box

5.Factory Show:

100G QSFP28 Bidi 30km Single mode single fiber LC Fiber optical 100G transceiver module 0

6.Compatibility:

100G QSFP28 Bidi 30km Single mode single fiber LC Fiber optical 100G transceiver module 1

100G QSFP28 Bidi 30km Single mode single fiber LC Fiber optical 100G transceiver module 2

7.Ordering Information:

100Gbps QSFP28 Transceiver
Part No.	Data Rate	Form Factor	Distance	Wavelength	Transmitter	Receiver	Interface	Temp.
QSFP28-100G-SR4	100Gb/s	QSFP28	100m	850nm	VCSEL	PIN	MPO	0-70℃
QSFP28-100G-LR4	100Gb/s	QSFP28	10km	1310nm	DFB	PIN	LC	0-70℃
QSFP28-100G-LR4-20	100Gb/s	QSFP28	20km	1310nm	DFB	PIN	LC	0-70℃
QSFP28-100G-ER4	100Gb/s	QSFP28	40km	1310nm	EML	APD	LC	0-70℃
QSFP28-100G-PSM4	100Gb/s	QSFP28	2km	1310nm	DFB	PIN	MPO	0-70℃
QSFP28-100G-CWDM4	100Gb/s	QSFP28	10km	1270-1330nm	CWDM EML	PIN	LC	0-70℃
QSFP28-100G-CWDM4	100Gb/s	QSFP28	2km	1270-1330nm	CWDM EML	PIN	LC	0-70℃
QSFP28-100G-ZR 60km	100Gb/s	QSFP28	60km	1310nm	EML	APD	LC	0-70℃
QSFP28-100G-ZR4	100Gb/s	QSFP28	80km	1310nm	EML	APD	LC	0-70℃
100G 100km
QSFP28-100G-BX10-U	100Gb/s	QSFP28	10km	1271-1331nm	EML	PIN	LC	0-70℃
QSFP28-100G-BX10-D	100Gb/s	QSFP28	10km	1331-1271nm	EML	PIN	LC	0-70℃
QSFP28-100G-BX20-U	100Gb/s	QSFP28	20km	1291-1311nm	EML	PIN	LC	0-70℃
QSFP28-100G-BX20-D	100Gb/s	QSFP28	20km	1311-1291nm	EML	PIN	LC	0-70℃
QSFP28-100G-BX30-U	100Gb/s	QSFP28	30km	Tx1305/Rx1309nm	EML	APD	LC	0-70℃
QSFP28-100G-BX30-D	100Gb/s	QSFP28	30km	Tx1309/Rx1305nm	EML	APD	LC	0-70℃
QSFP28-100G-BX40-U	100Gb/s	QSFP28	40km	Tx1305/Rx1309nm	EML	APD	LC	0-70℃
QSFP28-100G-BX40-D	100Gb/s	QSFP28	40km	Tx1309/Rx1305nm	EML	APD	LC	0-70℃
