1/2/4/8/16 port Bidirectional Contact closure to Fiber Converter SC/FC/ST connector optional Fiber media Converter for infrared alarm system using

Minimum Order Quantity :	1pair	Delivery Time :	3-5Working days
Payment Terms :	Western Union, T/T, Paypal, Alipay

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-4DCC-S20-T/R

Detail Information
Interface:	1~16 Dry Contact Closure Port, 1Fiber Port	Fiber Connector:	SC/FC/ST Optional
Fiber Type:	SM Or MM, Single Fiber Or Dual Fiber Optional	Fiber Distance:	MM (2KM); SM (20km/40km/80km) Optional
Transmission Way:	Bidirectional Or Unidirectional	Working Temperature:	-10℃ To 60℃
Size:	95mm70mm25mm	Warranty:	1 Year
Power Supply:	DC12V 1A

Product Description

1-16CH Dry Contact Closure optical Converter Multiplexer

(FC/SC/ST Connector optional )

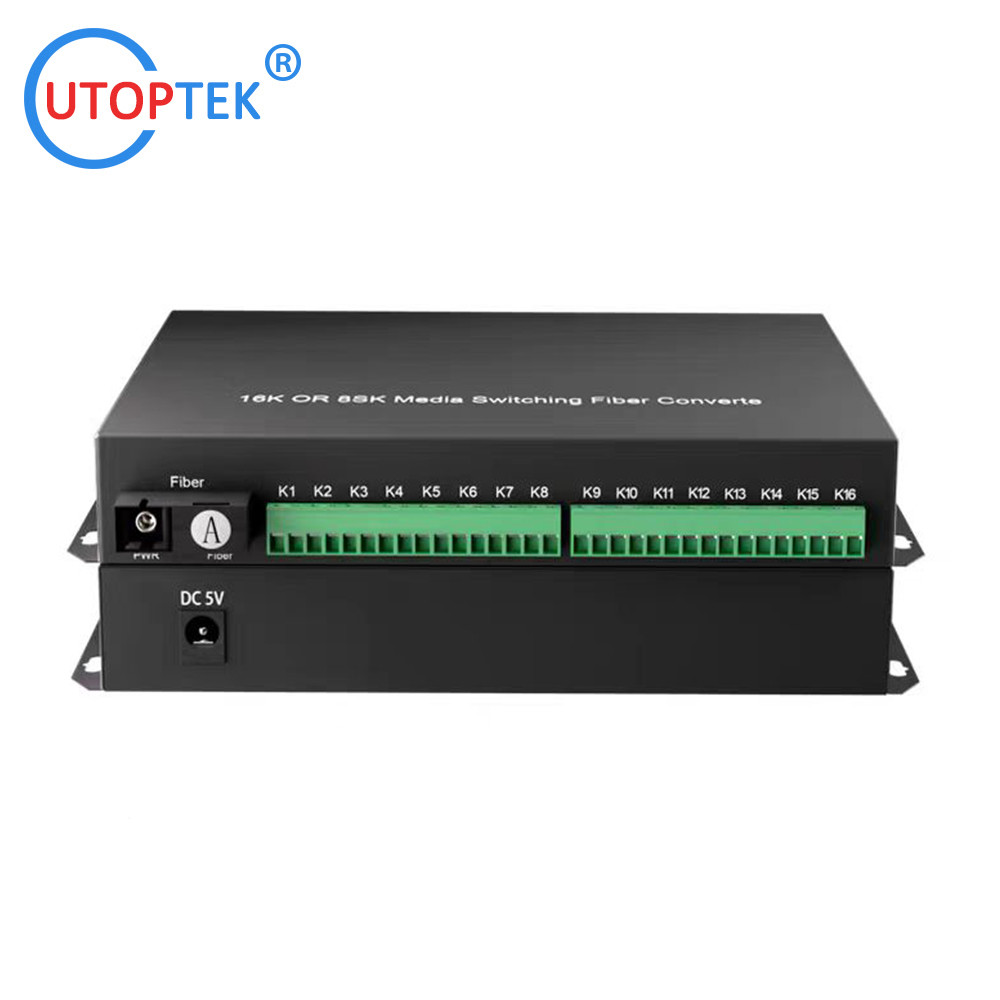

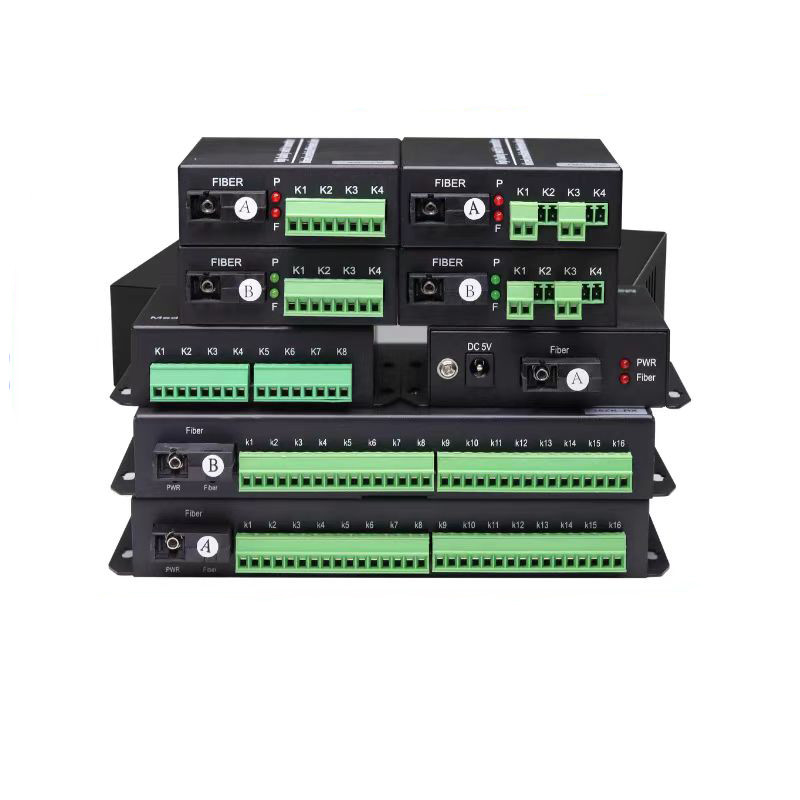

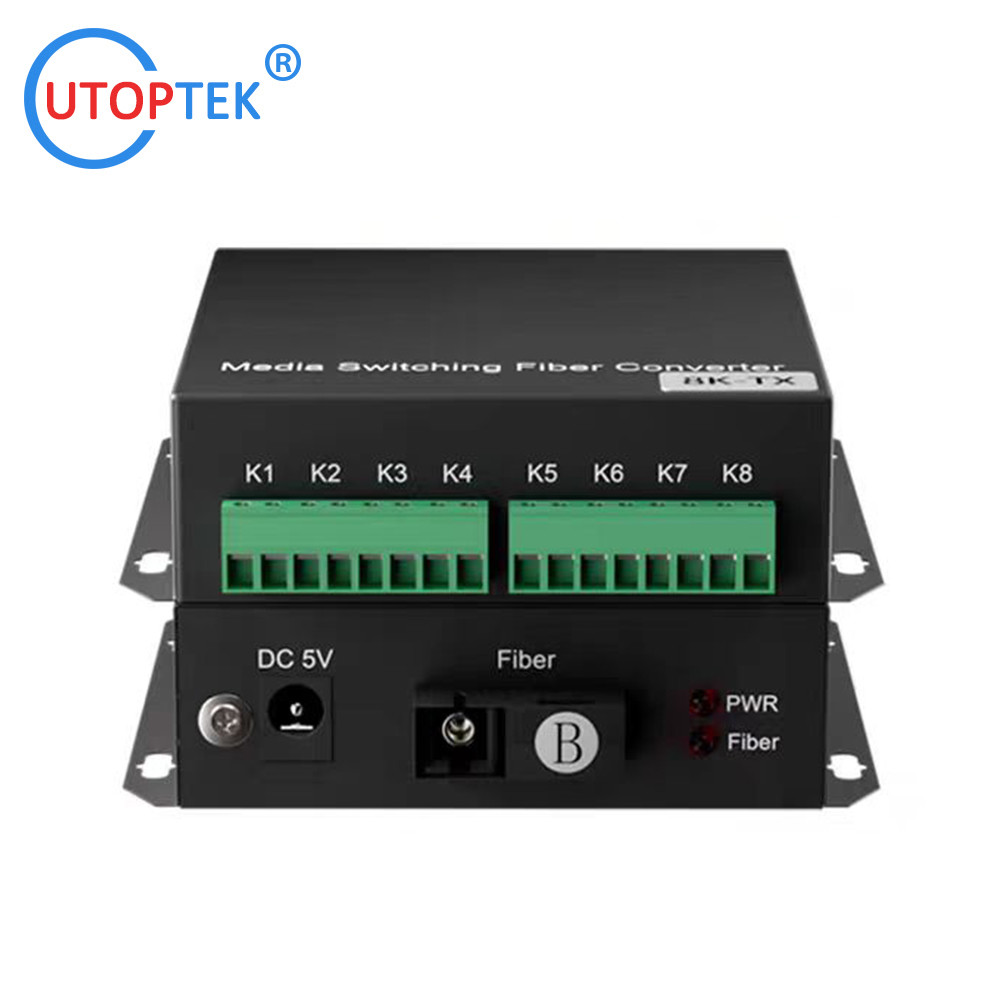

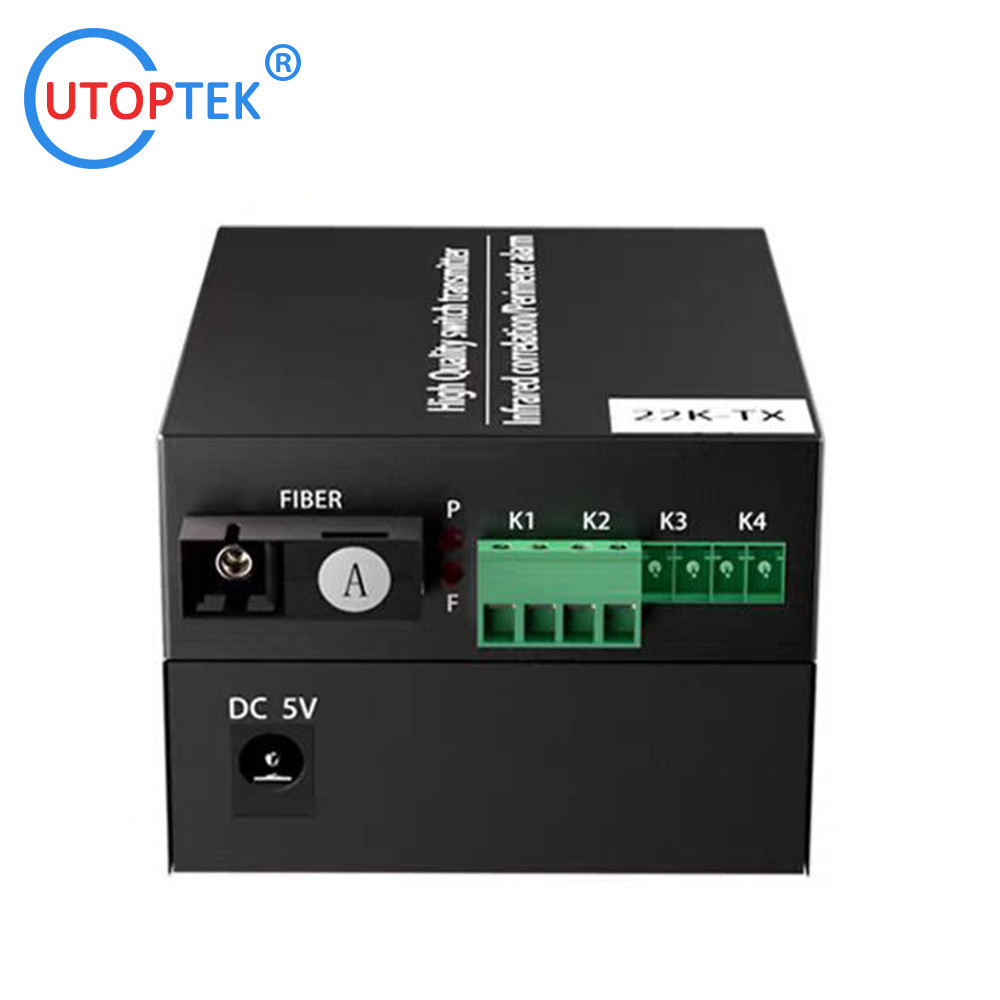

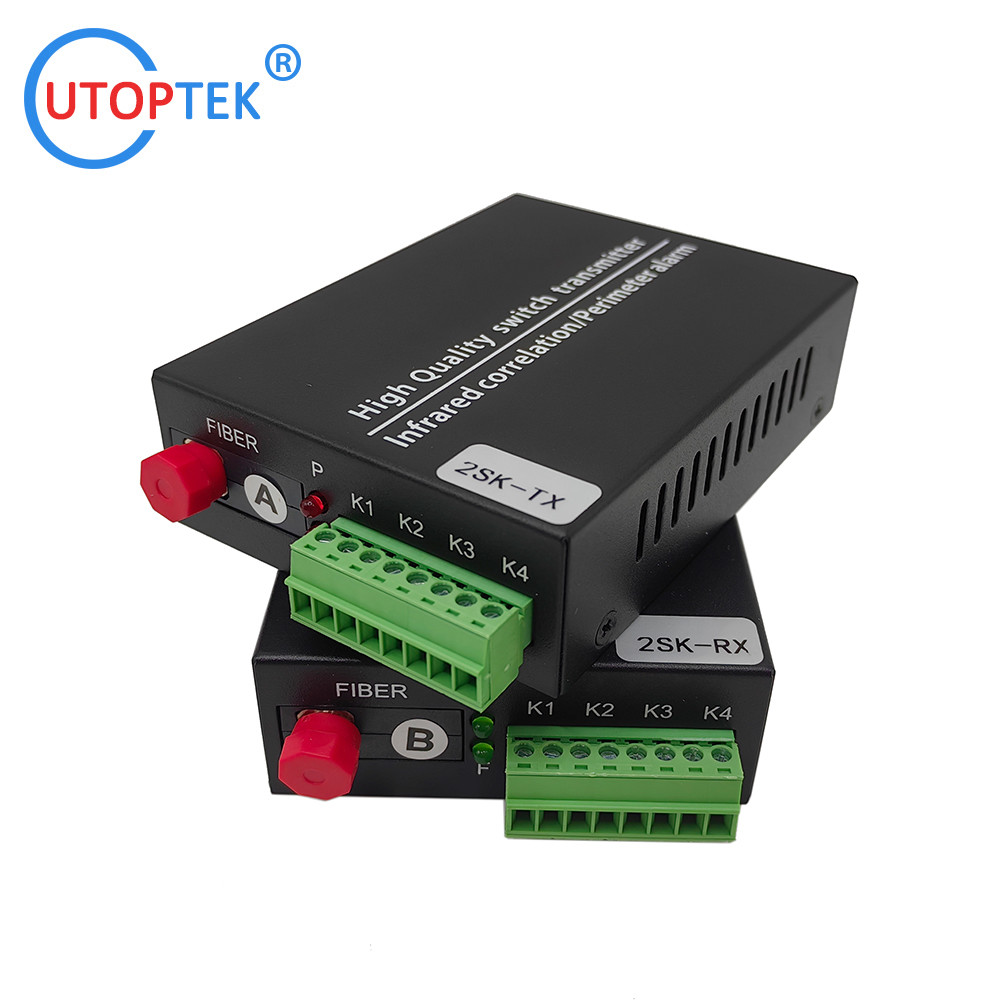

1/2/4/8/16 port Bidirectional Contact closure to Fiber Converter SC/FC/ST connector optional Fiber media Converter for infrared alarm system using 0

1. Overview

The 1~16Channels series optical transceiver is designed for anti-theft alarm, PLC control, dry point trigger, button switch start / stop control. it has 1-way, 2-way, 4-way, 8-way, 16 way contact closure unidirectional /bidirectional and other specifications to meet different user application places. The limit transmission distance of the cable can be extended from 100m to 100km. it not only extend the transmission distance, but also has strong anti-interference, low power consumption, high stability, and built-in lightning protection components. lt has many advantages such as good data confidentiality, stable work and easy maintenance, which effectively avoids the threat of lightning strikes, surges and electro magnetic interference to communication equipment under bad environment.

2. Features:

1-16CH switching interface, 1 port SC/FC/ST fiber port optional;
Multi scene application: smoking / infrared / alarm /switching on or off control;
The optical link and the electrical link have complete connection / activity status indicators;
The fiber interface supports three transmission modes: single-mode single fiber, single-mode dual fiber and multi-mode dual fiber;
Easy to use, plug and play, without any settings;
Double hole heat dissipation design, low power consumption, can ensure long-term stable work.

3. Application

Urban Intelligent Transportation Monitoring System (ITS)
Highway monitoring/communication system
Electric/Hydraulic Safety Monitoring System
Large scale factory and mining enterprise security monitoring system
Remote multimedia teaching/campus monitoring
Long distance broadcasting transmission system
Building control system
Military communication

4. Technical sheet

Model	Model Number: UT-4DCC-FC40-T/R
Working Mode	Transmitter: Passive dry point triggering signal Receiver: Relay voltage range: DC0-24V
Terminal port connection	Dry contact closure terminal: industrial Phoenix terminal Wiring port: 2-wire system Contact closure port: K1/K2/K3/K4/K5/K6/K7/K8/K9/K10/K11/K12/K13/K14/K15/K16
Optical port parameters	Optical port:SC/FC/ST single mode/multi-mode/single fiber/dual fiber optional Transmission speed:155Mbps Fiber wavelength:850nm/1310nm/1550nm Fiber type: single mode 9/125um; Multi-mode 50/125ym,62.5/125um Transmission distance :550m~100km
Power supply	Power type: external power Power input voltage :AC100V~240V 50/60Hz Power plug: DC plug Working voltage :DC5V Power consumption:2.2W~4.5W
Working condition	Storage temperature :-40~70℃ Working temperature :-10~55'C Working humidity :5%~90% No condensation
Dimension	Size: 95x70x25mm(1-4ch) 95x100x25mm(8ch) 185x150x25mm(16ch)
Weight	0.50kg/pcs (product body)

Order Information

Model	Description	unit
UT-2UCC-S20-T/R	2Ch Dry Contact Closure to fiber SC 20km, Unidirectional	pair
UT-4UCC-S20-T/R	4Ch Dry Contact Closure to fiber SC 20km, Unidirectional	pair
UT-8UCC-S20-T/R	8Ch Dry Contact Closure to fiber SC 20km, Unidirectional	pair
UT-16UCC-S20-T/R	16Ch Dry Contact Closure to fiber SC 20km, Unidirectional	pair
UT-1DCC-S20-T/R	1Ch Dry Contact Closure to fiber SC 20km, Bidirectional	pair
UT-2DCC-S20-T/R	2Ch Dry Contact Closure to fiber SC 20km, Bidirectional	pair
UT-4DCC-S20-T/R	4Ch Dry Contact Closure to fiber SC 20km, Bidirectional	pair
UT-8DCC-S20-T/R	8Ch Dry Contact Closure to fiber SC 20km, Bidirectional	pair

(Remark: ST/SC/FC Fiber connector Optional; optical distance:20/40/60/80km optional)

Connection Topology:

1/2/4/8/16 port Bidirectional Contact closure to Fiber Converter SC/FC/ST connector optional Fiber media Converter for infrared alarm system using 1

1/2/4/8/16 port Bidirectional Contact closure to Fiber Converter SC/FC/ST connector optional Fiber media Converter for infrared alarm system using
