Home ProductsSFP Transceiver400G QSFP-DDCisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module
Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module
Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module
Contact Now

Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module

Minimum Order Quantity : 1 Packaging Details : 5pcs per tray
Delivery Time : 2-3working days Payment Terms : T/T, Western Union,Alipay, Credit Card, Visa etc.
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: QSFP-DD-400G-SR8

Detail Information
Speed: 400Gbps Fiber Type: Multi Mode
Wavelength: 850nm Fiber Connector: MPO-16 Connector
Distance: 100m Power Supply: 3.3V
Working Temperature: 0~70℃ Compatible: Cisco,Huawei,HP,H3C,Juniper,Extreme Etc..
Warranty: 3 Years Package: 5pcs Per Tray

Product Description

Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module



1.Product Features:

  • QSFP-DD MSA compliant
  • 8 parallel lanes on 850nm center wavelength
  • Compliant to IEEE 802.3bs Specification
  • Maximum link length of 70m on OM3 and 100m on OM4
  • Operating case temperature: 0 to 70℃
  • 8x53.125Gb/s electrical interface (400GAUI-8)
  • Data Rate 53.125Gbps (PAM4) per channel
  • Maximum power consumption 8W
  • MPO-16 connector



2.Applications:

  • 400G Ethernet
  • Data Center Interconnect
  • Data center Enterprise networking



3.Technical specifications:

Brand UTOPTEK, OEM
Condition 100% New
Form Factor QSFP-DD
Fiber Type Multi mode
Wavelength: 8500nm
Distance 100M
Data Rate (max) 400Gb/s
Working Temperature (°C) 0°C~70°C
Storage Temperature (°C) -40°C~+85°C
Relative Humidity 0~85%
Voltage Supply 3.3V
Power consuption <2.5W
Connector MPO-16 connector
Warranty 3 years
Compatible with Cisco, Haiwei, HP etc.
Time of delivery 1-2 working days
Package 5pcs/box

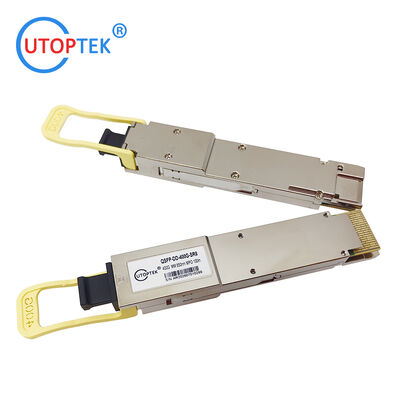

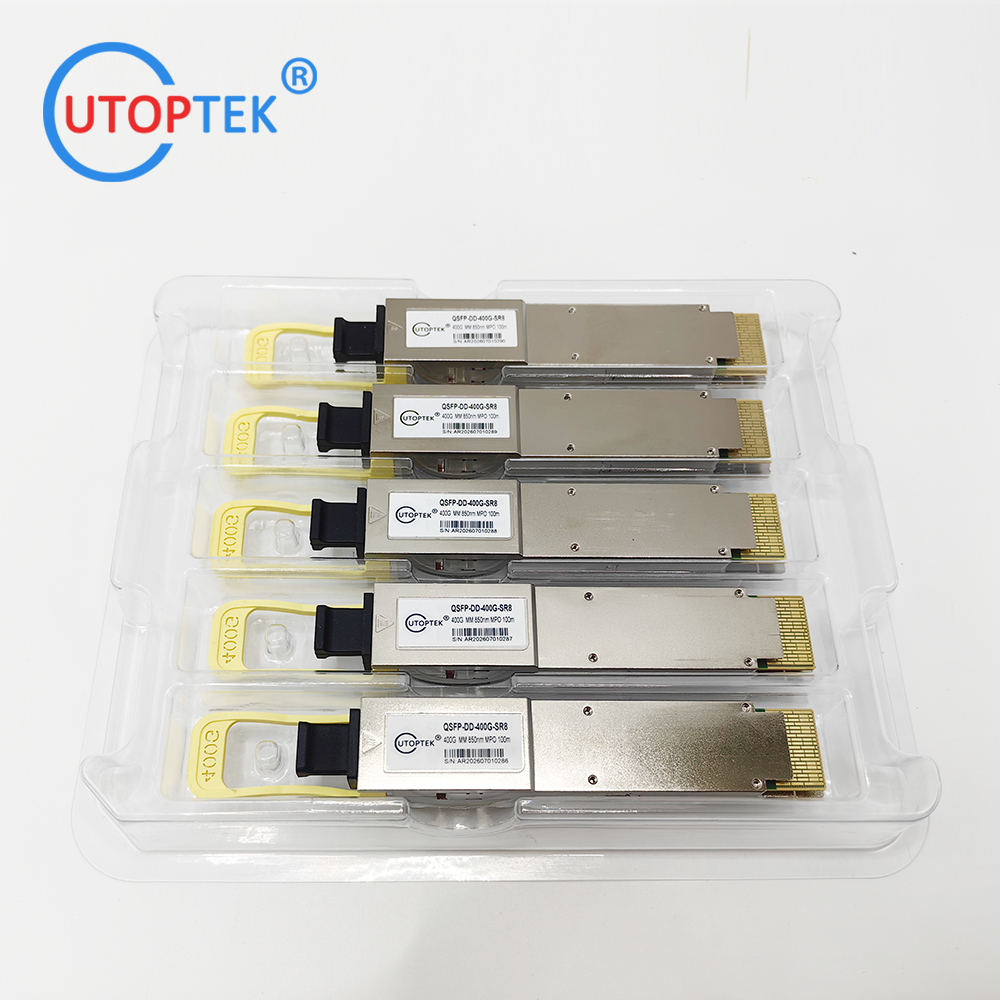

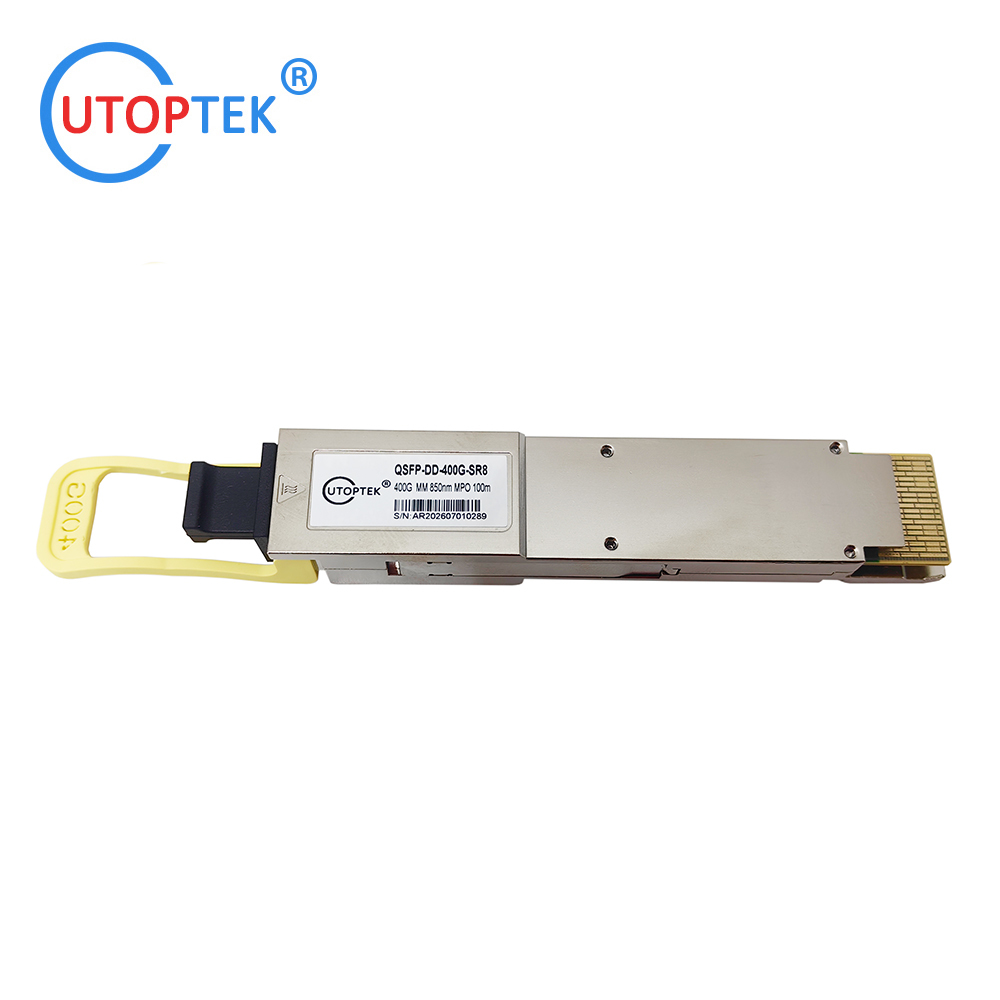

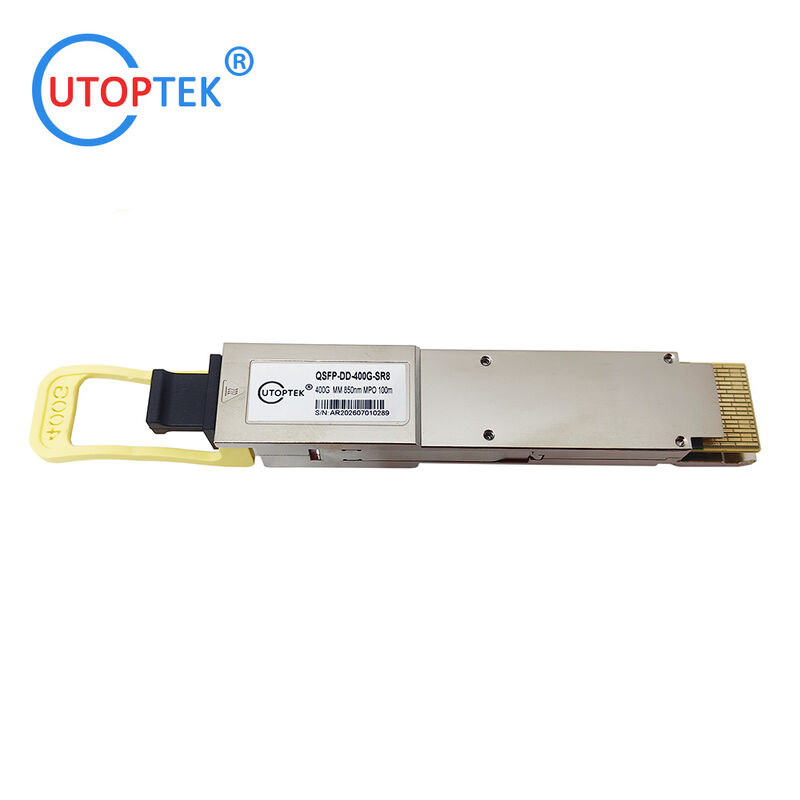

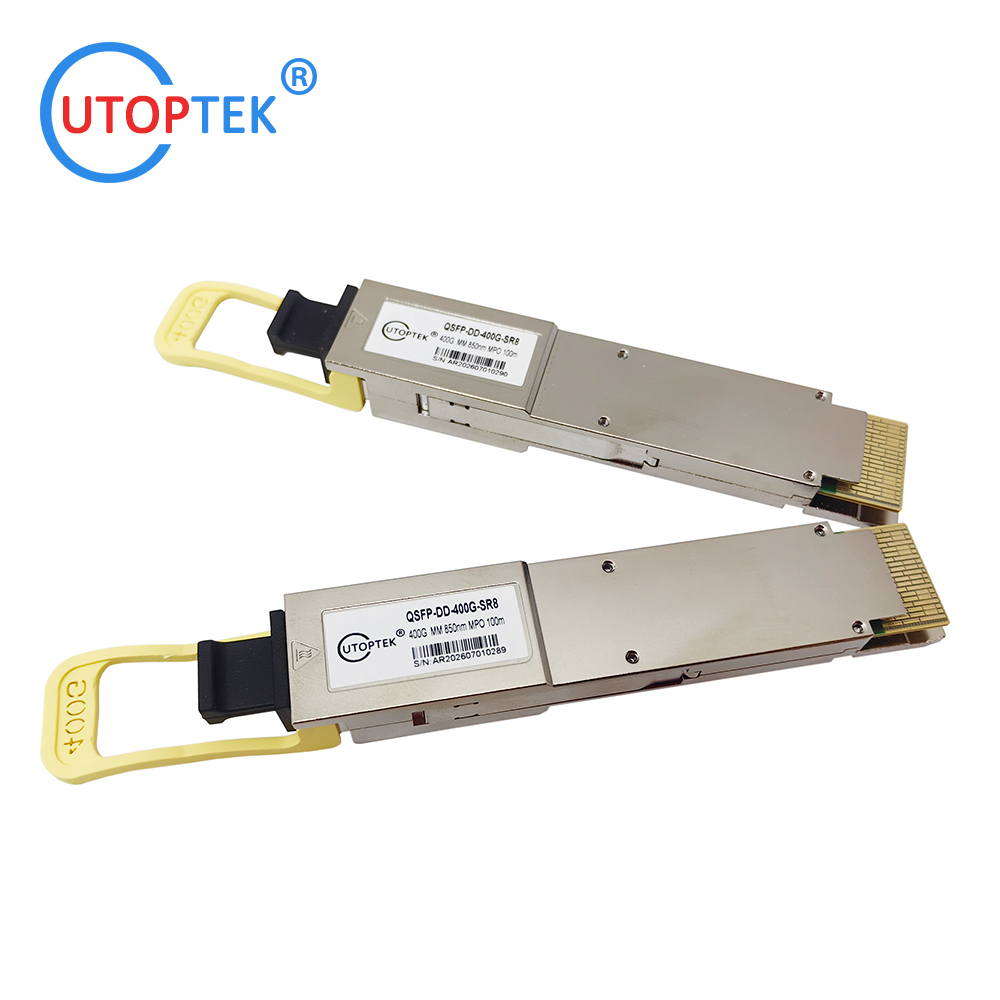

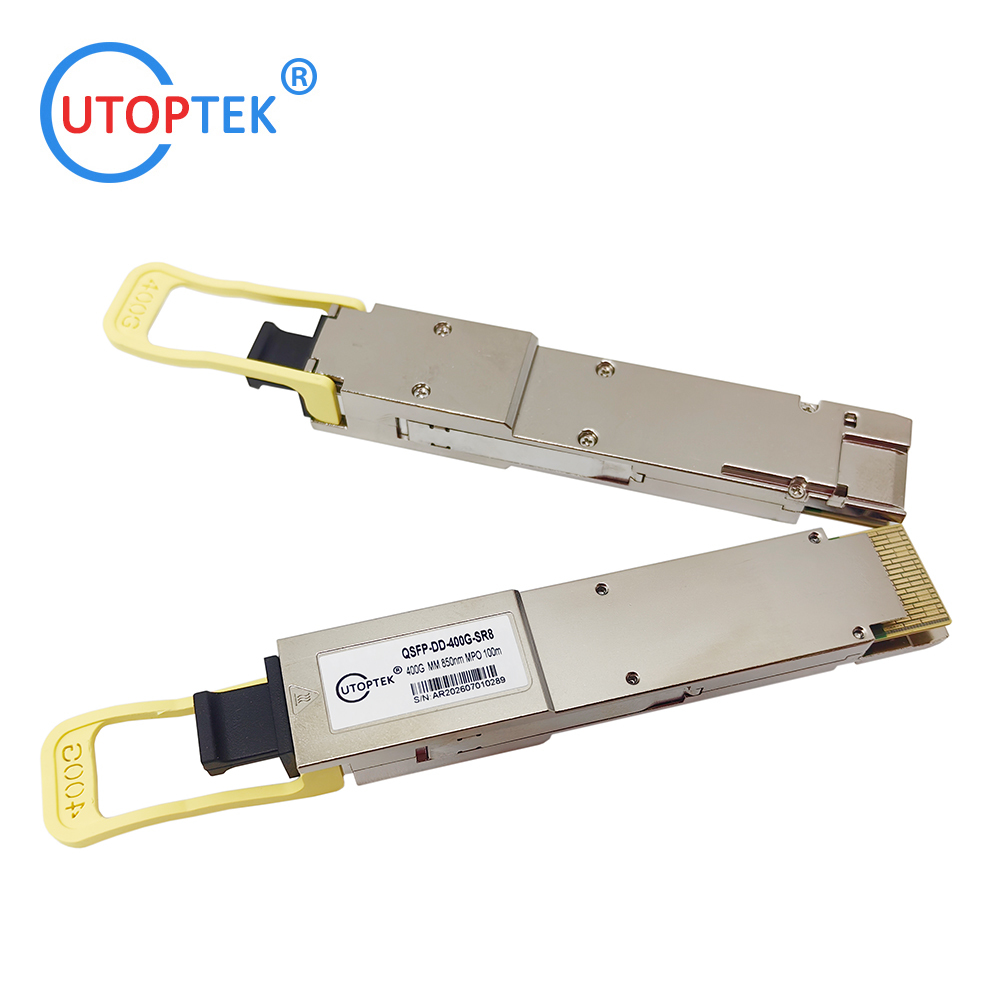

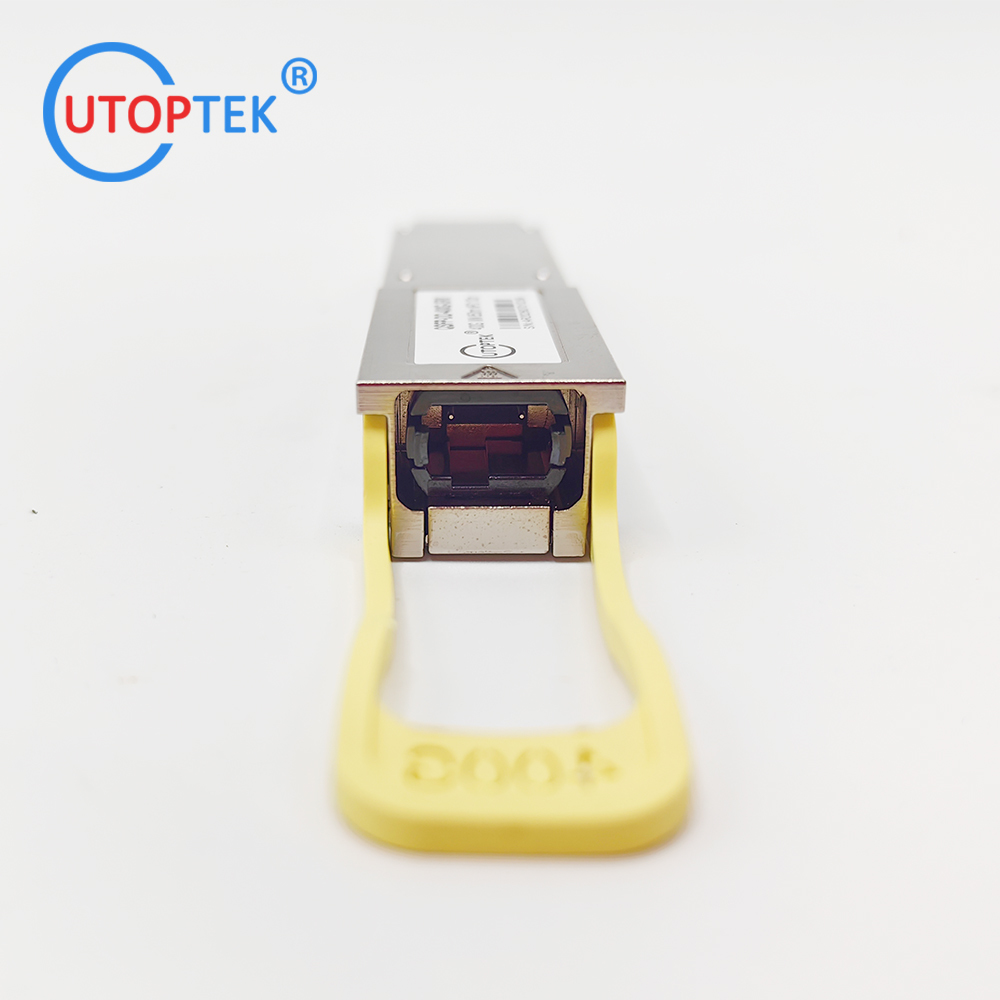

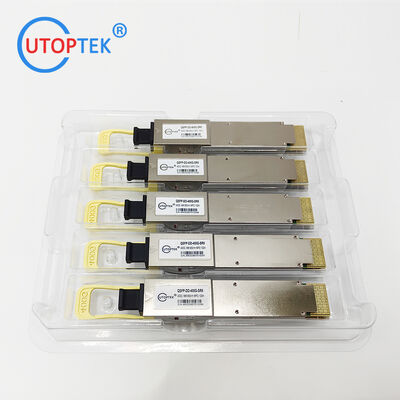

4. Detailed photoes:



Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver ModuleCisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver ModuleCisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver ModuleCisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver ModuleCisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module



Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module
5.Factory Show:

Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module

6.Compatibility:

Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module

Cisco Compatible 400Gb/s QSFP-DD SR8 850nm VCSEL MPO-16 100m Optical Transceiver Module



7.Ordering Information:



400Gbps QSFPDD Transceiver
Part No. Data Rate Form Factor Distance Wavelength Laser optical power Interface DDM
QSFP-DD-400G-SR8 400G QSFP-DD 100m 850nm VCSEL PIN MPO-16 0-70℃
QSFP-DD-400G-SR4 400G QSFP-DD 100m 850nm VCSEL PIN MPO-16 0-70℃
QSFP-DD-400G-DR4 400G QSFP-DD 500m 1310nm EML PIN MPO-12 0-70℃
QSFP-DD-400G-FR4 400G QSFP-DD 2km CWDM4 EML PIN LC-Duplex 0-70℃
QSFP-DD-400G-LR4 400G QSFP-DD 10km 1310nm EML PIN LC-Duplex 0-70℃
QSFP-DD-400G-LR8 400G QSFP-DD 10km 1310nm EML PIN LC-Duplex 0-70℃
QSFP-DD-400G-ER4 400G QSFP-DD 40km 1310nm EML APD LC-Duplex 0-70℃
QSFP-DD-400G-ER8 400G QSFP-DD 40km 1310nm EML APD LC-Duplex 0-70℃
QSFP-DD-400G-ZR 400G QSFP-DD 80km 1310nm EML APD LC-Duplex 0-70℃
OSFP-400G-SR8 400G OSFP 100m 850nm VCSEL PIN MPO-16 0-70℃
OSFP-400G-DR4 400G OSFP 500m 1310nm EML 1310nm PIN MPO/MTP 0-70℃
OSFP-400G-FR4 400G OSFP 2KM CWDM4 EML CWDM PIN LC 0-70℃
