Mini 10/100/1000m Fiber Optic Sc Media Converter gigabit mini fiber media converter with cheap price

Minimum Order Quantity :	2pcs	Packaging Details :	60pcs/Carton, 574350CM, G.W.:22Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-MC1001-S20

Product Description

Order Models:

Mini size Media Converter List
Model	Speed	Fiber Type		Wavelength	Dist.	Optical port
UT-MC101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:850nm	2km	SC
UT-MC101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:1310nm	2km	SC
UT-MC101-S20	10/100Base-Tx to 100Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC101-SFP	10/100Base-Tx to 100Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP

UT-MC1001-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:850nm	550m	SC
UT-MC1001-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:1310nm	550m	SC
UT-MC1001-S20	10/100/1000Base-Tx to 1000Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC1001-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC1001-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC1001-SFP	10/100/1000Base-Tx to 1000Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP
For long distance: 20/40/60/80/100/120km, pls contact our sales.

Overview:

This compact Fiber Media Converter transforms 100Base-T (Copper) media to 100Base-SX/LX (Fiber) media and vice versa.

The 100Base-T RJ-45 port supports a full duplex connection at wire speed.

The Fiber optical supports both multimode (SX) or single-mode (LX) fiber port.

Features:

Technical sheet:

Fixed Port	1*10/100/1000Base--TX RJ45 port (Data)
Fixed Port	1*1000M Optical Fiber Port
Network Protocol	IEEE802.3
	IEEE802.3i 10BASE-T
	IEEE802.3u100BASE-TX
	IEEE802.3ab 1000BASE-TX/FX
Port Specification	10/100/1000BaseT(X) Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	1024Mbps
Packet Forwarding	7.2Mpps
MAC Address	4K
Buffer	2.5M
MTBF	>100,000 hours
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter)
	100BASE-TX : Cat5 or later UTP(100 meter)
	1000BASE-TX : Cat5 or later UTP(100 meter)
	Multi mode double fiber(MAX 850M/2KM)
	Single mode double fiber (default 20KM)
	Single mode single fiber(default 20KM)
	Optional 3-120KM Optical Fiber Module
Watt	≤5W
LED Indicator	PWR:Power LED
	PDX:Working status LED
	TX :Network Port LED
	FX:(Optical fiber LED)
	Link/Act(Optical Fiber Port State LED)
Power	External power: DC5V ; Input: AC100~240V;50/60Hz
Operating Temperature/Humidity	0～+70°C; 5%～90% RH Non coagulation
Storage Temperature/Humidity	-20～+75°C; 5%～95% RH Non coagulation
Product size/Packing size(LWH)	61mm44mm22mm
Product size/Packing size(LWH)	230mm125mm55mm
N.W/G.W(kg)	0.05kg/0.23kg
Installation	Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level	3KV 8/20us
Lightning Protection level	IP30
Certificate	CE mark, commercial; CE/LVD EN60950；
Certificate	FCC Part 15 Class B; RoHS; CNAS;MA
Warranty	Whole device for 1 year

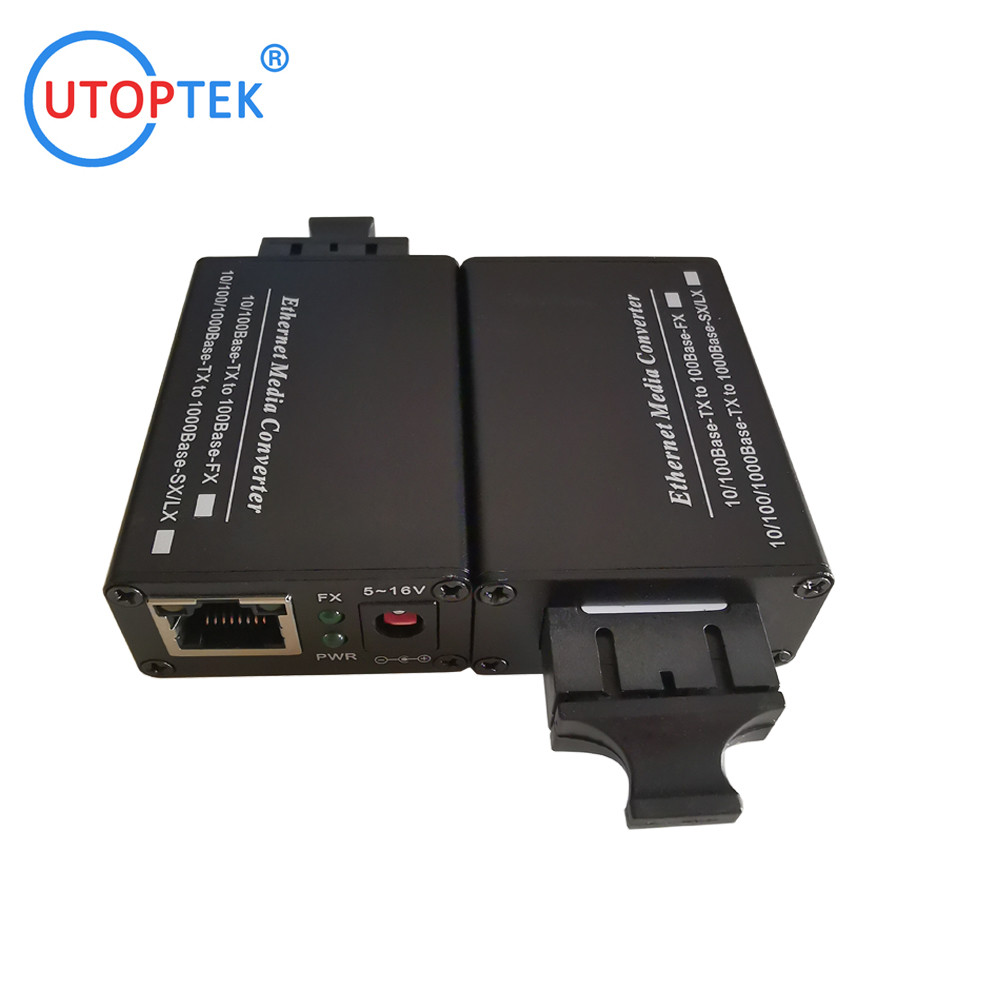

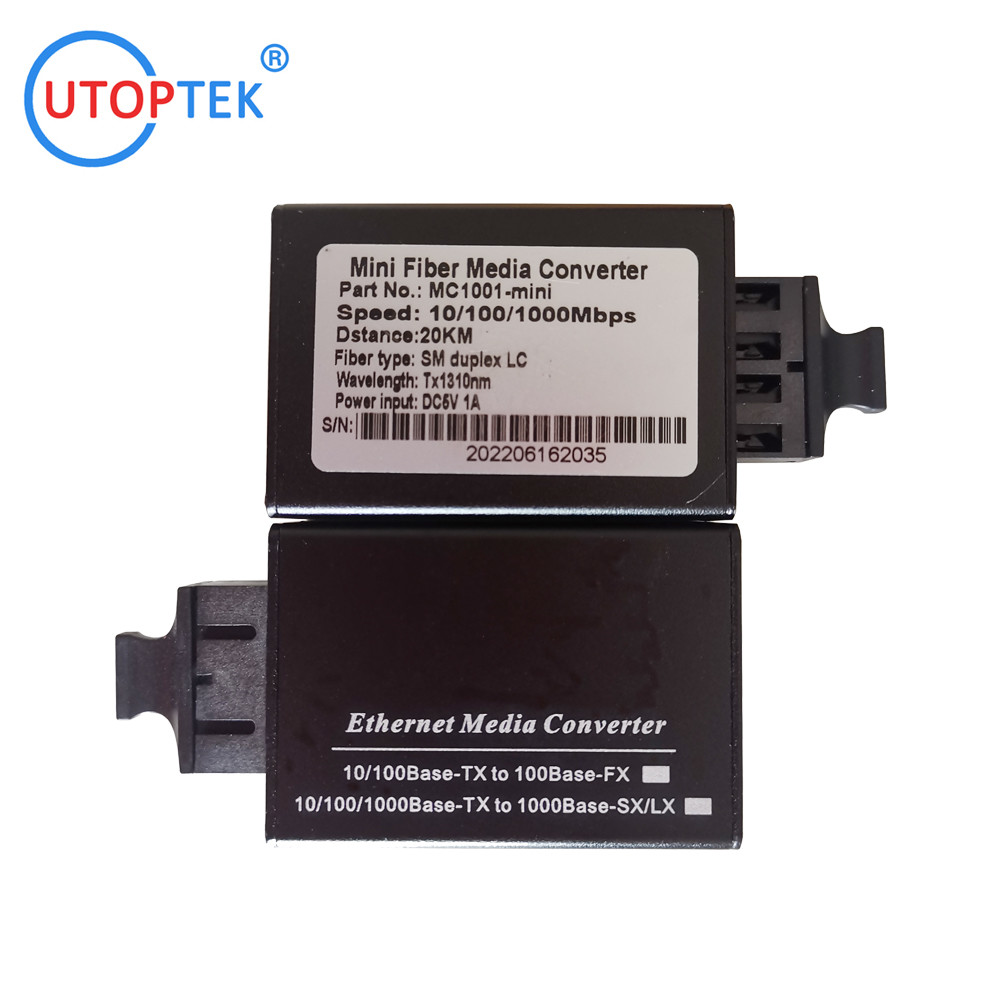

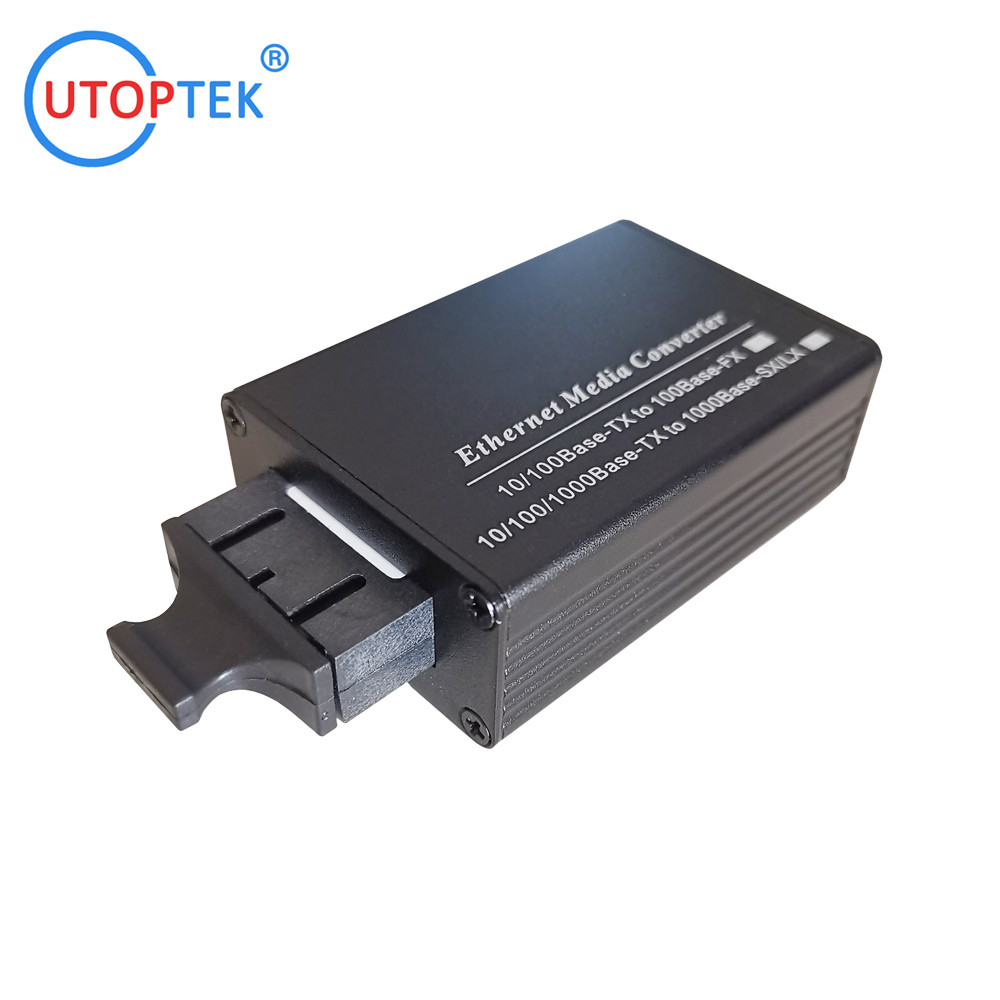

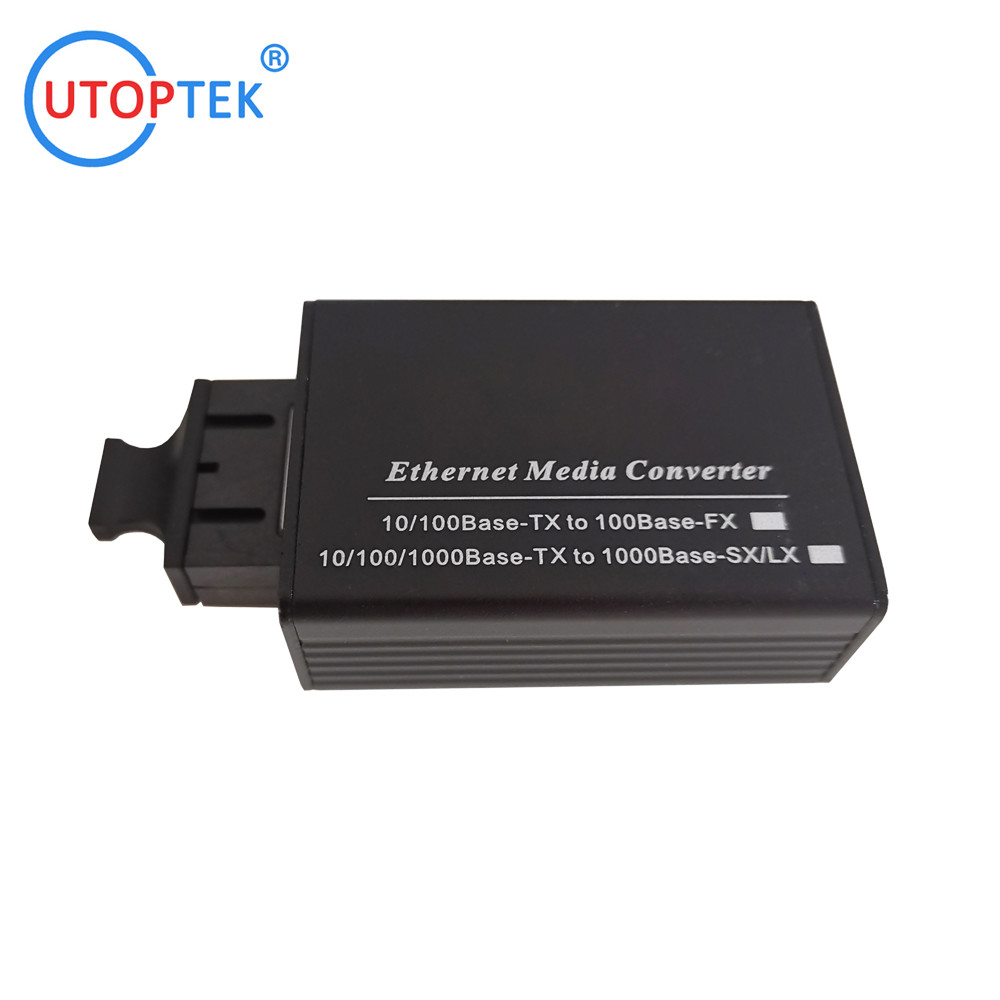

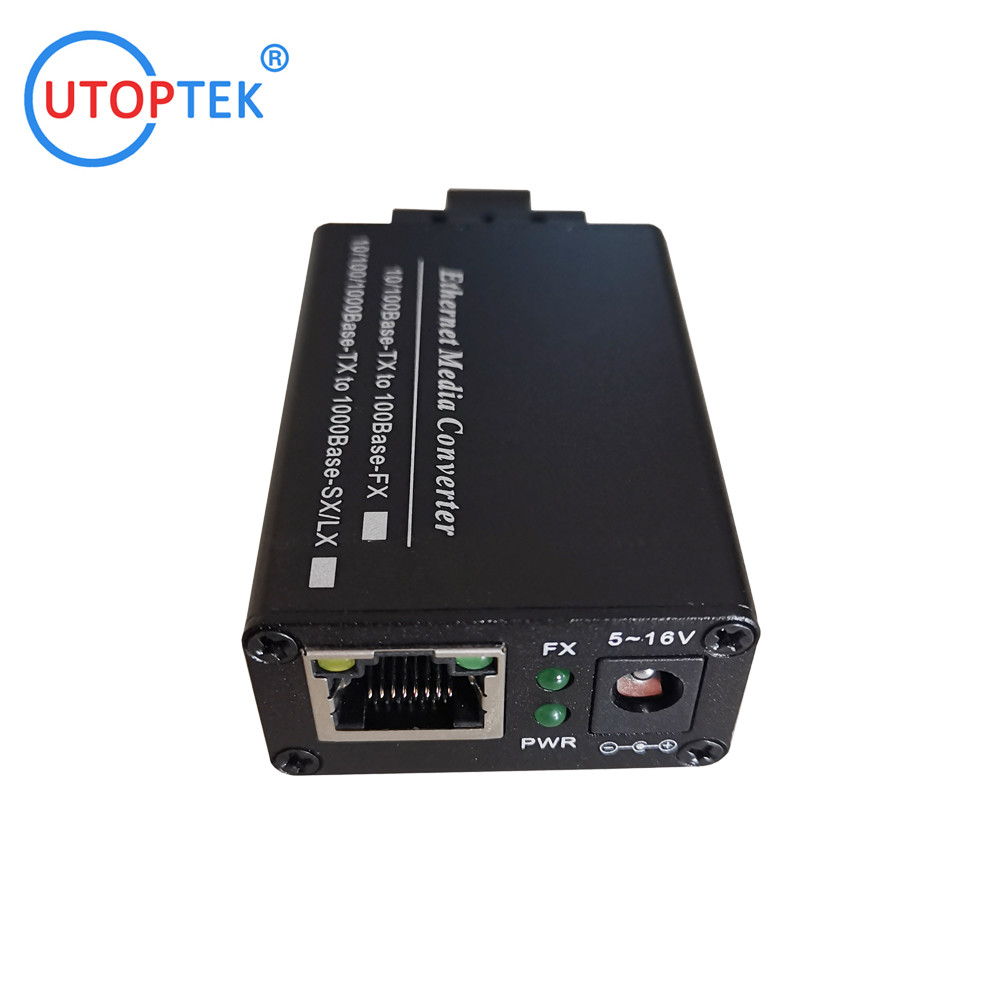

Products show:

Mini 10/100/1000m Fiber Optic Sc Media Converter gigabit mini fiber media converter with cheap price 0

Mini 10/100/1000m Fiber Optic Sc Media Converter gigabit mini fiber media converter with cheap price 5

Connection topology:

Mini 10/100/1000m Fiber Optic Sc Media Converter gigabit mini fiber media converter with cheap price 6
