10g Base-T to 10G Base-R Optical Media Converter Fiber Optic Cheap Price 10G media converter mini

Name: 10g Base-T to 10G Base-R Optical Media Converter Fiber Optic Cheap Price 10G media converter mini
Brand: UTOPTEK
SKU: UT-MC10G-SFP
Rating: 4.9 (138 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	40pcs/Carton, 574535CM, G.W.:16Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-MC10G-SFP

Detail Information
Product Name:	10G Fiber Media Converter	Interface:	1 Fiber SFP+1 RJ45 Port
Fiber Type:	Depends On SFP	Fiber Connector:	LC
Power Input:	DC5~12V 3A	Speed:	1000M/2.5G/5G/10G
Distance:	Depends On SFP	Wavelength:	Support All Wavelength
Warranty:	12months	Product Size:	140x100x30mm
N.W/G.W(kg):	0.2kg/0.38kg	Housing Material:	Iron
Shell Thickness:	1.1mm	Operating Temperature:	0～+70°C

Product Description

Order Models:

Model	Speed	Fiber Type		Wavelength	Dist.	Optical port
UT-MC2101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:850nm	2km	SC
UT-MC2101-S02	10/100Base-Tx to 100Base-FX	MM	Dual fiber	TRx:1310nm	2km	SC
UT-MC2101-S20	10/100Base-Tx to 100Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC2101-S20A/B	10/100Base-Tx to 100Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC2101-SFP	10/100Base-Tx to 100Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP

UT-MC3101-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:850nm	550m	SC
UT-MC3101-S05	10/100/1000Base-Tx to 1000Base-FX	MM	Dual fiber	TRx:1310nm	550m	SC
UT-MC3101-S20	10/100/1000Base-Tx to 1000Base-FX	SM	Dual fiber	TRx:1310nm	20km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1550nm	20km	SC
UT-MC3101-S20A/B	10/100/1000Base-Tx to 1000Base-FX	SM	Single fiber	1310/1490nm	20km	SC
UT-MC3101-SFP	10/100/1000Base-Tx to 1000Base-FX	SM/MM	SF/DF	depends on SFP	0~120km	SFP
UT-MC10G-SFP	10G Base-Tx to 10G Base-R	SM/MM	SF/DF	depends on SFP	0~100km	SFP+
For long distance: 20/40/60/80/100/120km, pls contact our sales.

Overview:

The UT-MC10G-SFP is 10G Base-T to 10G Base-R Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19’’ converter rack Chassis for use at a central wiring closet.

Technical sheet:

Ethernet port	RJ45
Optical port	SFP+ Slots
Protocols	1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T
Protocols	1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R
Media Supported	1000Base-T: Cat5 UTP/STP. MAX 100m;
	2.5GBase-T: Cat5e UTP/STP. MAX 50m;
	5GBase-T: Cat5e UTP/STP. MAX 50m;
	10G Base-T: Cat6a UTP/STP. MAX 50m;
Cable	UTP cable: Cat 6a (the max distance up to 100m) Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 300m) singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km)
Work Mode	1000Base-T to 1000Base-X
	2.5GBase-T to 2500Base-X
	5Gbase-T to 5GBase-R
	10Gbase-T to 10GBase-R
Power Supply	AC 220V(170-260V) 50Hz; 5-12V DC, 3A
Power consumption	Max. 5W
Operation Temperature	0℃ to 55℃
Storage temperature	-20 ～ +70℃
Relative Humidity	5% ～ 90%
Dimensions	External Power: 30 (high) x 100 (width) x140 (length) mm

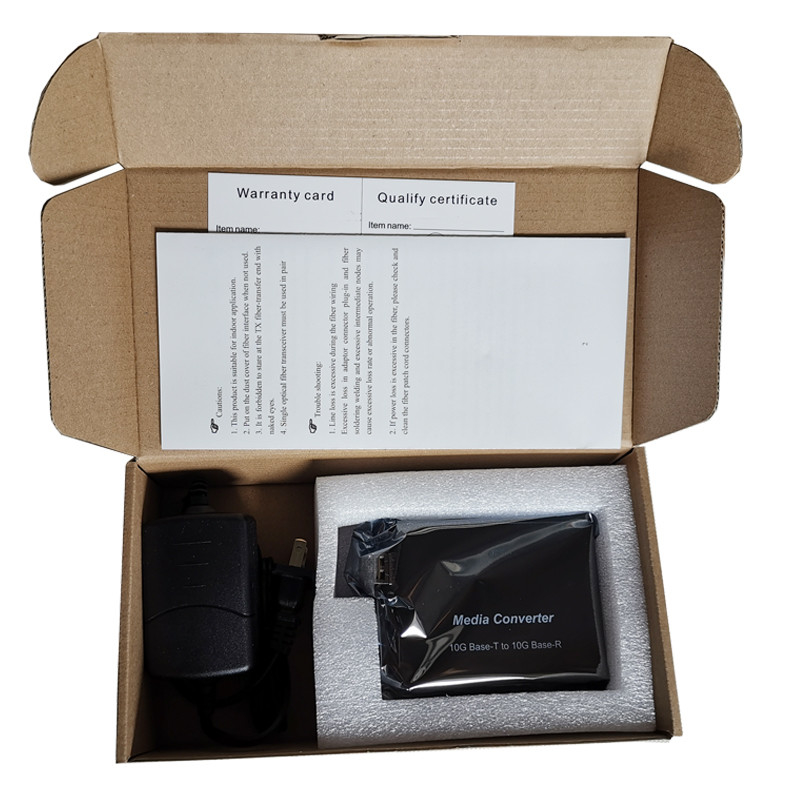

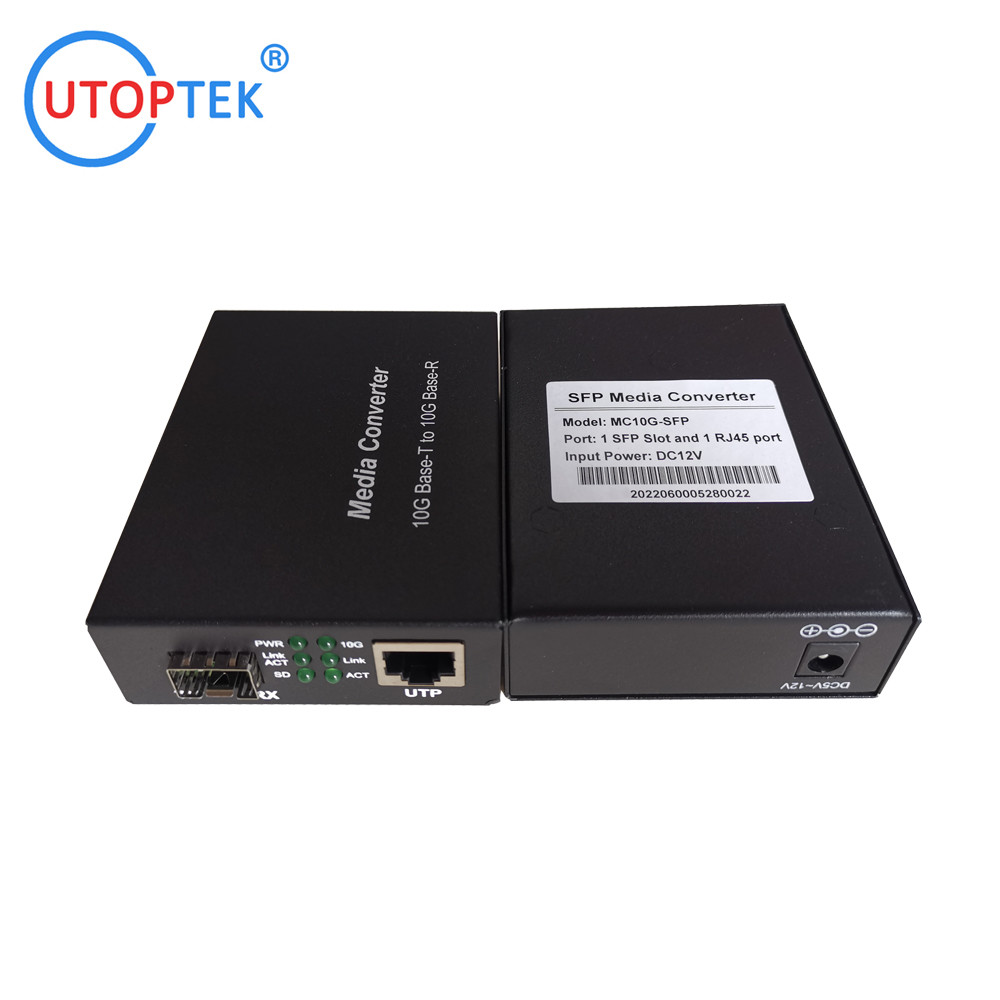

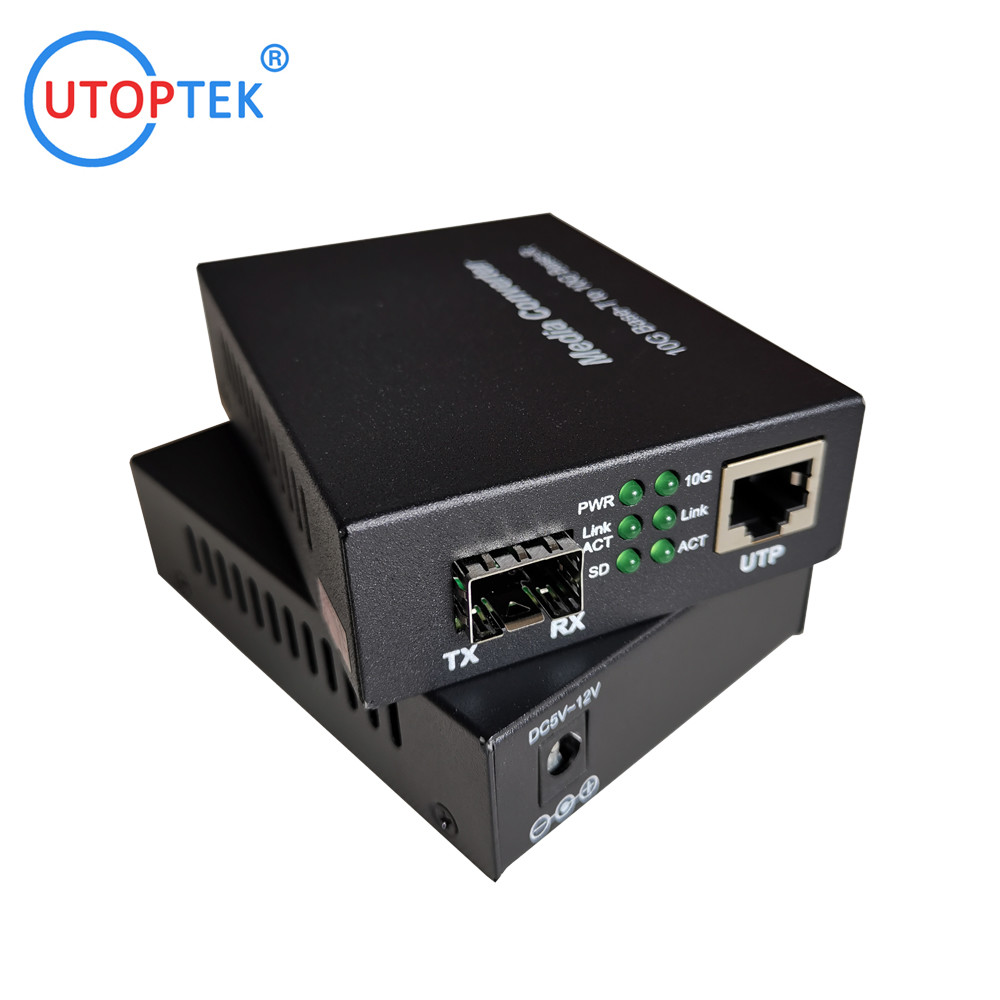

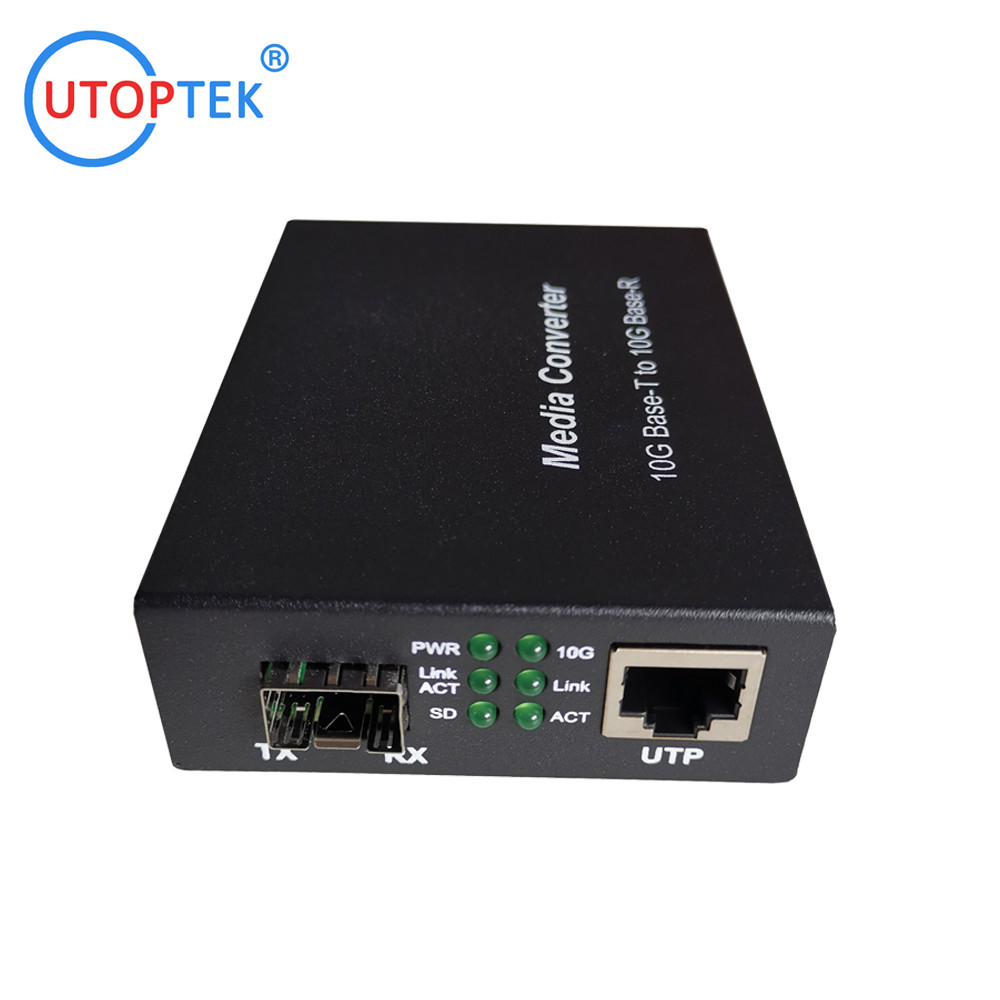

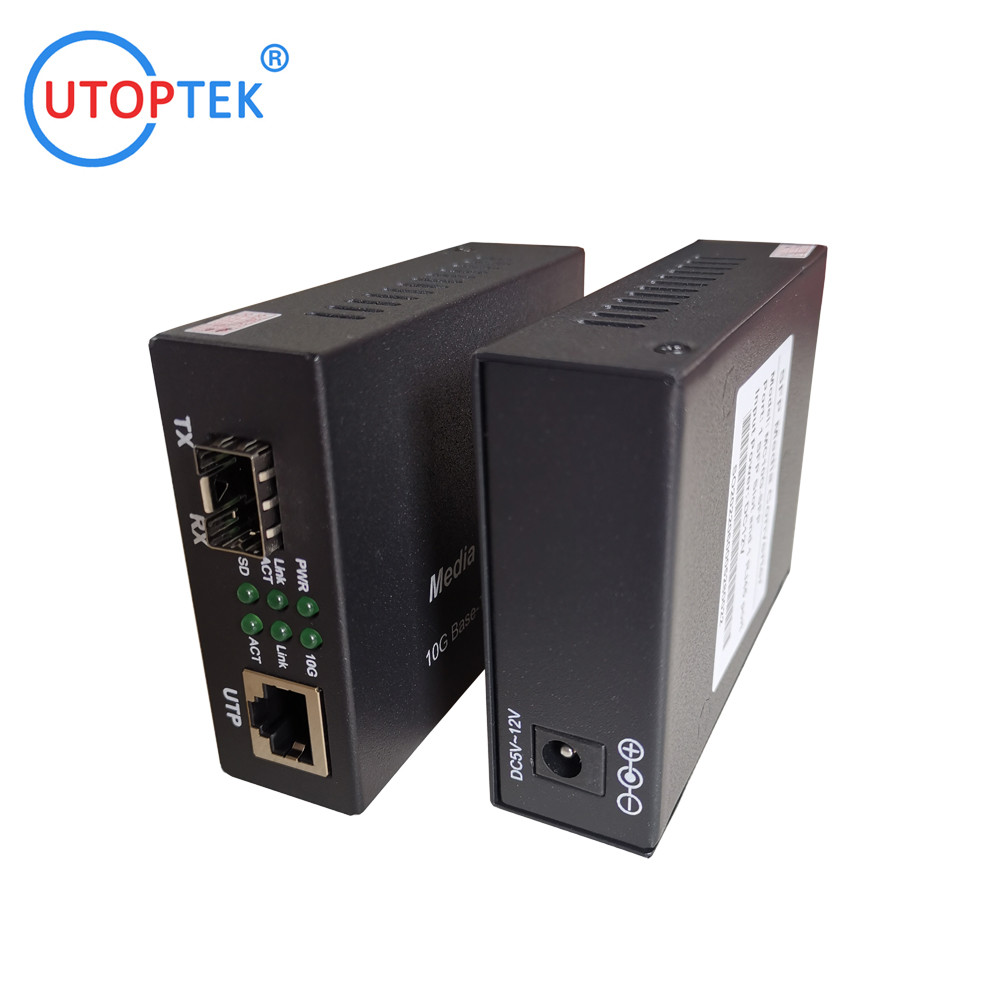

Products show:

10g Base-T to 10G Base-R Optical Media Converter Fiber Optic Cheap Price 10G media converter mini 0

10g Base-T to 10G Base-R Optical Media Converter Fiber Optic Cheap Price 10G media converter mini 4

Connection topology:

10g Base-T to 10G Base-R Optical Media Converter Fiber Optic Cheap Price 10G media converter mini 5
