10G SFP+ to RJ45 Fiber Media Converter with 10G SR 850nm 300m SFP+ Transceiver Module

Name: 10G SFP+ to RJ45 Fiber Media Converter with 10G SR 850nm 300m SFP+ Transceiver Module
Brand: UTOPTEK
SKU: UT-MC10G-SFP
Rating: 4.9 (174 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	40pcs/Carton, 574535CM, G.W.:16Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-MC10G-SFP

Detail Information
Product Name:	10G Fiber Media Converter	Interface:	1 Fiber SFP+1 RJ45 Port
Fiber Type:	Depends On SFP	Fiber Connector:	LC
Power Input:	DC12V 1A	Speed:	1000M/2.5G/5G/10G
Distance:	Depends On SFP	Wavelength:	Support All Wavelength
Warranty:	12months	Product Size:	140x100x30mm
N.W/G.W(kg):	0.2kg/0.38kg	Housing Material:	Iron
Shell Thickness:	1.1mm	Operating Temperature:	0～+70°C

Product Description

Order Models:

UT-MC2101-SX	Fiber Media Converter, 10/100Mbps 1Duplex SC -1LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm
UT-MC2101-S20	Fiber Media Converter, 10/100Mbps 1Duplex SC -1LAN SM 20km SC DC5V power supply, TRx:1310nm
UT-MC2101-S20A	Fiber Media Converter, 10/100Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
UT-MC2101-S20B	Fiber Media Converter, 10/100Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
UT-MC2101-SFP	10/100M media converter, 1RJ45+1SFP port, External DC5V power supply
UT-MC3101-SX	Fiber Media Converter, 10/100/1000Mbps 1Duplex SC -1LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm
UT-MC3101-S20	Fiber Media Converter, 10/100/1000Mbps 1Duplex SC -1LAN SM 20km SC DC5V power supply, TRx:1310nm
UT-MC3101-S20A	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
UT-MC3101-S20B	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
UT-MC3101-SFP	10/100/1000M media converter, 1RJ45+1SFP port, External DC5V power supply
UT-MC1G-2SFP	10/100/1000M SM to MM media converter, 2*SFP port, External DC5V power supply
UT-MC1G-2SC	10/100/1000M SM to MM media converter, SM duplex SC 1310nmkm to MM duplex SC 850nm 550m, External DC5V power supply
UT-RACK-14-2U	19'' 2U 14slot Rack mount Chassis , for Standalone media converters,with dual power supply
UT-MC2.5G-SFP	2.5G media converter, 1RJ45+12.5G SFP port, External DC5~12V power supply
UT-MC10G-SFP	10G media converter, 1RJ45+1SFP port, External DC12V power supply
UT-MC10G-2SFP+	10G OEO converter, 2*SFP+ port, External DC12V power supply

Overview:

The UT-MC10G-SFP is 10G Base-T to 10G Base-R Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19’’ converter rack Chassis for use at a central wiring closet.

Technical sheet:

Ethernet port	RJ45
Optical port	SFP+ Slots
Protocols	1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T
Protocols	1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R
Media Supported	1000Base-T: Cat5 UTP/STP. MAX 100m;
	2.5GBase-T: Cat5e UTP/STP. MAX 50m;
	5GBase-T: Cat5e UTP/STP. MAX 50m;
	10G Base-T: Cat6a UTP/STP. MAX 50m;
Cable	UTP cable: Cat 6a (the max distance up to 100m) Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 300m) singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km)
Work Mode	1000Base-T to 1000Base-X
	2.5GBase-T to 2500Base-X
	5Gbase-T to 5GBase-R
	10Gbase-T to 10GBase-R
Power Supply	AC 220V(170-260V) 50Hz; 5-12V DC, 3A
Power consumption	Max. 5W
Operation Temperature	0℃ to 55℃
Storage temperature	-20 ～ +70℃
Relative Humidity	5% ～ 90%
Dimensions	External Power: 30 (high) x 100 (width) x140 (length) mm

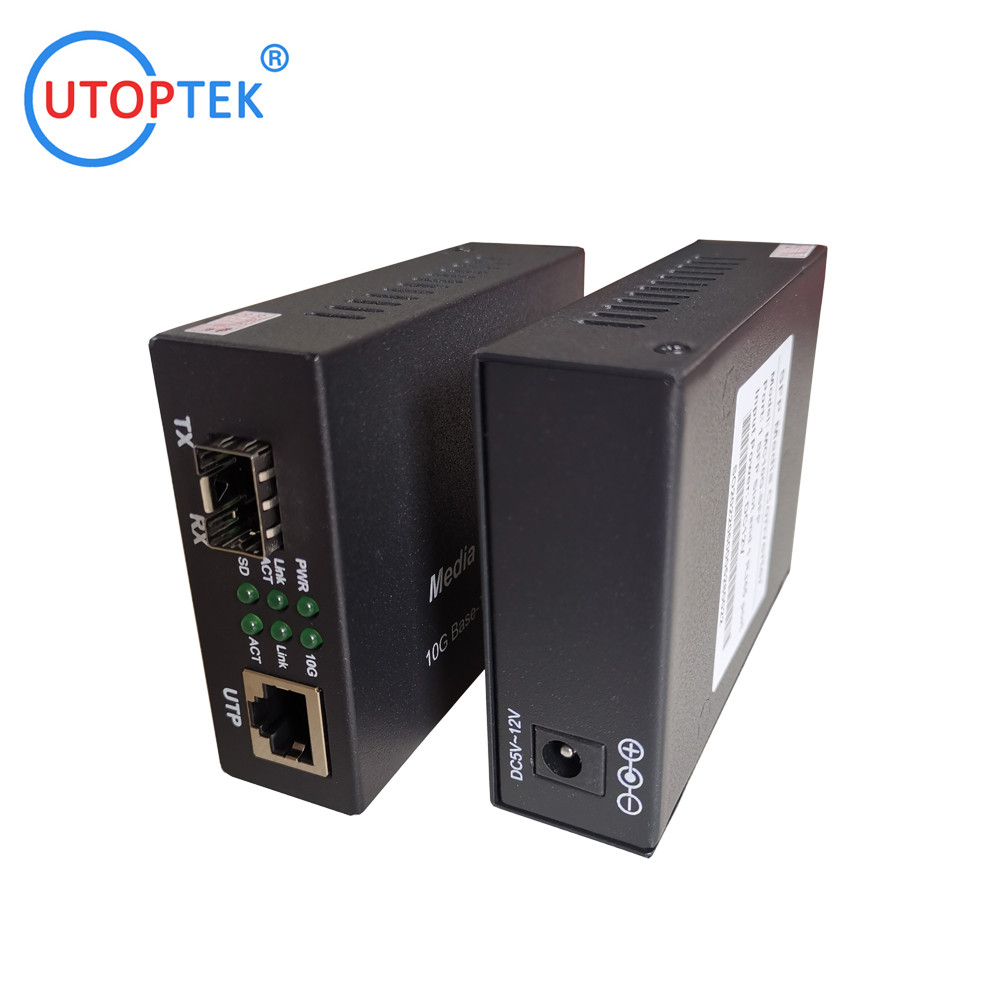

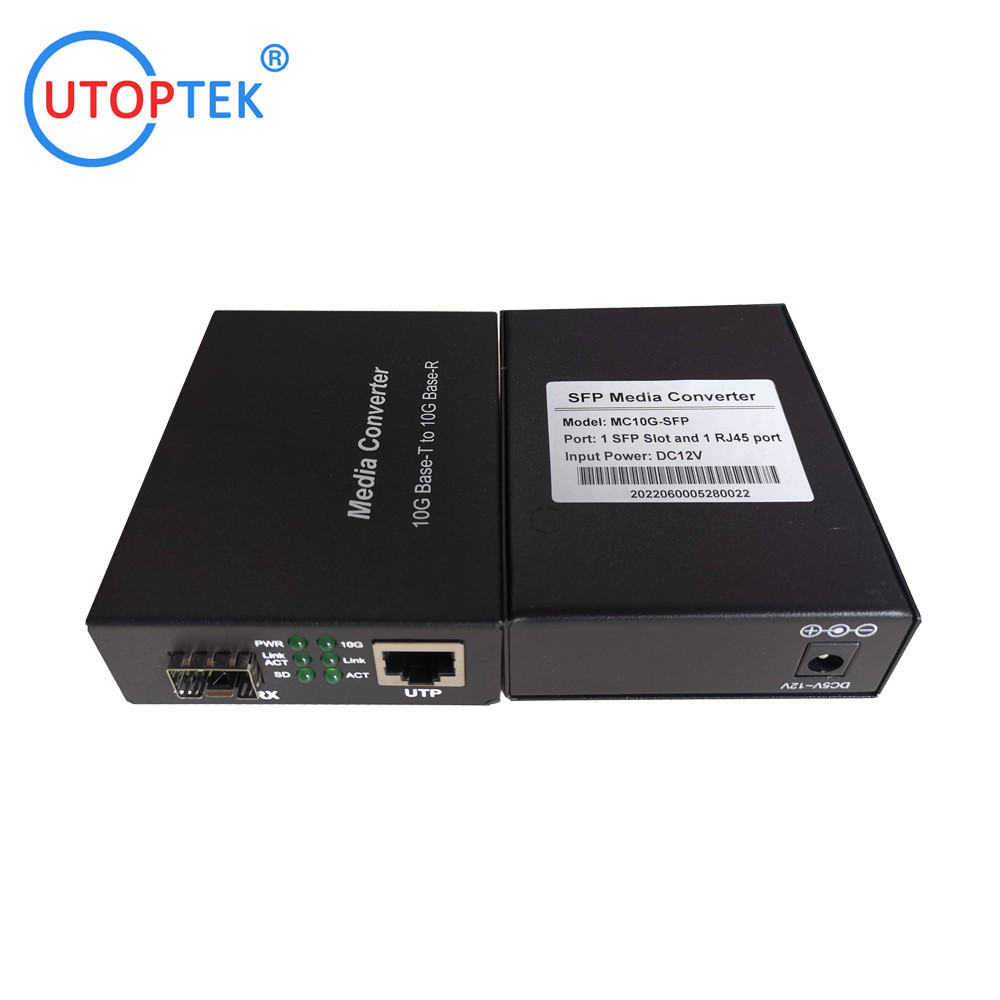

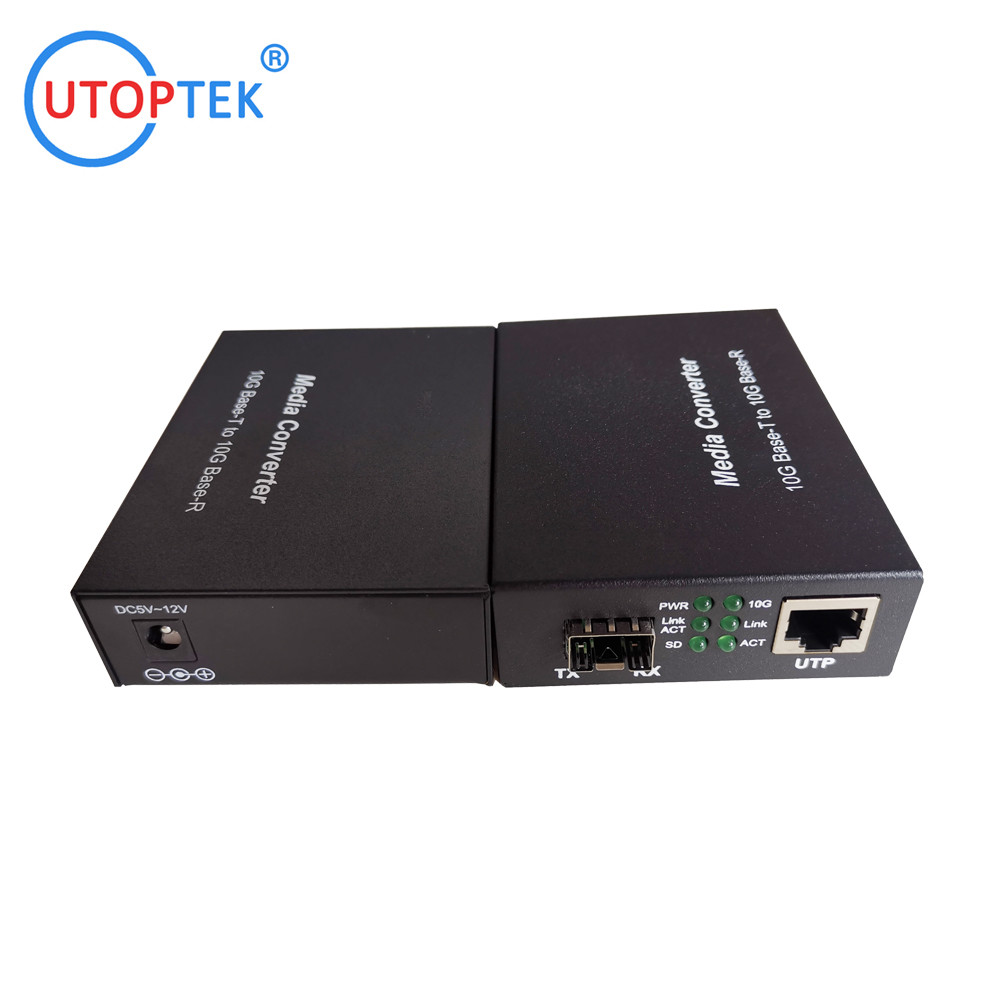

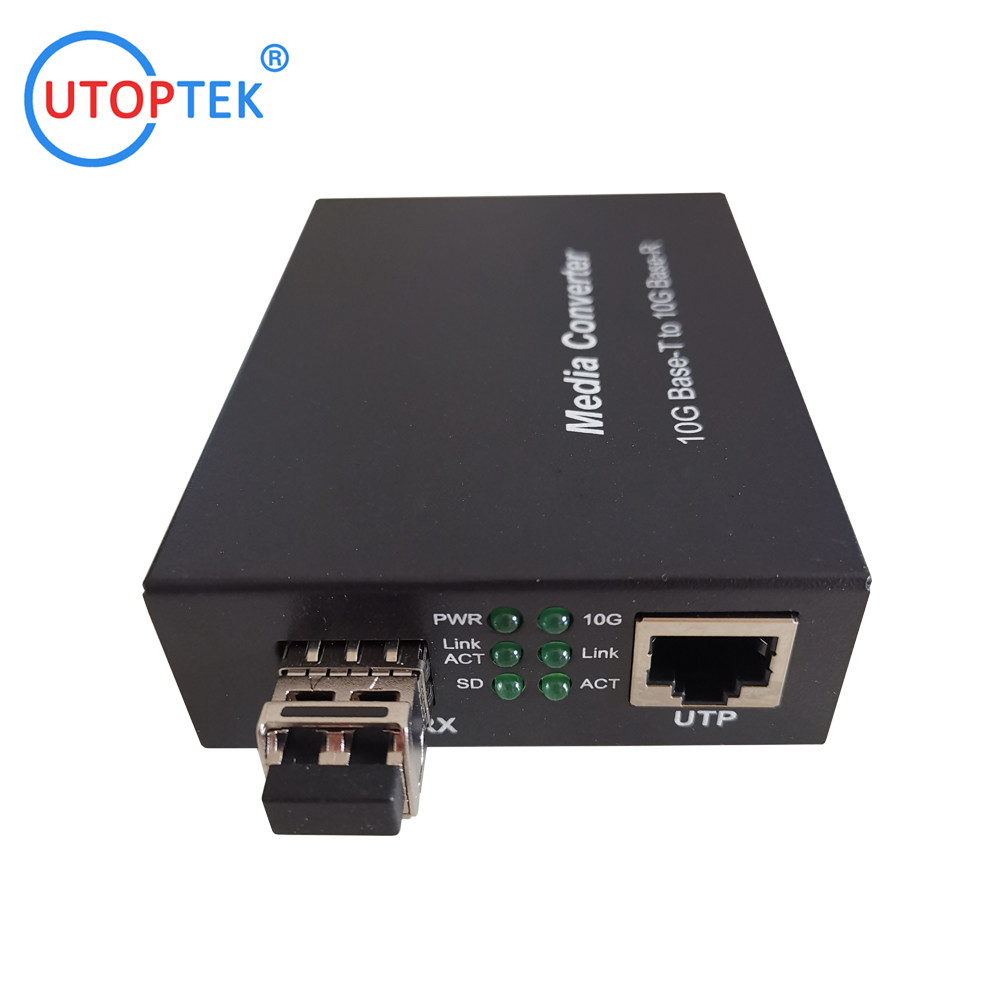

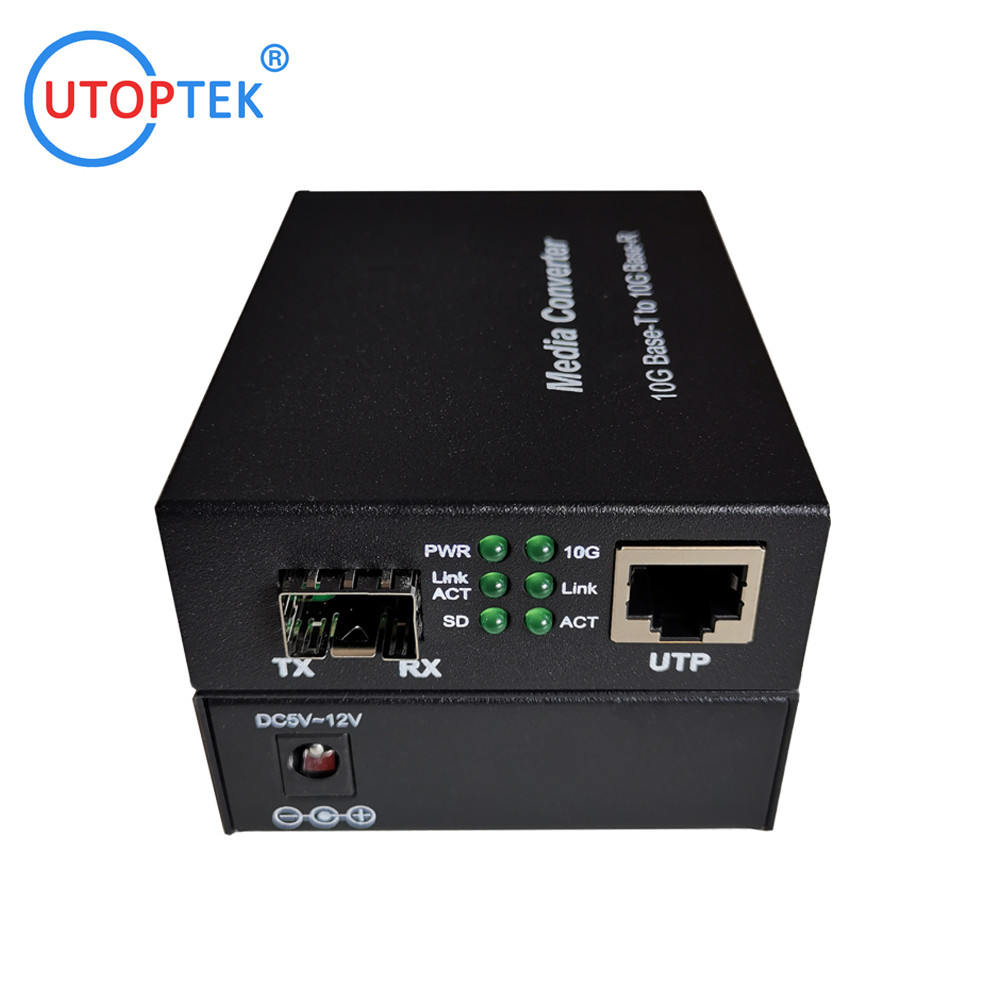

Products show:

10G SFP+ to RJ45 Fiber Media Converter with 10G SR 850nm 300m SFP+ Transceiver Module 0

10G SFP+ to RJ45 Fiber Media Converter with 10G SR 850nm 300m SFP+ Transceiver Module 4

Connection topology:

10G SFP+ to RJ45 Fiber Media Converter with 10G SR 850nm 300m SFP+ Transceiver Module 5
