mini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber converter

Minimum Order Quantity :	2pcs	Packaging Details :	66pcs/Carton, 574350CM, G.W.:17.55Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-1H1F-T/R-F20

Detail Information
Product Name:	HDMI Optical Extender	Interface:	1HDMI+1Fiber Port
HDMI Resulotion:	1920x1080P	Optical Distance:	20km
Power Input:	DC5V	Product Size:	70x65x24MM
Warranty:	12months	Support HDMI Version:	HDMI 1.2
Housing Material:	Aluminium Alloy	Operating Temperature:	0～+70°C

Product Description

mini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber converter

Overview:

The Mini HDMI digital optical transceiver is composed of an HDMI transmitter and a receiver. It transmits high-definition HDMI and signals through a single core single-mode optical fiber, and can adapt to a variety of complex application environments. The equipment has excellent image processing and transmission capabilities, making the signal transmission more smooth and stable. HDMI optical transceiver transmission has the advantages of long transmission distance (1-80km), wide bandwidth, strong anti-interference performance, high security performance, and is suitable for long-distance and special environment transmission. HDMI digital optical transceiver has been widely used in many fields, such as large-scale multimedia high-definition display, information release and news center, traffic guidance and information display system, outdoor large screen display system, large-scale stage display and entertainment center, live television, multimedia conference, military command and performance.

Features:

● Long distance transmission of HDMI video and audio signals through optical fiber, up to 20 km;

● Highest resolution of high-definition video signal 1080P@60Hz ；

● Comply with HDMI standard protocol;

● Be able to automatically identify and configure various display modes;

● Built in automatic equalization system, with smooth, clear and stable images;

● Built in ESD static protection circuit to protect system safety in all aspects;

● Simple and convenient installation, plug and play, without setting;

Technical sheet:

Model		UT-1H1F-FC20AB
Function	Transmission signal category	HDMI Video
Function	Transmission channel	1channel
Optical Fiber	Transmission wavelength	Multi mode(850nm); single mode(1310nm,1550nm)
	Tx optical power	－9.5～－3dBm average optical power at 850nm
	Rx sensitivity	－15dBm average optical power at 850nm
	Transmission code rate	1.25 Hz
	Transmission distance	2km (Multimode)
	Transmission distance	20km (Singlemode)
Power supply	Power mode	Exetrnal power adapter
	voltage range	5VDC
	consumption	<10W
HDMI performance and interface	support HDMI version	HDMI 1.2
	HDMI resulotion	720x576p50, 720x480p60, 640x480p60/75, 800x600p60/75, 1024x768p60/75, 1280x800p60, 1280x1024p60, 1440x900p60, 1680x1050p60, 1280x720p25/30/50/60, 1920x1080p25/30/50/60
	Support video color format	24 bit/dark color 30 bit/dark color 36 bit
	input output TMDS signals	0.5～1.5Vp-p(TMDS)
	input output DDC signals	5Vp-p(TTL)
	input cable length	≤5m(AWG26 HDMI1.3 cable standard)
	output cable length	≤5m(AWG26 HDMI1.3 cable standard)
	fiber connector	single mode single fiber FC connector
working enviroment	working temperature	0～55℃
	storage temperature	-20～70℃
	Humidity (non condensing)	0～95%
shell	Dimension (length × wide × High)	70x65x24mm
	Material	Metal
	Color	Black
	product weight	0.125kg
reliability	(MTBF)	>30000 hours

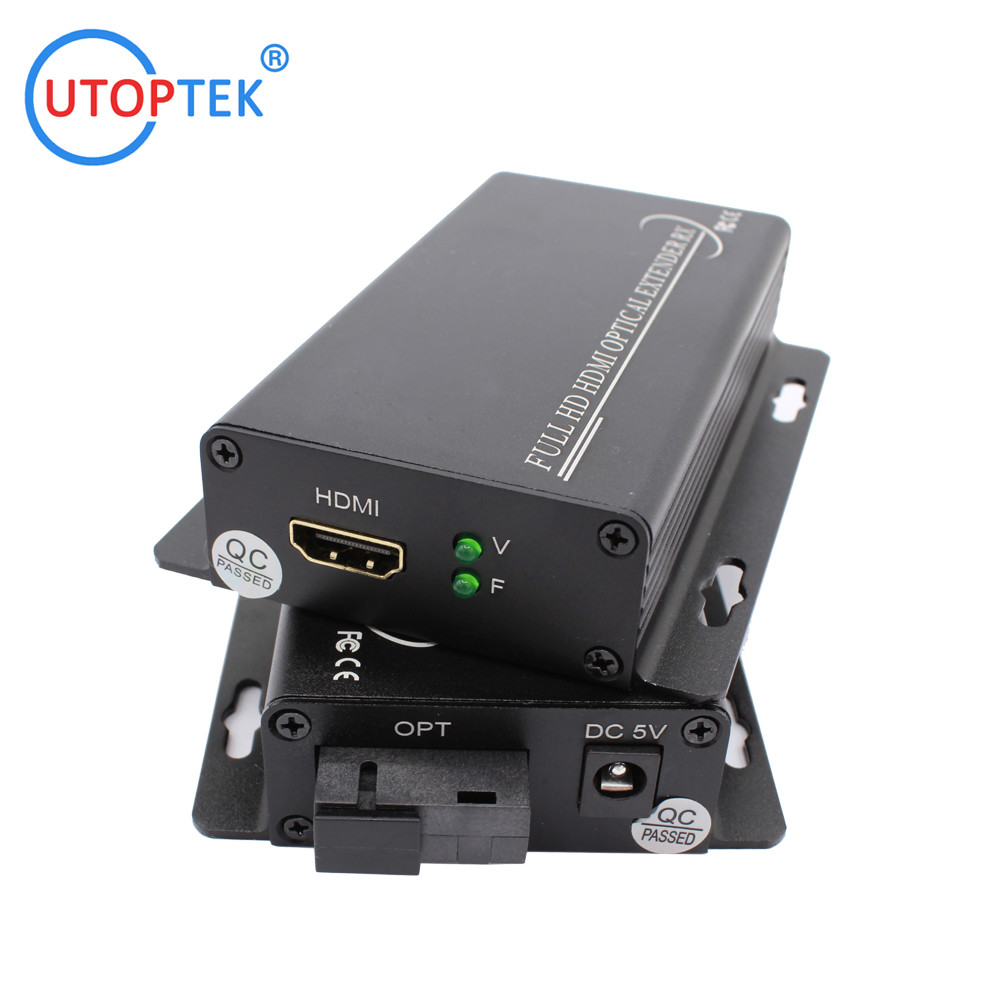

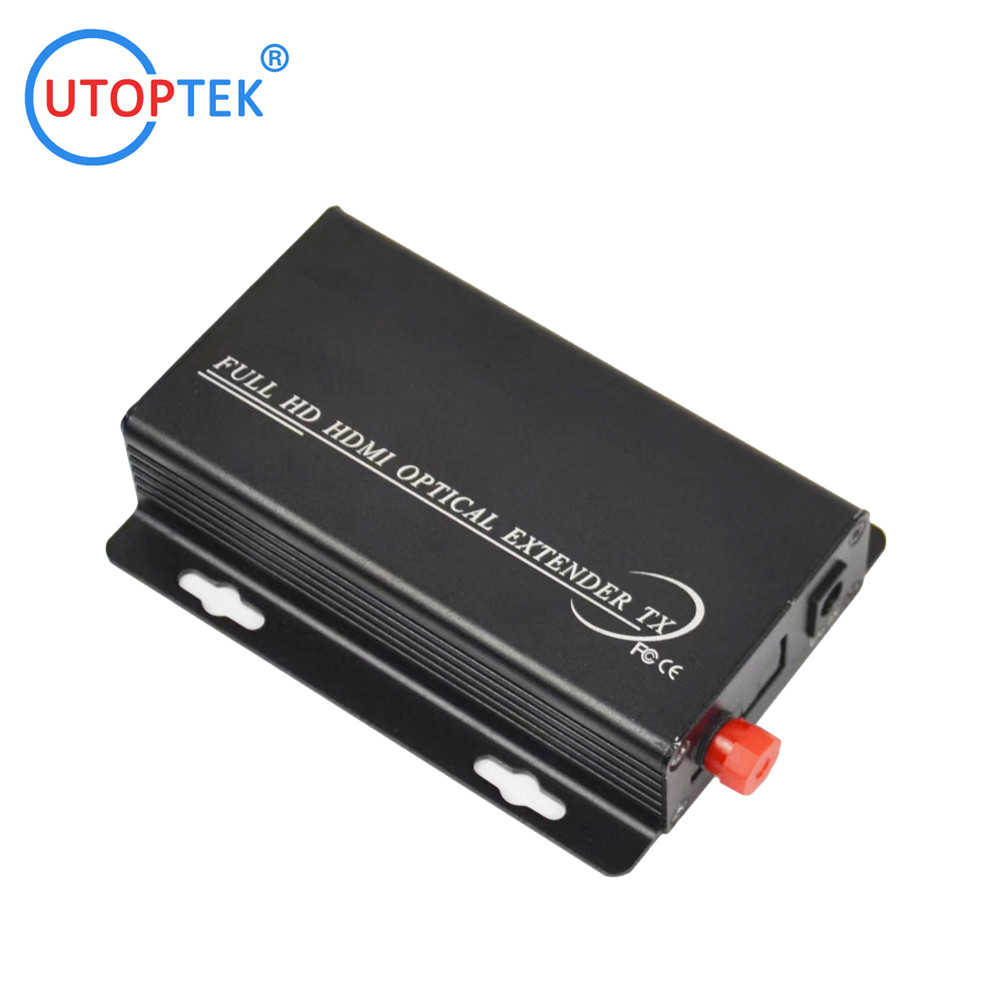

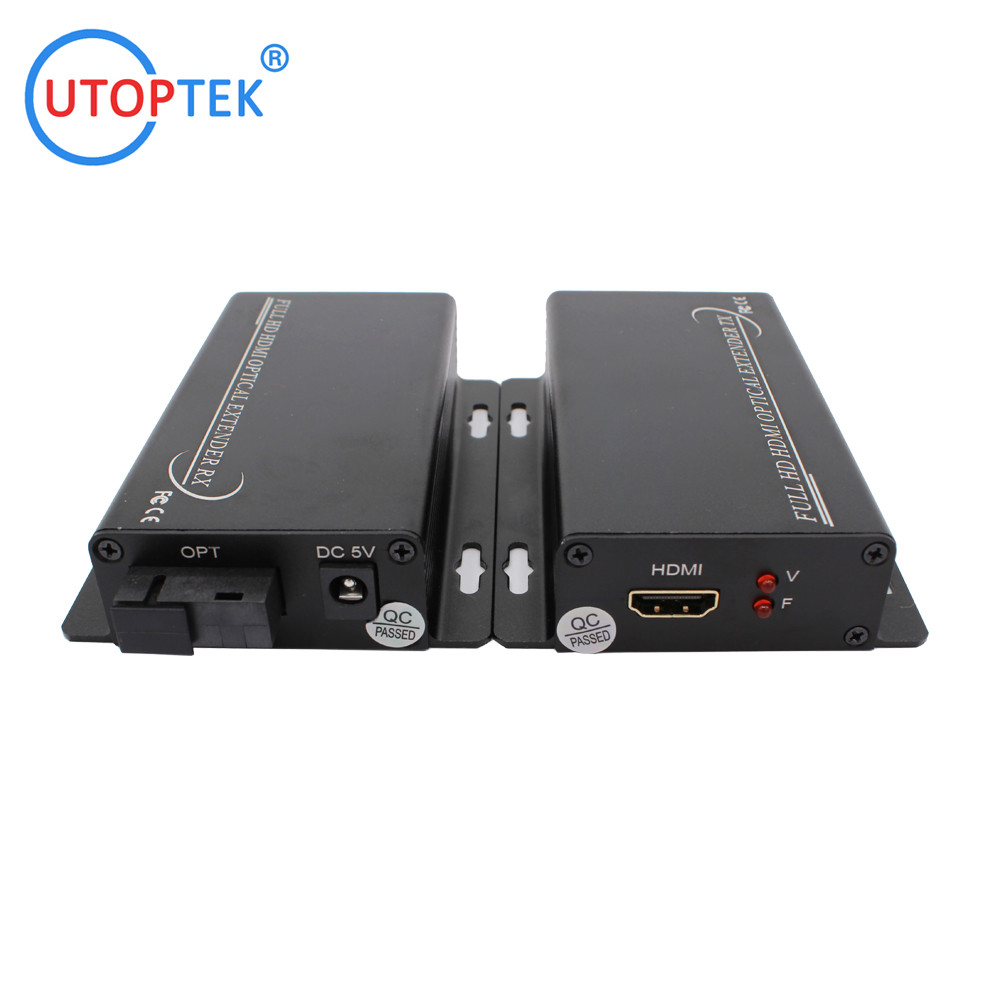

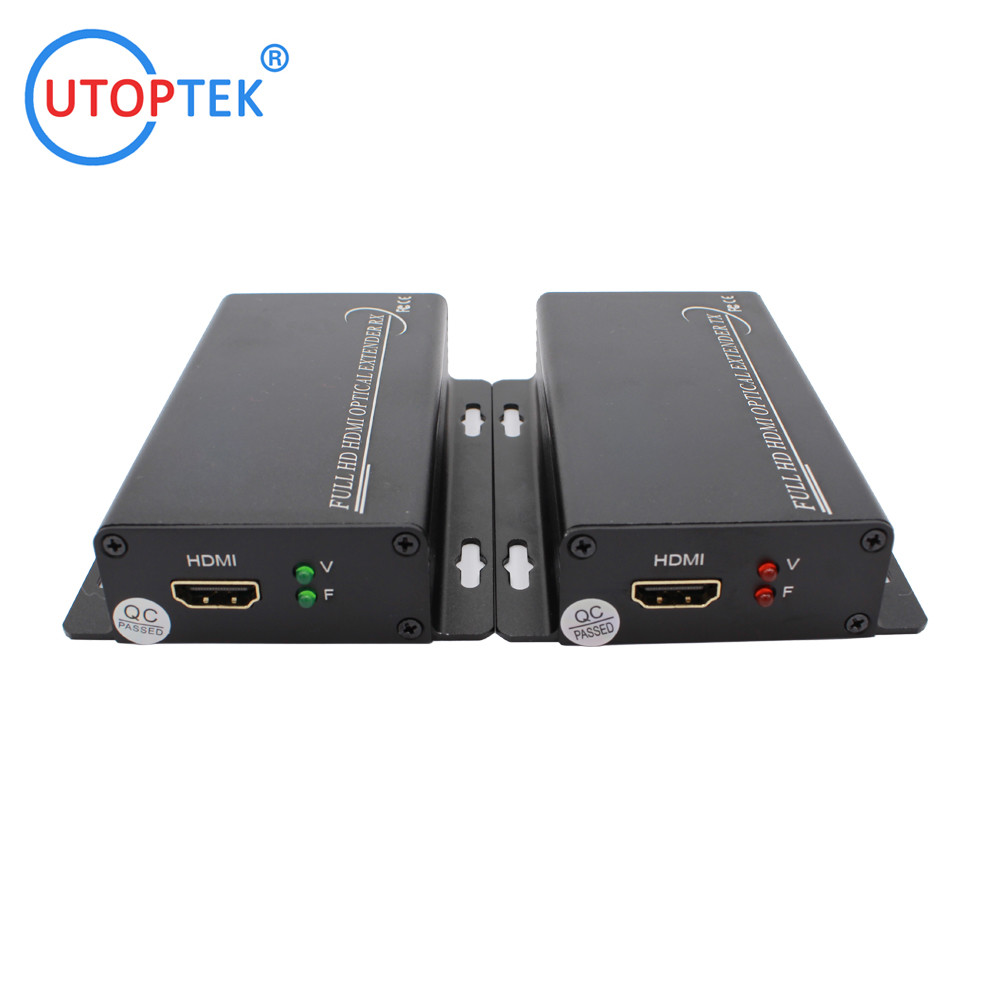

Products show:

mini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber converter 0

Connection topology:

mini HD 1080P HDMI optical extender video fiber transmitter and receiver HDMI video to fiber converter 5

Order Models:

Video Transmission products
UT-1E1C-S/M	100Mbps 1BNC+1LAN, EOC Ethernet over Coaxial Extender,0~1.5km,Power Supply: DC12V	Pair
UT-1E2W-S/M	100Mbps 1BNC+22wire port, EOC Ethernet over twisted-pair cable Extender,0~1.5km,Power Supply: DC12V	Pair
UT-1EP1C-S/M UT-1EP2W-S/M	100Mbps 1BNC+1LAN (Or 2wire port), POE+POC EOC Ethernet over Coaxial/twisted pair Extender,0~300m, Power Supply: DC52V	Pair
UT-1H1F-T/R-F20	Mini Compressed full HD HDMIOptical Extender, SM single FC 20km, with DC5V power supply	Pair
