Media converter RACK Chassis Mount 14/16slots 19in 2U dual AC power for CCTV Network using

Name: Media converter RACK Chassis Mount 14/16slots 19in 2U dual AC power for CCTV Network using
Brand: UTOPTEK
SKU: UT-RACK-14-2U
Rating: 4.5 (150 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	66pcs/Carton, 574350CM, G.W.:17.55Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-RACK-14-2U

Detail Information
Product Name:	Media Converter RACK Chassis Mount	Slots:	14Slots
Product Size:	482x230x90mm	Power Input:	100V-265VAC 50/60Hz 1.2A
Power Output:	5VDC 12A	N.W/G.W:	5.2kg/6kg
Material:	Iron	Power:	Dual Power
Operating Temperature:	0～+70°C	Number Of Fans:	2
Warranty:	12months

Product Description

Media converter RACK Chassis Mount 14/16slots 19in 2U dual AC power for CCTV Network using

Overview:

This UT-RACK-14-2U Chassis is a 19-Inch rack mountable conversion center, capable of serving up to 14 media conversion modules. In addition to the internal power supply, a back up supply is available as an optional extra. The power of the Rack can be supplied by the type of single power or dual power. Adopting dual power supply, the load of each power can be reduced and the life of the power would extend. When one power supply is at fault, the other one can still work independently. It would enhance the reliability of the RACK.

Features:

1. Supplying the Converters or Powers to be plugged and played.

2. 14 slots for media converter module

3. Auto-identify MDI/MDIX

4. Full/half duplex auto negotiation

5. Low power loss and good heat dissipation

6.Stable performance, large capacity of power supply, ease for management and maintenance

7. 2U high: 19-inch standard design

Technical sheet:

Product name	Media Converter RACK Chassis
Model	UT-RACK-14-2U
Shell Material	Iron
Capacity	14 slots
Power	Input: AC 100 ~ 260V, 50~60HZ Output: DC 5V 12A
Power protection	protection from over voltage, over current and short circuit
Operating Temp	0 °C to +70°C
Storage Temp	-20 °C to +80 °C
Relative Humidity	5%~95% ( no condensing )
Dimensions	482mm* 230mm*90mm
N.W/G.W	5.2kg/6kg

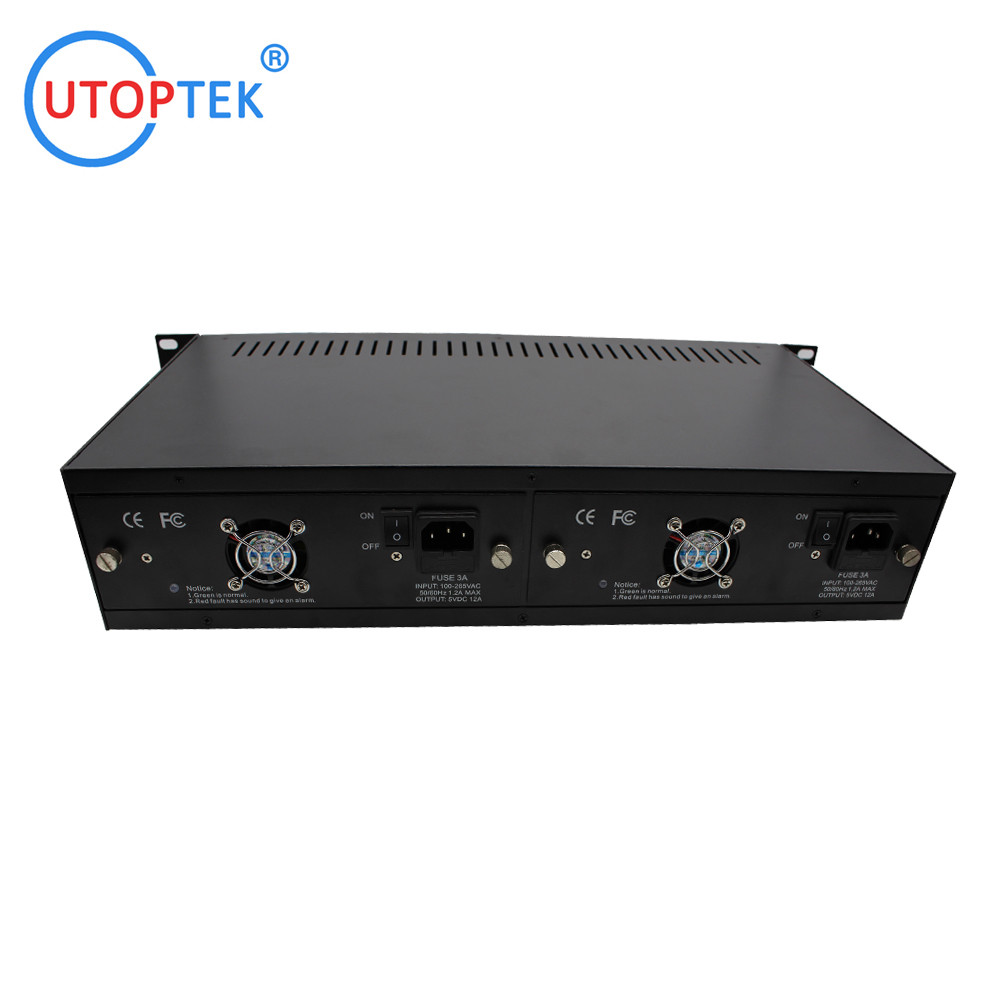

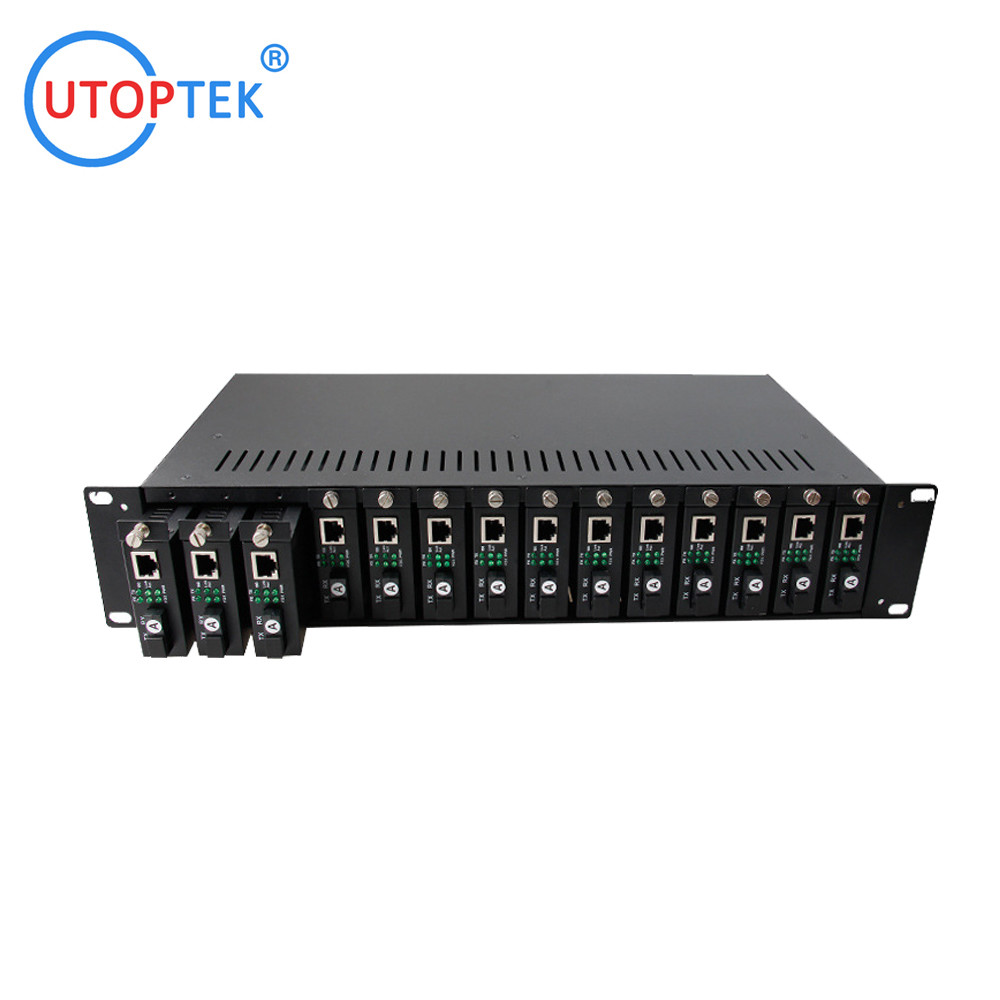

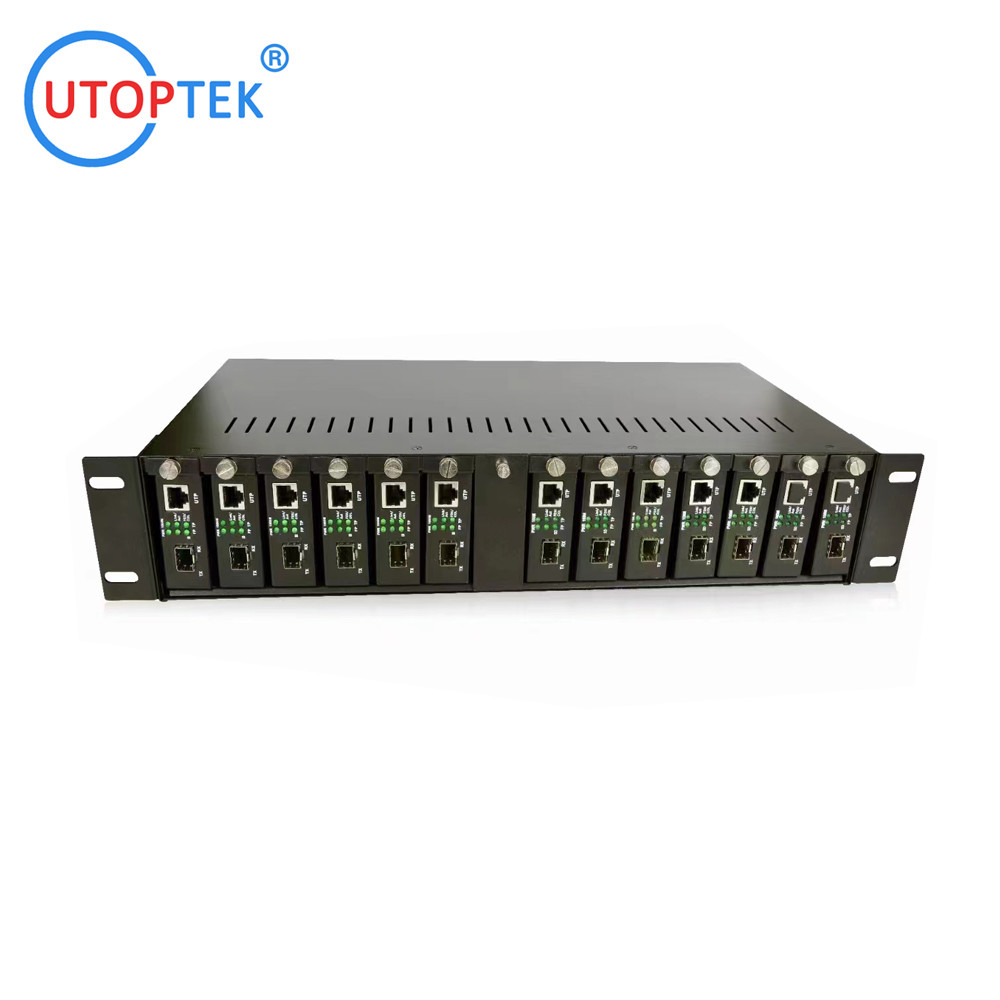

Products show:

Media converter RACK Chassis Mount 14/16slots 19in 2U dual AC power for CCTV Network using 0

Media converter RACK Chassis Mount 14/16slots 19in 2U dual AC power for CCTV Network using 2

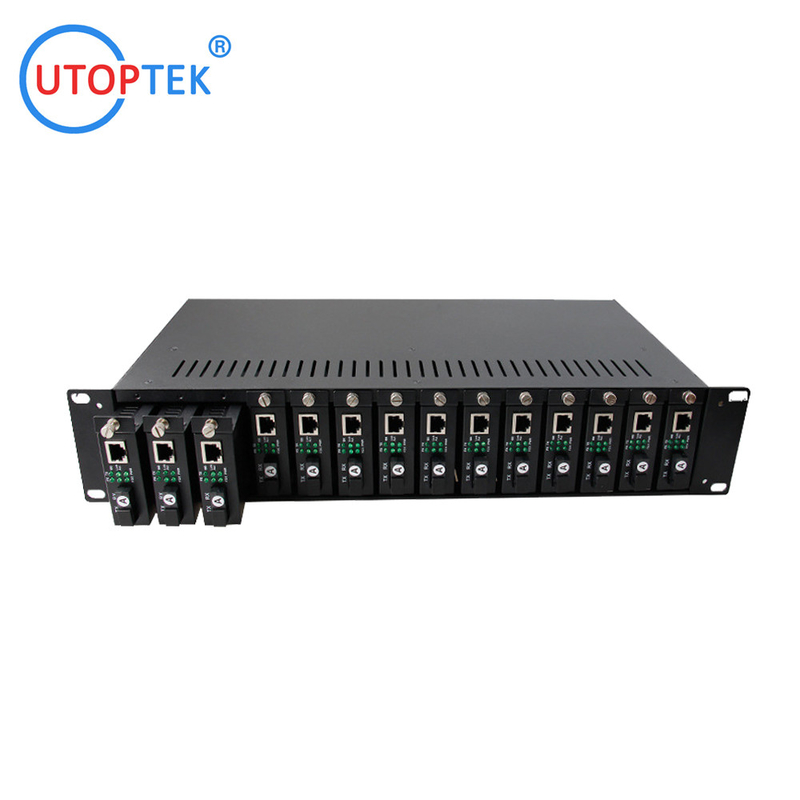

Connection topology:

Media converter RACK Chassis Mount 14/16slots 19in 2U dual AC power for CCTV Network using 3

Order Models:

RACK Chassis

UT-RACK-14-2U

19'' 2U 14slot Rack mount Chassis
for Standalone media converters,with dual power supply

ACK Chassis

UT-RACK-16-2U

19'' 2U 16slot Rack mount Chassis
for Card type media converters,with dual power supply
