10/100Mbps bnc to rj45 converter, EOC slave/master, IP Ethernet over Coaxial Extender 1.5km for CCTV IP camera using

Minimum Order Quantity :	2pcs	Packaging Details :	50pcs/Carton, 574350CM, G.W.:17.55Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-1E1C-S/M

Detail Information
Product Name:	EOC Converter	Interface:	1BNC+1RJ45 Port
Speed:	10/100Mbps	Extend Distance:	0~1500meters
Power Input:	DC12V	Product Size:	90x65x25MM
Warranty:	3years	N.W/G.W(kg):	0.18kg/0.36kg
Housing Material:	Aluminium Alloy	Shell Thickness:	10mm
Operating Temperature:	0～+70°C

Product Description

Overview:

This product is based on the latest IEEE1901 technology to support high-definition video and high-speed transmission of data signals in a variety of media, such as coaxial cable and telephone lines. Has a long transmission distance, high-speed communications, multimedia services, network support, etc.

Features:

Networking: Support over 20 IP cameras, control, alarm devices over single coaxial cable.
Transmission Span: The maximum transmission span is 2,000 meters. With such a long span, it helps to simplify cable installation. The maximum transmission speed is 30Mbps@2,000meters.
High performance: Support multiple HD video streams over single coaxial cable.
DC12V power adapter requested.
Flexibility: Easy to add new nodes into system without re-installing or modifying any devices under use.
Safety Ability: Support AES-128 Safety with password. Support manufacturer and user checking the code, changing the connection password in real time.
Easy migration from analog to IP system with existing coaxial, power line, phone line and twisted pair cable

Technical sheet:

Interface	10/100Base-TX UTP port (Auto-adaptation ) ×1 Coaxial BNC port ×1
Transmission medium	Coaxial cable (RG6/RG11/RG59)
Modulation technique	OFDM
LED Indicators	Power: Light on: Normal operation Coax: Light on: Video signal is normal LAN, Act/Link: Light on: connection is correct Light Blink: normal communication M(master)/S(slave) : Light on: Under Slave Light off: Under Master
Transmission band	2MHz–28MHz
Protocol standard	IEEE 802.3, IEEE 802.3u
Dimensions (W x D x H)	906525mm
Power supply	DC 12V 1A
Security technology	128-DES Data encryption and Key management
Physical layer transmission rate	200Mbps
Transmission distance	2KM
Support operating system	Windows 98/ME/NT/2003/7, Windows XP Home/Pro, Mac OSX , Linux
Operating voltage range	AC 100V-240V 60/50Hz
Operating environment	Operating temperature; 0°C ~ +50°C Storage temperature: -20°C ~ +70°C Operating humidity: 5%-90%

Bandwith sheet:

Transmission Distance	Coaxial Cable SVY75-5	Twisted-pair cable Cat5e	Telephone Wire
300M	100Mbps	78Mbps	65Mbps
600M	90Mbps	65Mbps	55Mbps
1200M	78Mbps	60Mbps	35Mbps
1500M	50Mbps	40Mbps	25Mbps
2000M	30Mbps	25Mbps	15Mbps

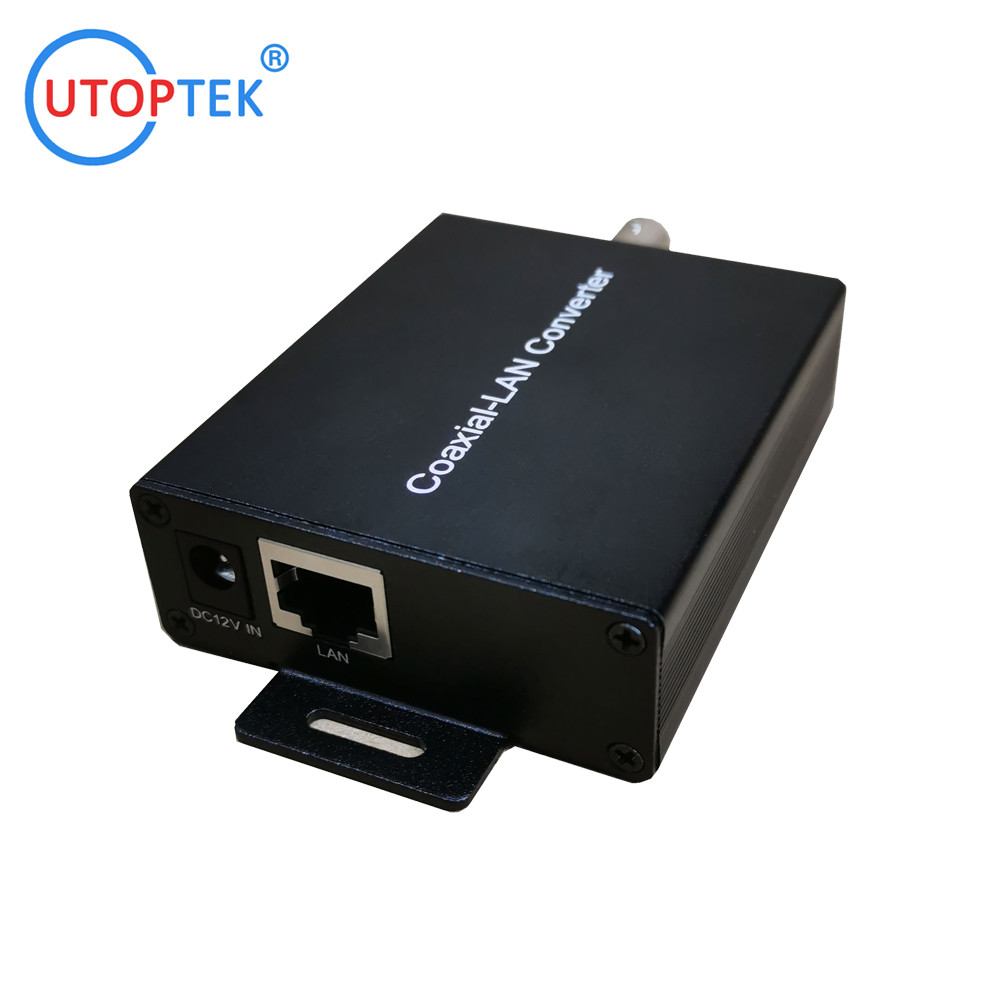

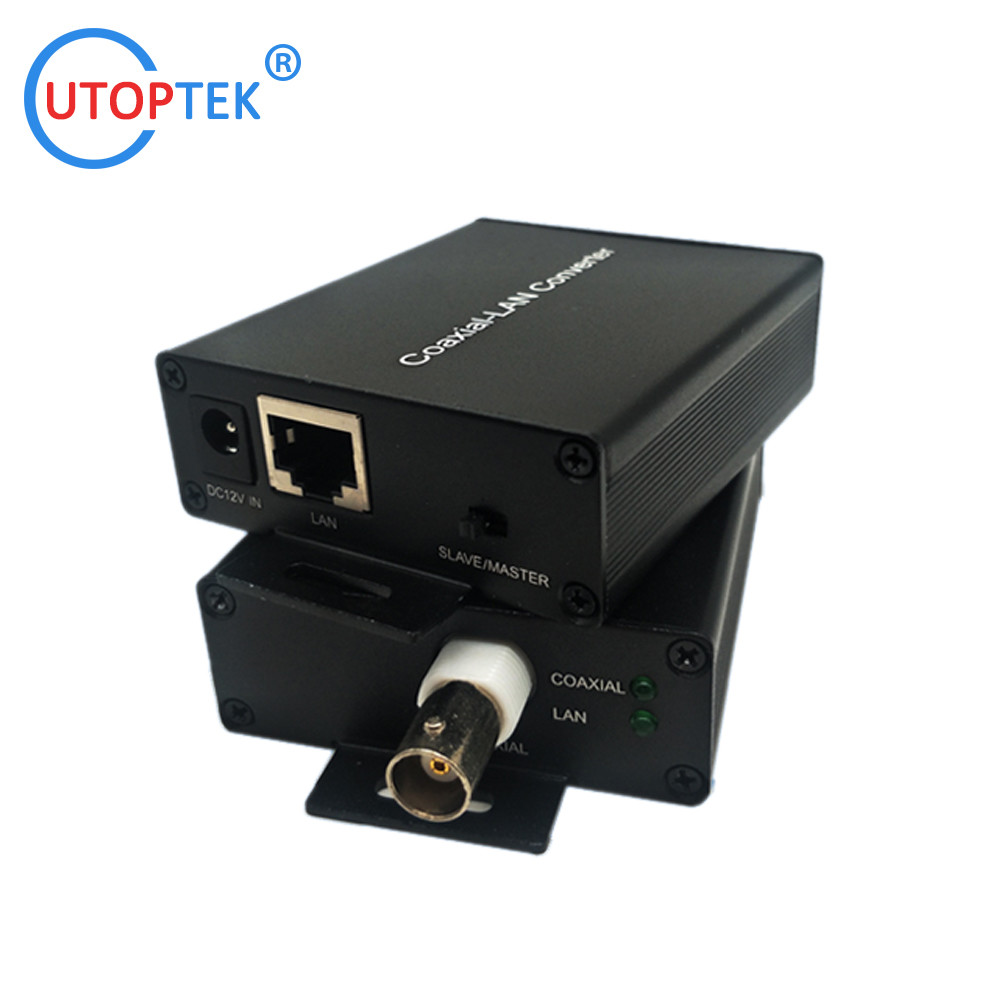

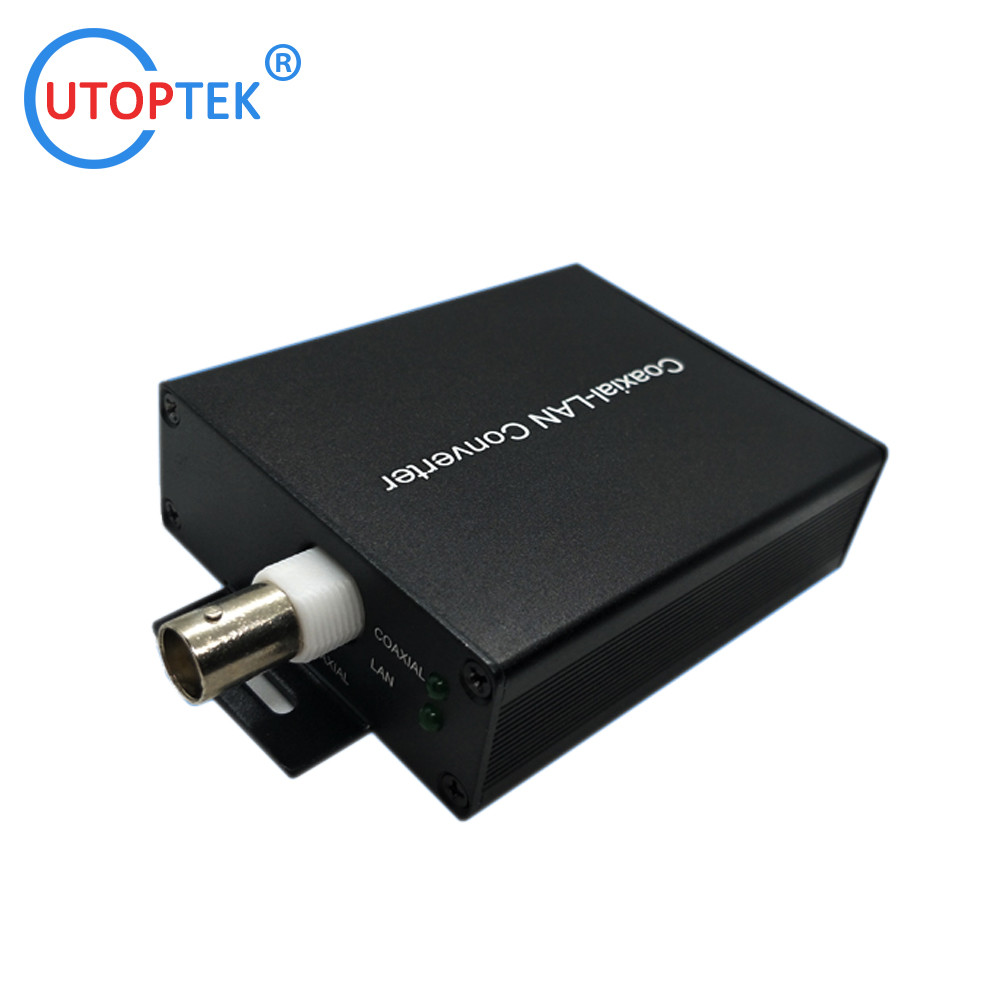

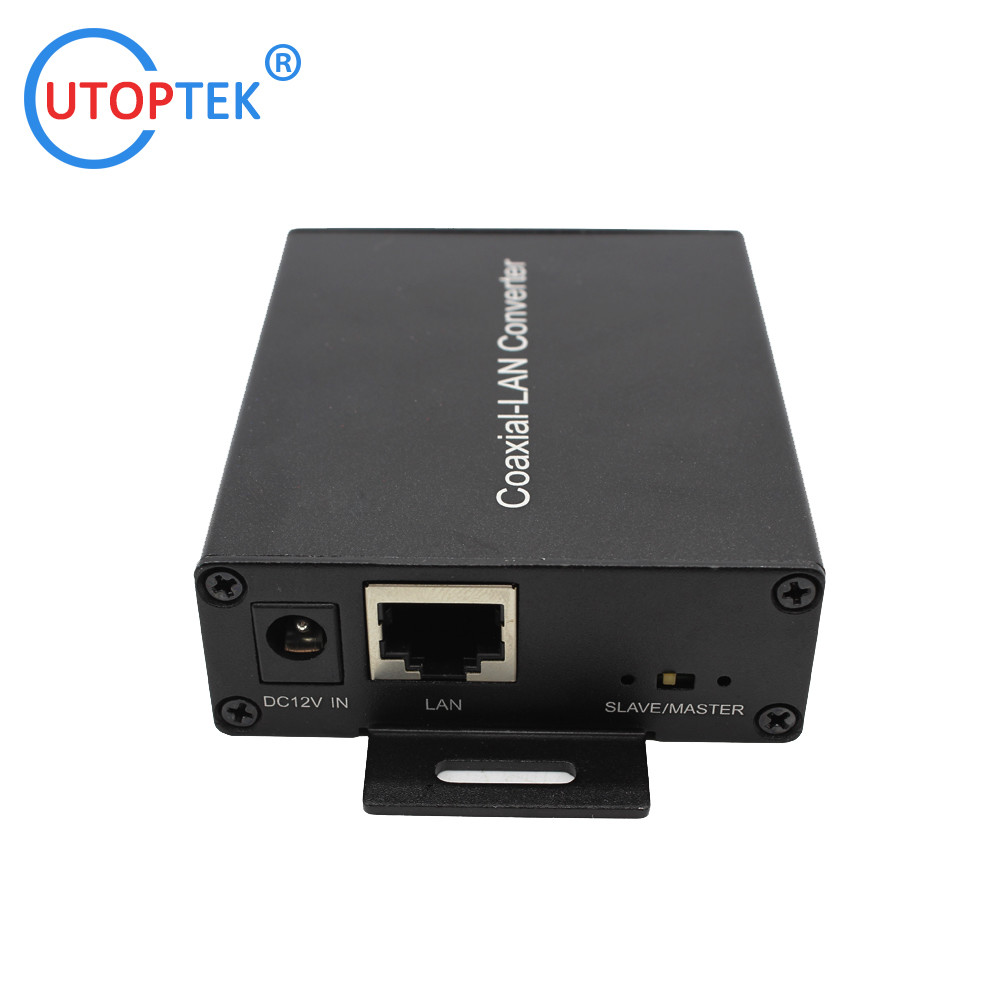

Products show:

10/100Mbps bnc to rj45 converter, EOC slave/master, IP Ethernet over Coaxial Extender 1.5km for CCTV IP camera using 0

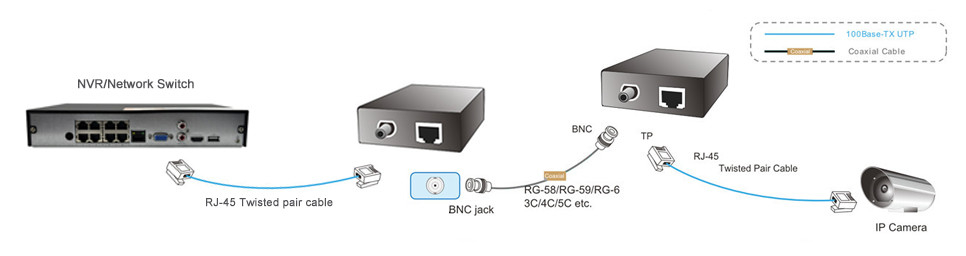

Connection topology:

10/100Mbps bnc to rj45 converter, EOC slave/master, IP Ethernet over Coaxial Extender 1.5km for CCTV IP camera using 6

Order Models:

UT-1E1C-S/M	10/100Mbps 1LAN+1BNC, EOC Ethernet over Coaxial Extender,0~1.5km, Power Supply: DC12V	Pair
UT-1E2W-S/M	10/100Mbps 1LAN+22wire port, EOC Ethernet over twisted-pair cable Extender,0~1.5km, Power Supply: DC12V	Pair
UT-1EP1C-S/M	10/100Mbps 1LAN POE+1BNC, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V	Pair
UT-1EP2W-S/M	10/100Mbps 1LAN POE+12wire port, POE+POC EOC Ethernet over Coaxial/twisted pair Extender, 0~300m, Power Supply: DC52V	Pair

10/100Mbps bnc to rj45 converter, EOC slave/master, IP Ethernet over Coaxial Extender 1.5km for CCTV IP camera using
