1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km video fiber transmitter receiver

Minimum Order Quantity :	2pcs	Packaging Details :	66pcs/Carton, 574350CM, G.W.:17.55Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-1H1U1A-T/R-S20

Detail Information
Product Name:	HDMI Optical Extender	Interface:	HDMI+Audio+USB Over Fiber Optic
HDMI Resulotion:	1920x1080P	Optical Distance:	20km
Power Input:	DC5V	Product Size:	70x65x24MM
Warranty:	12months	Support HDMI Version:	HDMI 1.2
Housing Material:	Aluminium Alloy	Operating Temperature:	0～+70°C

Product Description

1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km HDMI video to fiber converter

Overview:

The Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

Transmits HDMI video signals up to 20km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support keyboard and mouse signal transmission;
Support external stereo audio unidirectional transmission;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play.

Technical sheet:

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	19201080@60Hz 19201080@30Hz
	Connector	HDMI-A
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
K/M	Interface	To PC: MINI-USB To keyboard and mouse: USB-A
Optical fiber	Interface	SC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	155M
	Transmission distance	standard 20km
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	11510827mm
	The warranty	1 year free warranty, life-long maintenance

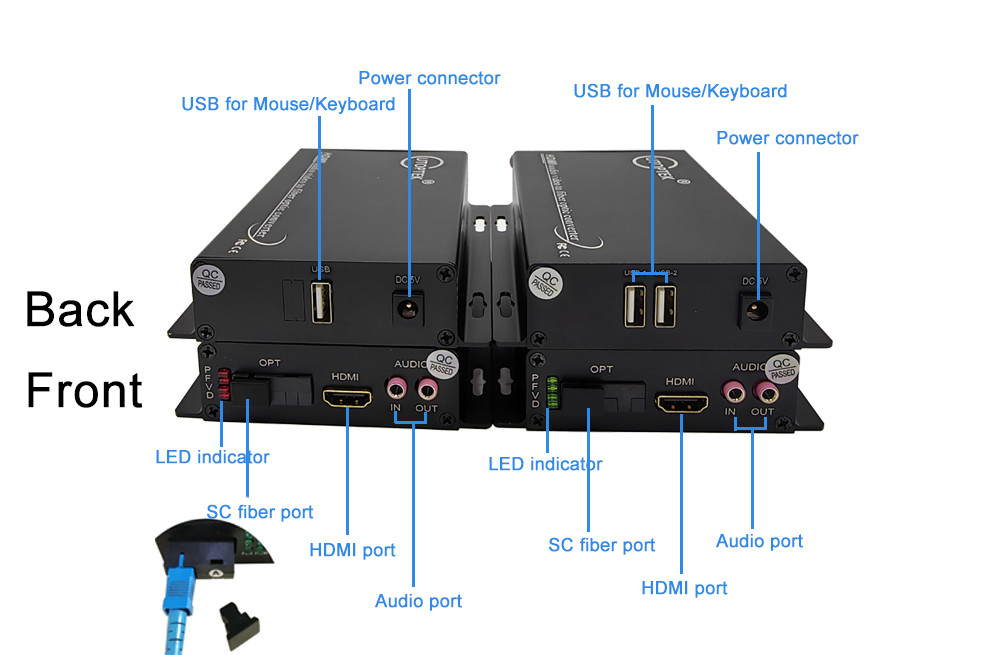

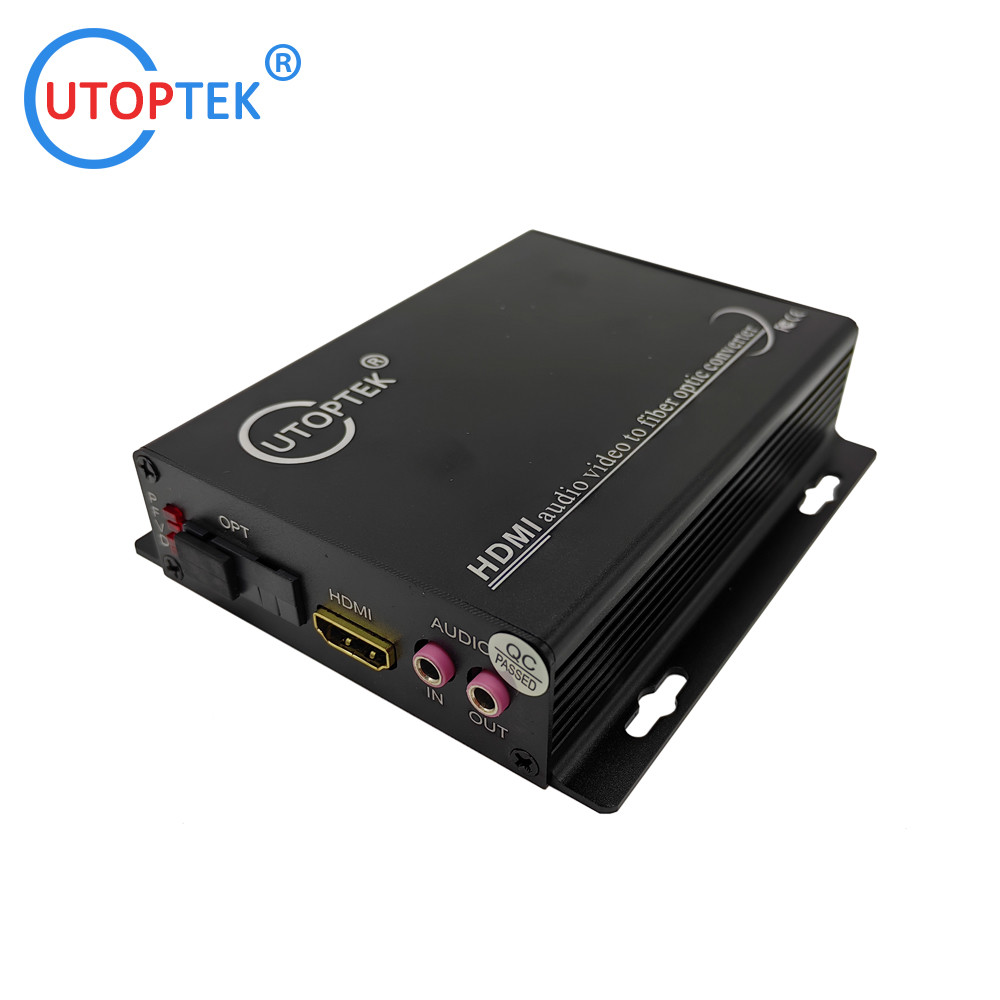

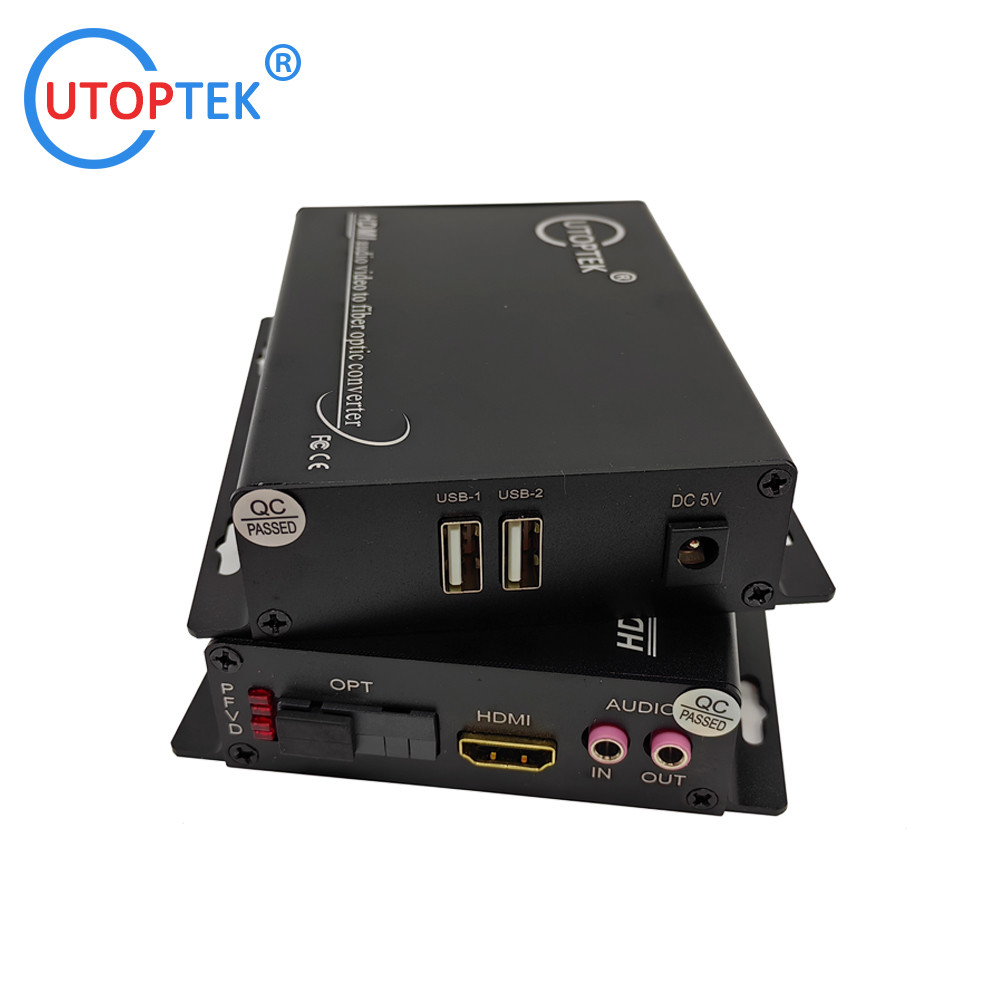

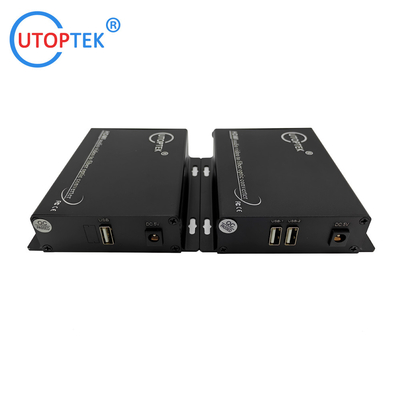

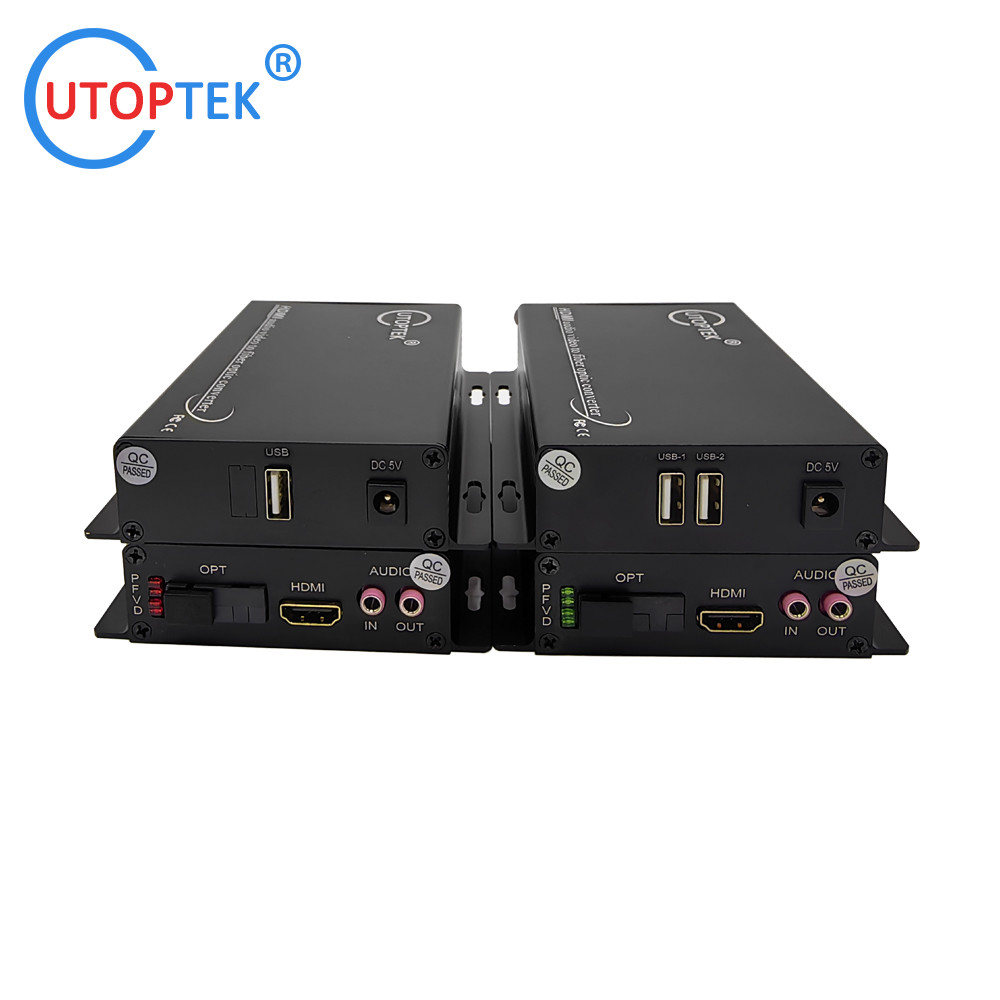

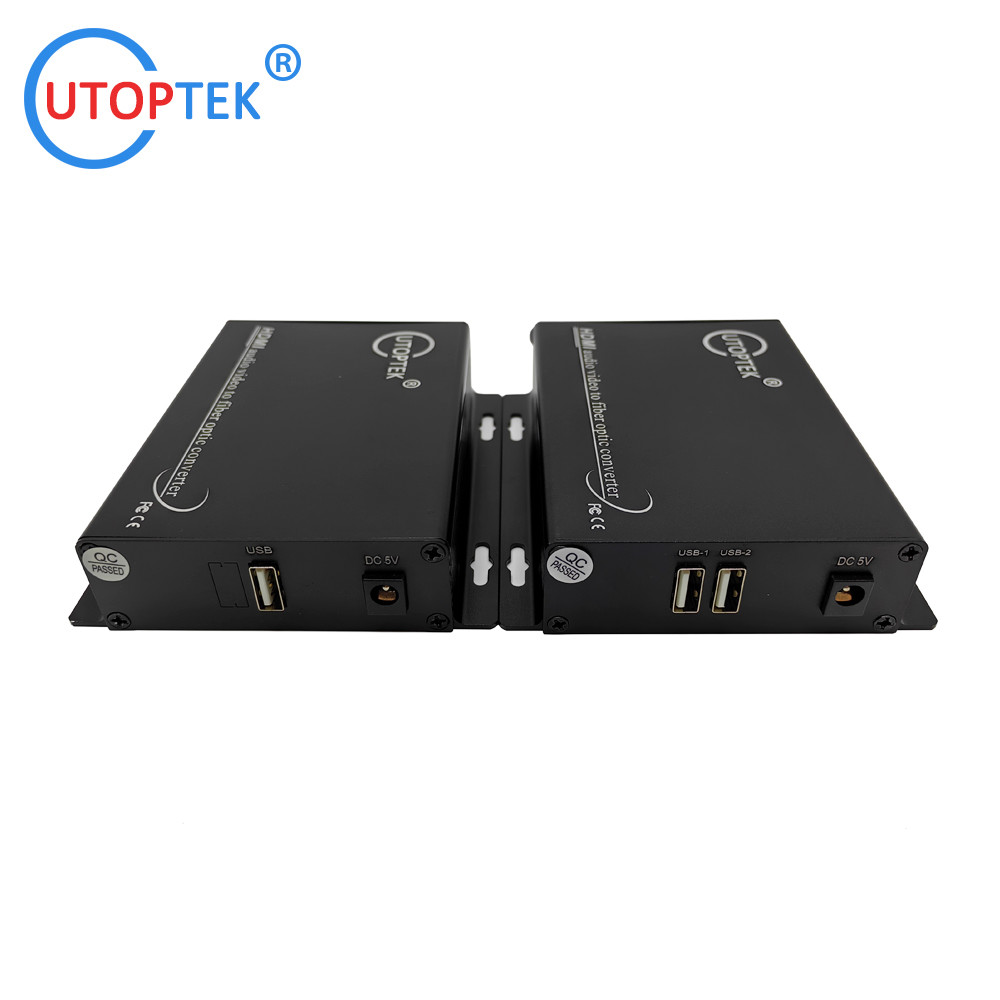

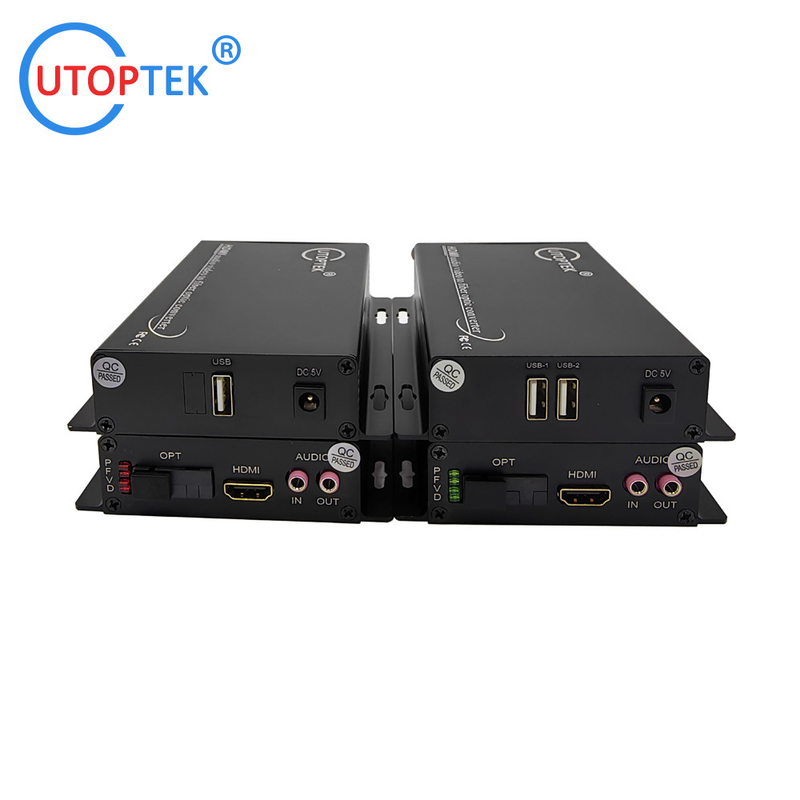

Products show:

1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km video fiber transmitter receiver 0

Connection topology:

1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km video fiber transmitter receiver 4

Order Models:

1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km video fiber transmitter receiver 5

1Channel 1080P HDMI Video+Audio+USB KVM over fiber optical extender Single Fiber 20km video fiber transmitter receiver
