Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized

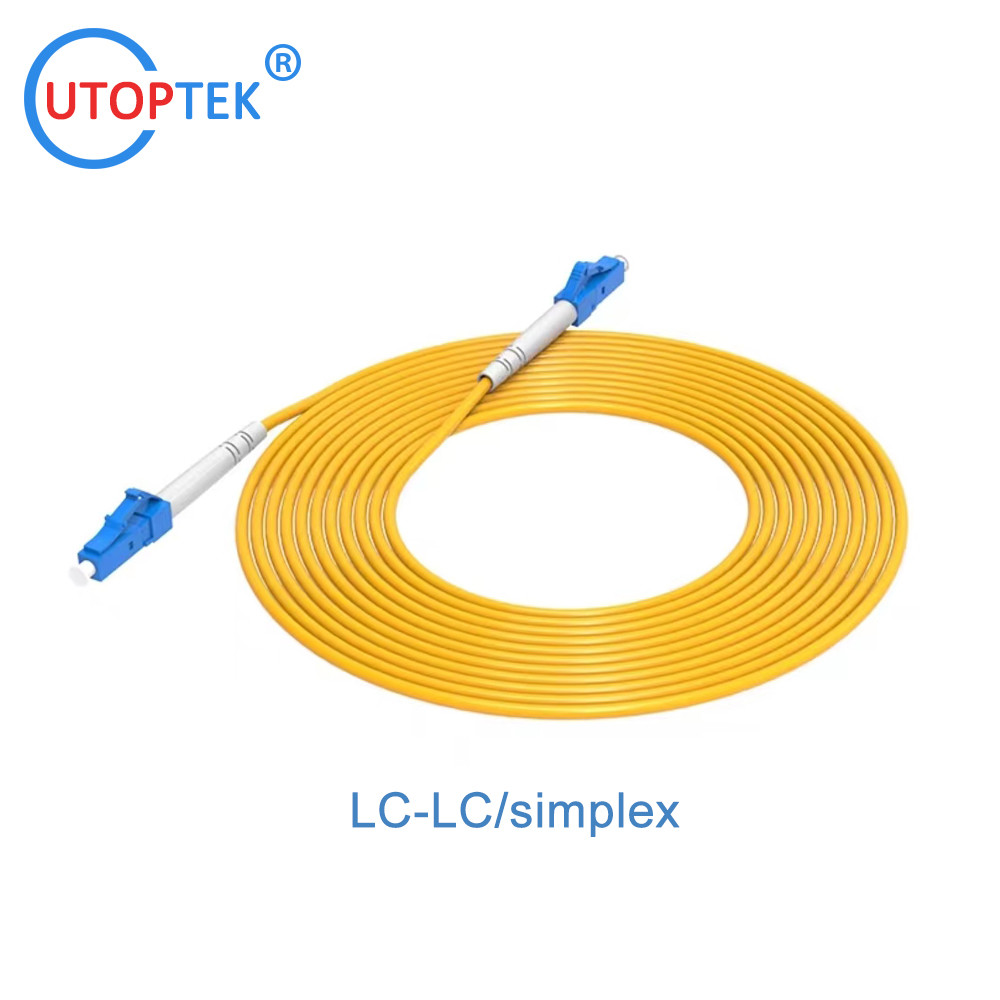

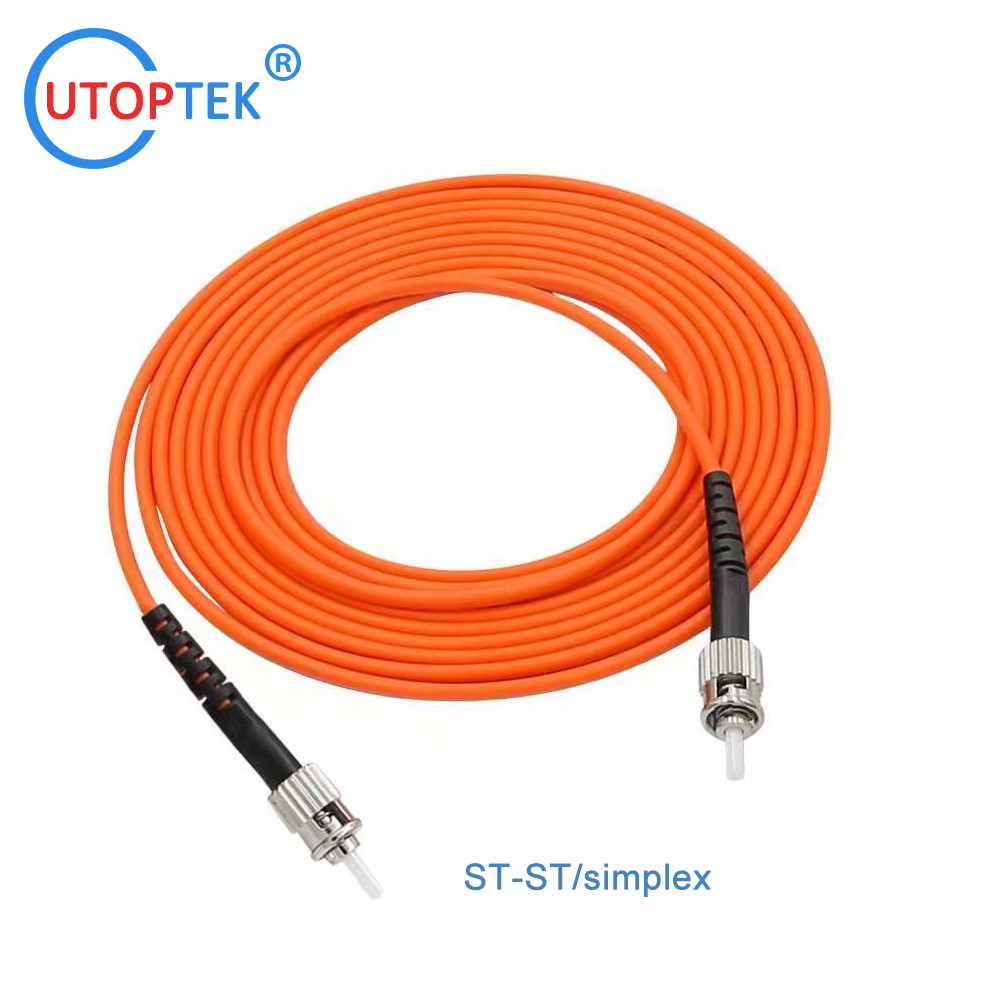

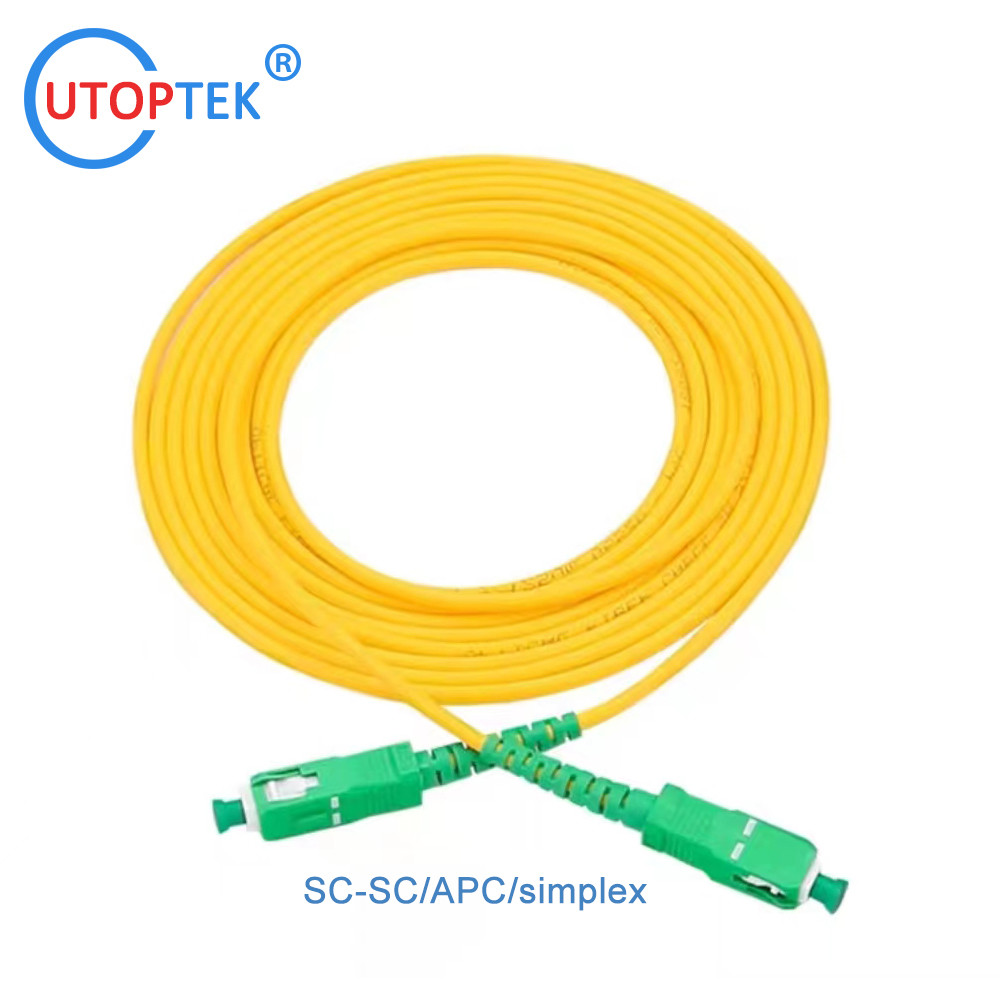

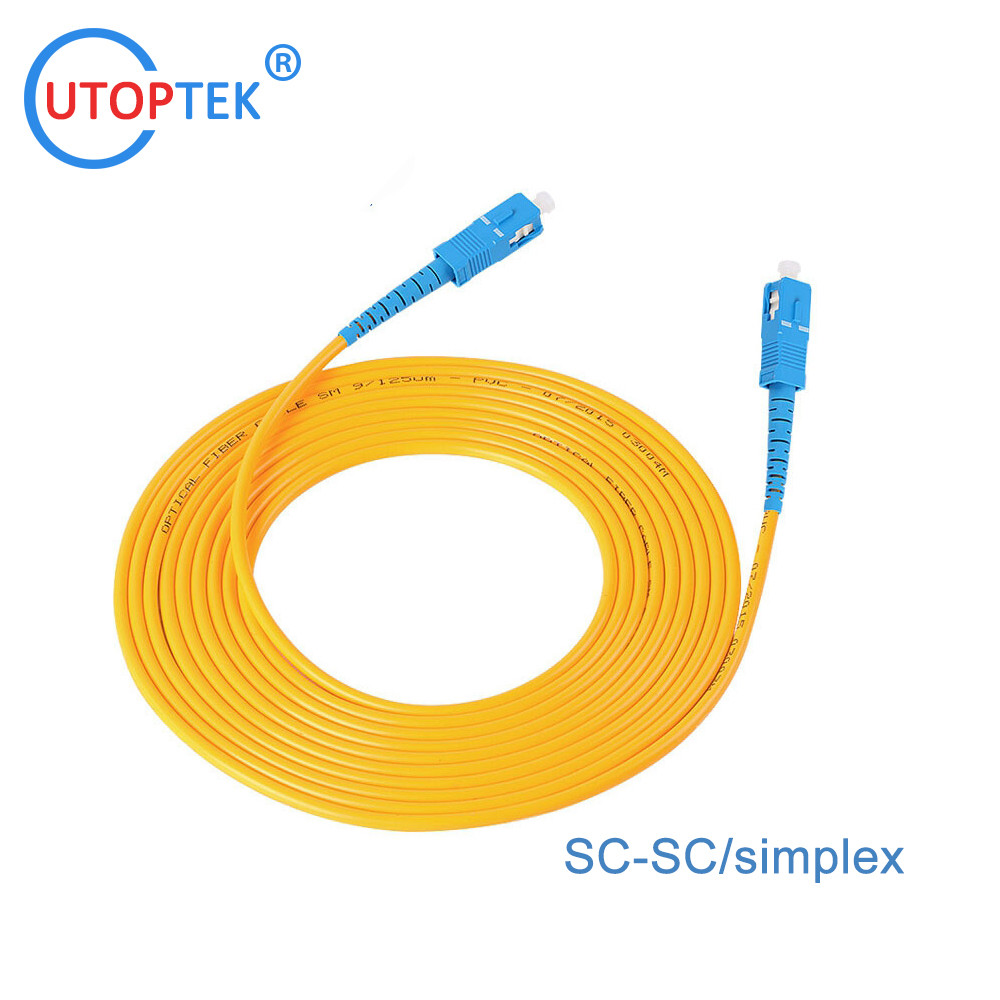

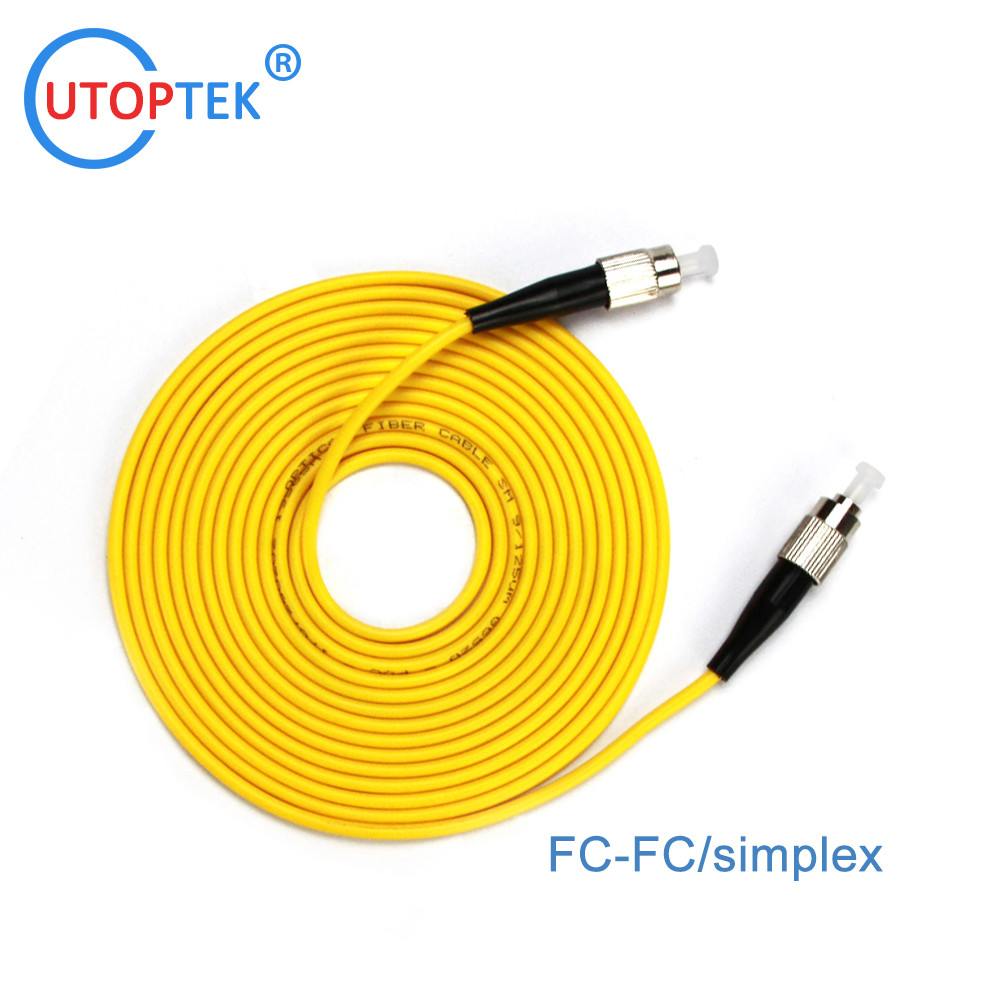

Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized
Contact Now

Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized

Minimum Order Quantity : 2 Packaging Details : 1pc to one bag
Delivery Time : 3-5working days Payment Terms : L/C, T/T, Western Union,Paypal,Alipay
Supply Ability : 1000K per month
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: SC-SC/SM-DX-3.0-XM

Detail Information
Fiber Connector: SC/FC/ST/LC Optional Cable Diameter: 0.9/2.0/3.0mm Optional
Sheath Material: PVC/LSZH Ferrule Type: Upc Or APC Optional
Cable Type: Om1/Om2/Om3, SMF Or Mmf Cable Length: 1m, 2m, 5m, 10m, 20m Or Customized
Fiber Core: Simplex/Duplex Optional Fiber Type: G652D/G657A1/G657A2
Working Temp.: -20~70°c Package: Bag Packing(1PCS)

Product Description

SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized



Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized 0

1. Features

  • High dense spaces
  • Ceramic ferrules connectors
  • Low insertion loss,high return loss
  • Half the size of standard connector
  • Excellent mechanical endurance
  • High credibility and stability
  • Good in repeatability and exchangeability
  • 100% Insertion,Return Loss, End face and Interference inspection


2. Applications

  • Telecommunication
  • CATV,FTTH,LAN
  • Fiber optic sensors
  • Optical transmission system
  • Test equipment

3. Technical sheet:

Parameter FC,SC,LC ST,MU MTRJ
SM MM SM MM SM MM
UPC APC UPC UPC UPC UPC UPC
Operating Wavelength(nm) 1310, 1550 850, 1300 1310, 1550 850, 1300 1310, 1550 850, 1300
Insertion Loss(dB) ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss(dB) ≥50 ≥60 ≥35 ≥50 ≥35 ≥50 ≥35
Repeatability(dB) ≤0.1
Interchangeability(dB) ≤0.2
Plug times(times) ≥1000
Tensil Strength(N) ≥100
Durability(dB) ≤0.2
Operating temperature(ºC) -45~+75
Storage temperature(ºC) -45~+85


4. Package:

Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized 1

5. Product pictures:

Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized 2Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized 3Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized 4Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized 5Simplex SC/FC/ST/LC fiber patch cord 0.9/2.0/3.0mm UPC/APC LSZH1m/2m/3m/5m/10m/50m patch cord cable customized 6
