MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length
MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length
Contact Now

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length

Minimum Order Quantity : 2 Packaging Details : 1pc to one bag
Delivery Time : 1-3working days Payment Terms : L/C, T/T, Western Union,Paypal,Alipay
Supply Ability : 1000K per month
Place of Origin: China Brand Name: UTOPTEK
Certification: CE FCC RoHs Model Number: MPO/M/UPC-MPO/M/UPC-12B-OM4-3.0-LSZH

Detail Information
Fiber Connector: MPO/MTP Female Or Male Optional Cable Diameter: 2.0/3.0mm Optional
Sheath Material: PVC/LSZH Ferrule Type: UPC
Cable Type: Om3/OM4, MMF Cable Length: 1m, 2m, 5m, 10m, 20m Or Customized
Fiber Mode: Multi Mode Fiber Type: 50/125; 62.5/125; OM3-150/300, OM4
Working Temp.: -20~70°c Package: Bag Packing(1PCS)

Product Description

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length



MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length 0MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length 1

1. Features

  • High dense spaces
  • Ceramic ferrules connectors
  • Low insertion loss,high return loss
  • Half the size of standard connector
  • Excellent mechanical endurance
  • High credibility and stability
  • Good in repeatability and exchangeability
  • 100% Insertion,Return Loss, End face and Interference inspection


2. Applications

  • Telecommunication
  • CATV,FTTH,LAN
  • Fiber optic sensors
  • Optical transmission system
  • Test equipment

3. Technical sheet:

Parameter FC,SC,LC ST,MU MTRJ
SM MM SM MM SM MM
UPC APC UPC UPC UPC UPC UPC
Operating Wavelength(nm) 1310, 1550 850, 1300 1310, 1550 850, 1300 1310, 1550 850, 1300
Insertion Loss(dB) ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss(dB) ≥50 ≥60 ≥35 ≥50 ≥35 ≥50 ≥35
Repeatability(dB) ≤0.1
Interchangeability(dB) ≤0.2
Plug times(times) ≥1000
Tensil Strength(N) ≥100
Durability(dB) ≤0.2
Operating temperature(ºC) -45~+75
Storage temperature(ºC) -45~+85

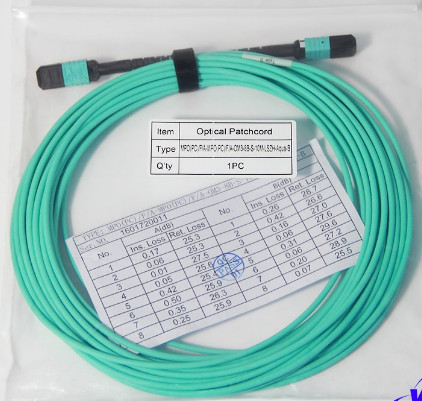

4. Package:

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length 2

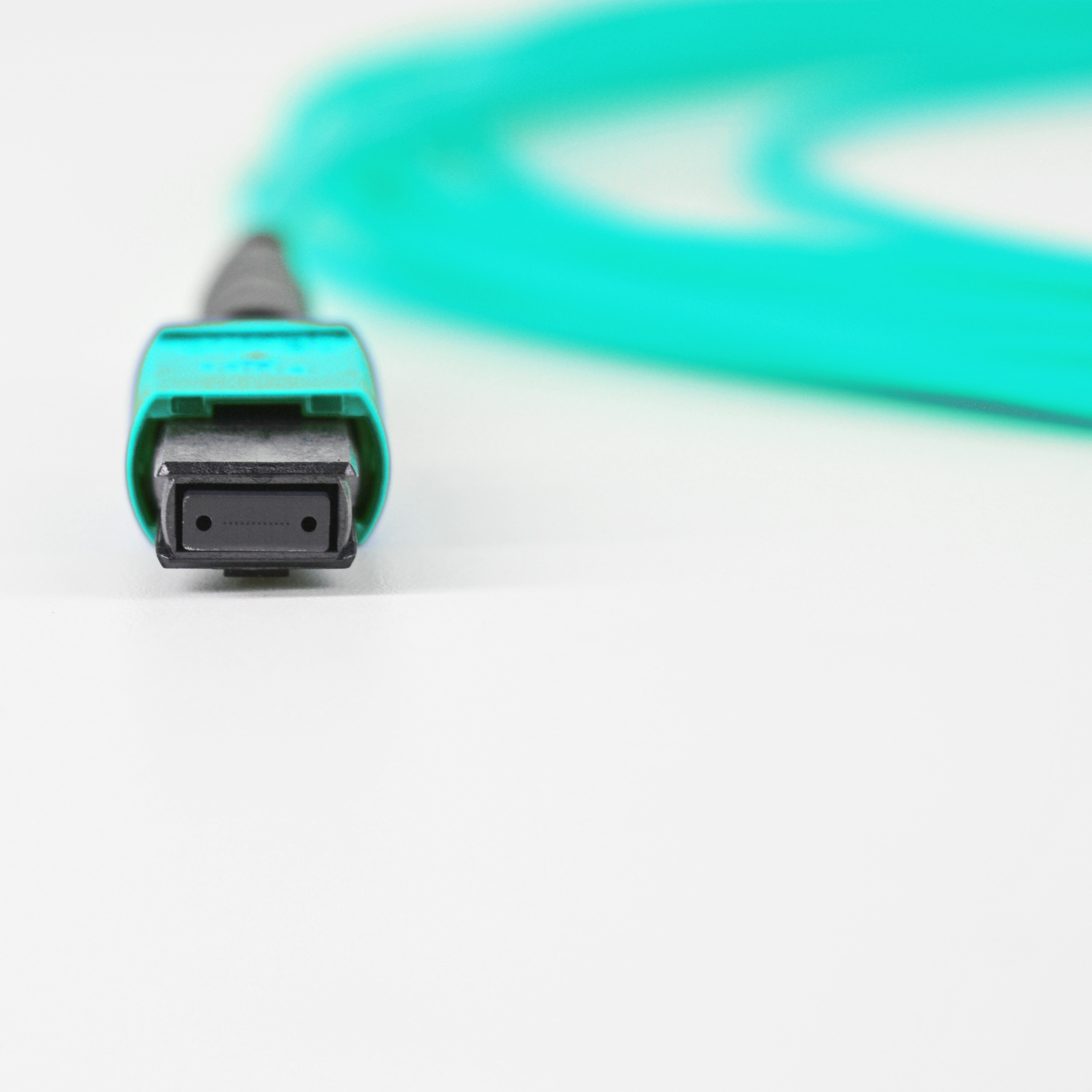

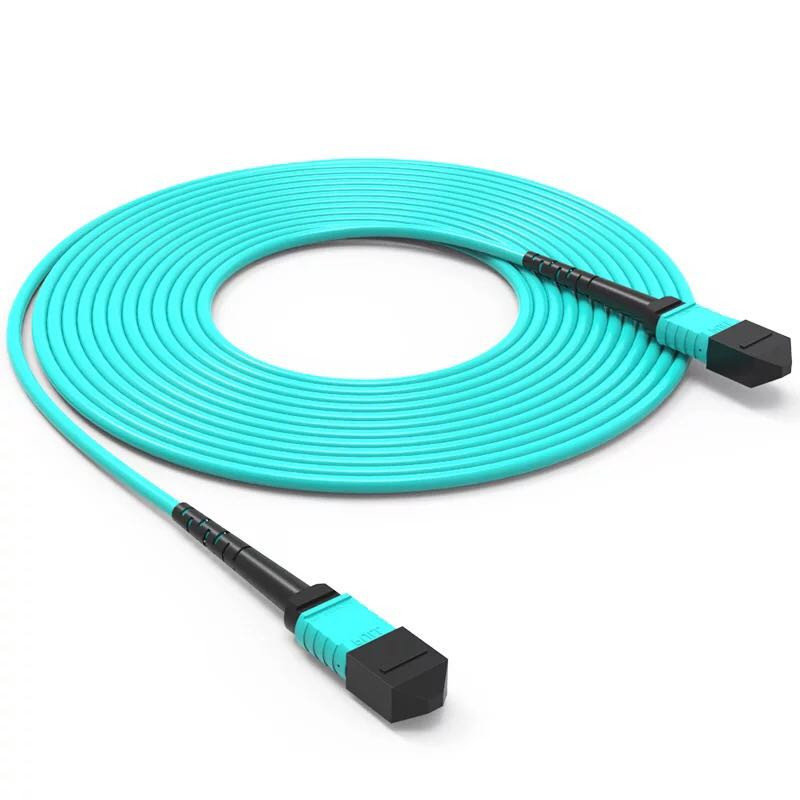

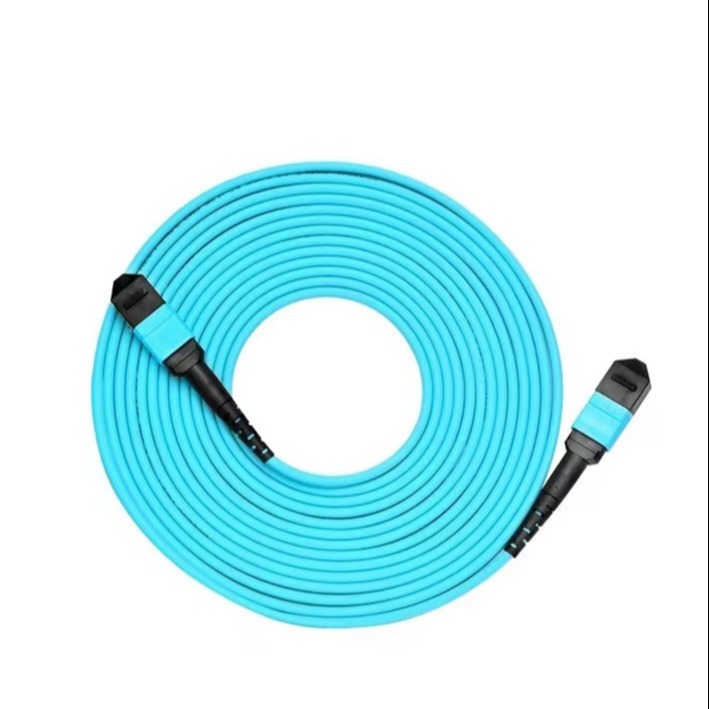

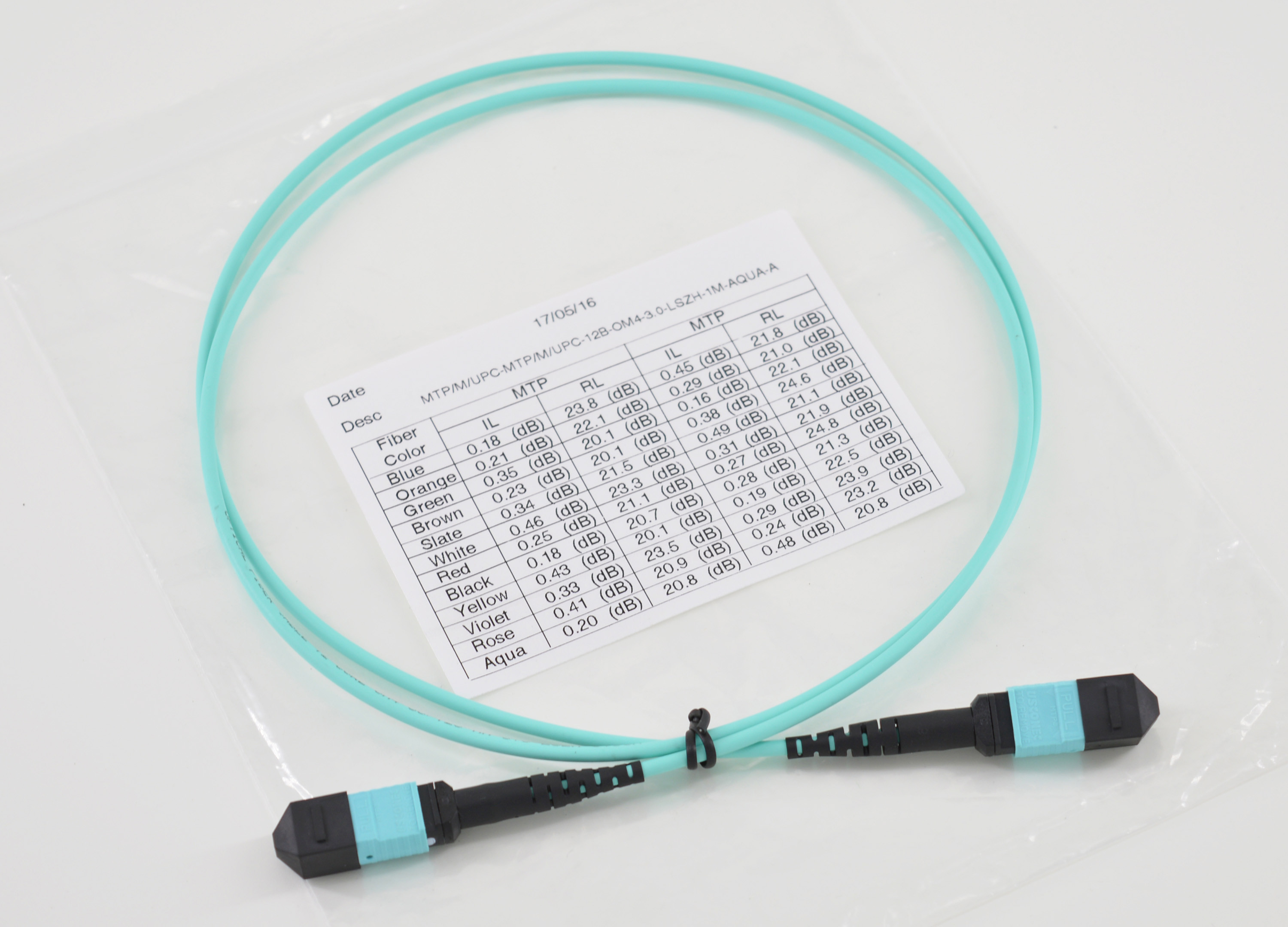

5. Product pictures:

MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length 3MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length 4MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length 1MPO/MTP to MPO/MTP male/female 12B LSZH OM4 patch cord cables customized length 6
