China Factory OEM 2.5GB SFP to RJ45 Fiber Media Converter with high quality best price

Name: China Factory OEM 2.5GB SFP to RJ45 Fiber Media Converter with high quality best price
Brand: UTOPTEK
SKU: UT-MC2.5G-SFP
Rating: 4.9 (180 reviews)

Minimum Order Quantity :	2pcs	Packaging Details :	40pcs/Carton, 574535CM, G.W.:16Kg
Delivery Time :	1-2 days	Payment Terms :	T/T, Western Union, Paypal, Alipay, Wechat etc.
Supply Ability :	5000pcs per week

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE FCC RoHs	Model Number:	UT-MC2.5G-SFP

Detail Information
Product Name:	2.5G Fiber Media Converter	Interface:	1 Fiber SFP+1 RJ45 Port
Fiber Type:	Depends On SFP	Fiber Connector:	LC
Power Input:	DC5~12V 2A	Speed:	100M/1000M/2.5G
Distance:	Depends On SFP	Wavelength:	Support All Wavelength
Warranty:	12months	Product Size:	95x70x25mm
N.W/G.W(kg):	0.2kg/0.38kg	Housing Material:	Iron
Operating Temperature:	0～+70°C	SFP Module Select:	2.5G SFP Module

Product Description

100M/1000M/2.5G RJ45 to 1G/2.5G Fiber SFP Media Converter DC12V

Order Models:

UT-MC2101-SX	Fiber Media Converter, 10/100Mbps 1Duplex SC -1LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm
UT-MC2101-S20	Fiber Media Converter, 10/100Mbps 1Duplex SC -1LAN SM 20km SC DC5V power supply, TRx:1310nm
UT-MC2101-S20A	Fiber Media Converter, 10/100Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
UT-MC2101-S20B	Fiber Media Converter, 10/100Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
UT-MC2101-SFP	10/100M media converter, 1RJ45+1SFP port, External DC5V power supply
UT-MC3101-SX	Fiber Media Converter, 10/100/1000Mbps 1Duplex SC -1LAN MM 550m SC DC5V power supply, TRx:1310nm or 850nm
UT-MC3101-S20	Fiber Media Converter, 10/100/1000Mbps 1Duplex SC -1LAN SM 20km SC DC5V power supply, TRx:1310nm
UT-MC3101-S20A	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, A:Tx1310nm/Rx1550nm
UT-MC3101-S20B	Fiber Media Converter, 10/100/1000Mbps 1Simplex SC -1LAN SM 20km SC DC5V power supply, B:Tx1550nm/Rx1310nm
UT-MC3101-SFP	10/100/1000M media converter, 1RJ45+1SFP port, External DC5V power supply
UT-MC1G-2SFP	10/100/1000M SM to MM media converter, 2*SFP port, External DC5V power supply
UT-MC1G-2SC	10/100/1000M SM to MM media converter, SM duplex SC 1310nmkm to MM duplex SC 850nm 550m, External DC5V power supply
UT-RACK-14-2U	19'' 2U 14slot Rack mount Chassis , for Standalone media converters,with dual power supply
UT-MC2.5G-SFP	2.5G media converter, 1RJ45+12.5G SFP port, External DC5~12V power supply
UT-MC10G-SFP	10G media converter, 1RJ45+1SFP port, External DC12V power supply
UT-MC10G-2SFP+	10G OEO converter, 2*SFP+ port, External DC12V power supply

Overview:

The UT-MC2.5G-SFP is a 2.5G optical fiber transceiver is a kind of photoelectric converter switching between Ethernet electrical signals and photoelectric signals. Users can choose different models of optical modules according to their needs, which can realize the seamless connection between the optical signals of 100M / 1000M / 2.5 G Ethernet and electrical signals.It not only extends the transmission distance, but also has the advantages of isolation protection, good data confidentiality, stable work, easy operation and maintenance.

Technical sheet:

Part No.	UT-MC2.5G-SFP
Fiber Port	1*2.5G/1000M SFP Slot(Via Dip switch)
RJ45 Port	1*100/1000/2.5G LAN
Standards	IEEE802.3 IEEE802.3i IEEE802.3u IEEE802.3x
Store and Forward	Support
backplane bandwidth	2G
MAC	8K
Warranty Time	1 year
Network	Wired LAN
UTP Port Transmission Distance	100BASE-TX :Cat5 or later UTP(≤100 meter) 1000BASE-TX :Cat6 or later UTP(≤100 meter) 2500 Base-TX: Cat6 or later UTP(≤30 meter)
default function	fiber speed 2.5G,utp speed 100M/1000M/2.5G auto-adaptive
DIP Switch	2.5G: fiber speed:2.5G, UTP speed:100M/1000M/2.5G auto-adaptive 1G: fiber speed:1000M, UTP speed:1000M,speed LED on.
Application	FTTH FTTx FTTB Network
Color	Black
Size	95mm70mm25mm(LWH)
Power supply	DC 12V/1A
Operating Temperature/Humidity	0~+70°C;5%~90% RH Non coagulation
Storage Temperature/Humidity	-40~+75°C;5%~95% RH Non coagulation
Warranty	1 Year
Certification	CE RoHS FCC

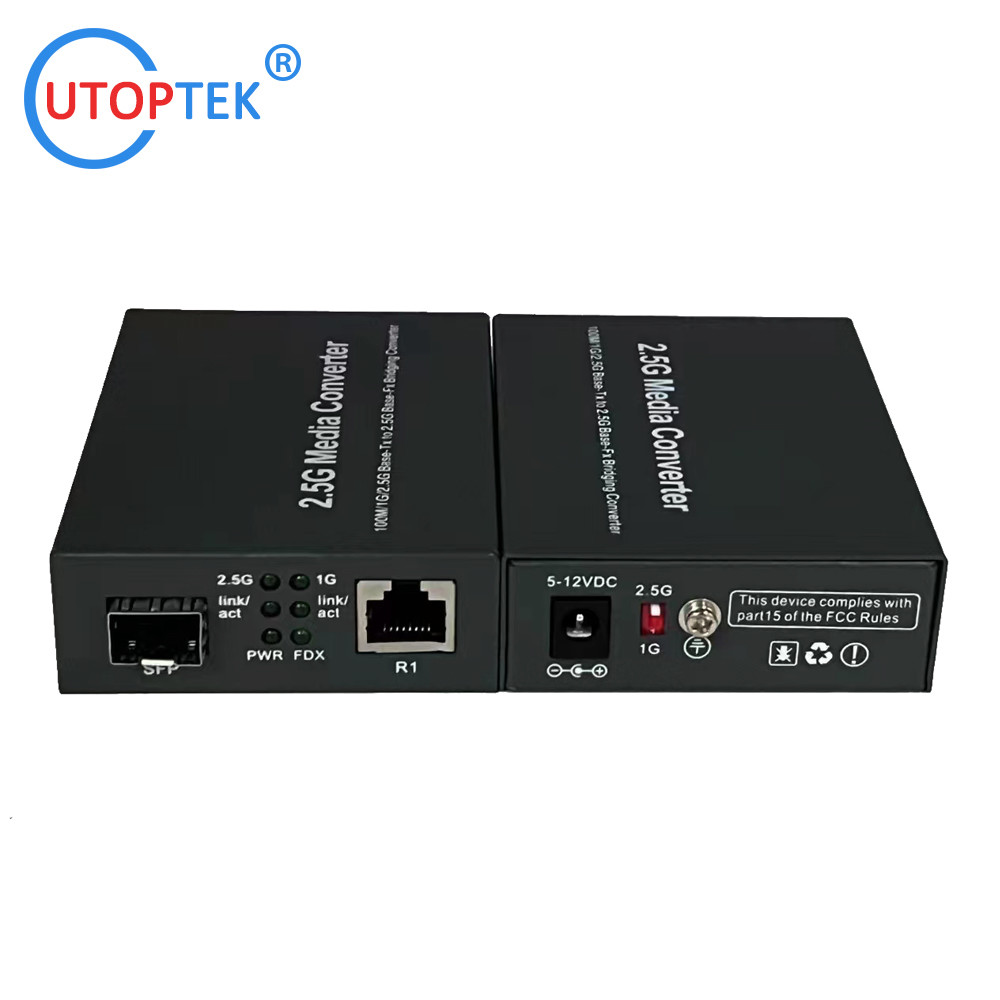

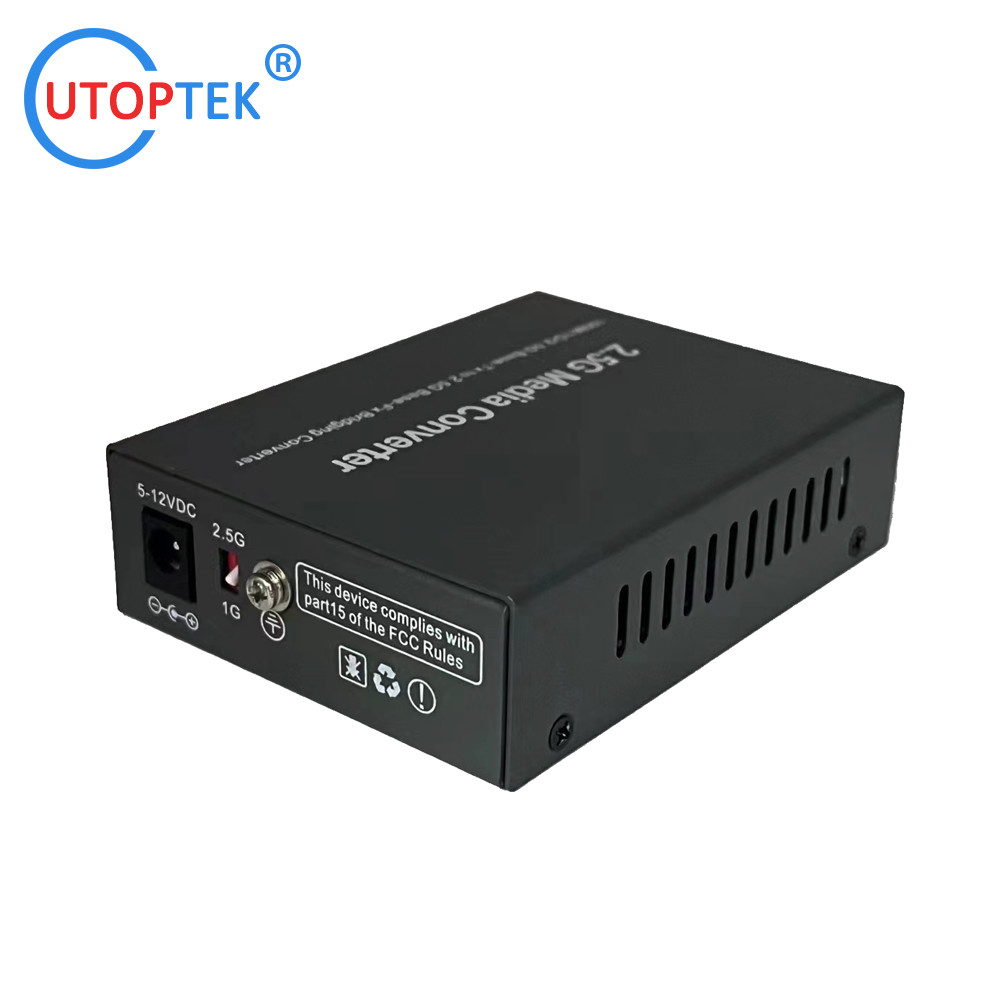

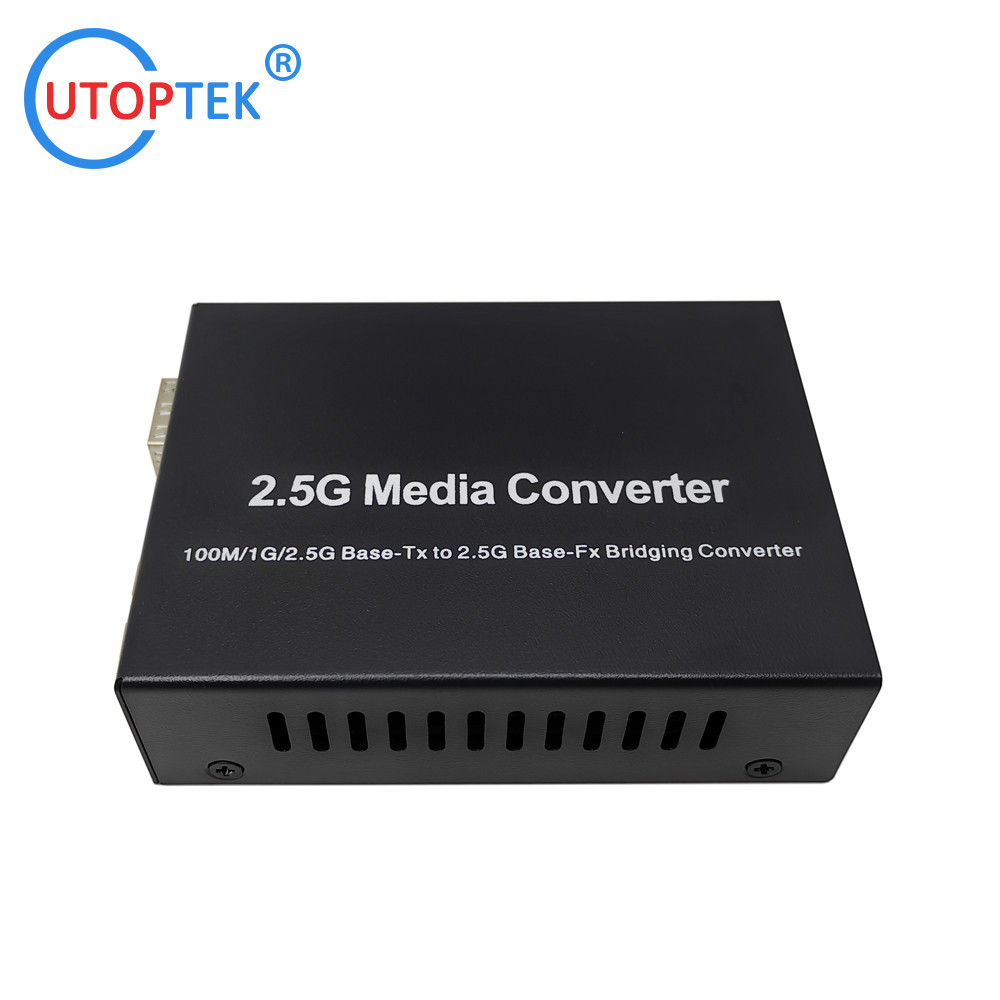

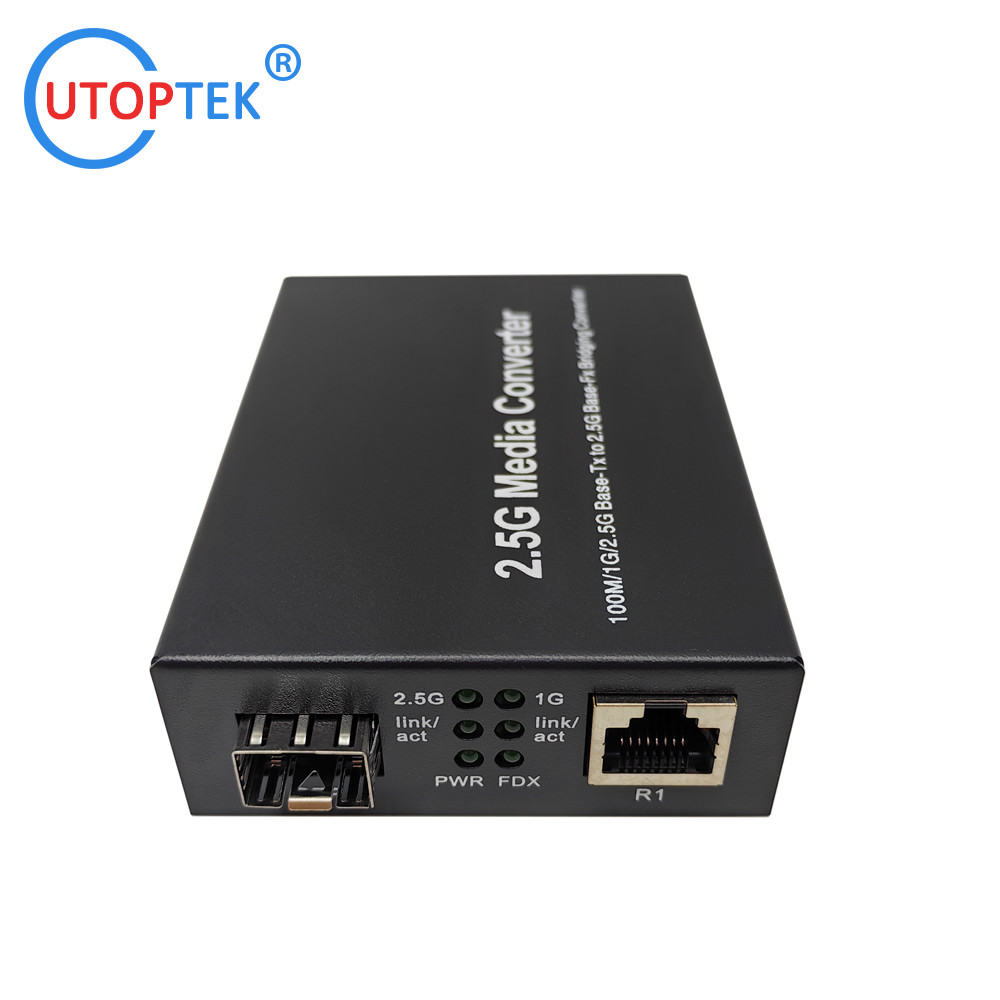

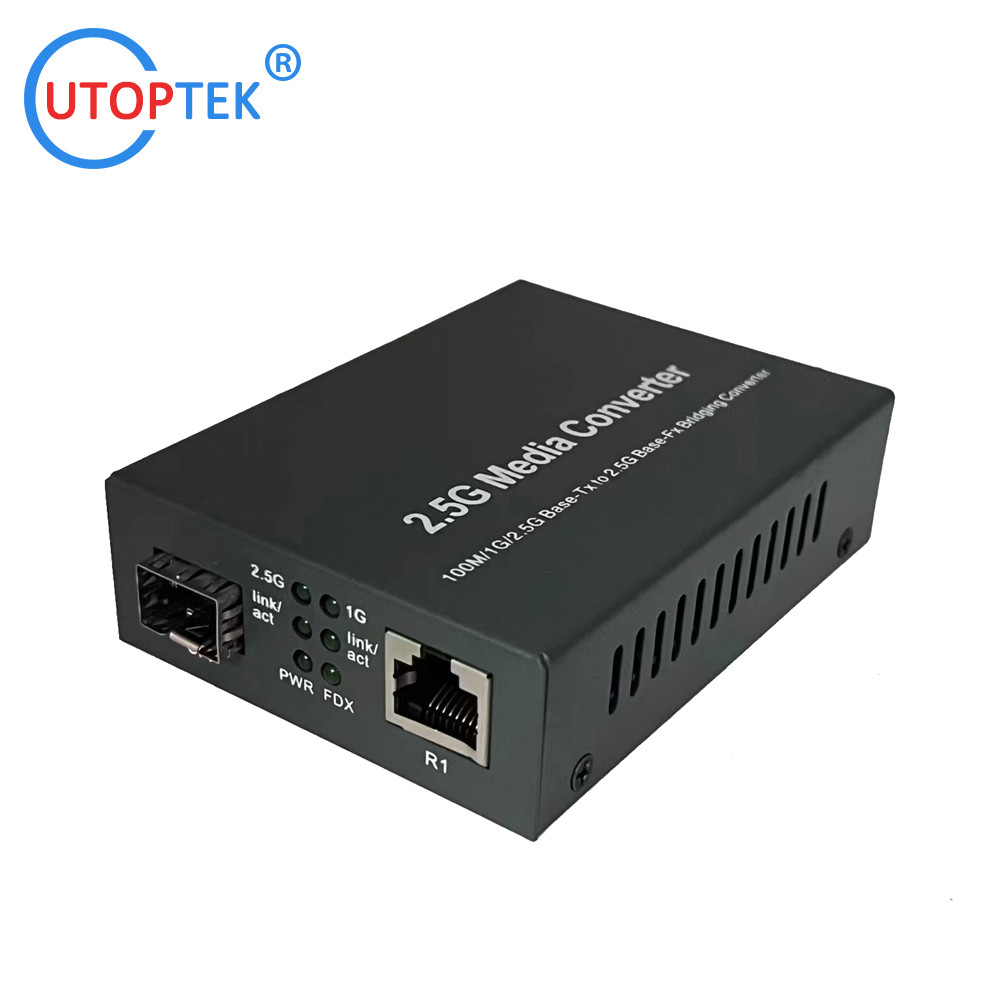

Products show:

China Factory OEM 2.5GB SFP to RJ45 Fiber Media Converter with high quality best price 5

Connection topology:

China Factory OEM 2.5GB SFP to RJ45 Fiber Media Converter with high quality best price 6
