10G SFP+ to SFP+ Passive Direct Attach Copper (DAC) Cables 0.5m-15m

Minimum Order Quantity :	2pcs	Packaging Details :	50pcs to one carton or as customized
Delivery Time :	1-2days

Place of Origin:	China	Brand Name:	UTOPTEK
Certification:	CE	Model Number:	SFP-10G-PCU1M

Detail Information
Product Name:	10G DAC Cable	Data Rate:	10gbps
Wire AWG:	AWG 30	Length:	0.5-15meters
Working Temp.:	0°C To 70°C (32 To 158°F)	Power Supply:	3.3v
Applications:	FTTH FTTB FTTX Network	Compatible:	Any Brand
Connector:	SFP+ To SFP+	Warranty:	3years

Product Description

10G SFP+Direct Attach Passive Copper Cables

SFP-10G-PCU1M (or xM)

Product Details:

Features
1. Support for multi-gigabit data rates up to 10.5Gbps
2. Data rates backward compatible to 1Gbps
3. Support for 1x, 2x, 4x and 8x Fibre Channel data rates
4. Hot-pluggable SFP 20PIN footprint
5. I/O Connector designed for high speed differential signal applications
6. Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
7. Low Power Consumption < 0.5W
8. Power Supply :+3.3V
9. Compatible to SFP+
10. Temperature Range: 0~ 70 °C
11. RoHS Compatible

Applications

10G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect

General Product Characteristics

SFP+ DAC Specifications
Number of Lanes	Tx & Rx
Channel Data Rate	10.3125 Gbps
Operating Temperature	0 to + 70°C
Storage Temperature	-40 to + 85°C
Supply Voltage	3.3 V nominal
Electrical Interface	20 pins edge connector
Management Interface	Serial, I2C

High Speed Characteristics

Parameter	Symbol	Min	Typ	Max	Units	Notes
Differential Impedance	Zd	90	100	110	Ω
Differential Input Return Loss	SDDXX	<-12+2* SQRT (f) with f in GHz			dB	0.01~4.1GHz
Differential Input Return Loss	SDDXX	<-6.3+13* Log10/(f/5.5) with f in GHz			dB	4.1~11.1GHz
Common Mode Output Return Loss	SCCXX	< -7+1.6*f with f in GHz			dB	0.01~2.5GHz
Common Mode Output Return Loss	SCCXX			-3	dB	2.5~11.1GHz
Difference Waveform Distortion Penalty	dWDPc			6.75	dB
VMA Loss	L			4.4	dB
VMA Loss to Crosstalk Ratio	VCR	32.5			dB

Mechanical Specifications

The connector is compatible with the SFF-8432 specification.

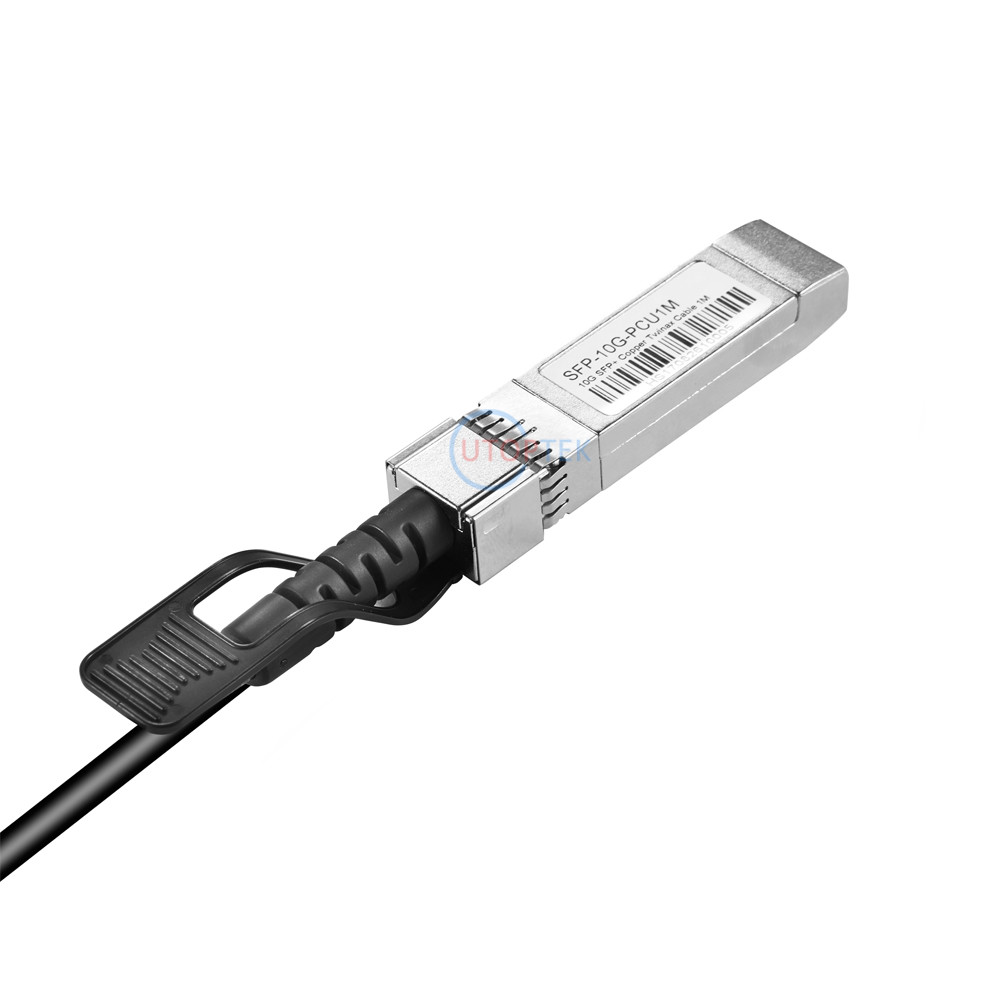

10G SFP+ to SFP+ Passive Direct Attach Copper (DAC) Cables 0.5m-15m 0

Product show:

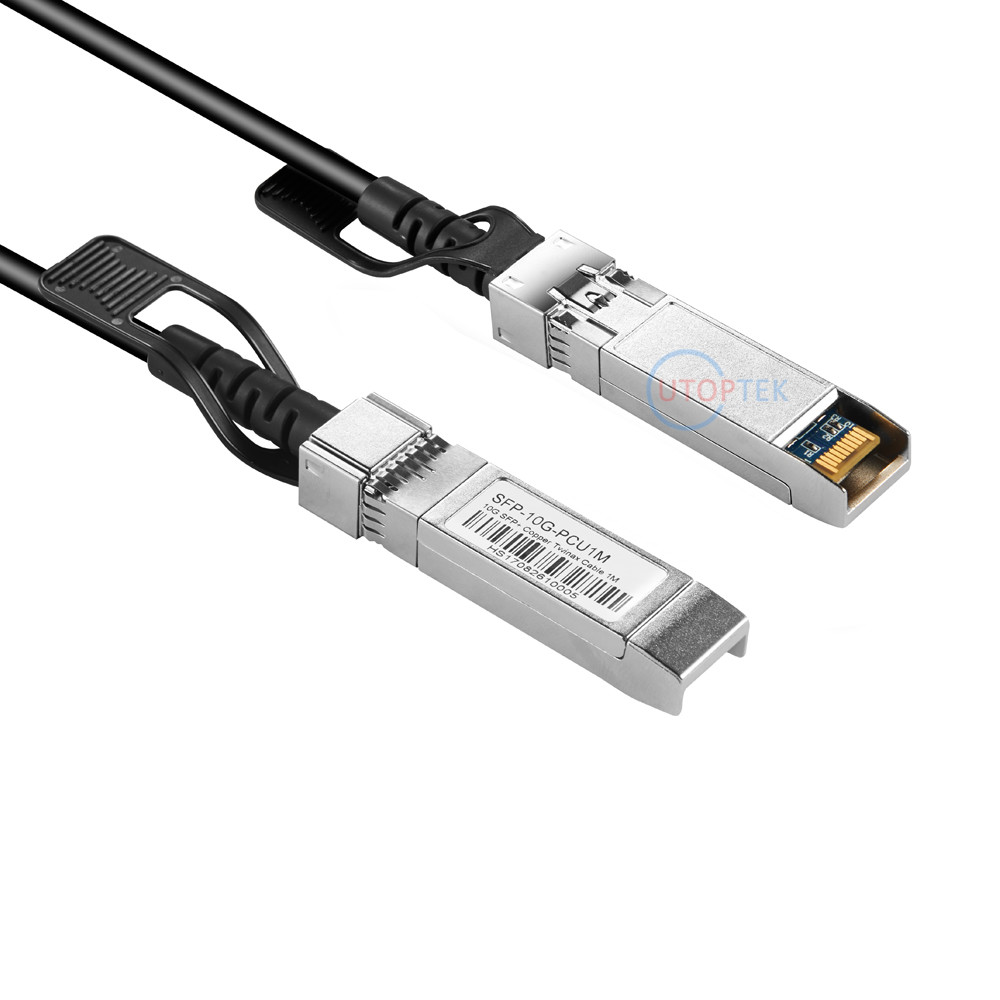

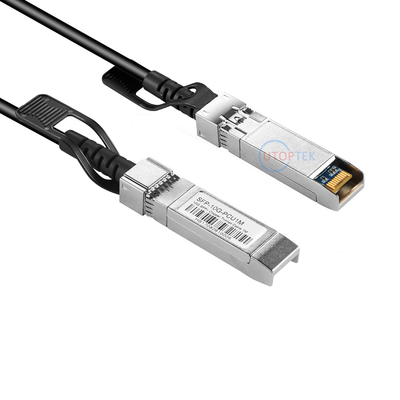

10G SFP+ to SFP+ Passive Direct Attach Copper (DAC) Cables 0.5m-15m 1

Testing Show:

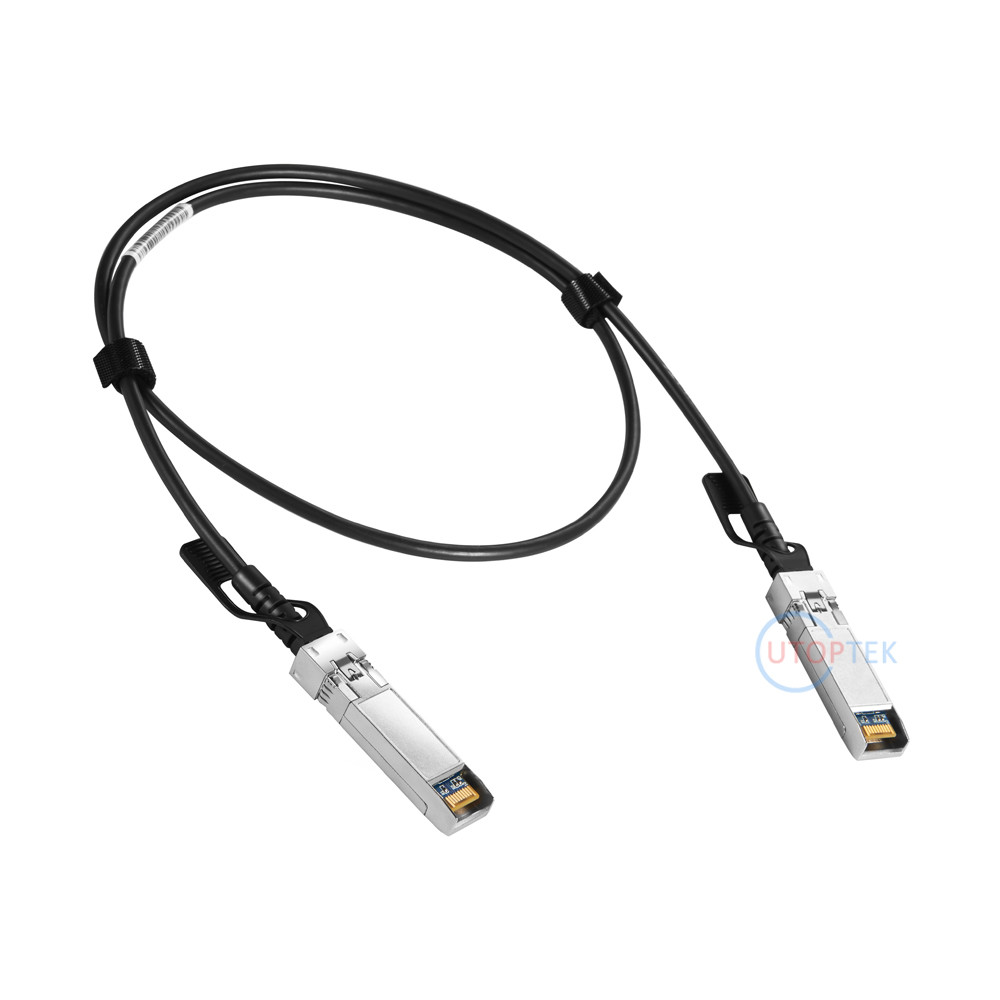

10G SFP+ to SFP+ Passive Direct Attach Copper (DAC) Cables 0.5m-15m 4

Ordering informations:

Length (m)	Cable AWG
1	30/28/24
2	30/28/24
3	30/28/24
4	24/26
5	24/26
6	24
7	24
10	24
15	24
