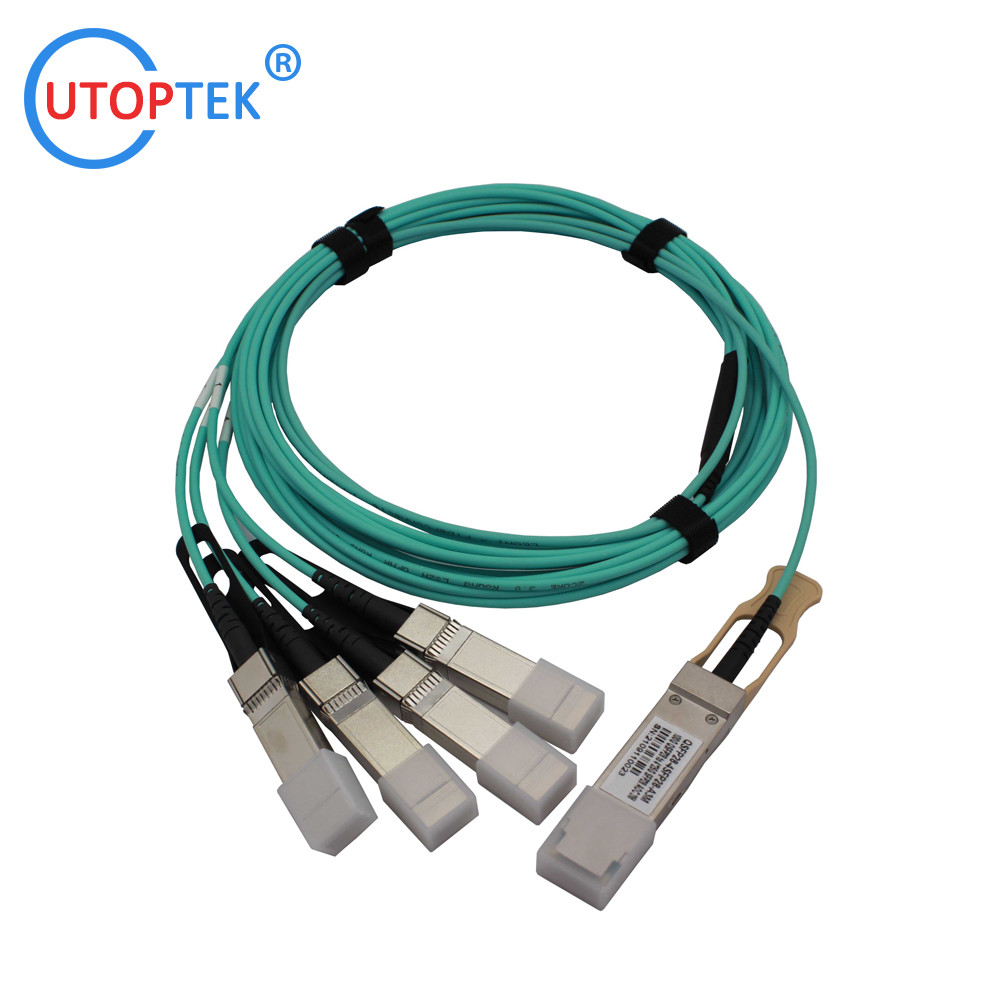

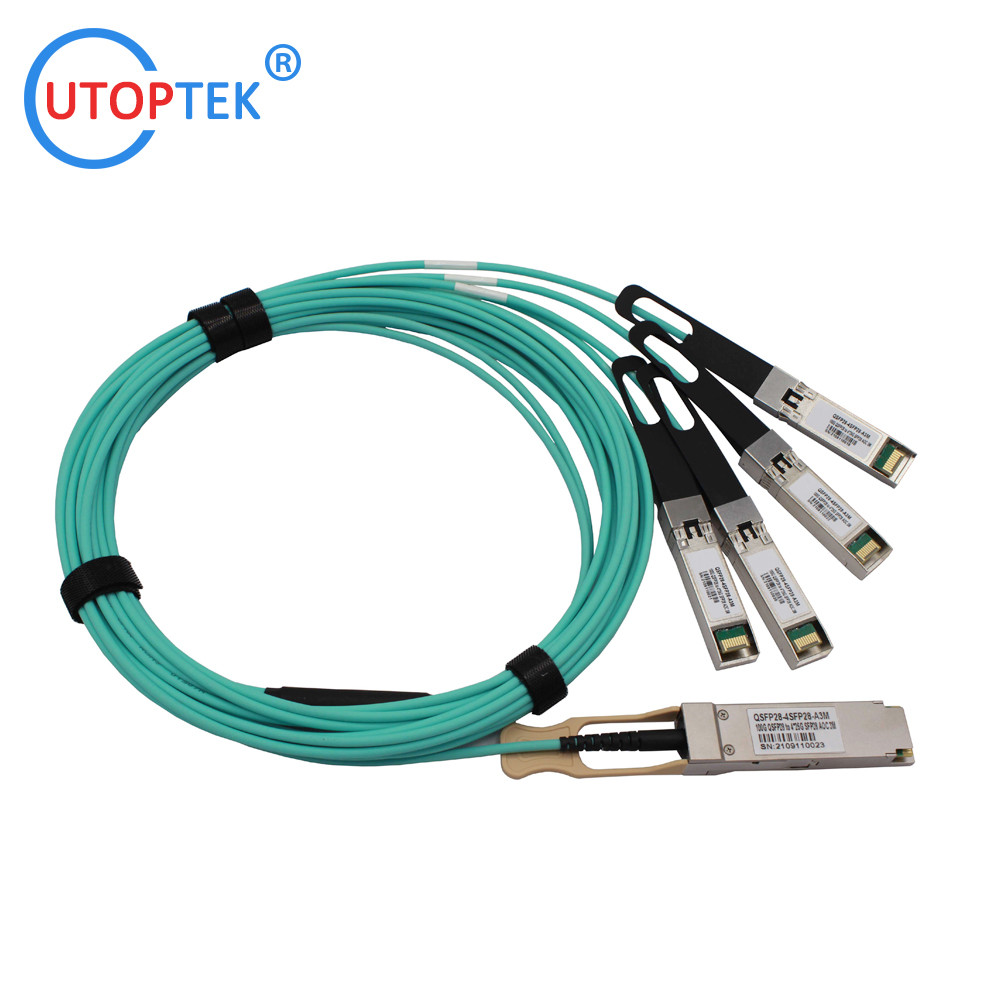

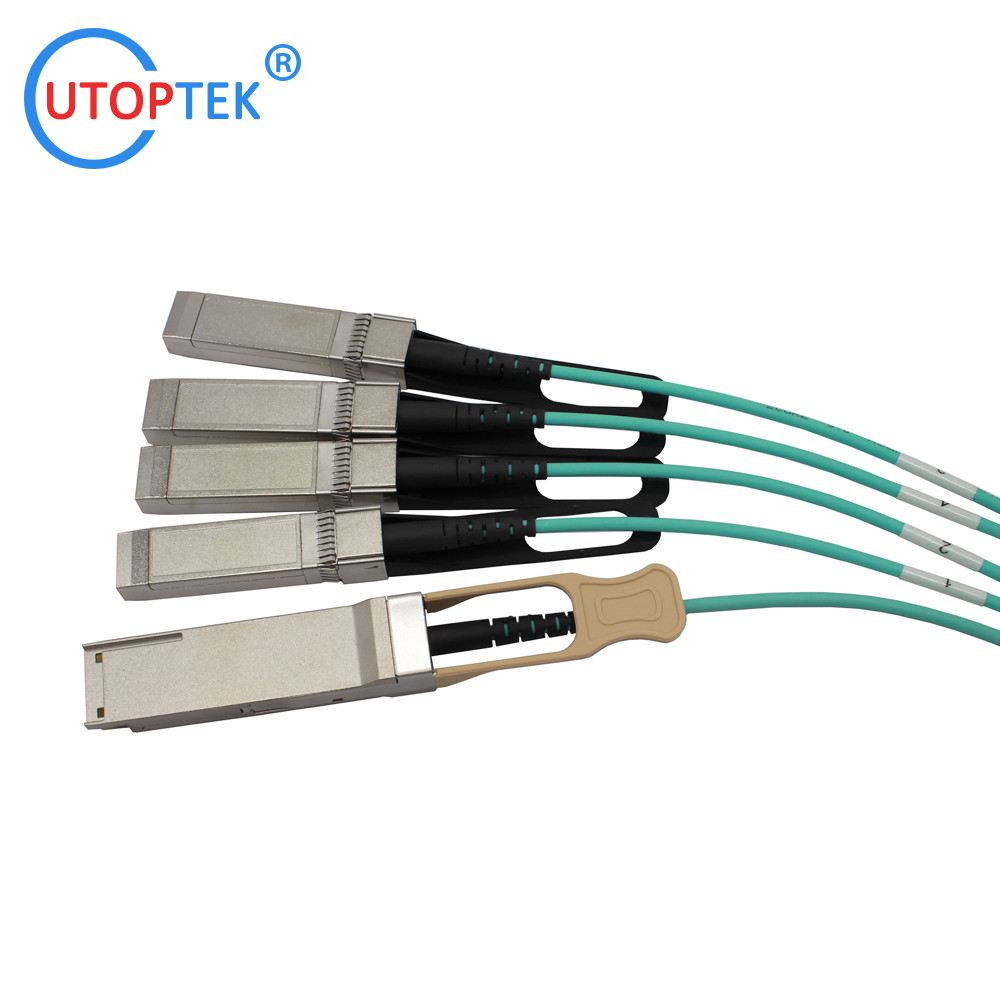

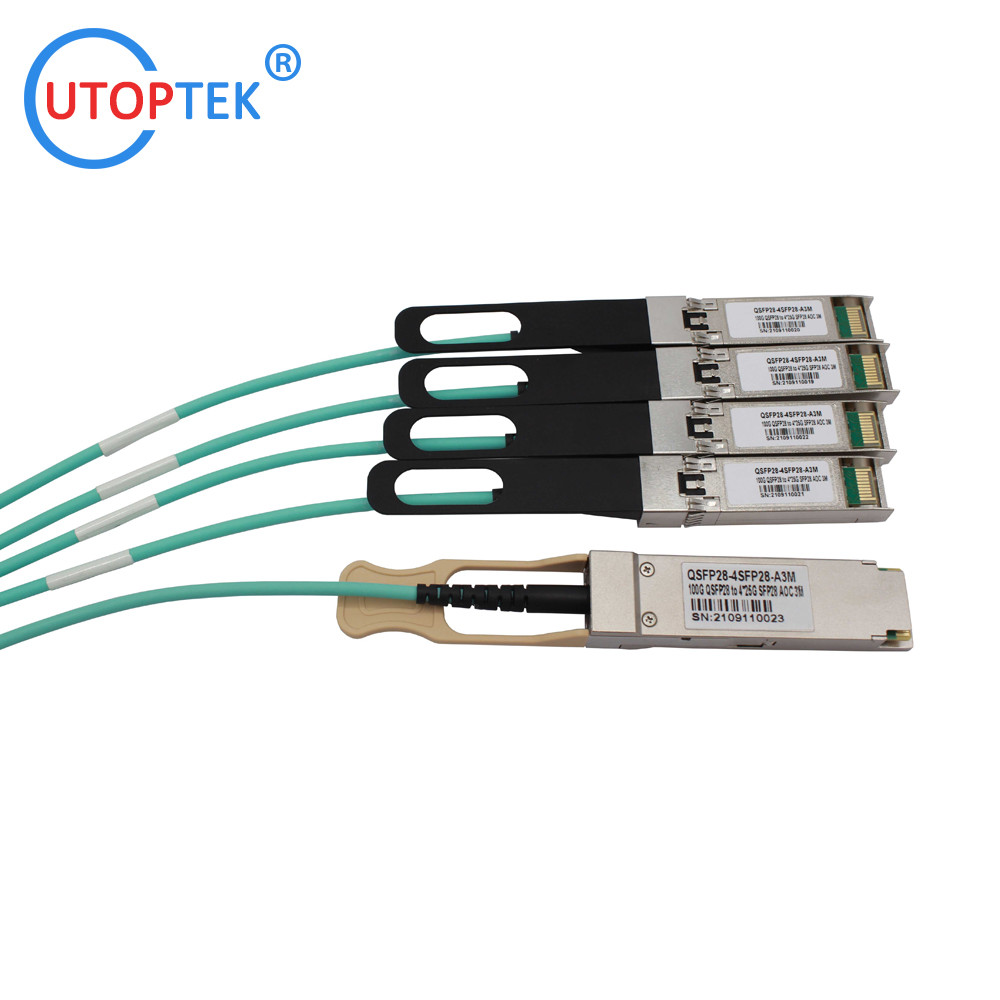

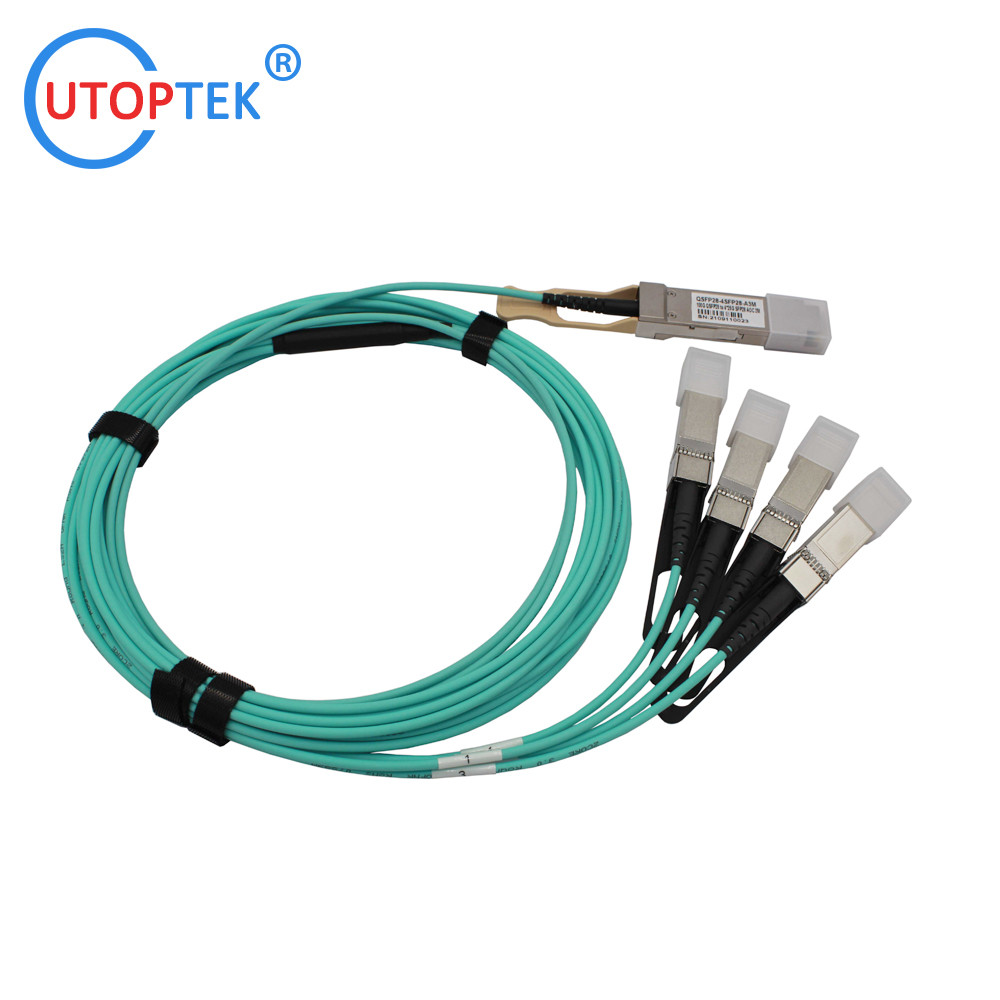

100G QSFP28 to 4x25G SFP28 AOC Cable OM3 1m/3m/5m/15m/50m/100m Customized for data center

Product Description

100G QSFP28 to 4x25G SFP28 AOC Cable OM3 1m/3m/5m/15m/50m/100m Customized for data center
QSFP28-4SFP28-A1M​  (or xM)


Product Details:

QSFP28-4SFP28-AxM series are active optical cables (AOC) that allows bi-directional 100Gbps to 25Gbps transmission suitable for high performance computing(HPC)clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

Features

•  Supports 100G to 25G Ethernet interoperability
•  Aggregate 4 discrete SFP28 25G channels into single parallel QSFP28 100G interface
• Maximum link length of 100m links on OM3 multimode fiber Or 150m links on OM4 multimode fiber
• Electrically hot-pluggable
• Electrical interface compliant to QSFP28 connector (SFF-8679&8436) and SFP28 connectors (SFF-8431&8432)
• Low profile connectors
• Low power consumption
• Bundle multi-mode fiber array
• 850nm VCSEL four array
• PIN diode four array
• Hot-Pluggable
• I2C management interface
• From 0 to 70 degree case temperature
• 3.3V power supply voltage
• Electrical 38-pin connector


Applications

• Network Switch Manufacturers supporting 100/25 G
• Server Manufacturers supporting 100/25 G
• Data Centers with 25G requirements with Aggregation Architectures

 Standard

• Compliant with IEEE 802.3ba-2010,Annex 86A for 100GBASE-SR4
• Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR
• Compliant with QSFP MSA(SFF-8436)
• Compliant with SFP MSA(SFF-8431)
• RoHS Compliant:lead-free

Package show:

Testing Show:

Ordering informations:
