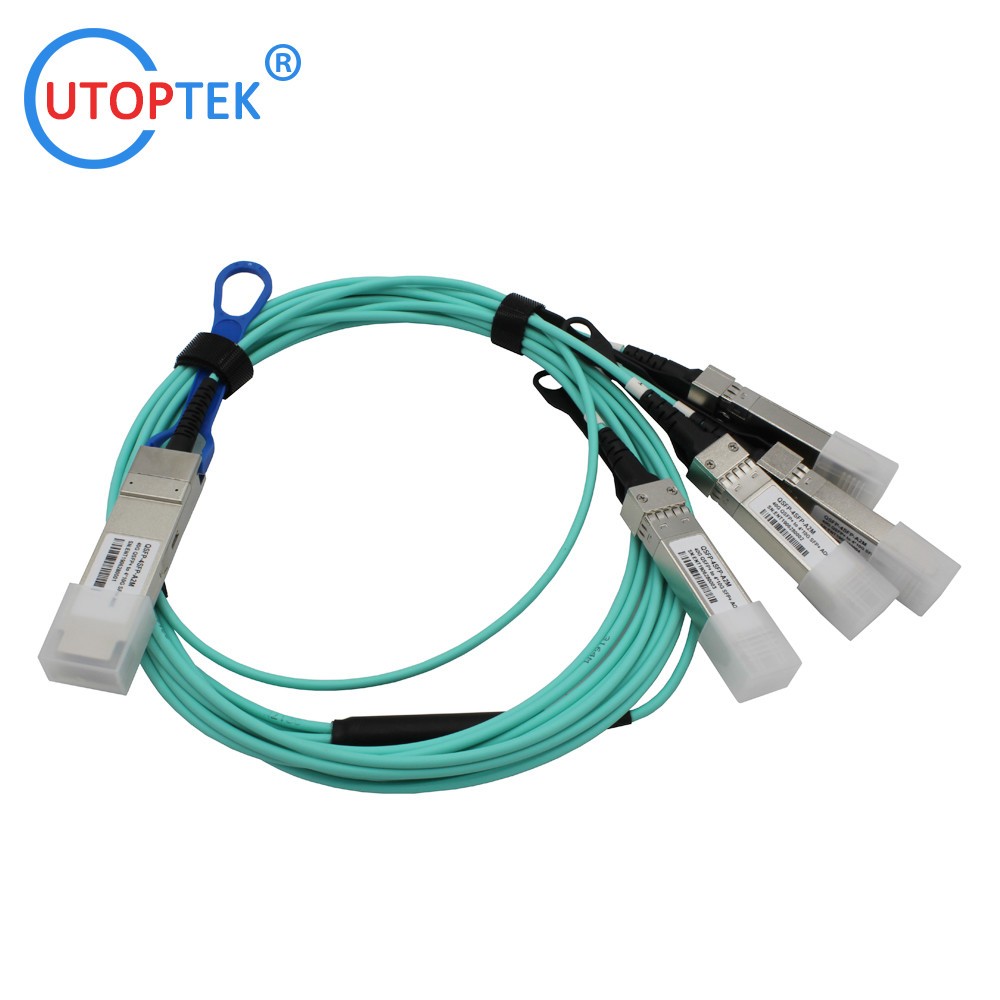

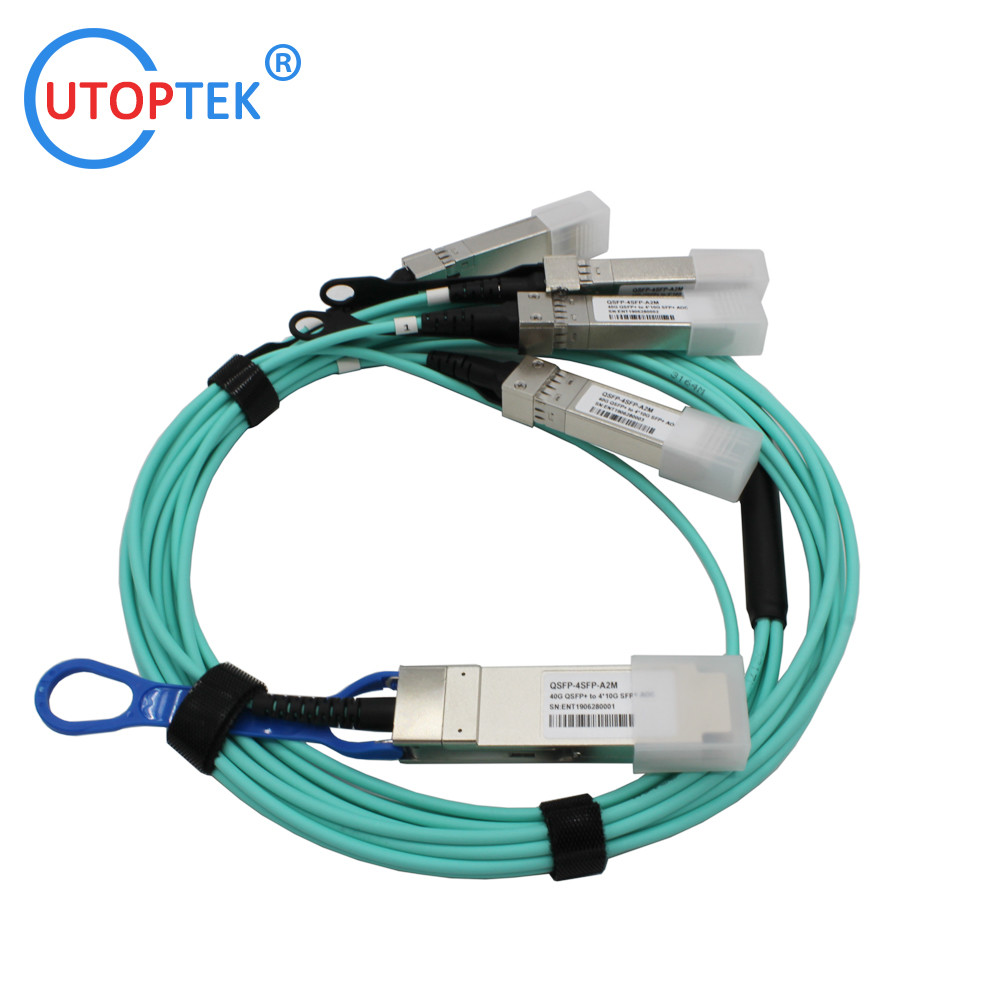

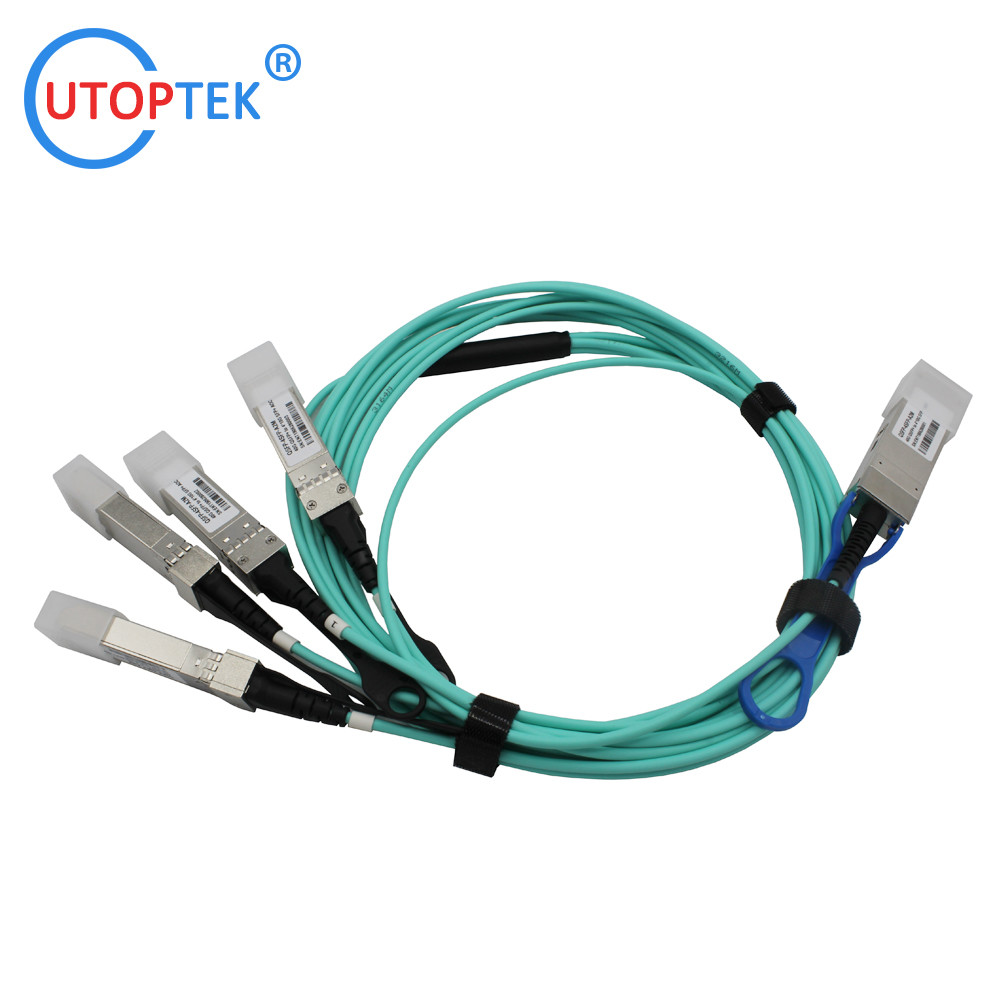

40G QSFP+ to 4x10G SFP+ AOC Cable OM3 1m/3m/5m/15m/50m/100m Customized 40G AOC Cables for Data Center

Product Description

40G QSFP+ to 4x10G SFP+ Active Optical Cable AOC Cable 1-100meters customized
QSFP-4SFP-A1M  (or xM)


Product Details:
Our this QSFP-4SFP-AxM series are active optical cables (AOC) that allows bi-directional 40Gbps to 10Gbps transmission suitable for high performance computing(HPC)clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

Features

• SFP+ to 4*SFP+ module
• QSFP+ Maximum Aggregate Data Rate 40Gbps
• 4*SFP+ Maximum Aggregate Data Rate 4*10Gbps
• QDR,DDR,SDR(Infiniband)
• Bi-directional pararell link
• 10Gb/s per lane,X4 channels
• Up to 100m
• Low profile connectors
• Low power consumption
• Bundle multi-mode fiber array
• 850nm VCSEL four array
• PIN diode four array
• Hot-Pluggable
• I2C management interface
• From 0 to 70 degree case temperature
• 3.3V power supply voltage
• Electrical 38-pin connector

• Applications

• Low-latency and high-speed interconnections for high performance computing(HPC)
• 40G Ethernet SR4
• Other high-throughput data transmission network
• Storage area Network(SAN)

• Standard

• Compliant with IEEE 802.3ba-2010,Annex 86A for 40GBASE-SR4
• Compliant with InfiniBand EDR,FDR,QDR,DDR,SDR
• Compliant with QSFP MSA(SFF-8436)
• Compliant with SFP MSA(SFF-8431)
• RoHS Compliant:lead-free

Package show:

Testing Show:

Ordering informations:
